head light problem
Thread Starter
7th Gear
Joined: Jun 2007
Posts: 7
Likes: 0
head light problem
as my name states my first vette 1975 bought in april 37th bday present!! head lights are up all the time. have vacuum at relay tee, holds vacuum in tank if i remove yellow hose from left relay and plug off relay and hose to tank... light works, same thing on right side... just dont work together. i have read todays forum on light problems! checked the links! thanks for the help so far. i'm stumped any ideas
Racer
Joined: Jan 2007
Posts: 325
Likes: 0
From: Ocala FL
as my name states my first vette 1975 bought in april 37th bday present!! head lights are up all the time. have vacuum at relay tee, holds vacuum in tank if i remove yellow hose from left relay and plug off relay and hose to tank... light works, same thing on right side... just dont work together. i have read todays forum on light problems! checked the links! thanks for the help so far. i'm stumped any ideas
then start looking for plugged filter in the control circuit (the small diameter vac lines)
then loose, broken, crimped or disconnected small diamter lines to the relays
Thread Starter
7th Gear
Joined: Jun 2007
Posts: 7
Likes: 0
nothing happens when removing small hose to relays "engine running head lights off in up position"
there is little vacuum at red hose going to actuator when light switch is off engine running no vacuum at either green hoses
there is little vacuum at red hose going to actuator when light switch is off engine running no vacuum at either green hoses
Race Director
Joined: May 2006
Posts: 16,528
Likes: 52
From: Dayton, Ohio
Hook all the hoses back up and try pinching off the yellow hose going to the right relay and see if the left side will operate by using the headlight switch.Then try pinching off the yellow hose on the left relay and see if the right will operate using the switch.If it does operate then the side that is pinched is the leaker.
Melting Slicks
Joined: Jul 2005
Posts: 2,740
Likes: 3
From: Aurora Ontario
If you have all the hoses connected properly and no leaks the problem is most likely the seal at the frnot of the actuator. Its commonly referred to as a "magicians hat" because of the shape. Ecklers has them for about $7. Search for actuator seal. Easy to replace.

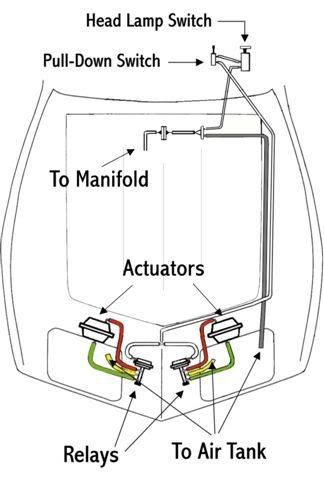

Its the red hose in the diagram that works this seal. Easy way to check. Engine off. disconnect the red hose at the actuator. Gently blow into it. Gently suck on the hose. The lights should go up and down. If its like blowing through a straw that front seal is gone.
You can try the same on the rear hose. Unfortunately if its like blowing or drawing air through a straw (no resistance) the actuator will need replacing. The rear seal is not servicable.
Jim
Thread Starter
7th Gear
Joined: Jun 2007
Posts: 7
Likes: 0
the actuators hold a vacuum at both red and green hoses.
i looped the yellow hoses at the tank and checked the vacuum at the littlehose before the tee.. that part of the system held vacuum. only thing left is the relays "right???" how to check and rebuild relays?
THANK YOU FOR YOUR HELP
still happier than a pig in sh** with my vette i,ll post a pic later
i looped the yellow hoses at the tank and checked the vacuum at the littlehose before the tee.. that part of the system held vacuum. only thing left is the relays "right???" how to check and rebuild relays?
THANK YOU FOR YOUR HELP
still happier than a pig in sh** with my vette i,ll post a pic later
