Steering coupler replacement
Thread Starter
Advanced
Joined: Aug 2007
Posts: 86
Likes: 0
From: san carlos CA
Steering coupler replacement
How do you take the coupler out, need to replace the old one, I have all the bolts out, but can not get the coupler out, not enough room between the steering box and steering column. Do I need to removed the steering box? or the steering columm can move toward the car a bit?
Melting Slicks
Joined: May 2007
Posts: 3,246
Likes: 4
From: Bay Area CA
Well, you got two chioces,, first, make sure your new coulping looks like this:
Not like this:
the second one is common junk and won't work correctly.
you got two choices,, remove the pitman arm end from the steering drag link and remove two of the three bolts holding the box to the frame and rotate the box slightly away from the column or
Pull the column slightly into the cabin.
This requires two people to do easily, not as easy as it sounds, but is do able, also.
To do this, remove the ingnition lock out cable from the steering column plate under the brake booster on the engine side if the fire wall.
Remove the two column plate retainer nuts in the pass compatrment fire wall above the pedals.
On the engine side of the fire wall, remove the round head bolt that goes through the steering column plate from the engine side.
Now rotate the plate CW on it's remaining through firewall stud untill it's clear of the column and remove it
Remove the two column hold up bolts from bottom of the dash, keeping in mind that the column will fall when you do this,, watch your head and neck.

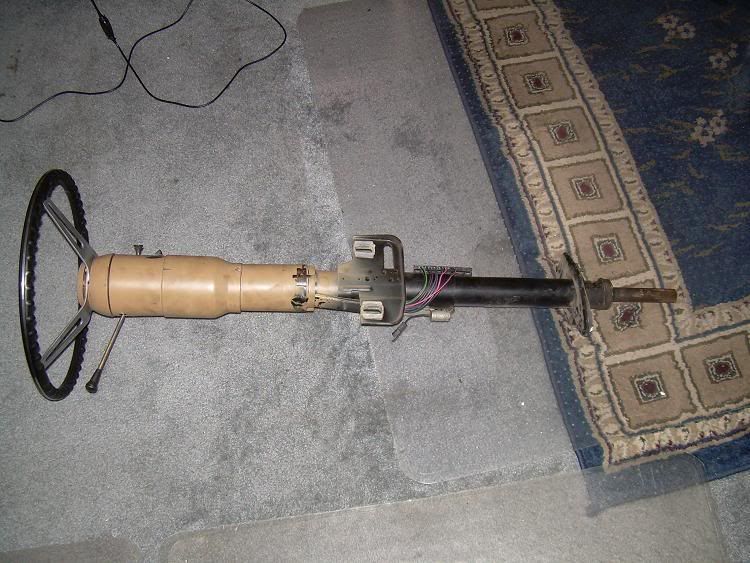

You can now widthdraw the column into the pass compartment.
that's on a '73,, an 80 should be similar if not exactly the same. good luck,, C.
Be carefull not to collapse the column AT ALL, as it can be very difficult to re-extend it.

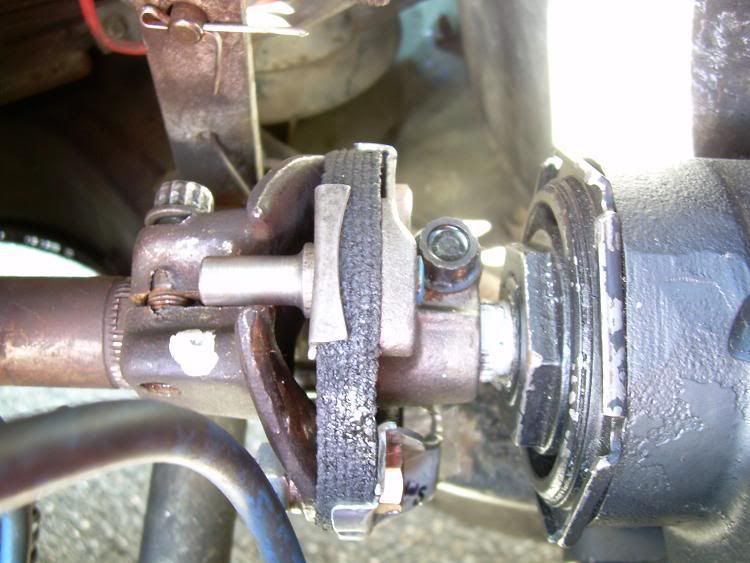

Correct install:
Not like this:
the second one is common junk and won't work correctly.
you got two choices,, remove the pitman arm end from the steering drag link and remove two of the three bolts holding the box to the frame and rotate the box slightly away from the column or
Pull the column slightly into the cabin.
This requires two people to do easily, not as easy as it sounds, but is do able, also.
To do this, remove the ingnition lock out cable from the steering column plate under the brake booster on the engine side if the fire wall.
Remove the two column plate retainer nuts in the pass compatrment fire wall above the pedals.
On the engine side of the fire wall, remove the round head bolt that goes through the steering column plate from the engine side.
Now rotate the plate CW on it's remaining through firewall stud untill it's clear of the column and remove it
Remove the two column hold up bolts from bottom of the dash, keeping in mind that the column will fall when you do this,, watch your head and neck.
You can now widthdraw the column into the pass compartment.
that's on a '73,, an 80 should be similar if not exactly the same. good luck,, C.
Be carefull not to collapse the column AT ALL, as it can be very difficult to re-extend it.
Correct install:
Last edited by RunningMan373; Oct 16, 2007 at 03:46 AM.
Le Mans Master
Joined: Jul 2000
Posts: 6,001
Likes: 113
From: Saginaw Michigan
Possibly a little more explanation as to a "good" flexible coupling versus a "bad' one would be helpful. First of all, I am not sure that even the first picture of a flex coupling is a correct one. I think that all C3 flex couplings had stop pins that were the same (the pin diameter should be 3/8 inch). The top picture appears to have unequal diameter stop pins.
Here is another picture of an incorrectly machined flex coupling.
The flange that attaches to the gear input shaft has a boss that is machined for a cross bolt. One side of the boss has threads machined into it. The other side has a clearance hole for the cross bolt. The inside of the flange is machined with splines and a flat. The flat should be located on the side with the cross bolt clearance hole. As you can see in the above picture, the flat is machined on the wrong side! This will cause your steering wheel to be upside down.
I wrote to several Corvette suppliers about this incorrectly machined part. Most never responded back to me. A few said that they would make their supplier aware of the problem. I just don't know if it has been corrected or not.
Jim
Here is another picture of an incorrectly machined flex coupling.
The flange that attaches to the gear input shaft has a boss that is machined for a cross bolt. One side of the boss has threads machined into it. The other side has a clearance hole for the cross bolt. The inside of the flange is machined with splines and a flat. The flat should be located on the side with the cross bolt clearance hole. As you can see in the above picture, the flat is machined on the wrong side! This will cause your steering wheel to be upside down.
I wrote to several Corvette suppliers about this incorrectly machined part. Most never responded back to me. A few said that they would make their supplier aware of the problem. I just don't know if it has been corrected or not.
Jim
Thread Starter
Advanced
Joined: Aug 2007
Posts: 86
Likes: 0
From: san carlos CA
Thanks
I guess I will take the steering box out and see if I can get it out without removing the header on Big Block. It is very close, not much room at all. A lot more work than I first thought. Thanks for the info.
Thread Starter
Advanced
Joined: Aug 2007
Posts: 86
Likes: 0
From: san carlos CA
steering coupler parts number
Can someone tell me which is the right part no. for a 68 ?
7818568 or 7806391.
I was told by the GM dealer that 7806391 is the right no. but i read from the forum that 7818568 is the right one, so which one is the correct one?
Thanks
7818568 or 7806391.
I was told by the GM dealer that 7806391 is the right no. but i read from the forum that 7818568 is the right one, so which one is the correct one?
Thanks
Pro
Joined: Aug 2000
Posts: 713
Likes: 1
From: plymouth mass
Le Mans Master
Joined: Jul 2000
Posts: 6,001
Likes: 113
From: Saginaw Michigan
If you can, place your steering wheel in the straight ahead position. Look under the hood at your connection of the flexible coupling to the steering gear. See if your steering gear input shaft has a flat as shown above. If your gear DOES NOT have a flat, you must use 7806391 flex coupling. If it does have a flat, 7818568 is the correct flex coupling for this gear.
Jim
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Le Mans Master
Joined: Jul 2000
Posts: 6,001
Likes: 113
From: Saginaw Michigan
I believe that the Saginaw manufactured OEM flexible couplings come with plastic alignment spacers that are fitted on the stop pins. During installation, the spacers help to align the steering column to the steering gear. After the column is aligned and tightened in place, the plastic spacers are pulled off and thrown away. That may be another way of determining that you have an original OEM part.
Jim
Jim
Thread Starter
Advanced
Joined: Aug 2007
Posts: 86
Likes: 0
From: san carlos CA
Thanks for all the help.
Ordered the part from GM dealer. let see what I will get. btw: the part is a lot more expensive than any one on the of the Corvette restore places.
Part is $99. from GM. Hope this is the right part.
Part is $99. from GM. Hope this is the right part.
Melting Slicks
Joined: May 2007
Posts: 3,246
Likes: 4
From: Bay Area CA
Duntov motors has some OEM parts too, I believe mine was $69. I wouldn't skimp here, the aftermarket parts are really bad in quality.
The GM oart is the same part,, 99 ain't bad,, The shop that installed the aftermarket junk charged me 168 for it. Once I saw the steering wheel was off 20°, that was when I changed in myself top a OEM unit.
http://www.duntovmotors.com/Steering.htm
The GM oart is the same part,, 99 ain't bad,, The shop that installed the aftermarket junk charged me 168 for it. Once I saw the steering wheel was off 20°, that was when I changed in myself top a OEM unit.
http://www.duntovmotors.com/Steering.htm
