1977 Fusebox

Can someone tell me the correct amps for the individual fuses. Or a pic would be great. THanks!

Jun 17, 2008 | 01:46 PM

bmotojoe

Safety Car

Joined: Oct 2007

Posts: 4,358

Likes: 1,724

From: Seattle Area Washington

Straight out of the 1977 Electrical Troubleshooting Manual

Sep 4, 2023 | 09:48 PM

Besc31977

1st Gear

Joined: Sep 2023

Posts: 1

Likes: 0

I’m sorry if I’m hijacking the thread, but can someone please tell me exactly what the name of the plug that goes into the BAT connector in the center of the fusebox? All I have are IGN and ACC. Thank you!

Sep 4, 2023 | 10:11 PM

Bikespace

Race Director

Joined: Mar 2017

Posts: 11,890

Likes: 4,470

From: Virginia

Quote:

Originally Posted by Besc31977

I think they are called fuse taps. You can buy a lifetime supply here:
https://americanautowire.com/product...s&_ss=e&_v=1.0

Welcome to the Forum! Please start a new thread to introduce us to your car.

Sep 4, 2023 | 10:47 PM

bmotojoe

Safety Car

Joined: Oct 2007

Posts: 4,358

Likes: 1,724

From: Seattle Area Washington

Hey Bike, those are ATO fuse taps...
Those are for the newer fuse boxes 79 on.

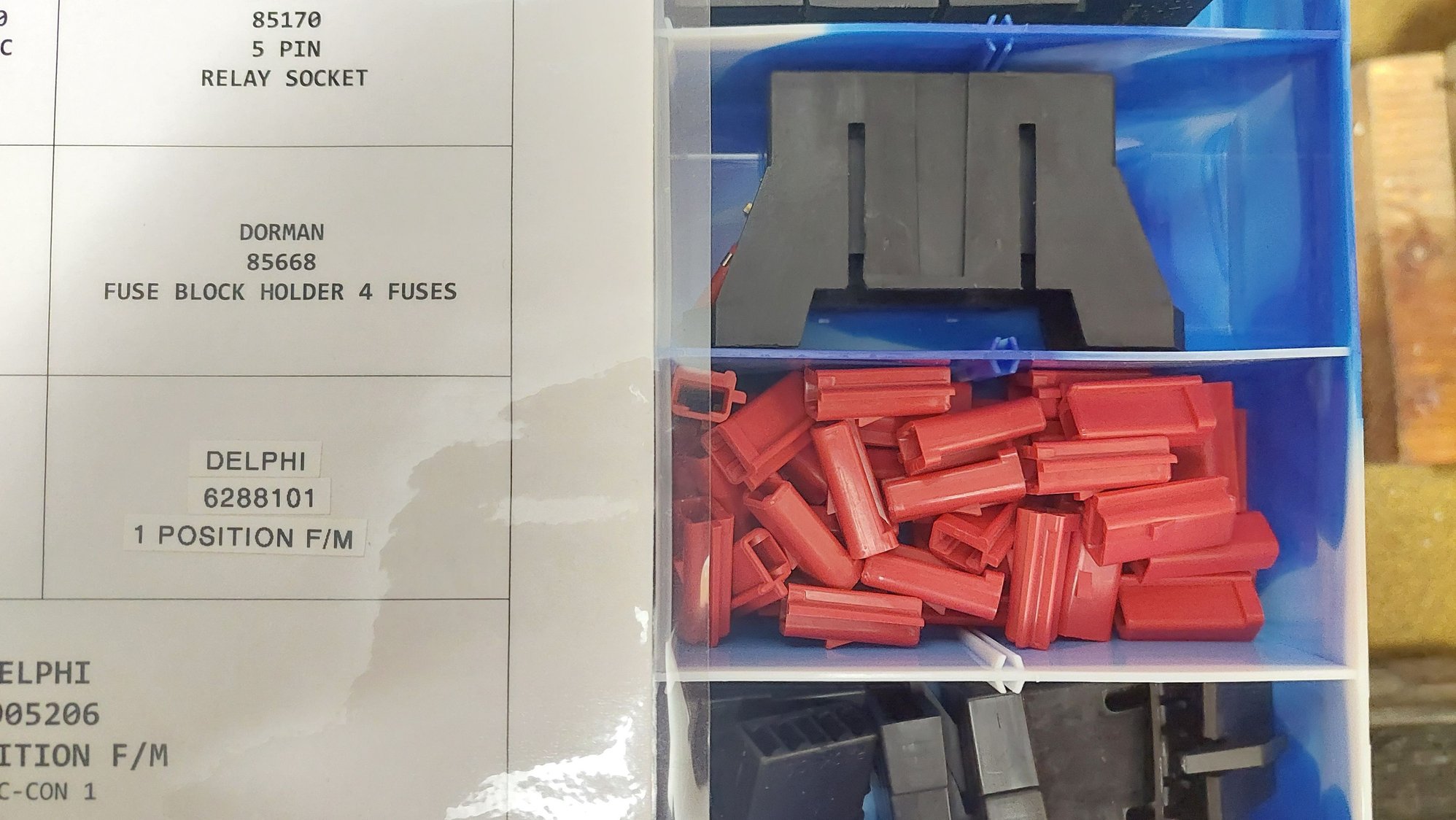

The only fuse tap for the glass style fuses I have found is for the ACCY socket Delphi #6288101
The BAT socket connector is Delphi #6288103, IGN connector is Delphi #6288105
The ACCY socket is also HOT at all times.
If you have Power Windows the ACCY will be used as it feeds the common contacts of the PW relay.
OP could use a standard 1/4" female crimp connector if needed, it will not lock into the cavity as good as the correct connector....
