Dashboard wires help
Thread Starter
7th Gear
Joined: Jun 2011
Posts: 7
Likes: 0
Dashboard wires help
Im reassembling my dash and im on the process of reinstalling the speedo and tach, most wires are labeled but there are these washer like wires i am not sure were they belong one of them is grey the other is black.
The wires come off the tachometer side of the wire harness I have a feeling they belong screwed to the hex screws on the back of the tach and should work as ground.
Last edited by FromRGV; Aug 14, 2014 at 12:41 PM.
2026 Loser of the Year
Joined: Sep 2013
Posts: 36,573
Likes: 7,016
From: New Or-leens Loo-z-anna
We need another "Stickey" for new members like me......
"10 Rules to follow when repairing your car"
One of the rules should be "Take photos of each component before disconnecting/removing it or anything attached to it"
(Photos have great memories of where things belong)
"10 Rules to follow when repairing your car"
One of the rules should be "Take photos of each component before disconnecting/removing it or anything attached to it"
(Photos have great memories of where things belong)
Le Mans Master
Joined: Aug 2006
Posts: 7,419
Likes: 1,555
From: mount holly NC
2025 c3 ('74-'82) of the Year Finalist - Unmodified
2019 C3 of Year Finalist (appearance mods)

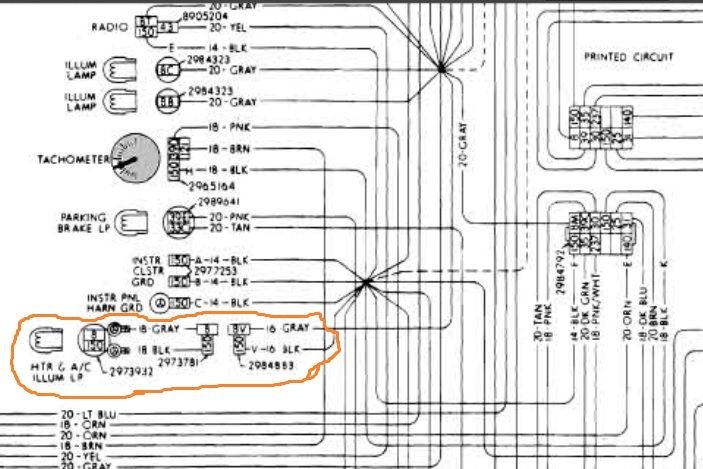

Looks like those wires should have a bulb socket on the end and it plugs into the back of the heat / AC control.
With the parking or headlights on the gray wire brings 12 volts to the socket and the black is the ground.
With the parking or headlights on the gray wire brings 12 volts to the socket and the black is the ground.
Heel & Toe
Joined: Oct 2013
Posts: 21
Likes: 2
From: Owen Sound Ontario
On my '78----That plugs into two wires of the same colour and goes to a bulb in the top center of your dash panel,(above the air louvers from the heater) The light shines down on the A/C heater controls. Please correct me if I am Wrong----boB
