Shifter Alignment Tool

Can anyone give me the dimensions of the 4 speed shifter alignment tool please? I've got it pretty close without using one but it probably could be a little better.
I got a kick out of the AIM calling the shifter "Transmission Control Lever".
Thanks, Rick

Sep 15, 2014 | 11:50 AM

MelWff

Race Director

Joined: May 2006

Posts: 18,664

Likes: 2,564

found these numbers 1/8" thick x .646" wide x 3" long

Sep 15, 2014 | 12:04 PM

69L46vert

Thread Starter

Pro

Joined: Jul 2006

Posts: 505

Likes: 25

From: Buxton Maine

Quote:

Originally Posted by MelWff

found these numbers 1/8" thick x .646" wide x 3" long

Thank You MelWff! I'll make one up this morning and see if I can get it a little better

Sep 15, 2014 | 12:38 PM

Mako72

Melting Slicks

Joined: May 2004

Posts: 2,737

Likes: 836

From: Gulf of America

2023 C7 of the Year Finalist - Unmodified

2018 C3 of Year Finalist

Sep 15, 2014 | 12:41 PM

EasyEd

Instructor

Joined: Aug 2010

Posts: 129

Likes: 0

Quote:

Originally Posted by 69L46vert

I would be interested too. FSM shows it in place, but nothing in the "special tools" at the back of the section. Maybe it's like a Snipe net or a smoke shifter?
Aha! Thanks. Looks like it can be made from an old putty knife or scraper. Cut and ground. Have to heat to untemper.

Last edited by EasyEd; Sep 15, 2014 at 01:13 PM.

Sep 15, 2014 | 12:51 PM

Super6

Burning Brakes

Joined: Feb 2012

Posts: 925

Likes: 7

Quote:

Originally Posted by Mako72

Mako,

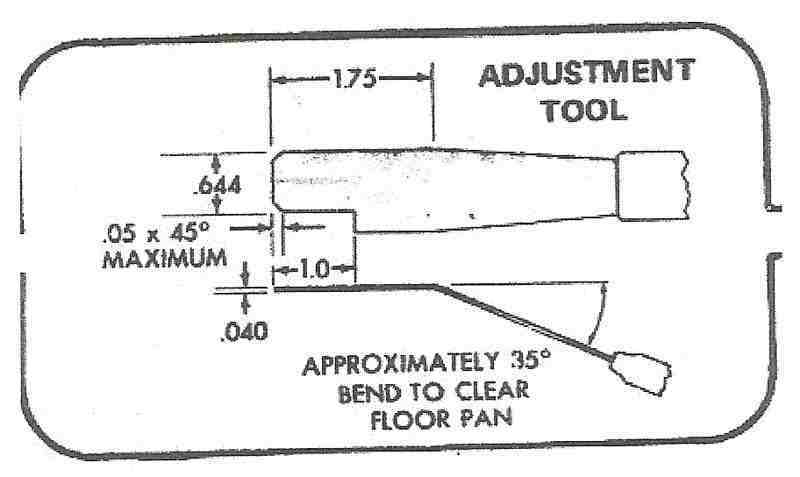

This subject came up in another post about a month ago. I got the gauge width from my Service Manual, but this is by far the best drawing of a gauge I've seen. Is this drawing from GM or another source? Thanks for posting.
