1972 350 coil wiring ....?
#3
Melting Slicks
if you have points it would not matter, I like to put the red wire on the +
#4
Drifting
Thread Starter

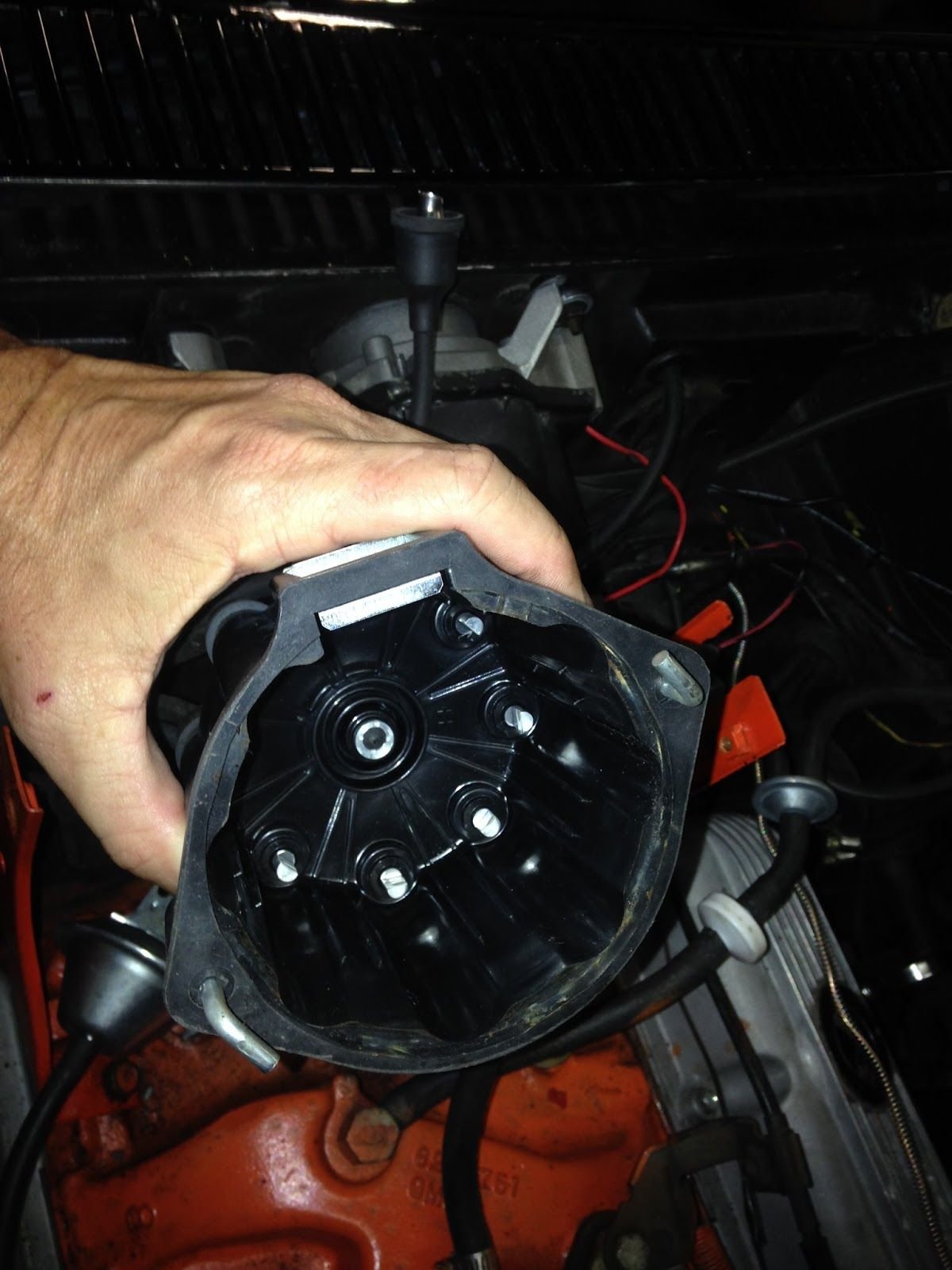

Looks like points to me...But it's been over 30 years since I worked on anything with a set of points. Cap, rotor button and points are new, installed by the previous owner. They seem to be in great condition. I don't think this wire has anything to do with my problem of dieing at a stop light....That story can be read here...
Brian
Brian
#5
Le Mans Master
Member Since: Jul 2006
Location: charlotte north carolina
Posts: 8,117
Likes: 0
Received 100 Likes
on
92 Posts
Remember that there are two power sources for the coil. A "full" 12 v source for when the engine is cranking (reduced somewhat by the load from the starter), and a resistor wire that reduces the coil supply voltage to about 10.5 volts. This reduced voltage is what the coil is designed to operate at when the engine is running. Supplying 12v to the coil continuously will over heat the coil and burn the points. It appears that only one wire is connected to the coil. Test the voltage on the + terminal of the coil with the motor running-it should be less than 11v. Also test the red wire with the ignition switch in the "start" and "run" position.
#6
Burning Brakes
Member Since: Jan 2006
Location: Clear Lake Shores Texas
Posts: 987
Received 263 Likes
on
184 Posts
2016 C3 of Year Finalist
I agree with JNB. If a car has points and a ballast resitor is not utilized in one form or abother the car will run well for about 50-100 miles at which point the points can burn and the car will quit running. Ask me how I know..
#7
Remember that there are two power sources for the coil. A "full" 12 v source for when the engine is cranking (reduced somewhat by the load from the starter), and a resistor wire that reduces the coil supply voltage to about 10.5 volts. This reduced voltage is what the coil is designed to operate at when the engine is running. Supplying 12v to the coil continuously will over heat the coil and burn the points. It appears that only one wire is connected to the coil. Test the voltage on the + terminal of the coil with the motor running-it should be less than 11v. Also test the red wire with the ignition switch in the "start" and "run" position.
Voltage has nothing to do with it.
Not trying to be an azz, just trying to clarify how it works.
The following users liked this post:
69427 (09-10-2015)
#9
#10
Drifting
Thread Starter

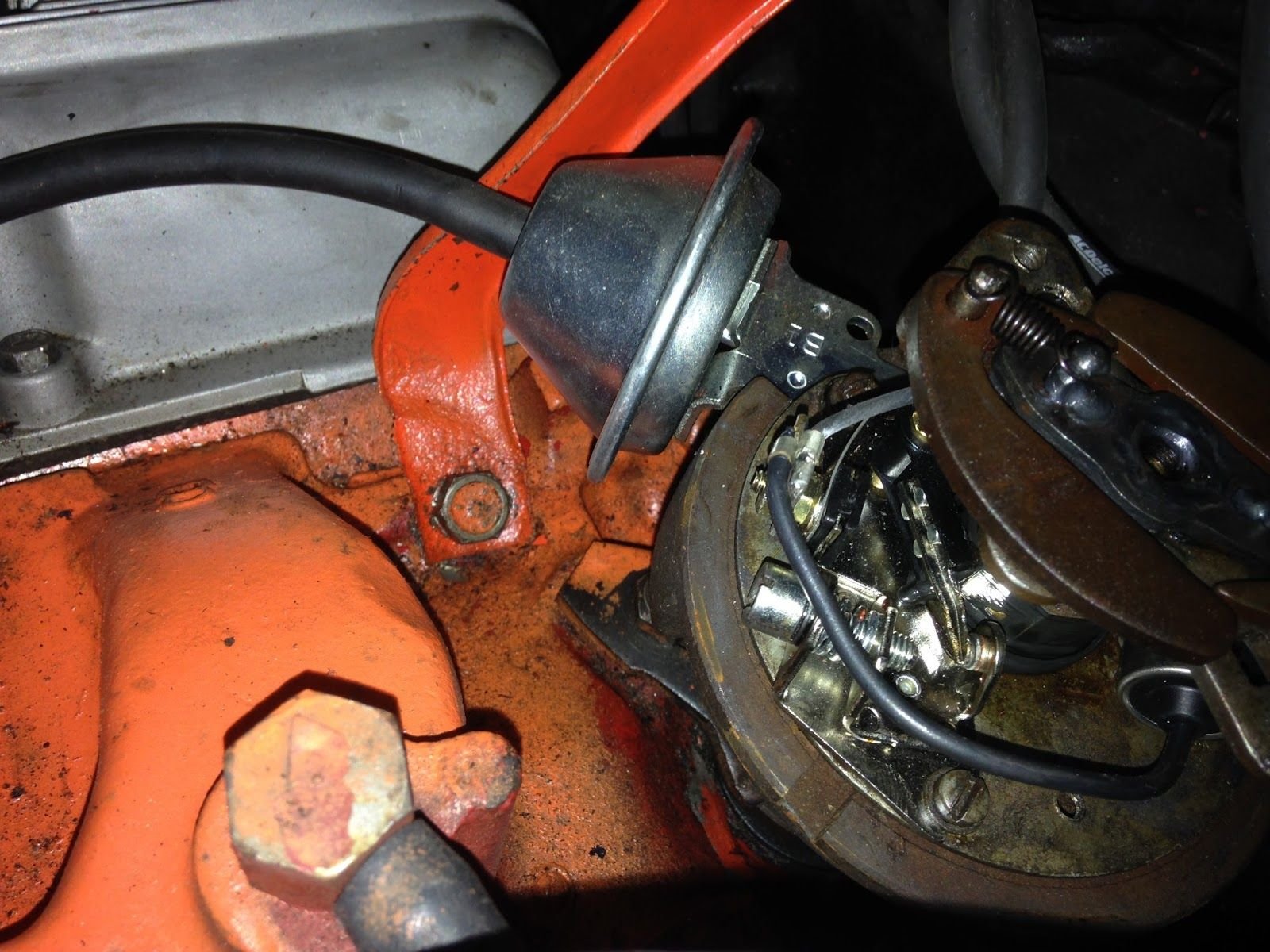

Is it safe to say that the black wire (as pictured above) has to be wired to be hot with the switch in the run position and not just when the switch is in the crank position.....Otherwise the car would start but then just go dead....?
The red wire that is not hooked up is made of 8 or so strands of very stiff wire, silver in color. It had a cloth covering most of which is gone but can be seen where enters the rest of the harness, I'm pretty sure it's the wire that is supposed to be hot when the key is in the run position.
So it looks like I have wiring issues to figure out....The battery isn't hooked up so I didn't get a chance to check if the red wire has any power at all.
Brian
OK looks like I need to go read the sticky....I did read an old post between Roger and 69427 about these issues....But it was over my head.
The red wire that is not hooked up is made of 8 or so strands of very stiff wire, silver in color. It had a cloth covering most of which is gone but can be seen where enters the rest of the harness, I'm pretty sure it's the wire that is supposed to be hot when the key is in the run position.
So it looks like I have wiring issues to figure out....The battery isn't hooked up so I didn't get a chance to check if the red wire has any power at all.
Brian
OK looks like I need to go read the sticky....I did read an old post between Roger and 69427 about these issues....But it was over my head.
Last edited by Wee; 09-10-2015 at 10:14 PM.
#11
Is it safe to say that the black wire (as pictured above) has to be wired to be hot with the switch in the run position and not just when the switch is in the crank position.....Otherwise the car would start but then just go dead....?
The red wire that is not hooked up is made of 8 or so strands of very stiff wire, silver in color. It had a cloth covering most of which is gone but can be seen where enters the rest of the harness, I'm pretty sure it's the wire that is supposed to be hot when the key is in the run position.
So it looks like I have wiring issues to figure out....The battery isn't hooked up so I didn't get a chance to check if the red wire has any power at all.
Brian
The red wire that is not hooked up is made of 8 or so strands of very stiff wire, silver in color. It had a cloth covering most of which is gone but can be seen where enters the rest of the harness, I'm pretty sure it's the wire that is supposed to be hot when the key is in the run position.
So it looks like I have wiring issues to figure out....The battery isn't hooked up so I didn't get a chance to check if the red wire has any power at all.
Brian
One wire "should" go to the R terminal of the starter. It gives full voltage/current while cranking only.
Another wire "should" be keyed on while in run, and should have a resistance wire in series with it to limit the ignition primary current.
If you have a VOM and know how to use it, now is the time to check.
#12
Tech Contributor
Member Since: Jun 2004
Location: I tend to be leery of any guy who doesn't own a chainsaw or a handgun.
Posts: 18,346
Received 767 Likes
on
549 Posts
Is it safe to say that the black wire (as pictured above) has to be wired to be hot with the switch in the run position and not just when the switch is in the crank position.....Otherwise the car would start but then just go dead....?
The red wire that is not hooked up is made of 8 or so strands of very stiff wire, silver in color. It had a cloth covering most of which is gone but can be seen where enters the rest of the harness, I'm pretty sure it's the wire that is supposed to be hot when the key is in the run position.
So it looks like I have wiring issues to figure out....The battery isn't hooked up so I didn't get a chance to check if the red wire has any power at all.
Brian
OK looks like I need to go read the sticky....I did read an old post between Roger and 69427 about these issues....But it was over my head.
The red wire that is not hooked up is made of 8 or so strands of very stiff wire, silver in color. It had a cloth covering most of which is gone but can be seen where enters the rest of the harness, I'm pretty sure it's the wire that is supposed to be hot when the key is in the run position.
So it looks like I have wiring issues to figure out....The battery isn't hooked up so I didn't get a chance to check if the red wire has any power at all.
Brian
OK looks like I need to go read the sticky....I did read an old post between Roger and 69427 about these issues....But it was over my head.
I miss Roger's contributions to the forum. He has a lot of experience and good information that he shared with us.
#14
Le Mans Master
Member Since: Jul 2006
Location: charlotte north carolina
Posts: 8,117
Likes: 0
Received 100 Likes
on
92 Posts
The resistor (ballast or wire) causes a voltage drop. This limits the voltage drop (available voltage ) across the coil. The sum of all voltages in a circuit must equal the supply voltage. The engineers that designed this system knew the resistance and inductance(that's the purpose of the capacitor-it "balances" the counter EMF of the coil and allows faster saturation) of the coil, and chose an external load(resistor) that would limit the voltage drop (and indirectly, following Ohm's Law) the current through the coil. The external resistor can only cause a voltage drop. Voltage and current are tied together, but the purpose of a resistor is to cause a voltage drop, not limit current. Designing a DC circuit while trying to use resistors to "limit" current will never succeed.
#15
Tech Contributor
Member Since: Jun 2004
Location: I tend to be leery of any guy who doesn't own a chainsaw or a handgun.
Posts: 18,346
Received 767 Likes
on
549 Posts
The resistor (ballast or wire) causes a voltage drop. This limits the voltage drop (available voltage ) across the coil. The sum of all voltages in a circuit must equal the supply voltage. The engineers that designed this system knew the resistance and inductance(that's the purpose of the capacitor-it "balances" the counter EMF of the coil and allows faster saturation) of the coil, and chose an external load(resistor) that would limit the voltage drop (and indirectly, following Ohm's Law) the current through the coil. The external resistor can only cause a voltage drop. Voltage and current are tied together, but the purpose of a resistor is to cause a voltage drop, not limit current. Designing a DC circuit while trying to use resistors to "limit" current will never succeed.
#17
Drifting
Thread Starter
What test/reading am I looking for from the red wire if it is in fact the resistor wire that is supposed to provide running power to the coil.....? Switch off no volts.....Switch in the run position with the motor not running somewhere around 9 volts....?
I know if the black wire has power other than while cranking it is not correct....I don't see anyway it could be correct because the car runs as it is hooked up now.
I looked at the points last night and they don't look burnt to me....I have put around 150 miles on the car over the past 4 months.
Brian
I know if the black wire has power other than while cranking it is not correct....I don't see anyway it could be correct because the car runs as it is hooked up now.
I looked at the points last night and they don't look burnt to me....I have put around 150 miles on the car over the past 4 months.
Brian
#18
Le Mans Master
When I was working on mine and needed to figure out which went were I used a test light.
With the two wires by the starter disconnected I ran a long wire to one and connected the other end to a test light that I could see over the dash.
One would be hot with ignition on. One would only be hot when attempting to start then would turn off when I released the key.
With the two wires by the starter disconnected I ran a long wire to one and connected the other end to a test light that I could see over the dash.
One would be hot with ignition on. One would only be hot when attempting to start then would turn off when I released the key.
#19
Le Mans Master
Member Since: Aug 2006
Location: mount holly NC
Posts: 6,985
Received 1,244 Likes
on
965 Posts
C3 of Year Finalist (appearance mods) 2019
The resistor wire limits current not voltage.
What test/reading am I looking for from the red wire if it is in fact the resistor wire that is supposed to provide running power to the coil.....? Switch off no volts.....Switch in the run position with the motor not running somewhere around 9 volts....?
I know if the black wire has power other than while cranking it is not correct....I don't see anyway it could be correct because the car runs as it is hooked up now.
I looked at the points last night and they don't look burnt to me....I have put around 150 miles on the car over the past 4 months.
Brian
I know if the black wire has power other than while cranking it is not correct....I don't see anyway it could be correct because the car runs as it is hooked up now.
I looked at the points last night and they don't look burnt to me....I have put around 150 miles on the car over the past 4 months.
Brian
On this schematic it shows a YELLOW wire between the + terminal of the coil and the "R" terminal on the starter solenoid.
The "R" terminal is the small terminal on the solenoid closest to the fender.
Peel back the black tape and see if your RED wire has a splice or check for continuity from one end to the other.
On the schematic your BLACK wire is shown as BLACK-PINK.
That wire will have 12 volts (battery Voltage) in both START and RUN.
http://www.vetteprojects.com/bmv/mis...tte%201972.pdf
Some time ago 69427 was nice enough to post the reading you should get while testing.
#20
Drifting
Thread Starter
I was testing last night trying to figure out where the black wire that is now connected at the coil + side ran to....Hooked up the multimeter set to continuity/beep mode took the wire off the coil and clipped one end of the meter to it then started to try wires on the starter but I didn't even make it that far...No matter where I touched it indicated continuity, this is with the negative cable disconnected from the battery. That doesn't seem right to me.
Thank Ya'll for the post above, I'll do more testing tonight.
Brian
Thank Ya'll for the post above, I'll do more testing tonight.
Brian
