Had an alt belt schred yesterday. Got me to thinking if waterpump in car is correct. This never happened before however, I don’t think alternator belt looks aligned. I read some past posts that starting in about 70, Corvette had its own short pump version. See pic of pump thats in car now. No, the dates are not correct. Also see the shredded belt. I’m not necessarily looking for a date coded waterpump. Just a correct pump that is supposed to be in the car. Thanks.
#2
Melting Slicks
All C3's have short water pumps, earlier cars had pumps with a 5/8" pilot for the WP pulley, starting in '71 they got a 3/4" pilot. If yours has a 3/4" pilot, it is correct for '71. However check the pulley alignment with the pump bolted in place, you may need to alter the flange location on the shaft with a press or add a spacer or two behind the pulley to correct the alignment.
Last edited by 69autoXr; 07-30-2018 at 09:57 AM.
The following users liked this post:
Vettesic (08-01-2018)
#3
pulley alignment is quite possible compromised 8if pump is faulty but you have it pictured as removed, assuming the pump is good and the belt didn't just die of old age something in alignment changed.
meh u stated alt belt not wp belt. im old and entitled to be a bit dense. xd
meh u stated alt belt not wp belt. im old and entitled to be a bit dense. xd
Last edited by sambrand; 07-30-2018 at 12:32 PM.
The following users liked this post:
Vettesic (08-01-2018)
#4
Melting Slicks
Had an alt belt schred yesterday. Got me to thinking if waterpump in car is correct. This never happened before however, I don’t think alternator belt looks aligned. I read some past posts that starting in about 70, Corvette had its own short pump version. See pic of pump thats in car now. No, the dates are not correct. Also see the shredded belt. I’m not necessarily looking for a date coded waterpump. Just a correct pump that is supposed to be in the car. Thanks.
The distance from the block contact surface to the top of the hub should be 5 13/16 inches.
The following users liked this post:
Vettesic (08-01-2018)
#6
Melting Slicks
#7
Drifting
Thread Starter

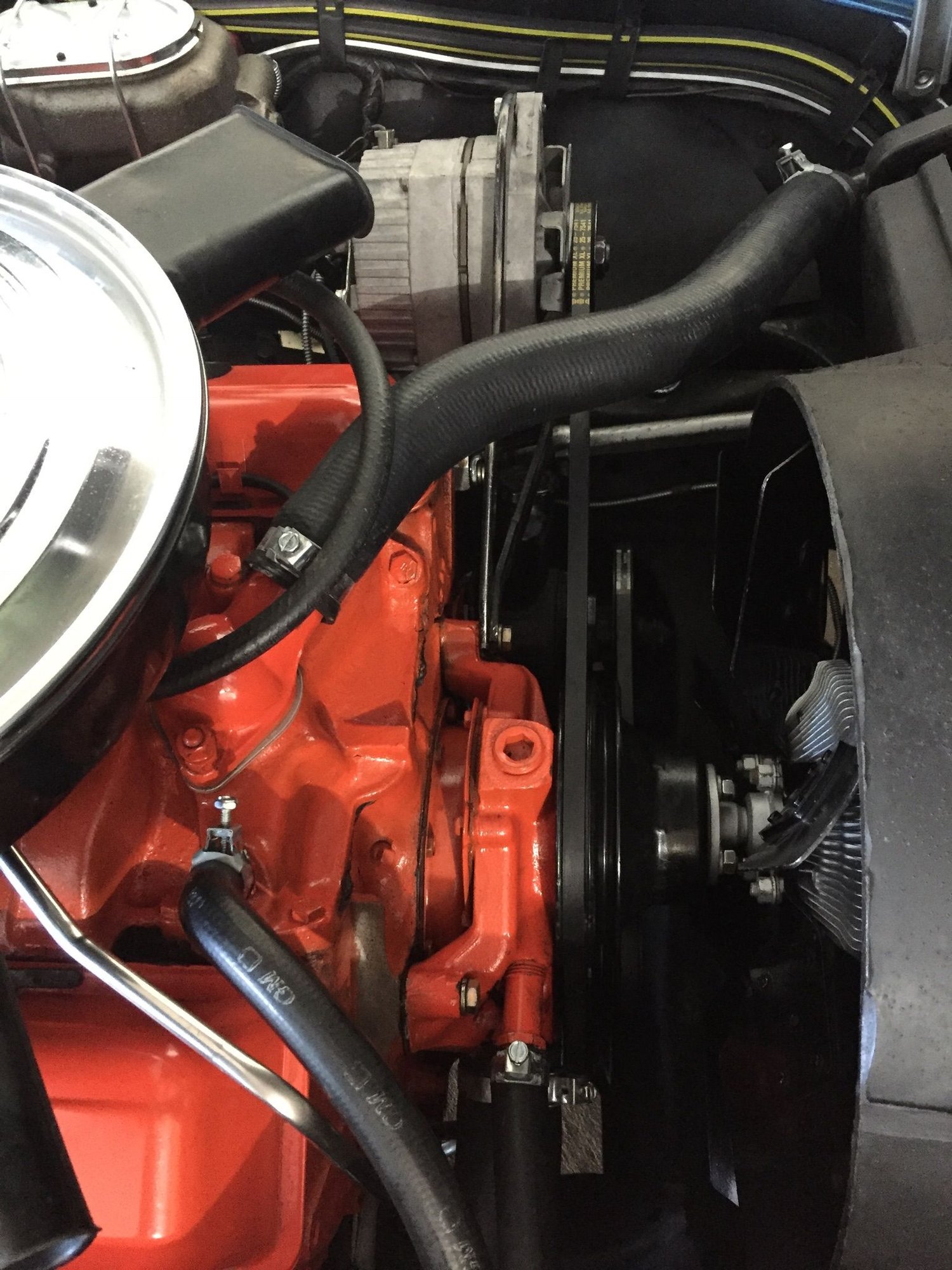

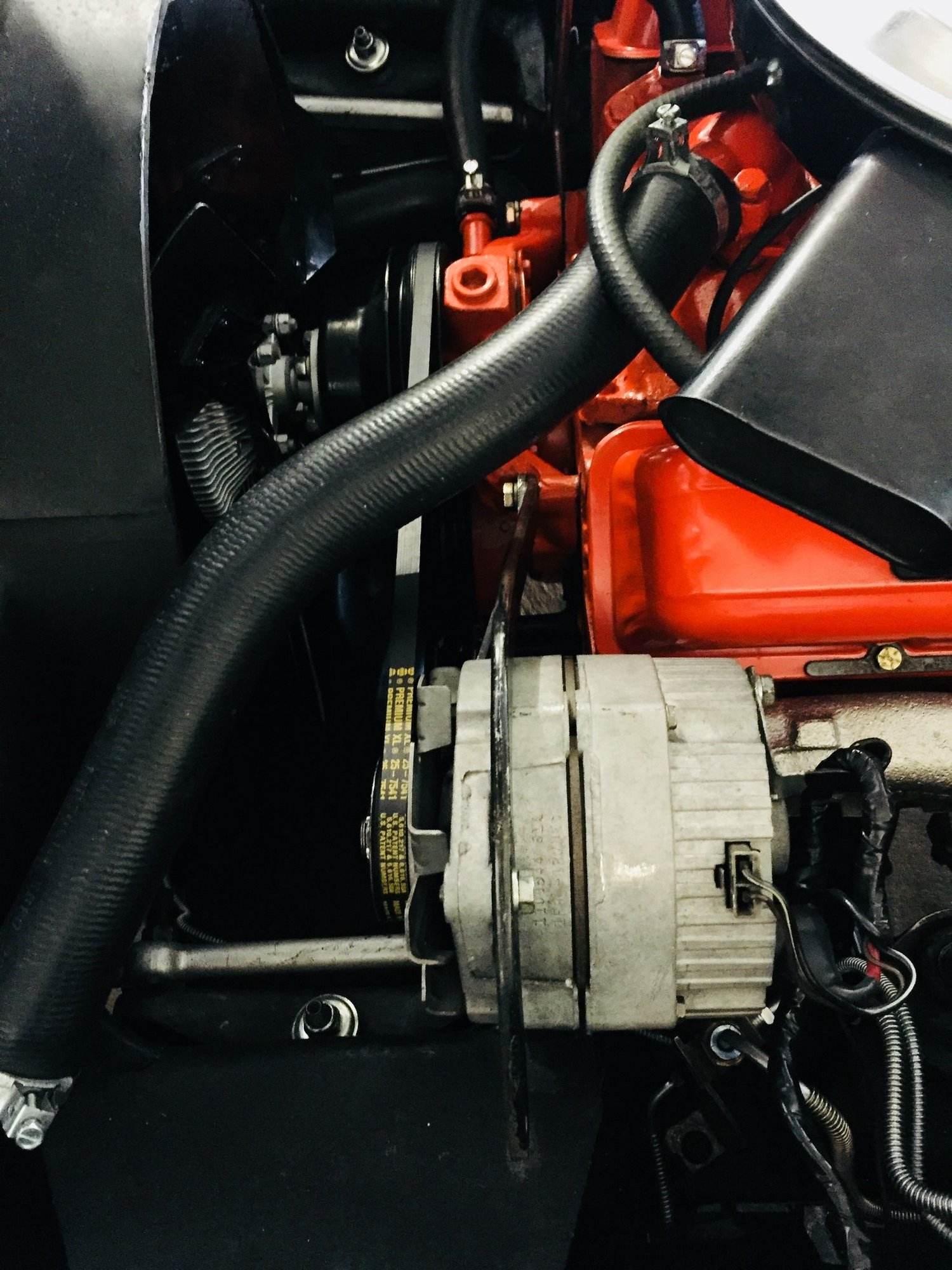

Ok, thanks guys. Just wanted to make sure this later pump will work. I got a new belt today at Napa and will install later in the work week. I’ll post a pic of the repair. Let me know what belt looks like as far as alignment.
#8
Safety Car
use a yard stick laid across the face of your pulley, to verify if they are aligned correctly and parallel.
The following users liked this post:
Vettesic (08-01-2018)
#11
Le Mans Master
There is some very good info in this thread regarding how to verify correct pulley alignment. Read through the post and you'll find a number of very effective ways to determine if you have an alignment issue. It isn't directly related to the engine in your car, but the methods used to verify alignment will work on any engine.
https://www.corvetteforum.com/forums...ignment-2.html
Also don't forget that the crank pulley plays a role in verifying pulley alignment as well.
One other thing, while you have the belt off, run your fingers around all the pulley's... carefully... looking for any burrs that may have contributed to your belt's demise.
Good luck and let us know what you discover... GUSTO
https://www.corvetteforum.com/forums...ignment-2.html
Also don't forget that the crank pulley plays a role in verifying pulley alignment as well.
One other thing, while you have the belt off, run your fingers around all the pulley's... carefully... looking for any burrs that may have contributed to your belt's demise.
Good luck and let us know what you discover... GUSTO
#12
Drifting
Thread Starter

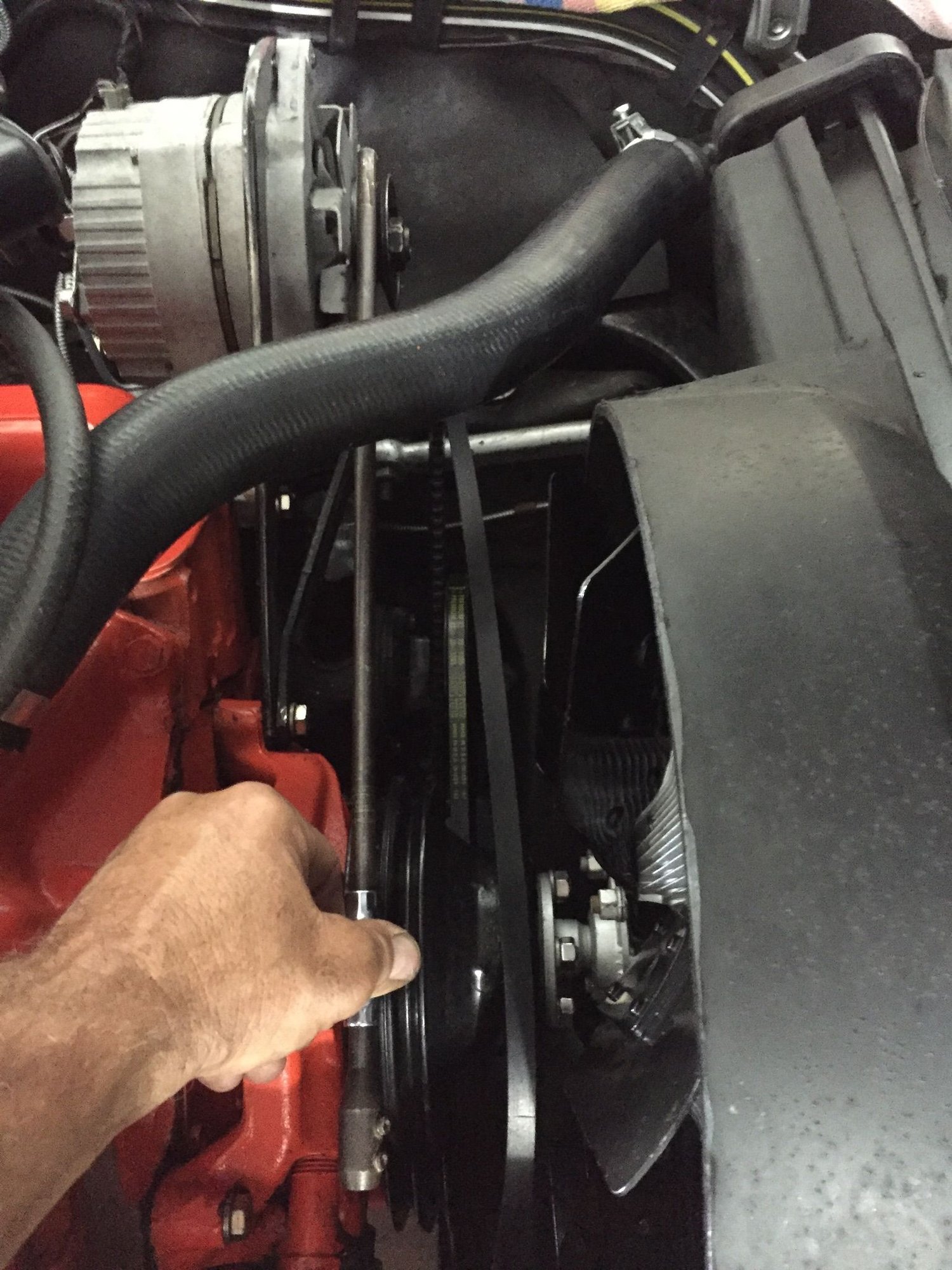

Gusto....useful reading. Thanks! I also made up a pulley alignment too. Not my design, got it from another CF members post. Created from a drill bit extentsion and 2, 3/8 sockets that fit snugly over the shaft of the extension. Just slid the sockets in between the water pump pulley grooves leveling the other end of extension which lined right up with alt pulley. Kinda crude. Got an extra belt I’ll leave in car.
#13
Le Mans Master
Gusto....useful reading. Thanks! I also made up a pulley alignment too. Not my design, got it from another CF members post. Created from a drill bit extentsion and 2, 3/8 sockets that fit snugly over the shaft of the extension. Just slid the sockets in between the water pump pulley grooves leveling the other end of extension which lined right up with alt pulley. Kinda crude. Got an extra belt I’ll leave in car.
Were you also able to verify the pulley alignment between the crank pulley and the water pump/alternator pulleys?
Good luck... GUSTO
#14
Drifting
Thread Starter
Gusto....I cut a small 1/4” conduit and place on crank to water pump / alt pulley and it did line up. As far as the naked eye could see that is. I also checked smoothness of inside pulleys and all were smooth.
Last edited by Vettesic; 08-06-2018 at 01:40 PM. Reason: Add
