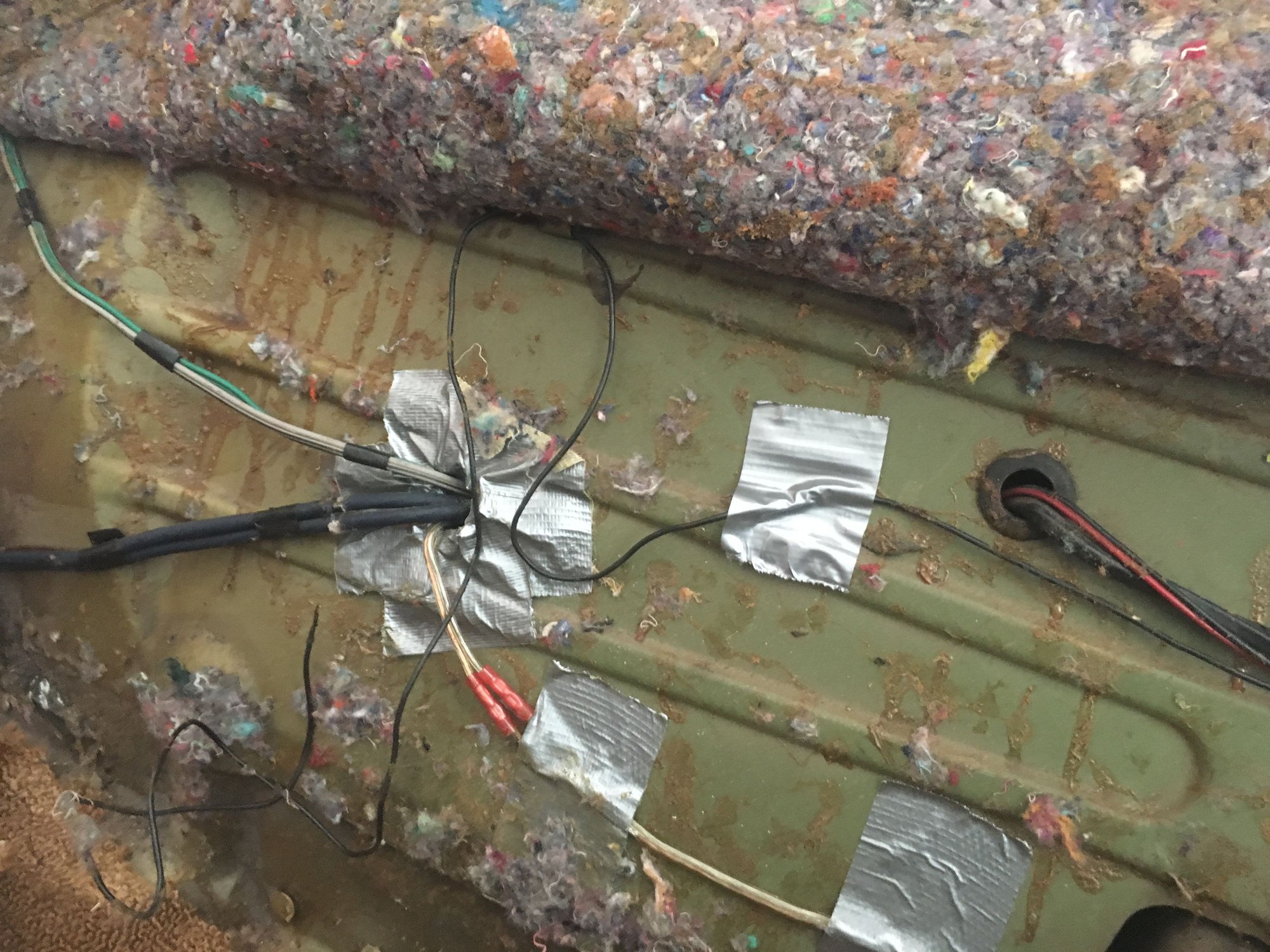

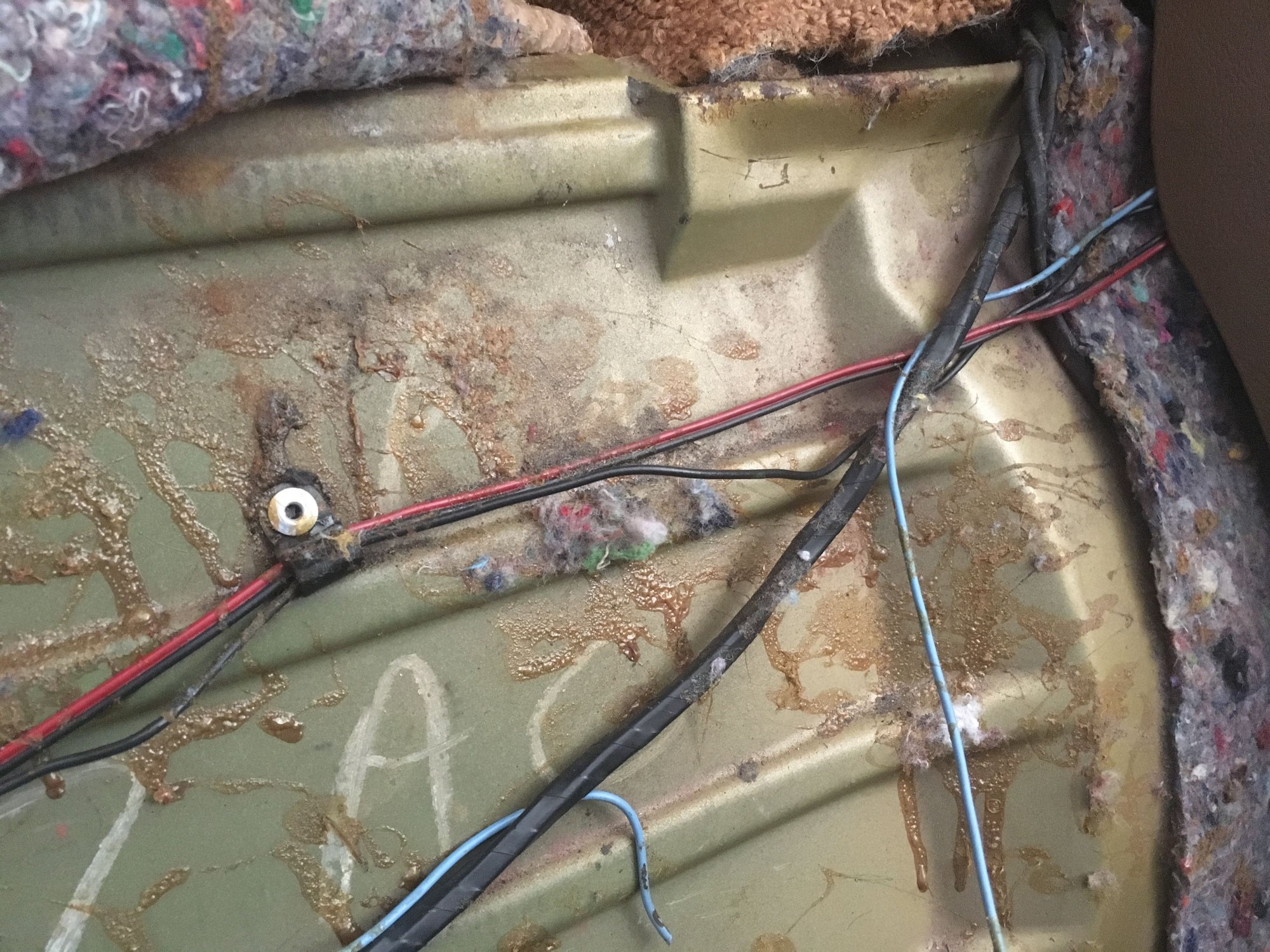

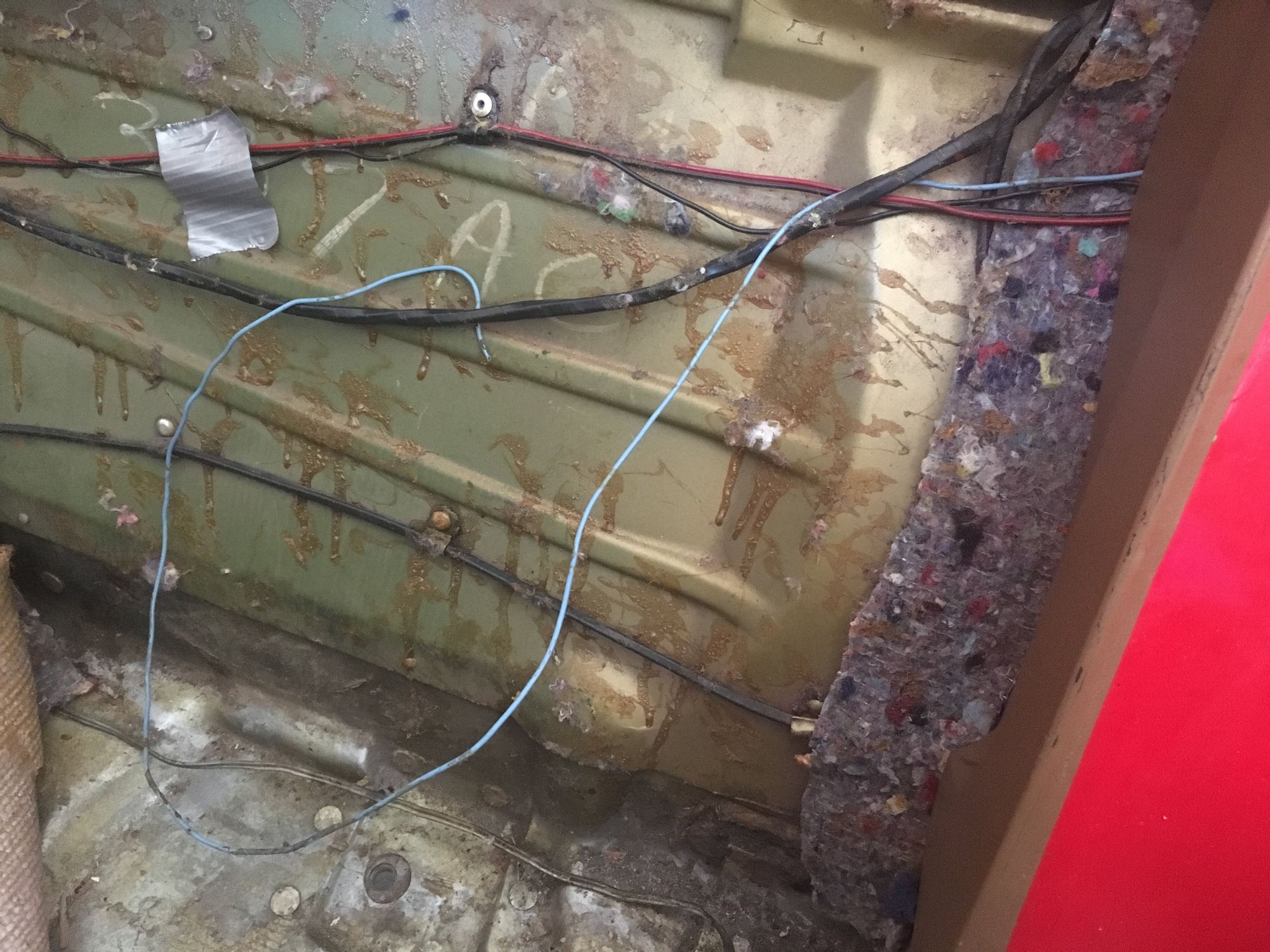

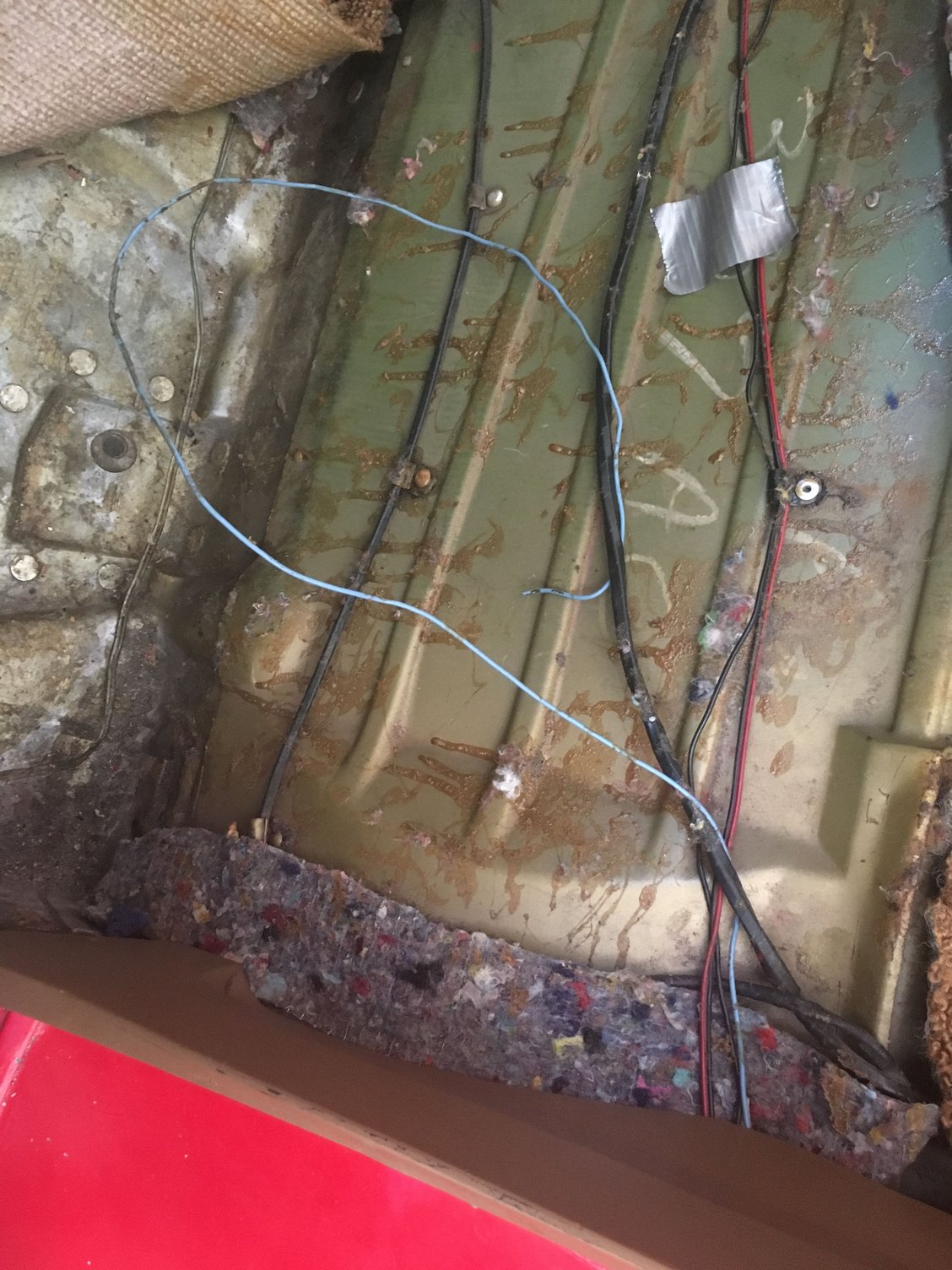

I recently pulled the carpeting on my 69 corvette and noticed couple of loose wires underneath, a single light blue and a single black wire with a small metal clip at the end, the blue wire seems to be running along side of the driver door with bunch of other colorful wires into the dash area and the black wire coming from inside the door jam, anyone having any idea as to what they are for would be greatly appreciated, I am electronically challenged and can never make any sense of those wiring diagrams.
Thanks
Thanks
Team Owner
Joined: Jun 2000
Posts: 38,923
Likes: 1,481
From: Southbound
Cruise-In II Veteran
Pro
Joined: Nov 2016
Posts: 729
Likes: 118
From: Kelowna British Columbia
There is a light blue wire that goes to door ajar switch and another used for power seats. If your door ajar works (rear pin switch) not front courtesy light pin switch. It is probably for power seat option
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
10 Most Common Corvette Problems of the Last 20 Years!
Joe Kucinski
Racer
Joined: May 2018
Posts: 297
Likes: 43
back then they ran the wiring before the car was decided to go with power accessories. that way if the car was ordered with power accessories the wiring was in palce and all the other stuff didn't have to come out. mass production back when quality mattered.
Pro
Joined: Nov 2016
Posts: 729
Likes: 118
From: Kelowna British Columbia
The door ajar switches have light blue between left and right switch. This light blue goes to the door ajar light. Black also runs between both left and right switches and goes to ground.
