Under Dash Brace Rods
I'm trying to find more information on the under dash brace rods for my 69 convertible. I've looked at the diagram on p. J50 in the ***'y manual, but my car has some significant differences, ie. the. #4 Bracket that's depicted...I don't have that. Maybe 4 out of 5 is not bad...
Le Mans Master
Joined: Oct 2006
Posts: 7,123
Likes: 433
From: Gladstone MO
C3 of Year Finalist (appearance mods) 2019

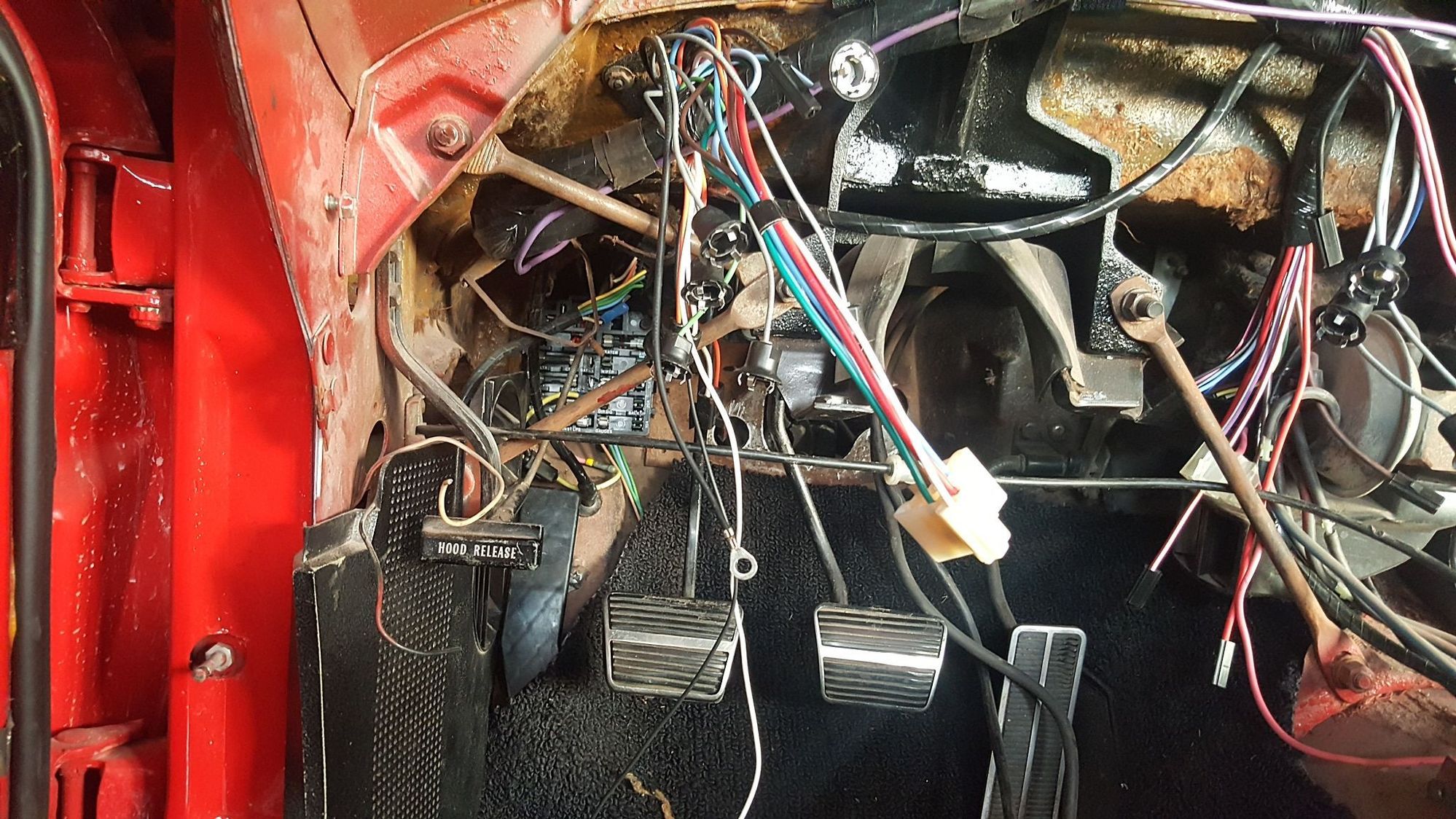

Sorry they're a little messy- gets that way when changing wiring harnesses. You kind of need to look close to see the support rods, but they were installed and no need for me to remove them. Bolt direction is also critical at the steering column support due to wire harness routing.
3rd Gear
Joined: Feb 2025
Posts: 3
Likes: 0
Sorry they're a little messy- gets that way when changing wiring harnesses. You kind of need to look close to see the support rods, but they were installed and no need for me to remove them. Bolt direction is also critical at the steering column support due to wire harness routing.
Safety Car
Joined: Nov 2008
Posts: 3,715
Likes: 551
From: Seattle Washington
So we need to know if you're working on an AC car or not. In the pictures above you will see that there is a Saddle Riveted on top of the Transmission Tunnel. Thats an AC Car. Non-AC cars did not have the Saddle. The Rods go in different directions for AC and non-AC. 1968's are a whole different world of their own.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
Racer
Joined: Sep 2001
Posts: 364
Likes: 93
From: Chesterfield VA
Gale, the 68 had the saddle on both A/C and Non A/C. With that being said, I do not now how accurate the Assembly manual is here. This car is a non A/C car and has the bracket on the tunnel and could be an early 69. I had a pretty original 72 Conv and it was a non A/C car and it had the bracket on the trans tunnel as well as the brace that went across the backside of the dash pad. I honestly can't think of a Conv that I have worked on that didn't have the bracket. My 75 had it as well but it was an A/C car.
