Wiring loom question
Thread Starter
Racer
Joined: Oct 2018
Posts: 457
Likes: 132
From: England
Wiring loom question
I was cleaning up my engine wiring loom today and noticed a section of un-insulated wire on the feed to my starter motor, as shown.
It looks like the wire has pulled out of the white cylinder but it feels tight and I can't push it back in or pull it out.
Does anyone know what the white cylinder is and what I can do to fix this (other than just insulate the wire)?
Safety Car
Joined: May 2001
Posts: 4,759
Likes: 1,647
From: Fairfax Virginia
I am not sure what wires those would be as I don't know the year of your C3.
On my 1968 there is a "Fusible Link" built into one of the wires that goes to the Starter Solenoid. I have never seen that type of connector used on a fusible link at least not on my 1968 C3.
Is it possible that somebody installed a aftermarket fan system or something with a serious appetite for amperage?
Scotch Brand Electrical tape would do just fine to solve those wires.
Best wishes!
On my 1968 there is a "Fusible Link" built into one of the wires that goes to the Starter Solenoid. I have never seen that type of connector used on a fusible link at least not on my 1968 C3.
Is it possible that somebody installed a aftermarket fan system or something with a serious appetite for amperage?
Scotch Brand Electrical tape would do just fine to solve those wires.
Best wishes!
Thread Starter
Racer
Joined: Oct 2018
Posts: 457
Likes: 132
From: England

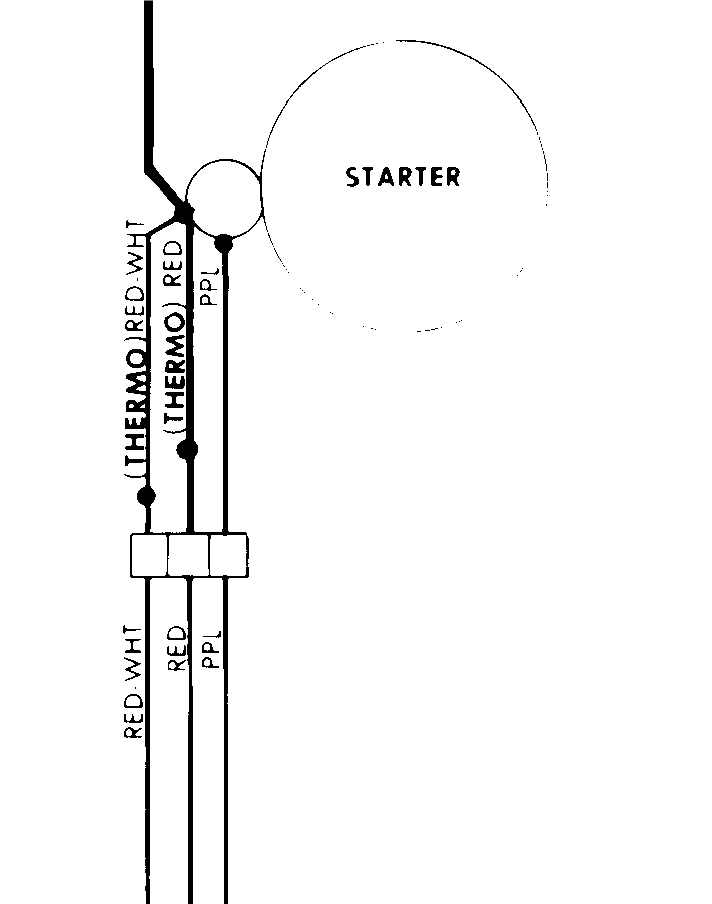

The car is a 78. There are no aftermarket electrical bits fitted, I'm guessing the loom is original. The 78 wiring diagram shows the 2 wires with the words "Thermo" so maybe they are thermal fuses, but I can't see how they are attached.
Le Mans Master
Joined: Dec 2007
Posts: 6,422
Likes: 591
From: McHenry Illinois
The "thermo" part is the fusible link from the ring terminal to the white insulator. If it's tight in the connector, just insulate it with quality electrical tape. Or you can purchase a replacement starter extension harness.
Thread Starter
Racer
Joined: Oct 2018
Posts: 457
Likes: 132
From: England
The cable is tight in the connector and there is electrical continuity between the exposed wire and the ring terminal. I'm just concerned that if the cable has pulled out of the connector there might not be much contact area left inside the connector and it could overheat. I can't see any way to open the connector and re-position the wire, so it might have to be a new extension harness.
Thanks for the help.
Thanks for the help.
Thread Starter
Racer
Joined: Oct 2018
Posts: 457
Likes: 132
From: England
Thinking about this, if the white cylinder is just a connector then presumably I can just break it off and solder the two ends of the cable together (or use another connector).
Anybody know if there is any other purpose to this item? Is it some form of insulator? If so, why is it needed?
Anybody know if there is any other purpose to this item? Is it some form of insulator? If so, why is it needed?
Pro
Joined: Apr 2007
Posts: 528
Likes: 9
From: Grand Rapids Michigan
If it is acting as a fusible link, you would not want to remove and bypass it permanently. You may overload your wiring, or create some other issue. The advice here is sound. If it’s tight and you have continuity, tape it cleanly and move on.
