1972 Anti Theft Alarm Problem
Thread Starter
7th Gear
Joined: Jun 2020
Posts: 7
Likes: 0
1972 Anti Theft Alarm Problem
Hi there, I'm new to the forum, I have a technical question regarding the Anti-Theft System on my Corvette, I hope someone can help! I have replaced the wiring harness with a replacement harness from 69-70, it connects at the switch at the rear, then grounds at the frame, it plugs into the horn (which is a replacement horn #12368067) it runs into the rear compartment where it connects to the relay and flasher which I have replaced the flasher and relay. The white wire connects to the front door pin switch on the driver side, the other white wire goes across to the passenger door pin switch. These switches are the front switches for the light not the rear of the jamb. The orange wire I have plugged into the battery slot of the fuse block. I did not use the connector for the ground to the wiper terminal as there was not a "prong" on the wiper motor so I grounded it directly with an eyelet to the wiper motor and continued the white wire to the hood switch. The problem is when I arm the alarm I have 12 volts at the horn and the relay gets hot. When I disarm the alarm it has 0 volts.
Another issue I have is I read somewhere not to ground the horn but if I dont ground it it will not sound at all, if I ground it as soon as I arm the system it wails. Any insight anyone can add will be extremely appreciated!
Another issue I have is I read somewhere not to ground the horn but if I dont ground it it will not sound at all, if I ground it as soon as I arm the system it wails. Any insight anyone can add will be extremely appreciated!
Race Director
Joined: Apr 2011
Posts: 11,183
Likes: 3,335
From: North of Toronto - Ontario
I'm not that familiar with the 69-70 but on the 72 the switch is connected to constant power on one side (orange) and the other side goes to the horn (pink). The other connection on the horn goes to the flasher then the relay then ground so that the ground is controlling the on-off sounding
On the connection to the horn (pink) it keeps going to the relay as well
M
On the connection to the horn (pink) it keeps going to the relay as well
M
Last edited by Mooser; Jun 3, 2020 at 09:07 PM.
Thread Starter
7th Gear
Joined: Jun 2020
Posts: 7
Likes: 0
I'm not that familiar with the 69-70 but on the 72 the switch is connected to constant power on one side (orange) and the other side goes to the horn (pink). The other connection on the horn goes to the flasher then the relay then ground so that the ground is controlling the on-off sounding
On the connection to the horn (pink) it keeps going to the relay as well
M
On the connection to the horn (pink) it keeps going to the relay as well
M
Race Director
Joined: Apr 2011
Posts: 11,183
Likes: 3,335
From: North of Toronto - Ontario
The other thing is that they normally run off the rear door ajar switch and not the front ones. Even in the earlier ones????
M
M
Last edited by Mooser; Jun 3, 2020 at 10:11 PM.
Race Director
Joined: Apr 2011
Posts: 11,183
Likes: 3,335
From: North of Toronto - Ontario

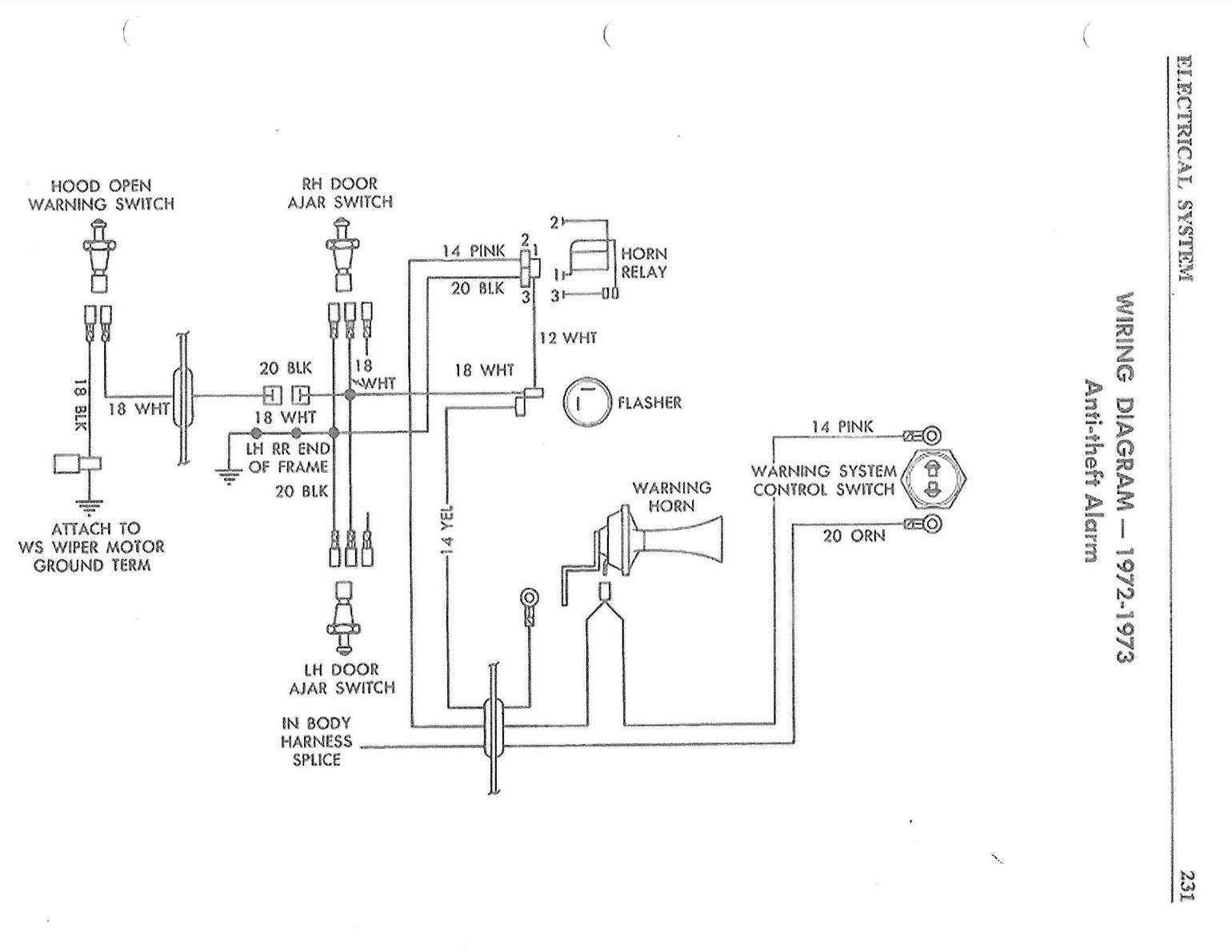

Looking at this diagram what I see is... (a little different than the 72 but basically the same)
When the switch is turned on, the relay is read but not tripped
When a switch closes (door open) the relay is tripped, turns on and latches (stays on) and the flasher will provide ground to the horn through the yellow, flasher heats and stops conducting horn off, cools off and re-conducts horn on.....
M
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Race Director
Joined: Apr 2011
Posts: 11,183
Likes: 3,335
From: North of Toronto - Ontario

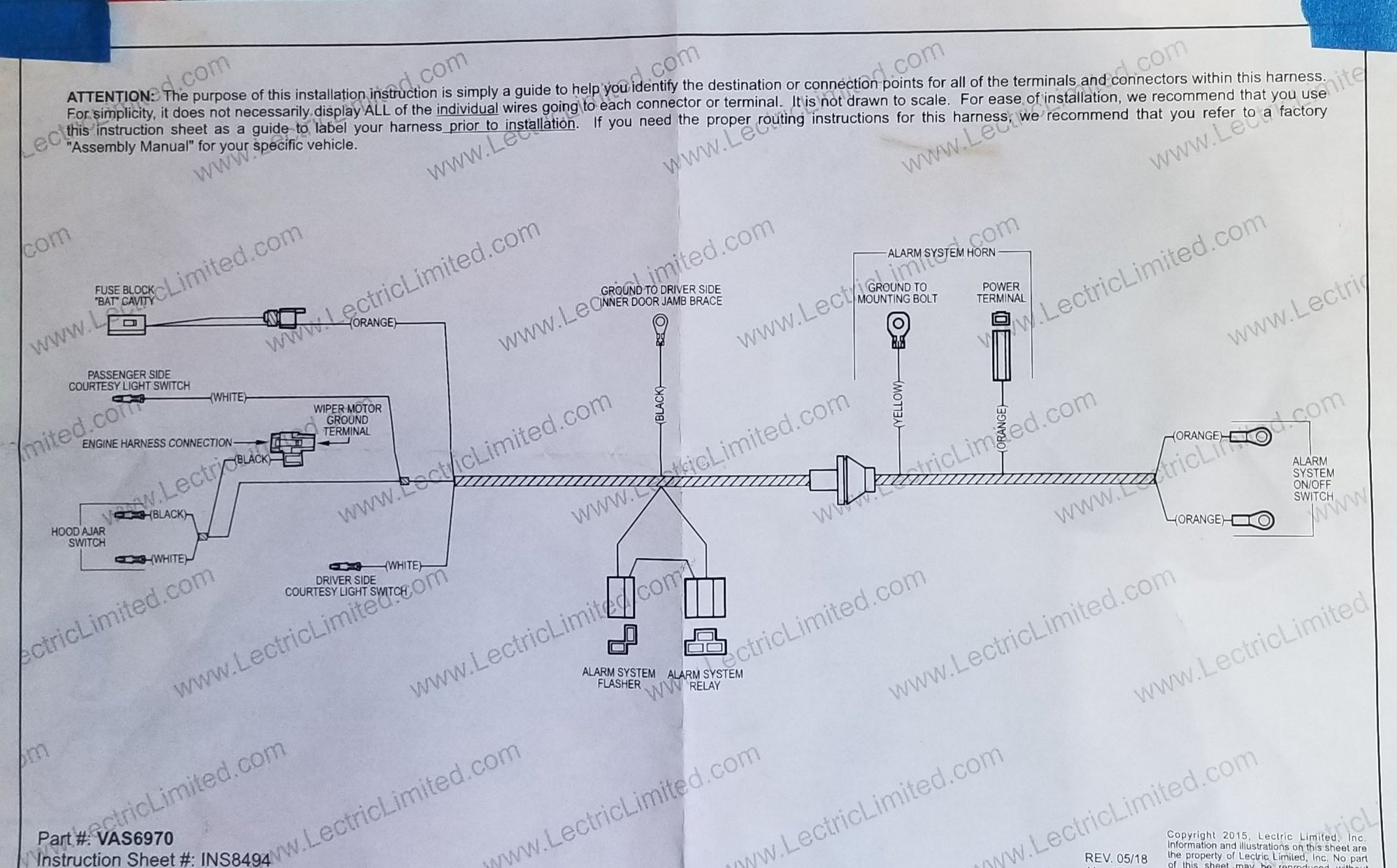

That seems to match the willcox image I put above but looking at it again, if the orange is connected to the BAT it's constant power and if the yellow is connected to the mounting bolt then the mounting bolt must not be "frame ground" otherwise the horn would go off as soon as the key was on.
