1971 convertable with AC

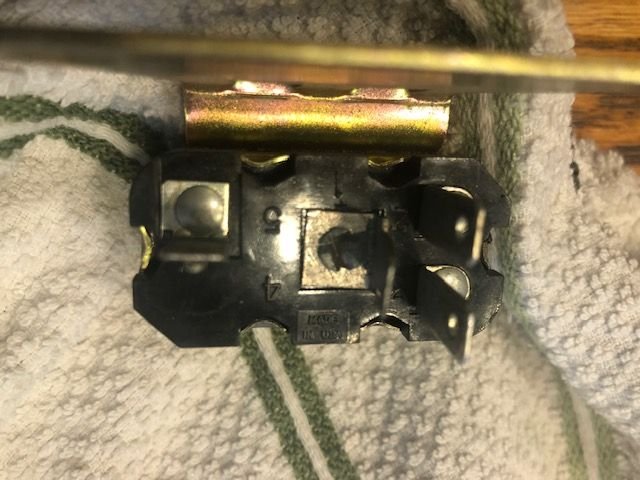

My connector to the relay was fried and I am installing a new relay and connector. I am trying to find out which wire goes on each terminal. The upper left is #2 The upper right is #3 The middle Is #1 The bottom one is #5 Any help on which color wire goes on each terminal would be appreciated Thanks
I see the Orange Purple and Dark Blue wire. Any idea what the other (maybe tan() line goes to?
You should have 2 orange wires, 1 is 12 ga. that feeds 12v to the high speed relay from the horn relay via a 30 amp inline fuse. The other orange wire is an 18 ga. that goes to the anti-dieseling relay. They are both crimped together at the high speed relay connector.
AC Wiring to Relay
