C3 1970 Brake proportioning Valve Problems
Thread Starter
Racer
Joined: Nov 2012
Posts: 367
Likes: 16
From: London
C3 1970 Brake proportioning Valve Problems
Having had a lot of problems bleeding the brakes on my 1970 C3 after removing and replacing the master cylinder during some restoration work, I am having difficulty in getting any brake fluid to flow from the back calliper bleeders. Master cylinder was well bench bleed before re-fitting until no bubbles and beyond (done this a couple of times). I initially tried gravity bleeding, have both a vacuum pump I have applied from the bleeder end and a pressure bleeder applied from the master cylinder end. Brakes working fine before this task was undertaken and valve photo is attached for reference.
There is zero resistance when brake pedal is pushed down, so can't use the "pump and then push pedal hard" to centre the valve and when I do this the level of fluid does not fall, however I have only so far tried bleeding from the rear callipers, I am convinced the proportioning valve (its the brass one as shown in attachment) has been un-centered during this process, so any tips for how to re-center it would be appreciated.
Also have seen contrary tips when bleeding of 1) Raising front wheels and 2) Raising back wheels of the floor, which one is recommended?
Kind regards
Paul
There is zero resistance when brake pedal is pushed down, so can't use the "pump and then push pedal hard" to centre the valve and when I do this the level of fluid does not fall, however I have only so far tried bleeding from the rear callipers, I am convinced the proportioning valve (its the brass one as shown in attachment) has been un-centered during this process, so any tips for how to re-center it would be appreciated.
Also have seen contrary tips when bleeding of 1) Raising front wheels and 2) Raising back wheels of the floor, which one is recommended?
Kind regards
Paul
Le Mans Master
Joined: Aug 2017
Posts: 8,336
Likes: 2,810
From: Cool Northern Michigan
With all bleeder screws closed, usually a quick jab to the brake pedal will re-center the Prop Valve. There is also a tool that will hold that piston centered for $12.
It could very well be off center if it detected a leak. That's what it suppose to do. Proportion the fluid elsewhere.
When a situation comes up like this, I like to read between the lines.
Quote "brakes working fine before" . . . .
So then we back track. What has changed? The master was changed. "It was properly bench bled". Or was it?
When you had the MC in your bench vise, how far did you push the MC piston in? If you went more than 1 3/8" you likely damaged a piston seal. Perhaps both seals but most likely the rear. This also voids the warranty on the new MC. If either one of those piston seals (ring) gets damaged, it will never hold pressure, nor will it force fluid to the rear bleeders such as your case.
To see photos of all these topics, click on my profile. Then photo albums, bleeding brakes.
It could very well be off center if it detected a leak. That's what it suppose to do. Proportion the fluid elsewhere.
When a situation comes up like this, I like to read between the lines.
Quote "brakes working fine before" . . . .
So then we back track. What has changed? The master was changed. "It was properly bench bled". Or was it?
When you had the MC in your bench vise, how far did you push the MC piston in? If you went more than 1 3/8" you likely damaged a piston seal. Perhaps both seals but most likely the rear. This also voids the warranty on the new MC. If either one of those piston seals (ring) gets damaged, it will never hold pressure, nor will it force fluid to the rear bleeders such as your case.
To see photos of all these topics, click on my profile. Then photo albums, bleeding brakes.
Last edited by HeadsU.P.; Oct 20, 2020 at 04:34 PM.
Melting Slicks
Joined: Mar 2010
Posts: 2,270
Likes: 375
From: Randolph nj
when they gave me my replacement i had to use the old one
think about it the only thing you changed was the master,, and your brakes worked before
I had to stop my brisket video to look this up ,,, lol
think about it the only thing you changed was the master,, and your brakes worked before
I had to stop my brisket video to look this up ,,, lol
Last edited by forman; Oct 20, 2020 at 08:02 PM.
Le Mans Master
Joined: Aug 2006
Posts: 7,427
Likes: 1,560
From: mount holly NC
2025 c3 ('74-'82) of the Year Finalist - Unmodified
2019 C3 of Year Finalist (appearance mods)
Google haw to adjust the master cylinder pushrod to the booster.
Last edited by Peterbuilt; Oct 20, 2020 at 09:17 PM.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Thread Starter
Racer
Joined: Nov 2012
Posts: 367
Likes: 16
From: London

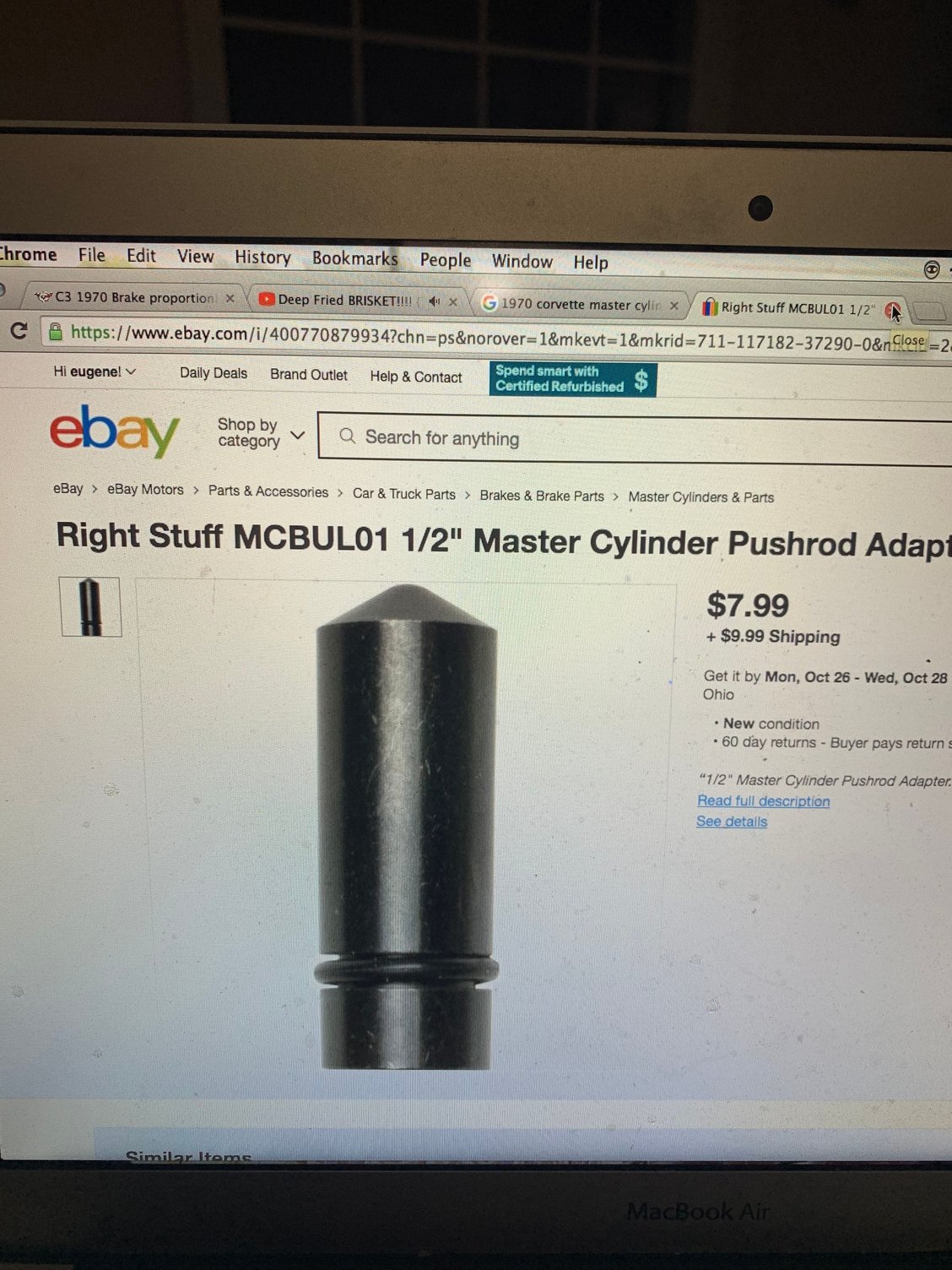

This is a power brake set-up on a 1970 C3, is a spacer needed, as I don't remember one being there when I dismantled it (although that was 18 months ago), and see attachment where one is not shown.
