Mystery Wire Connector

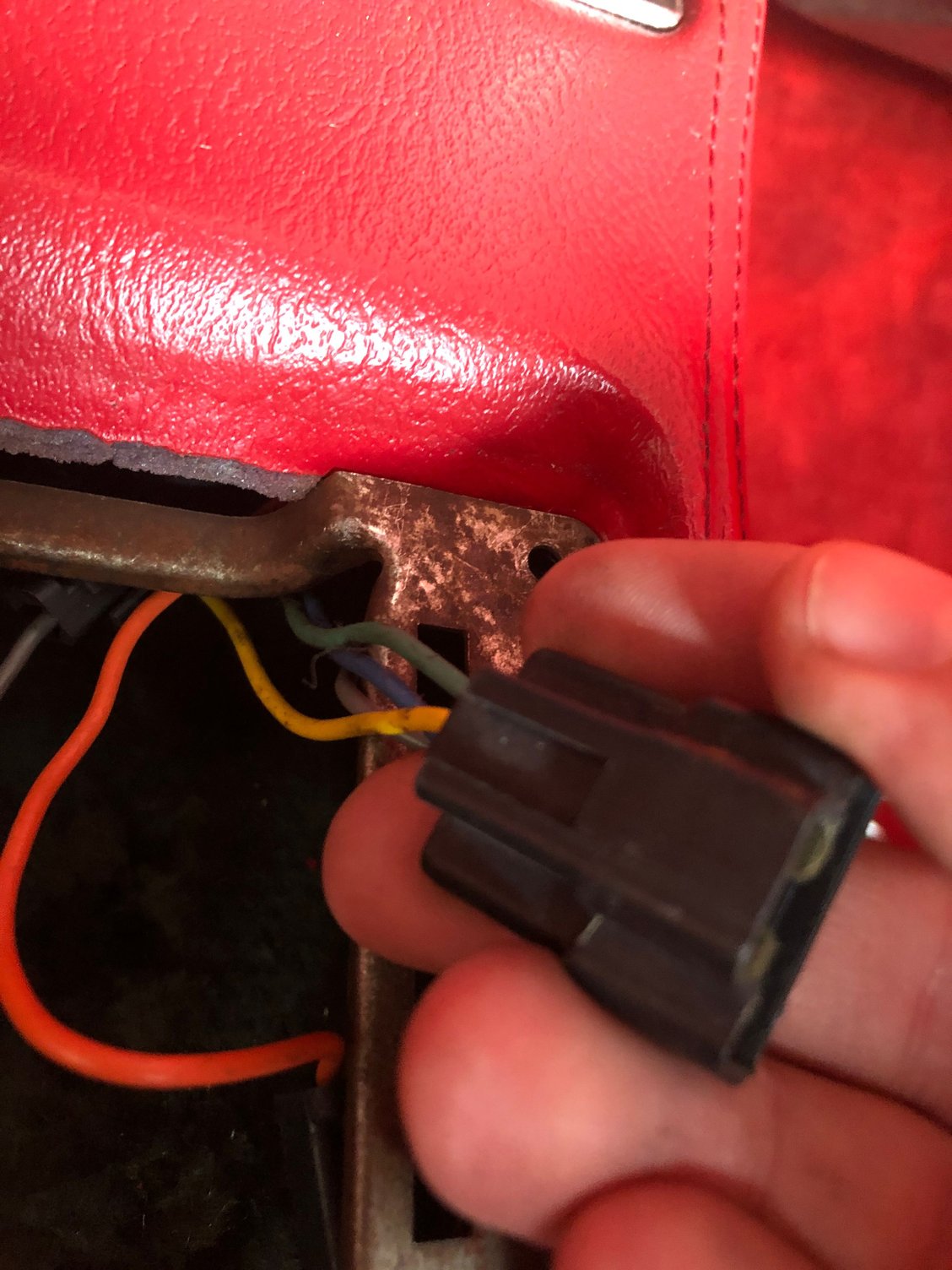

I was working on my shift plate light (due to prior Bubba repair) and noticed this guy sticking out from underneath the console near the climate control & radio areas. Does anyone know what this plugs into? Schematics I find are so blurry its not possible to make out what it this connector goes to.

Oct 23, 2020 | 07:12 PM

Mooser

Race Director

Joined: Apr 2011

Posts: 11,183

Likes: 3,335

From: North of Toronto - Ontario

What color are the wires ?
M

Oct 23, 2020 | 07:18 PM

augiedoggy

Le Mans Master

Joined: May 2007

Posts: 5,029

Likes: 1,120

From: North tonawanda NY

Quote:

Originally Posted by Mooser

What color are the wires ?
M

From the photo linked above the wires appear to be blue yellow, brown and green

Last edited by augiedoggy; Oct 23, 2020 at 07:19 PM.

Oct 23, 2020 | 07:24 PM

Mooser

Race Director

Joined: Apr 2011

Posts: 11,183

Likes: 3,335

From: North of Toronto - Ontario

Blue Yellow Brown and ORANGE is the heater switch, I don't see one that's b y br gr in my schematic (not done but I think complete in that area)
M

Oct 23, 2020 | 07:28 PM

Mooser

Race Director

Joined: Apr 2011

Posts: 11,183

Likes: 3,335

From: North of Toronto - Ontario

Blue Yellow Grey = radio

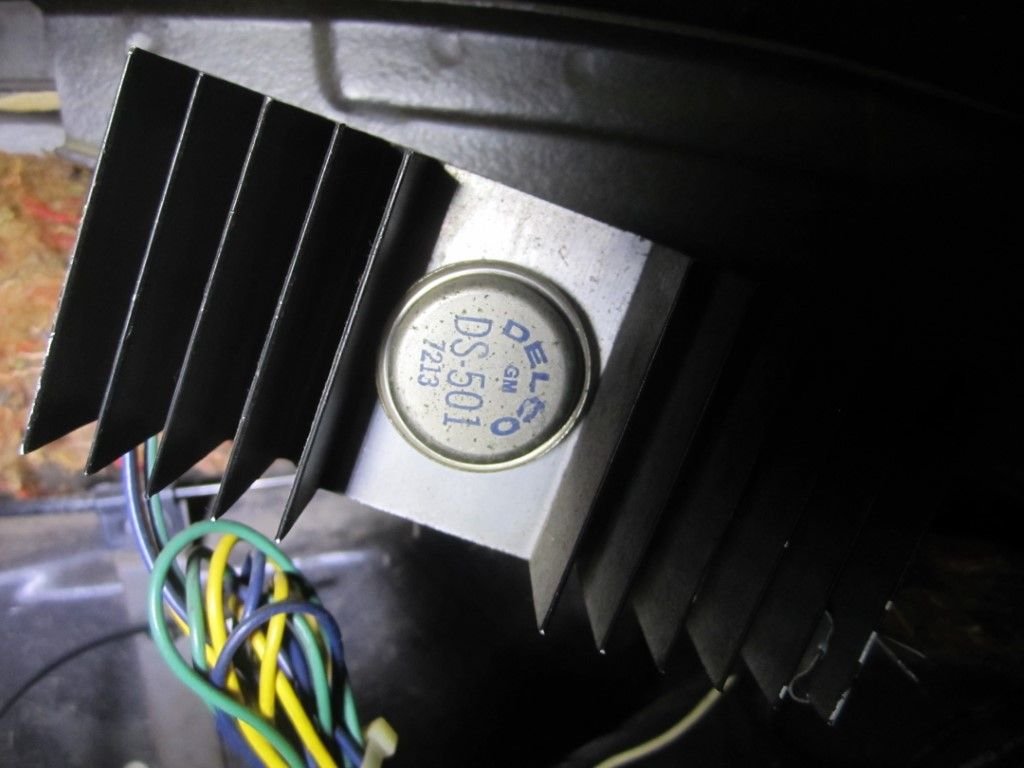

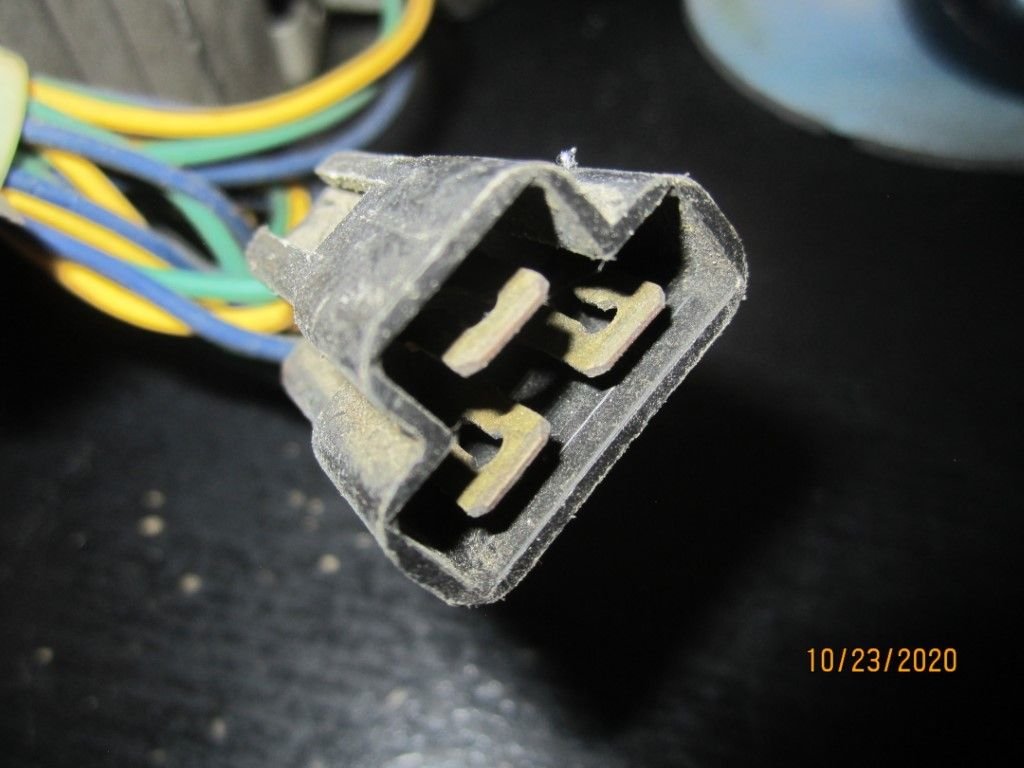

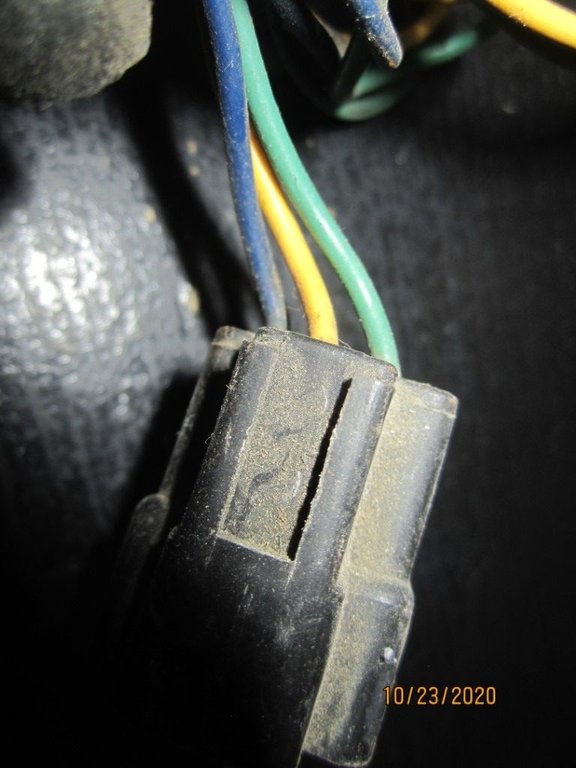

Blue Green Yellow ??? was the radio amplifier

That might be it just slide down if the radio was changed

M

Oct 23, 2020 | 08:04 PM

TexVette01

Thread Starter

Instructor

Joined: Feb 2011

Posts: 142

Likes: 24

From: Houston Texas

Its a 3 wire connector (yellow, blue, green).
Blue and Green live next to each other with the yellow on top of the connector housing.
This car does have a different radio in it. Someone "upgraded" to a cassette player lol.

The orange wire comes off the cigarette lighter as does a skinny gray wire.
