Upper control arm shaft tolerance.
Thread Starter
Advanced
Joined: Apr 2016
Posts: 88
Likes: 8
Upper control arm shaft tolerance.
Got new rubber control arm bushings ‘moog. Slid them on the shaft for the fun of it and to my surprise it seem to have a lot of movement. I know when installed they’ll be torqued down. Is the play normal? Seems it should be at lease a slide fit. This is on the shaft only not installed.
Melting Slicks
Joined: Nov 2006
Posts: 3,393
Likes: 1,806
From: Apple Valley, MN

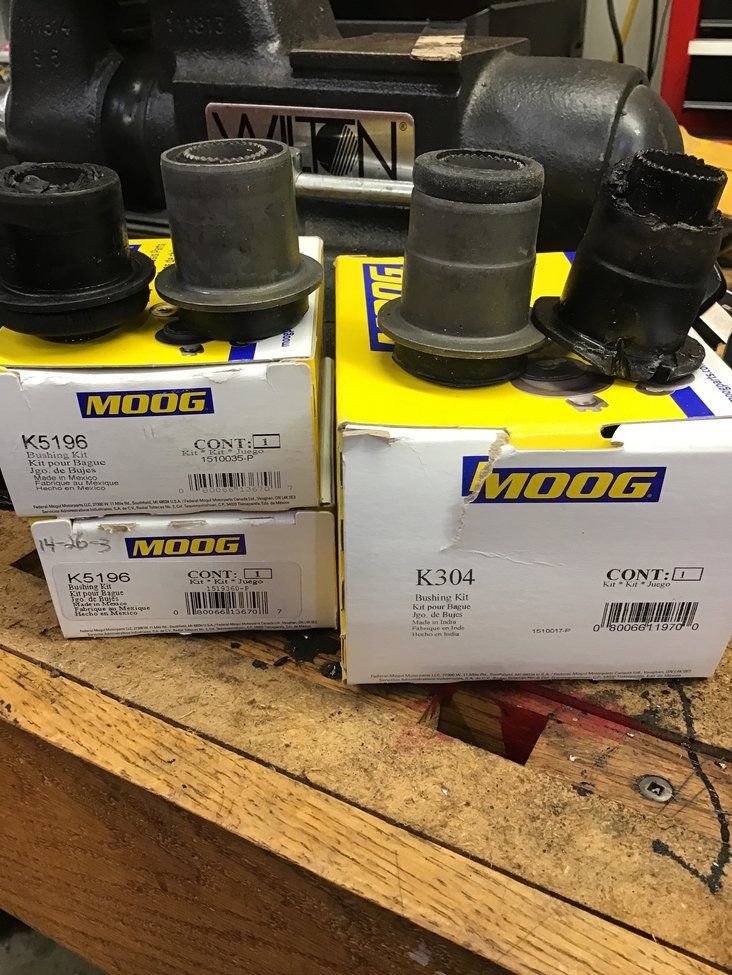

Where did you get the bushings from? Does each bushing exhibit the same amount of “looseness” on each of the shaft ends?
These are mass-produced parts and there are, unfortunately, manufacturing variations. While not designed to be a “machined fit”, they should not flop around like a carp on a hot sidewalk. Any visible wear on the shafts? Post a pic of the shafts
These are mass-produced parts and there are, unfortunately, manufacturing variations. While not designed to be a “machined fit”, they should not flop around like a carp on a hot sidewalk. Any visible wear on the shafts? Post a pic of the shafts
2026 Loser of the Year
Joined: Sep 2013
Posts: 36,573
Likes: 7,015
From: New Or-leens Loo-z-anna
Apparently different companies sell bushings with different size internal diameters. I tried my new bushings on the shaft ends...the bushings would not slide on unless I tapped them with a hammer....not a good thing.
The outer sleeve on each bushing was also much too tight which required machining .005" from the outer diameter to have a decent press-fit that would not damage/seize-up while being pressed into the holes in the control arms.
I had to machine .005" out of the inner sleeve on all the bushings to get a slip-fit with grease applied to the shaft ends. Then I was able to assemble the shaft/bushings
The outer sleeve on each bushing was also much too tight which required machining .005" from the outer diameter to have a decent press-fit that would not damage/seize-up while being pressed into the holes in the control arms.
I had to machine .005" out of the inner sleeve on all the bushings to get a slip-fit with grease applied to the shaft ends. Then I was able to assemble the shaft/bushings
Race Director
Joined: Apr 2011
Posts: 11,183
Likes: 3,334
From: North of Toronto - Ontario
When I did mine a handful of years ago I checked the sizes of new moog and prothane bushings and had someone (I can't recall who) check a set of new shafts
Upper shaft .670-.676, moog bushings .683-.687, prothane .685-.689
Lower shaft .738-.742, moog bushings .755-.758, Prothane .754-.758
FWIW, I was using my original shafts and just knurled the bushing area so that it had a "snug" fit that you could rotate by hand with a bit of effort. The inner sleeve locks onto the shaft shoulder with the serrations but having the sleeve fit better isn't hurting
M
Upper shaft .670-.676, moog bushings .683-.687, prothane .685-.689
Lower shaft .738-.742, moog bushings .755-.758, Prothane .754-.758
FWIW, I was using my original shafts and just knurled the bushing area so that it had a "snug" fit that you could rotate by hand with a bit of effort. The inner sleeve locks onto the shaft shoulder with the serrations but having the sleeve fit better isn't hurting
M
2026 Loser of the Year
Joined: Sep 2013
Posts: 36,573
Likes: 7,015
From: New Or-leens Loo-z-anna
And as the members taught me...when installing the assembled upper and lower arms on the car....
Do Not torque the shaft bolts until the car is sitting on the garage floor and the car has been rolled forward/backward several feet so the arms will settle into position.
THEN torque the bolts to specs. so the serrations "bite" into the shaft. *The bushings rubber will rip themselves apart in a few weeks if the shaft bolts are torqued before the car is sitting on it's own weight*
Do Not torque the shaft bolts until the car is sitting on the garage floor and the car has been rolled forward/backward several feet so the arms will settle into position.
THEN torque the bolts to specs. so the serrations "bite" into the shaft. *The bushings rubber will rip themselves apart in a few weeks if the shaft bolts are torqued before the car is sitting on it's own weight*
Le Mans Master
Joined: Jun 2019
Posts: 7,649
Likes: 2,466
From: Indiana
hmmmmm weird.. all the same ? too small rods? no difference in size?
here was my thread
A 79 control arm bushing saga using the Lars method - CorvetteForum - Chevrolet Corvette Forum Discussion
here was my thread
A 79 control arm bushing saga using the Lars method - CorvetteForum - Chevrolet Corvette Forum Discussion
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
Thread Starter
Advanced
Joined: Apr 2016
Posts: 88
Likes: 8
Well I going to order new shafts. I think the play is a little excessive too. I did use the caliper that I saw on the other post / good info and one side one shaft was a little different / small. That’s the one on the video. Don’t know why maybe factory defect. I’m sure if I hit a bump it could shift and eventually loosen. Hopefully I’ll get something a little tighter. Just trying for snug. Thank you all for the help.
