1978 LS3 Swap Completed.

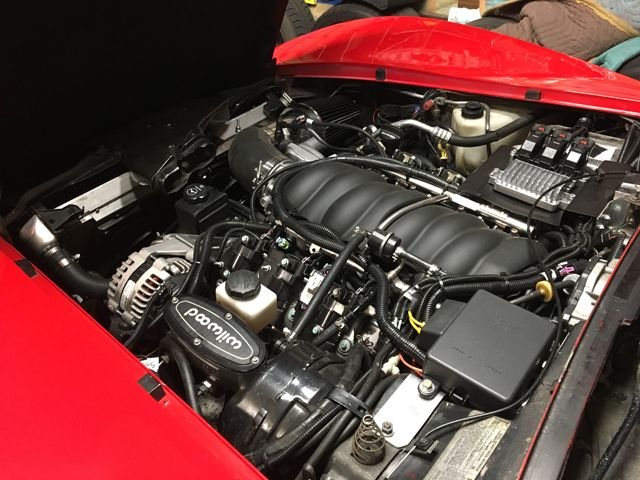

So I completed the LS3 swap in my 1978 corvette.
So the project guideline was not to modify anything that cannot be returned to the Original L48 / Auto factory configuration. (except for the tunnel mod for the T56 magnum Shifter).
So everything needed to be mounting to existing mounting points and wires needed to be routed via existing firewall holes.
No wiring connectors where cut at all. Made adapters using the correct connectors from the factory 78 wire harness to required connector on the other end.
So the swap was from the GM ZZ383 to the LS3.
So the basic install notes are the following.
Engine is a GM Crate LS3 / 480 engine (19419864) LS376/480 495HP Hot Cammed LS3 - 4 LEFT AT OLD PRICE !!: GM Performance Motor
with the GM Controller / wire harness (19354330) including drive by wire gas pedal.
1982 fuel sending unit with a areomotive stealth 340 fuel pump. Custom hardline from the sending unit to a C5 fuel filter regulator mounted on the driver side frame rail next to the fuel tank. Then a hardline from the fuel regulator to a mid point on the driver side frame rail. Then a hardline from the mid point to the driver side engine frame rail. This may change next year with a properly baffled tank but for now it is working as excepted.

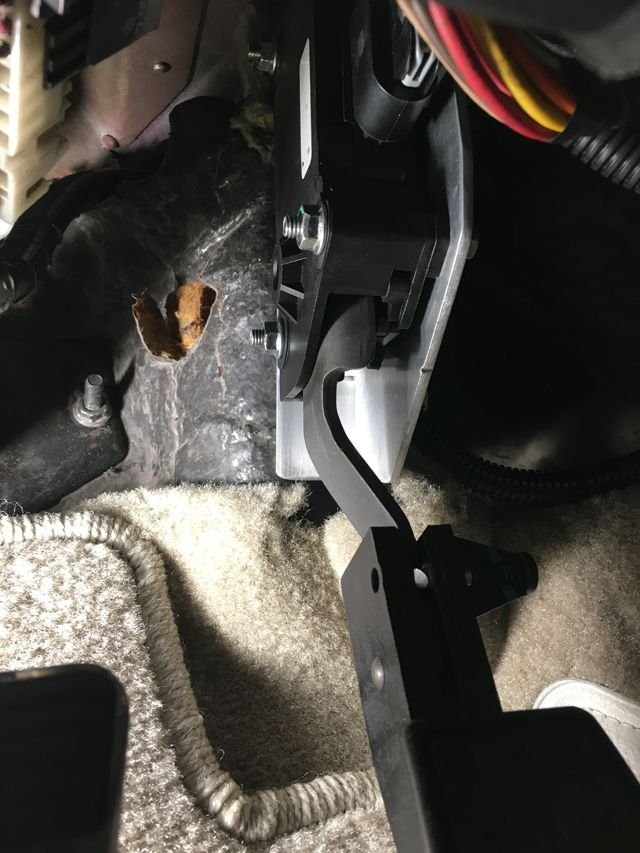

Made a custom gas pedal bracket mounting to the existing gas pedal mounting holes.
Wire routed via the hole from the gas pedal cable ( required to remove the pins from the connector and re-connect )
Accessory bracket was the holley 20-135, important note the accessory bracket alignment needs to match the crank damper on the engine. There is 3 possible dimensions , My engine uses the corvette / CTSV spacing which is the closest to the block. Did not reconnect the AC yet, but since the car is used for track days I am not sure I will reconnect.
Power steering GM type II pump below with a remote reservoir and the high mount alternator. This mounting bracket is also the same as my C6 2010 Grandsport including power steering pump and alternator. But find a non corvette part # to save money.

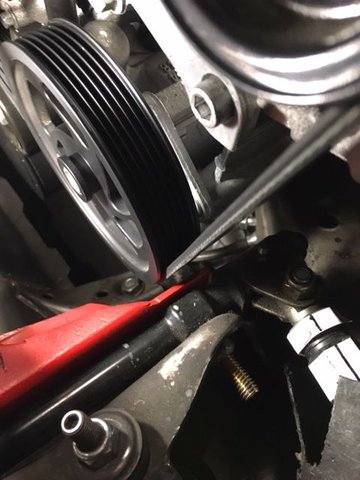

Now the power steering Pump required a smaller dia pulley to clear the driver side control arm. Also the control arm bolt needed to be reversed for additional clearance.

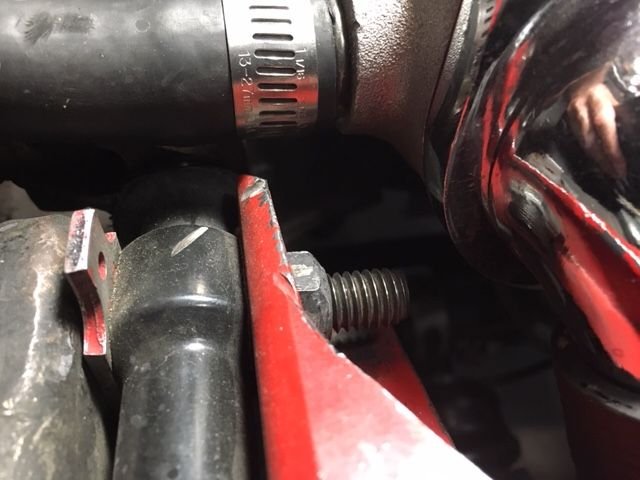

All shims were removed and alignment was adjusted via the upper control arm shafts ( spc upper arms ) This was already on the car.
Motor Mounts where from ICT 551128-301 which places the LS3 near factory SBC engine, ~ 1/2" forward.

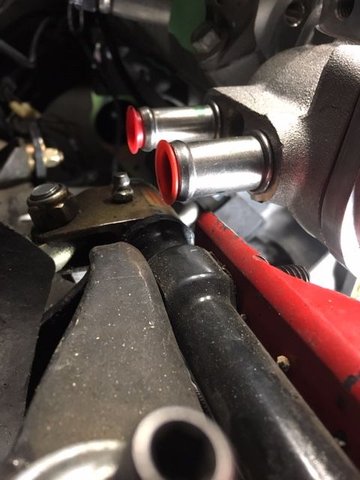

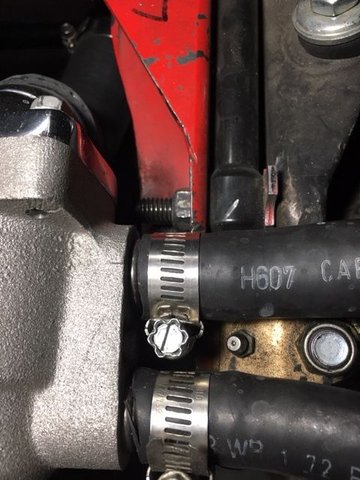

With the SPC Upper arms I was able to connect the heater hoses without mods to the water pump.
Radiator is a dewitts aluminum rad for the factory 1978 c3 corvette. Hoses were cut from a factory hose. Needed 2 x 90 degree bends for both upper and lower rad hose.
Started as this

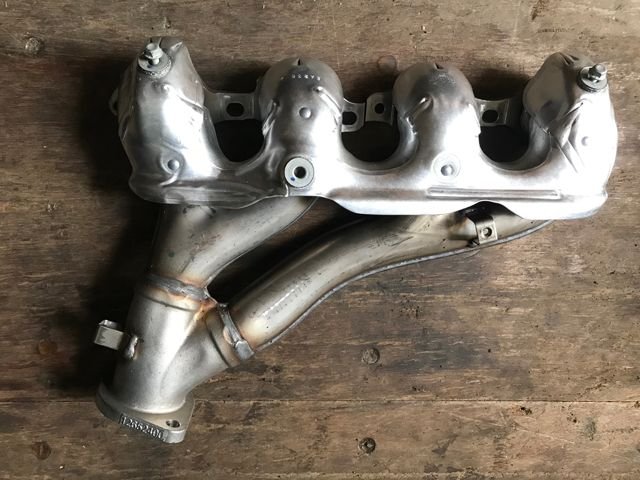

exhaust manifold was from a LS7 crate motor including heat shields plus addition mounting points for other heat shields
No clearance problems with anything. Only exhaust bolt that requires a s shaped wrench is the rear driver side.
Wiring was the easy part.
1. Connect to battery
2. Connect to 12v ignition
3. ground.
4. connect pump controller to pump 12 V
5. connect fan control to 12v fan relay. ( part of the dewitts alum rad with spal fans )
Routed the ODB2 connected via a hole on the passenger side firewall mounted under the glove box
6. Installed temp sensor at the passenger side rear of block to connect to the factory temp gauge. Need to use variable resistor to calibrate to 200 degree F.
7. Alternator L wire made connector to plug into the factory wire harness ( alternator light )
8. drilled and tapped 1/8 NPT into the oil cooler ls3 plug by the oil filer to connect the factory oil pressure gauge. Or you can buy a plug with the connector already to go.
9 re-program the ecu to output the factory 8 cylinder tach signal (gm programed as 4 cylinder) Customer wire connector to plug into the factory tach connector. (5k pull up resistor required)
All vacuum hoses connected to factory type locations, plugged the cruse control vacuum line, PCV Valve line.
LS3 PVC system used factory GM Parts from my C6 2010 Grandsport.
Air system used off the shelf parts custom sized to fit.
I have left out some details but the worst part was installing new fuel hardlines, and determining the accessory system that will fit. Many LS3 swap vendors make claims as to what fits BUT IT DEPENDS ON THE CRANK DAMPNER POSITION.
So as for performance waiting to take it out to the track, but pulls much harder than the ZZ383.
As for gas mileage my ZZ383 got 27.4 mpg
and the LS3 I got a great 33.1 mpg
