Passenger Kick Panel
Thread Starter
Heel & Toe
Joined: Dec 2021
Posts: 24
Likes: 3
From: California
Passenger Kick Panel
So in the process of rebuilding the factory A/C system the fresh air vent door and air inlet plenum needed to be replaced. Upon disassemble I found the plenum assembly unattached and stuffed into the air inlet cavity. I’m attempting to re install the kick panel with the plenum assembly mounted and it doesn’t seem to want to go back in without serious contortion, to the point I’m concerned I’ll break it trying to stuff it into position.
Can anyone comment on the procedure for this?
Car is 1972
Can anyone comment on the procedure for this?
Car is 1972
Melting Slicks
Joined: Apr 2010
Posts: 2,793
Likes: 1,193
From: Canberra Australia
2025 C3 of the Year Finalist - Modified
I don’t recall there being any contact issues with the kick panel and the air door assembly.
it was a while back when I rebuilt those parts but it covered some of it here.
https://www.corvetteforum.com/forums...1-journey.html
The kick panel may have been modified in factory to make clearance and if the previous owner replaced it with a stock one it may need to be trimmed. Am looking for a picture so you can compare.

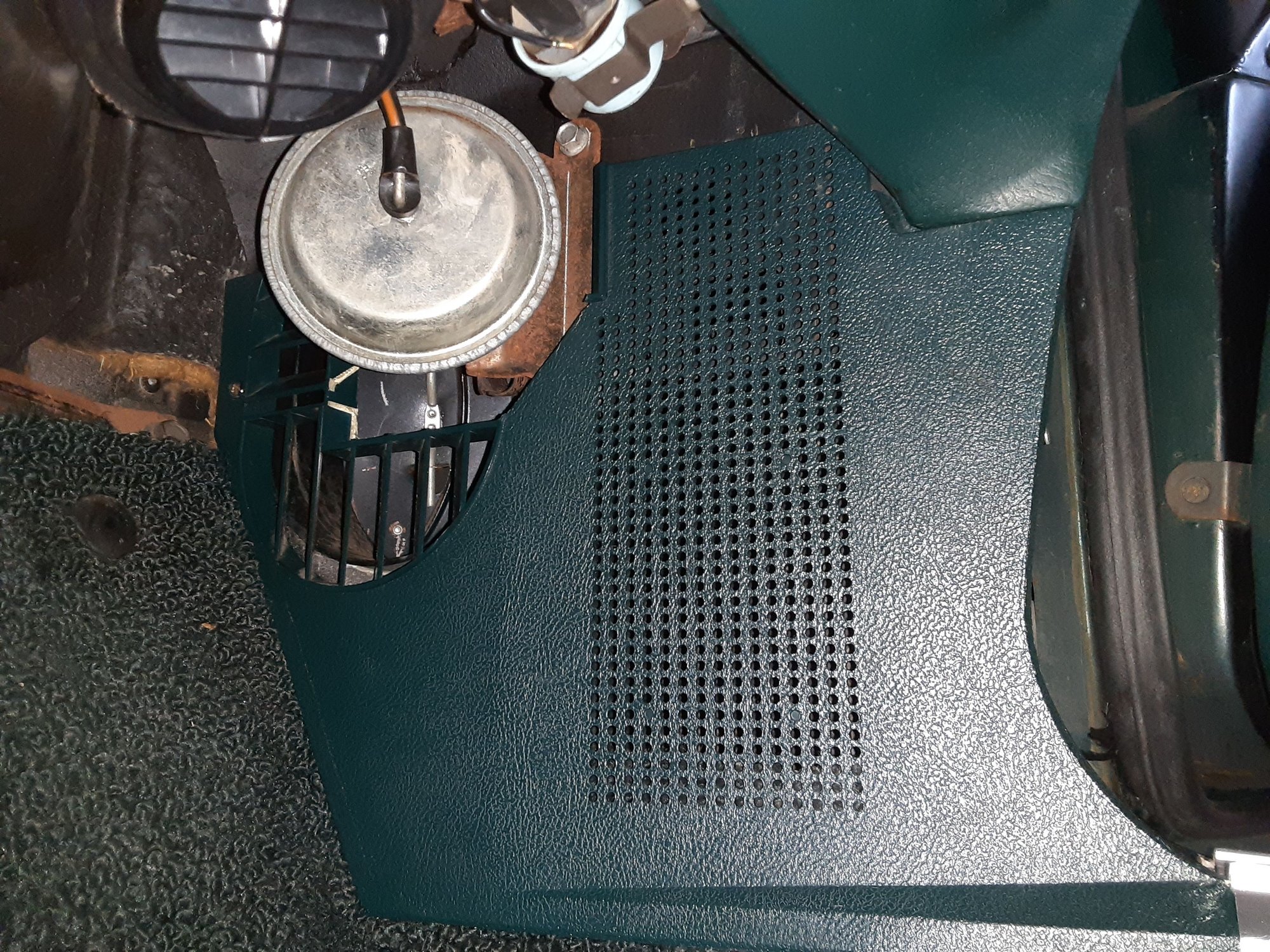

Air Door assembly does stick out a bit
Here is my left and right kick panels before restoration.
it was a while back when I rebuilt those parts but it covered some of it here.
https://www.corvetteforum.com/forums...1-journey.html
The kick panel may have been modified in factory to make clearance and if the previous owner replaced it with a stock one it may need to be trimmed. Am looking for a picture so you can compare.
Air Door assembly does stick out a bit
Here is my left and right kick panels before restoration.
Last edited by CraigH; Apr 10, 2023 at 07:52 PM.
Thread Starter
Heel & Toe
Joined: Dec 2021
Posts: 24
Likes: 3
From: California
Based on your photo Craig it looks as thought the panel on the left is the passenger side panel. If that’s the case my passenger side panel looks more like the panel on the right side of your photo. Now I’m wondering if the panel was replaced at some point in its life, not sure why someone would do that. It makes me think possibly the panel was replaced with a panel from a non A/C car. Does anyone know if the non A/C car eliminates the fresh air door assembly and therefore uses a different kick panel?
THANKS!!
THANKS!!
Melting Slicks
Joined: Apr 2010
Posts: 2,793
Likes: 1,193
From: Canberra Australia
2025 C3 of the Year Finalist - Modified
Based on your photo Craig it looks as thought the panel on the left is the passenger side panel. If that’s the case my passenger side panel looks more like the panel on the right side of your photo. Now I’m wondering if the panel was replaced at some point in its life, not sure why someone would do that. It makes me think possibly the panel was replaced with a panel from a non A/C car. Does anyone know if the non A/C car eliminates the fresh air door assembly and therefore uses a different kick panel?
THANKS!!
THANKS!!
The panel was probably cut down in assembly
1967 Pedal Car Champion
Joined: Mar 2020
Posts: 9,027
Likes: 4,174
From: US-PNW
