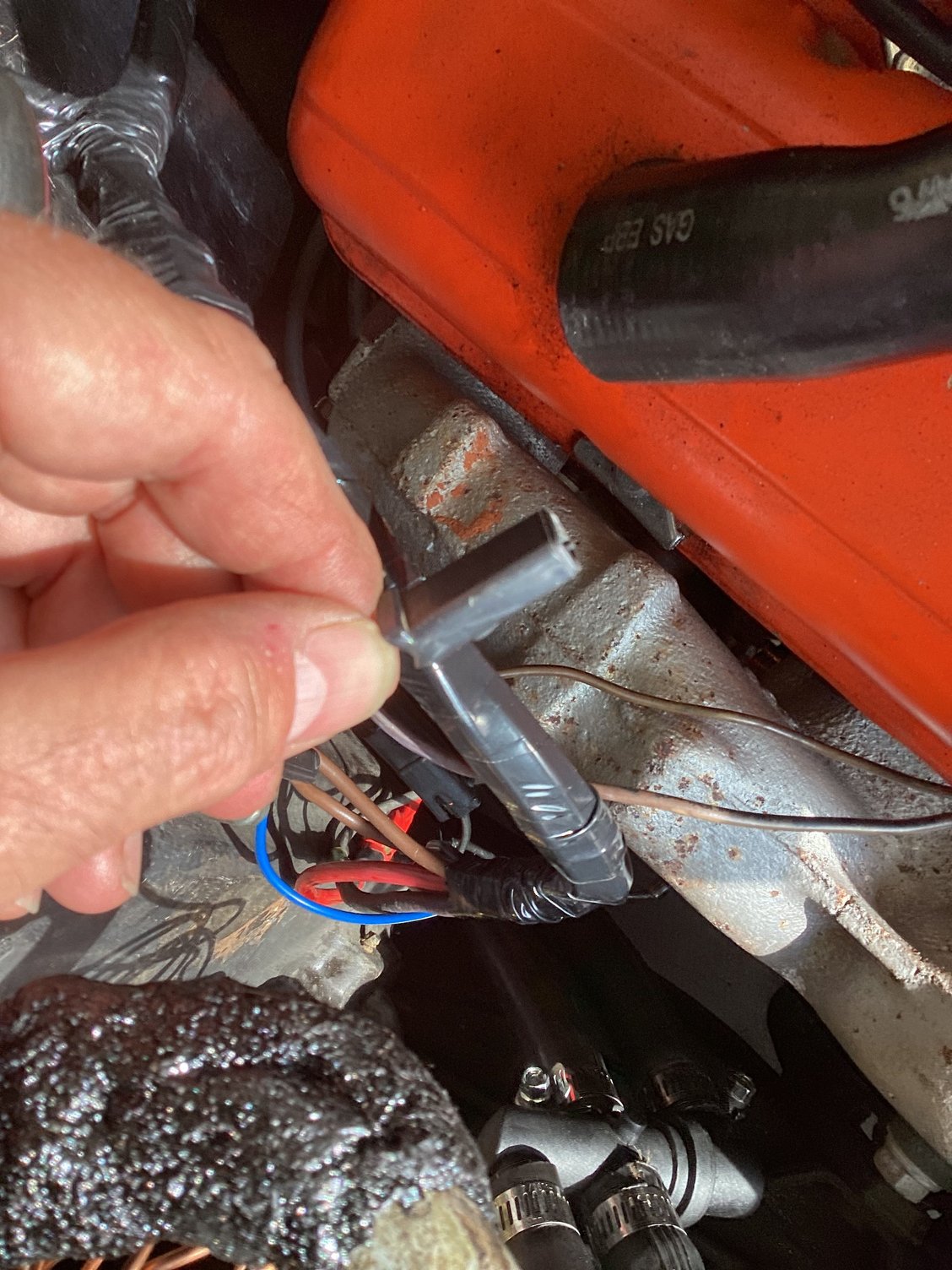

This sensor on the passenger side of the engine block was not connected to anything when I acquired this 72 SB. There is a wire with a spade connector near by but the wire insulation looks to be burnt and black and I’m unable to accurately ID the color. What is this sensor, how does it appear on the wiring schematic? The other picture showing the spade connector being held is a ground loop that first goes to the ground terminal on the A/C relay. Were does it connect?
That's the temp sensor for the TCS system, they had 2 internal temps and a jumper that connected them both and that was what told it the engine was warmed up and it could start using the vac-advance. Frequently disconnected a long time ago
Not sure about the wire without knowing the color
M
Last edited by Mooser; Apr 12, 2023 at 08:43 PM.
Reason: added picture of wiring
Right side? Green wire, extra length, wrapped together with a very narrow piece of tape is what’s used on 71. Stand alone that plugs into a lead in the firewall harness.
