All Guage Lights do not Work
Thread Starter
Instructor
Joined: Jan 2007
Posts: 207
Likes: 2
From: Key Largo Florida
All Guage Lights do not Work
I have checked and replaced the 5 amp fuse, I have even installed a new headlight switch that also controls the gauge lights. Still have the problem. I admit to having a hard time understanding the wiring
diagram. But I would think that it is not wired that one gauge light goes out they all do.

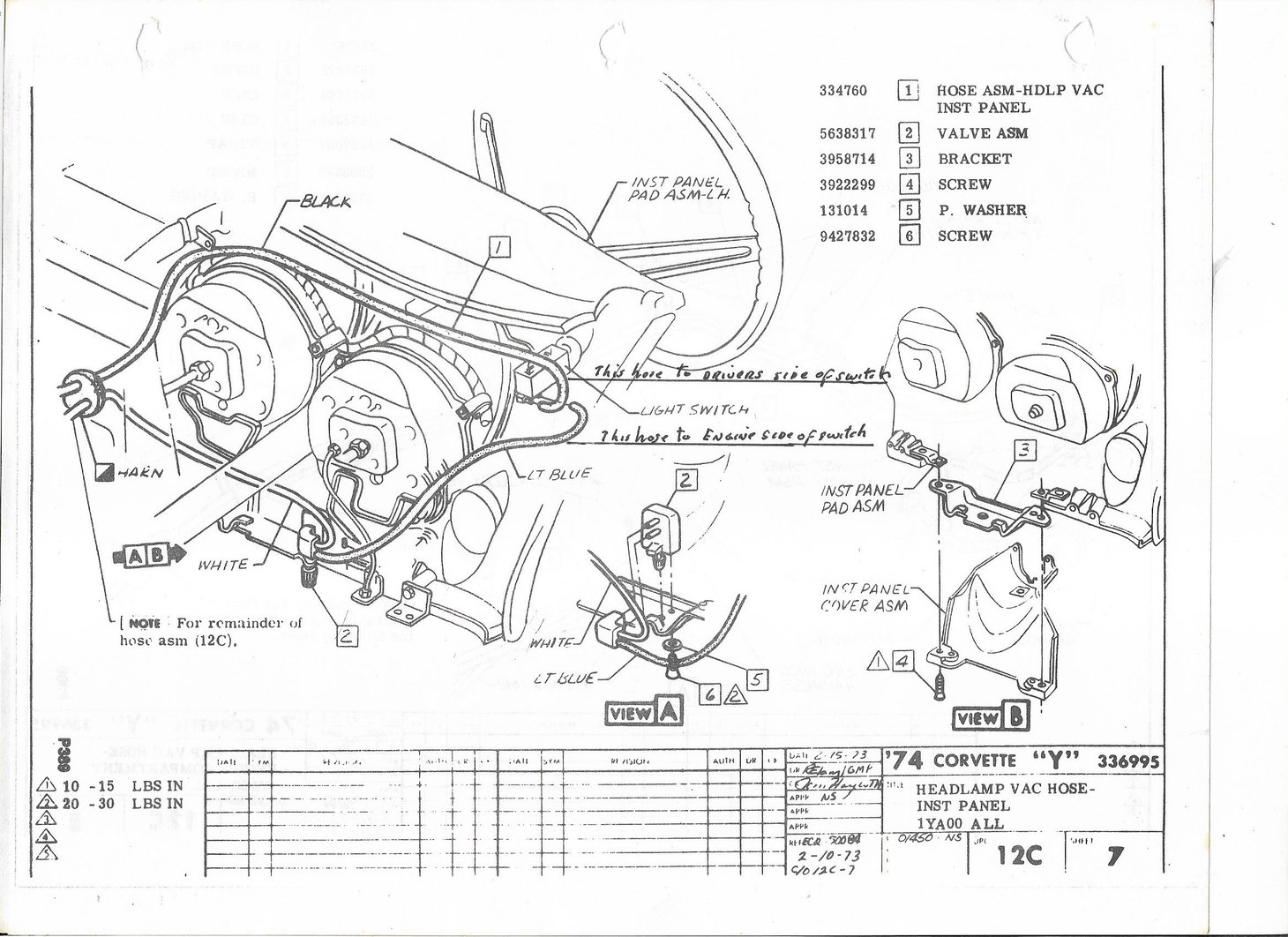

I caused a second problem with the installation on the new headlight switch. One of the two vacuum hoses came disconnected on both ends. One hose goes to the switch under the dash to keep the headlights raised. I need help finding were the other vacuum hose connects.
As always I appreciate any help.
diagram. But I would think that it is not wired that one gauge light goes out they all do.
I caused a second problem with the installation on the new headlight switch. One of the two vacuum hoses came disconnected on both ends. One hose goes to the switch under the dash to keep the headlights raised. I need help finding were the other vacuum hose connects.
As always I appreciate any help.
Is my vette stock?? HAHA
Joined: Oct 2015
Posts: 20,145
Likes: 9,274
From: Im not allowed to tell you
2020 C3 of the Year Finalist - Modified
2020 Corvette of the Year Finalist (performance mods)
2019 C3 of Year Winner (performance mods)
2016 C3 of Year Finalist

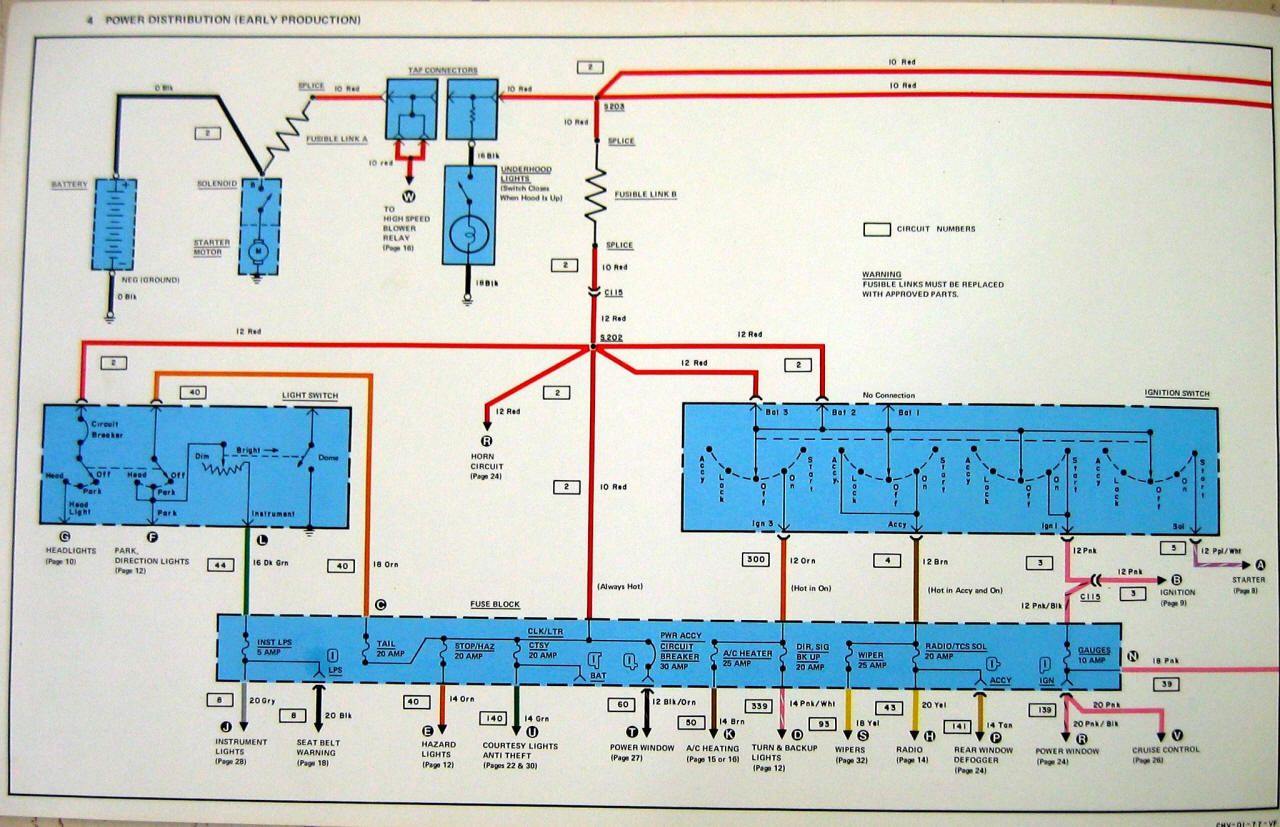

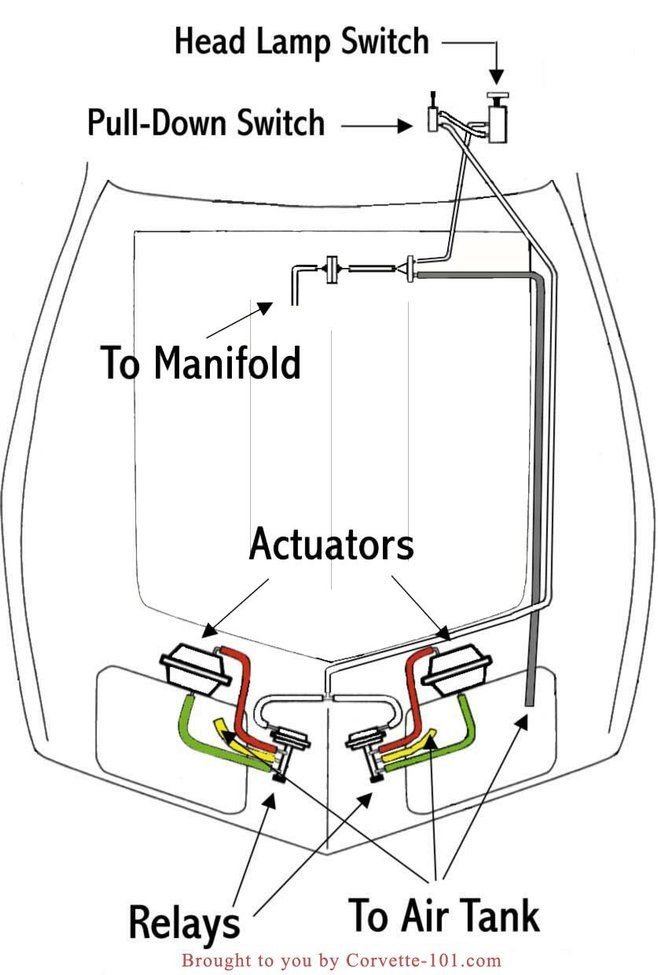

Depending on the year, one hose comes into the switch and the other goes to the bypass valve. What year is your car. As for the fuse, you need ot make sure you have power on both sides of the fuse. The way the power is supplied to the fuse is power comes into the headlight switch, down to the fuse then back to the headlight switch and out to the gauges also depending on the year
Instructor
Joined: Feb 2019
Posts: 201
Likes: 48
From: Detroit

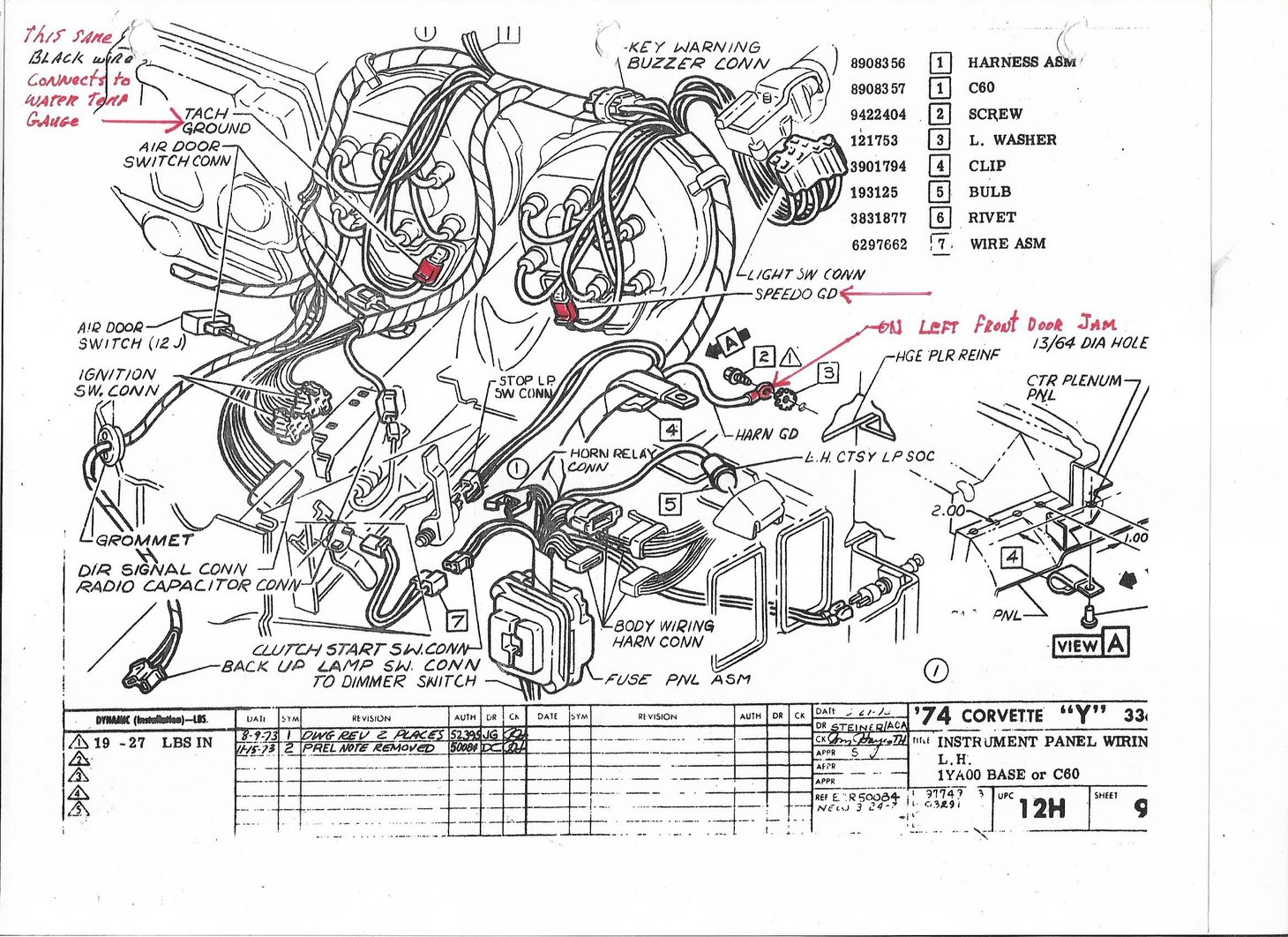

One thing is that check your ground. The bulb sockets ground to the cluster housing. To check you will need to ground the housing to the body (I clamp a wire from the cluster housing to a cross member bolt). Then “wiggle” each bulb socket to the cluster. Another potential issue is your bulb isn’t getting power from the wire inside the socket.
Hope this helps.
Hope this helps.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
Le Mans Master
Joined: Jan 2001
Posts: 6,711
Likes: 1,371
benito
Here are some wonderful 1969 wiring diagrams by robertea .... might as well use your year:
https://www.corvetteforum.com/forums...g-diagram.html
Here are some wonderful 1969 wiring diagrams by robertea .... might as well use your year:
https://www.corvetteforum.com/forums...g-diagram.html
