[HELP]...Need Munice 4spd / Shifter plate install help...
Thread Starter
Melting Slicks
Joined: Aug 2001
Posts: 2,833
Likes: 15
From: Southeast La
[HELP]...Need Munice 4spd / Shifter plate install help...
below are the photos of my problem. I took this inspection plate off my '68 4spd, mainly to change the gasket. Now I am at a loss how to fit it back together.
The half moons (shift forks) slide into the carrier races in photo#2, but not sure which way they face. Also, the dowel ends to the half moons fit into the slots on the back side of the inspection plate, but which ones. I had pictures of the teardown, but have deleted off my harddrive. :rolleyes:
Now I'm in a bind. Anyone know how to fit this together, or know of a reference. TIA.
[Modified by topless68, 4:33 PM 7/5/2003]
The half moons (shift forks) slide into the carrier races in photo#2, but not sure which way they face. Also, the dowel ends to the half moons fit into the slots on the back side of the inspection plate, but which ones. I had pictures of the teardown, but have deleted off my harddrive. :rolleyes:
Now I'm in a bind. Anyone know how to fit this together, or know of a reference. TIA.
[Modified by topless68, 4:33 PM 7/5/2003]
Le Mans Master
Joined: Sep 2000
Posts: 5,635
Likes: 4
From: Orlando Floriduh
Re: [HELP]...Need Munice 4spd / Shifter plate install help... (topless68)
Check out http://www.5speeds.com and find the muncie four speed section.
[Modified by bluevetteman, 6:22 PM 7/5/2003]
[Modified by bluevetteman, 6:22 PM 7/5/2003]
Senior Member since 1492
Joined: Aug 2000
Posts: 87,936
Likes: 156
From: Just because I'm paranoid doesn't mean people aren't out to get me...
St. Jude Donor '09
Re: [HELP]...Need Munice 4spd / Shifter plate install help... (bluevetteman)
I did mine the hard way----with the tranny in the car. :( I found out the hard way that the tranny should be in 2nd gear before removing the side case. Otherwise it's almost impossible to get the forks back in. I think I used a Haynes manual as a reference.

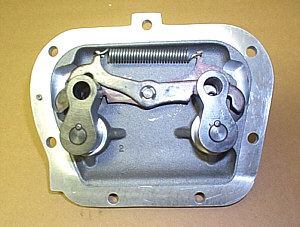

Here's a pic from the above mentioned site:
There's a forum member here by the name of Bob (yes just Bob)from Canada who was istrumental in helping me get the forks & side case back on.
Here's a pic from the above mentioned site:
There's a forum member here by the name of Bob (yes just Bob)from Canada who was istrumental in helping me get the forks & side case back on.
Tech Contributor
Joined: Aug 1999
Posts: 15,175
Likes: 3,990
From: Connecticut, USA
Re: [HELP]...Need Munice 4spd / Shifter plate install help... (topless68)
Check the forks for wear and slop in the sliders. The sliders are the parts that engage the syncro's and gear teeth. There should be springs and sissors that lock the forks in gear. They are mounted to the side cover. There are two seals on the outside of the cover you should replace. If you have any slop in the forks mike them up and compare the size to the slots in the sliders. I think I have the spec's on new replacement forks somewhere if you need it. If memory serves me they're 3/8".
Gary
Gary
Senior Member since 1492
Joined: Aug 2000
Posts: 87,936
Likes: 156
From: Just because I'm paranoid doesn't mean people aren't out to get me...
St. Jude Donor '09
Re: [HELP]...Need Munice 4spd / Shifter plate install help... (topless68)
I found the pages in the manual and scanned them. Hope they turn out OK and not too big. Hope this helps. :thumbs:
[Modified by 1970 Stingray, 9:45 PM 7/5/2003]
[Modified by 1970 Stingray, 9:45 PM 7/5/2003]
