Where does this connect to!?
Thread Starter
6th Gear
Joined: Aug 2024
Posts: 6
Likes: 3
Where does this connect to!?

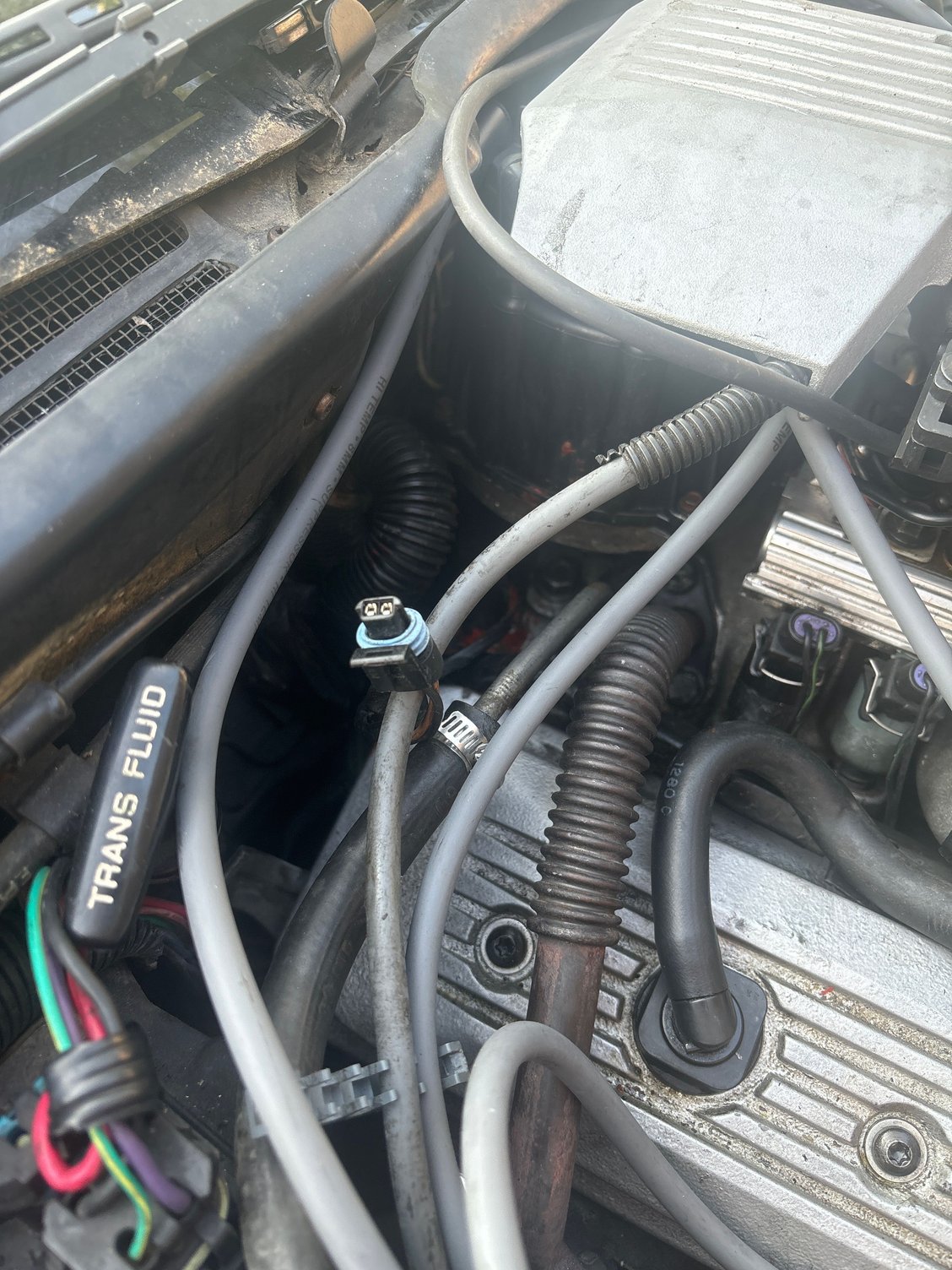

Help please! I have a 1990 C4 and did some work on it recently and I cannot find The female part of the blue edged connector in this picture. I have it pulled to the passenger side of the car, but it may go over to the driver side… Seems like it starts underneath the distributor. Does anyone know where the other part of this connection is and what it does? Thank you!
Team Owner
Joined: Sep 2003
Posts: 25,394
Likes: 2,741
What are the wire colors? Do you have the FSM(Factory/Field Service Manual)?
If TAN & BLK likely the MAT Sensor

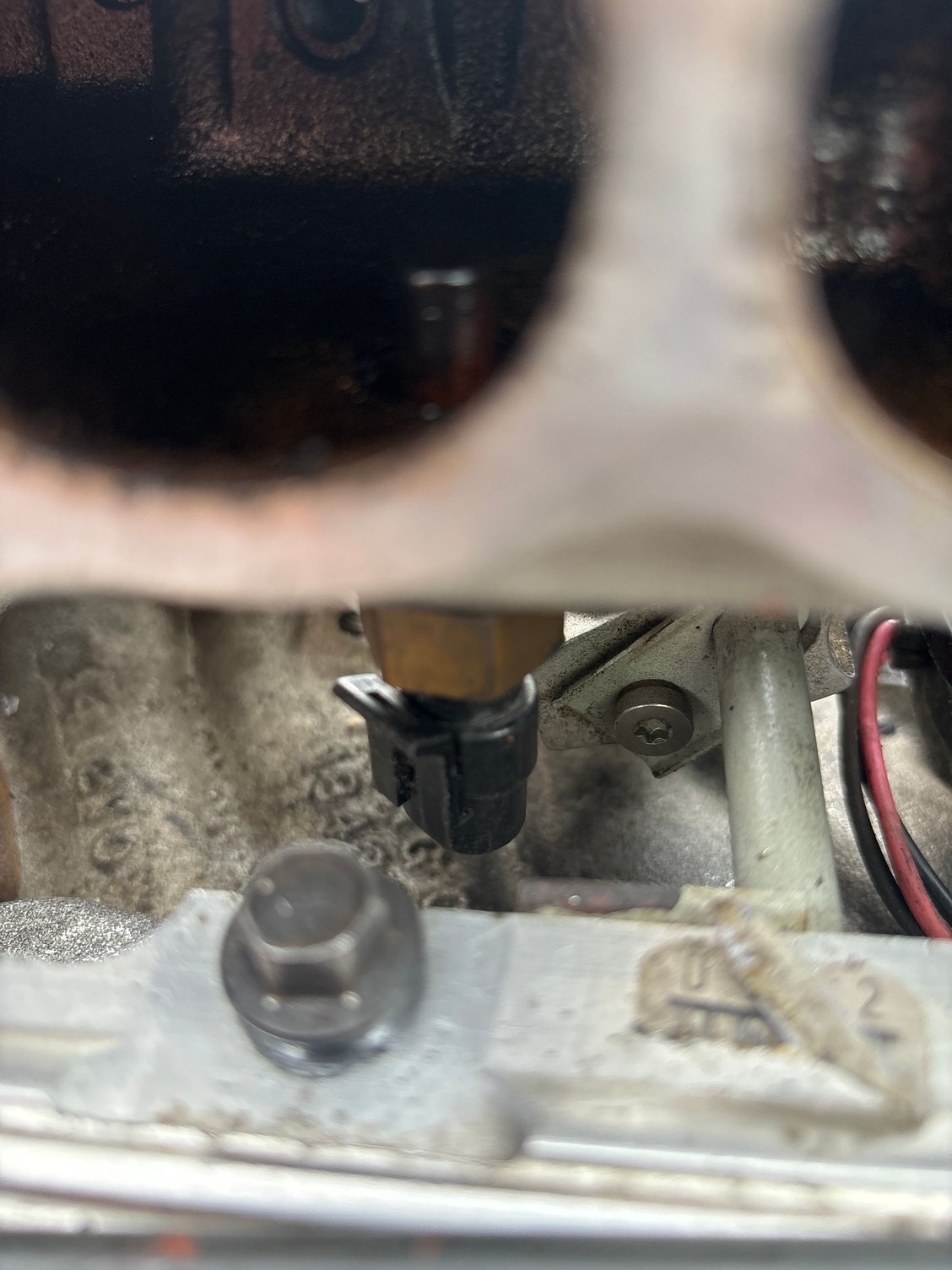

**** Back in 2003 someone had this comment: The MAT screws into the bottom-side of the plenum, about 2/3 of the way back, just above the EGR valve. It can be a B-I-T-C-H to get at.
If TAN & BLK likely the MAT Sensor
**** Back in 2003 someone had this comment: The MAT screws into the bottom-side of the plenum, about 2/3 of the way back, just above the EGR valve. It can be a B-I-T-C-H to get at.
Last edited by WVZR-1; Aug 30, 2024 at 07:39 PM.
Drifting
Joined: Jan 2021
Posts: 1,312
Likes: 384
From: Northern California
I agree. That wire should be going under the driver's side of the distributor, then under the air intake plenum between the tubes, then connecting to the sensor underneath the main plenum.
Drifting
Joined: Jan 2021
Posts: 1,312
Likes: 384
From: Northern California
Very welcome. I suggest, also, that you get an EGR heat shield around that EGR pipe which runs over the passenger side valve cover. That thing gets hot as hell, could cook some of the stuff nearby without any wrap on it. - https://www.zip-corvette.com/89-91-e...at-shield.html
Thread Starter
6th Gear
Joined: Aug 2024
Posts: 6
Likes: 3
My response…

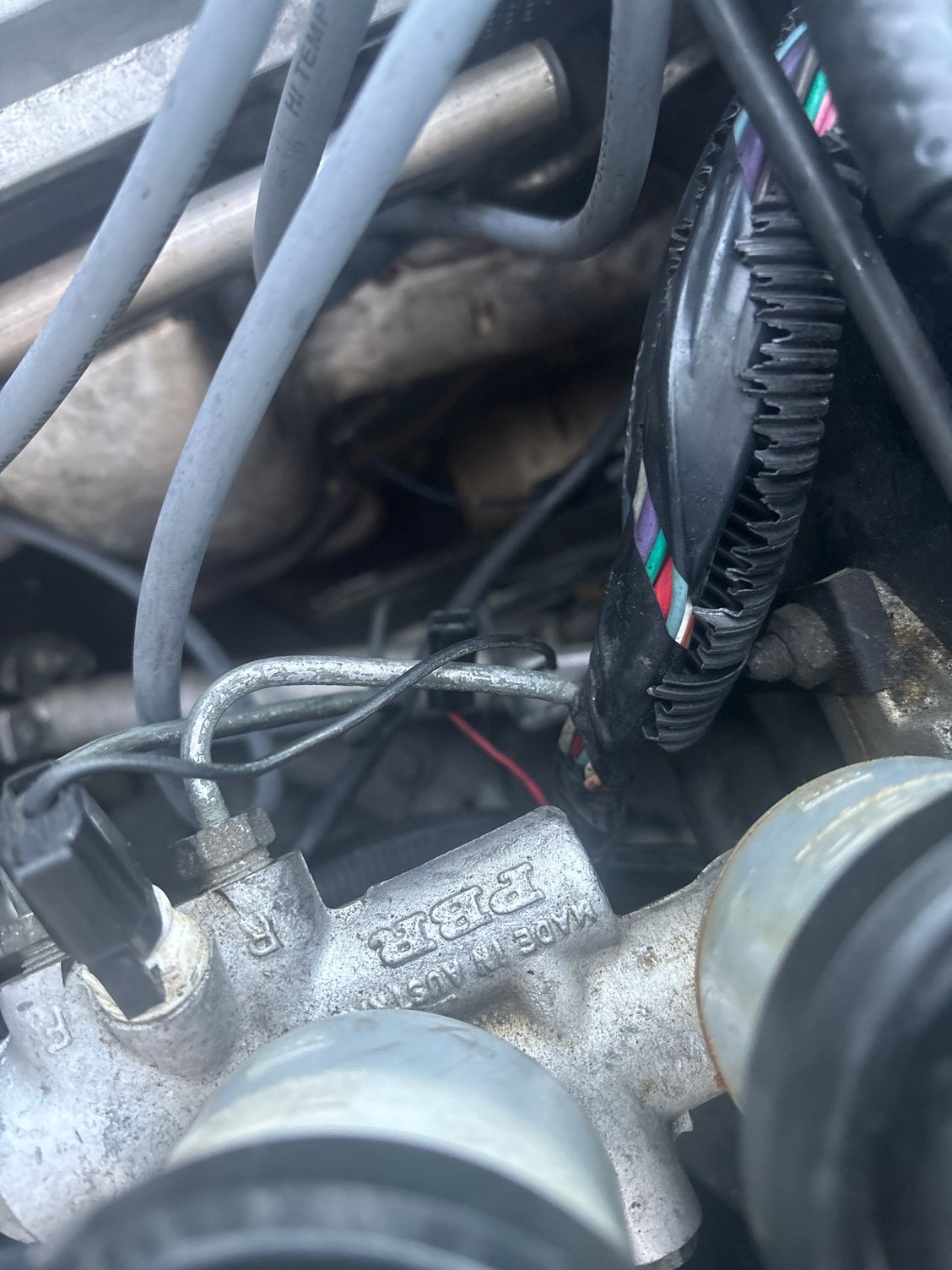

I will put a heat shield on that pipe – the old one literally disintegrated when I was working on the car. I did find yet ANOTHER connector that I don’t know where its partner is. This one is on a sleeve of wires underneath the brake fluid on the driver side. Any idea about this one on the red wire in the picture below?
Team Owner
Joined: Sep 2003
Posts: 25,394
Likes: 2,741
I will put a heat shield on that pipe – the old one literally disintegrated when I was working on the car. I did find yet ANOTHER connector that I don’t know where its partner is. This one is on a sleeve of wires underneath the brake fluid on the driver side. Any idea about this one on the red wire in the picture below?
Last edited by WVZR-1; Sep 2, 2024 at 10:00 AM.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Melting Slicks
Joined: Nov 2016
Posts: 2,256
Likes: 3,082
From: So Cal
2023 C4 of the Year Finalist - Unmodified
The single connector red wire is the Fuel Pump Test connector. If you apply +12V to it, the fuel pump runs. Details are in the electrical Section 8 of the Factory Service Manual that WVZR can assist you with obtaining.
