1990 Corvette Speedo
Hi,
Just got my 1990 Back from the shop and noticed the speedo is not registering unless I'm going fast. It stays at 0 at town speeds. Could they have knocked something fitting the new injectors.
Just got my 1990 Back from the shop and noticed the speedo is not registering unless I'm going fast. It stays at 0 at town speeds. Could they have knocked something fitting the new injectors.
Last edited by Tony Trans Am; Nov 25, 2014 at 02:49 PM.
Race Director
Joined: Apr 2002
Posts: 10,036
Likes: 346
From: Anaheim CA
If you have a C68 HVAC system you can check your speed on the HVAC controller. There's a video on YouTube on how to do this:
The vehicle speed goes from the VSS in the trans to the PCM and then to the dash. You want to determine if it's getting lost before or after the PCM. That will narrow things down and make it easier to find the problem.
The vehicle speed goes from the VSS in the trans to the PCM and then to the dash. You want to determine if it's getting lost before or after the PCM. That will narrow things down and make it easier to find the problem.
Team Owner
Joined: Sep 2003
Posts: 25,375
Likes: 2,734
I'd think it more coincidental than anything that they created. First of all if the speedometer LCD works the speed of the car should have NO effect. I'd first check the VSS electrical connector at the transmission. It isn't unusual for that connector/connection to get flaky. On a '90 it's a very straight forward weather-pack shell that you can buy service terminals at most every auto parts store or fleet vehicle dealer. I'd do nothing else first.
A bad VSS? Maybe. Do you have a FSM? At the ECM the VSS is pinned to G2 (yellow) and G8 (purple). You maybe want to be concerned with the "purple" at the VSS and ECM. I assumed your car is an L98 and NOT a ZR-1/LT5.
Does your cruise control work at both high and low speeds?
A bad VSS? Maybe. Do you have a FSM? At the ECM the VSS is pinned to G2 (yellow) and G8 (purple). You maybe want to be concerned with the "purple" at the VSS and ECM. I assumed your car is an L98 and NOT a ZR-1/LT5.
Does your cruise control work at both high and low speeds?
Last edited by WVZR-1; Nov 26, 2014 at 06:30 PM.
Melting Slicks
Joined: Sep 2008
Posts: 2,376
Likes: 111
From: Cherokee National Forest TN
My 90 decided to stick @ 46mph. I have a short fuse sooooo a few smacks on the top of the dash with a closed fist brought it back to life. The next time the cluster was removed I cleaned the printed circuit & plug in connector = no more issues.
Thread Starter
Intermediate
Joined: Nov 2014
Posts: 49
Likes: 3
Does the VSS effect the overdrive unit.
Driving my 90 vette around today and the speedo started to work perfectly until I got back to London, It of felt as if the over drive couldn't make it's mind up whether it was in or out. What RPM should it turning at 70mph.
Thread Starter
Intermediate
Joined: Nov 2014
Posts: 49
Likes: 3
I'd think it more coincidental than anything that they created. First of all if the speedometer LCD works the speed of the car should have NO effect. I'd first check the VSS electrical connector at the transmission. It isn't unusual for that connector/connection to get flaky. On a '90 it's a very straight forward weather-pack shell that you can buy service terminals at most every auto parts store or fleet vehicle dealer. I'd do nothing else first.
A bad VSS? Maybe. Do you have a FSM? At the ECM the VSS is pinned to G2 (yellow) and G8 (purple). You maybe want to be concerned with the "purple" at the VSS and ECM. I assumed your car is an L98 and NOT a ZR-1/LT5.
Does your cruise control work at both high and low speeds?
A bad VSS? Maybe. Do you have a FSM? At the ECM the VSS is pinned to G2 (yellow) and G8 (purple). You maybe want to be concerned with the "purple" at the VSS and ECM. I assumed your car is an L98 and NOT a ZR-1/LT5.
Does your cruise control work at both high and low speeds?
What's a FSM? What's an ECM? I am from the U.K.
Team Owner
Joined: Sep 2003
Posts: 25,375
Likes: 2,734
Driving my L98 90 vette around today and the speedo started to work perfectly until I got back to London, It felt as if the over drive couldn't make it's mind up whether it was in or out. What RPM should it turning at 70mph. In regards to speedo how can it work perfectly then not, surely it's the speed sensor as the dash would either work or not work.
What's a FSM? What's an ECM? I am from the U.K.
What's a FSM? What's an ECM? I am from the U.K.
ECM - Engine Control Module (black box up near the booster)
G2 and G8 are the pins at the ECM where the VSS wires connect. Check the wires yellow and purple at the VSS connector, confirm connection and move on. You hadn't mentioned UK before so sourcing your needs could be interesting. There are a couple very good resellers there though. Put your location in your profile and maybe another UK guy will respond.
Last edited by WVZR-1; Nov 30, 2014 at 03:33 PM.
Thread Starter
Intermediate
Joined: Nov 2014
Posts: 49
Likes: 3
FSM - Factory Service Manual
ECM - Engine Control Module (black box up near the booster)
G2 and G8 are the pins at the ECM where the VSS wires connect. Check the wires yellow and purple at the VSS connector, confirm connection and move on. You hadn't mentioned UK before so sourcing your needs could be interesting. There are a couple very good resellers there though. Put your location in your profile and maybe another UK guy will respond.
ECM - Engine Control Module (black box up near the booster)
G2 and G8 are the pins at the ECM where the VSS wires connect. Check the wires yellow and purple at the VSS connector, confirm connection and move on. You hadn't mentioned UK before so sourcing your needs could be interesting. There are a couple very good resellers there though. Put your location in your profile and maybe another UK guy will respond.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
Team Owner
Joined: Sep 2003
Posts: 25,375
Likes: 2,734
Here's an ECM pin-out chart for L98, page down to '90 & '91:
http://chevythunder.com/fuel%20injec...ts.htm#1990-91 speed density (Corvette ecm #1227727)
In this one page down to L98 '90 & '91:
https://wiki.bentleypublishers.com/p...ageId=17989640
The VSS is drivers side rear of the transmission. On a '90 it's either black or white in color 2 1/2" in diameter with the yellow/purple connector in the center.
Last edited by WVZR-1; Nov 30, 2014 at 06:53 PM.
Thread Starter
Intermediate
Joined: Nov 2014
Posts: 49
Likes: 3
1990 l98 vss
Does anyone have a definitive picture of the VSS.
Whilst trying to remove mine today it all fell apart springs the lot! I'm not sure if there is a piece still in the transmission. How is it fitted in there, twists etc. I tried levering it out hence it went ping!
Where can I get a new one?
super pissed off!
Whilst trying to remove mine today it all fell apart springs the lot! I'm not sure if there is a piece still in the transmission. How is it fitted in there, twists etc. I tried levering it out hence it went ping!
Where can I get a new one?
super pissed off!
Thread Starter
Intermediate
Joined: Nov 2014
Posts: 49
Likes: 3
Do you have a pic of yours pulled?
How do you pull it out?
Last edited by Tony Trans Am; Dec 6, 2014 at 10:24 AM.
Team Owner
Joined: Sep 2003
Posts: 25,375
Likes: 2,734

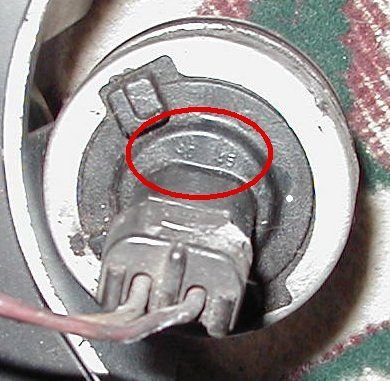

There will of course be some "incorrect" images BUT I can assure you that the image I borrowed is correct and you should recognize it as what you demolished. You apparently tried prying on the sleeve that is used as a retainer around the circumference of the VSS. You need to pull straight out and you can wiggle/twist some to help.
