Stealthram & Superram box heights?
Thread Starter
Race Director
Joined: Feb 1999
Posts: 12,772
Likes: 17
From: Indianapolis IN
Stealthram & Superram box heights?
What are the measuremetns in inches,, just from the bottom of each plenum to the top of the plenum? Is ther 1.0 inch or more difference.
Le Mans Master
Joined: Oct 1999
Posts: 6,366
Likes: 34
Re: Stealthram & Superram box heights? (ld85)
The super ram is listed as 9 and 3/8ths tall from intake base (china wall) to top of plenum in my camaro parts book.
I dont know about the stealth ram.
What are you thinking?
I dont know about the stealth ram.
What are you thinking?
Safety Car
Joined: Feb 2000
Posts: 4,564
Likes: 110
From: Austin Texas
Re: Stealthram & Superram box heights? (ld85)
Won't work....

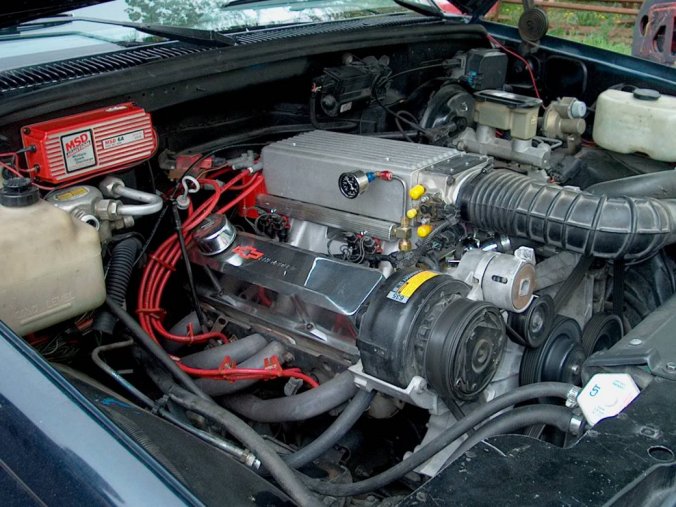

The S/R uses the tube runners from the sides, just like a standard TPI. A StealthRam is just a 50's style tunnel-ram (you know...like in dual-quad applications) base without the extensions to bolt the carbs to. They then cast a plenum box that bolts to the base.
They are completely different applications.
You can on the other hand manufacture your own plenum for the StealthRam so that it will fit under the hood. Here is one thread in particular that did their own plenum http://forums.corvetteforum.com/zerothread?id=323870
They went a little overboard, but it's one of those "use what you have" scenarios. Since these guys are in Europe, the Audi throttle bodies are easier to get than some of ours (like the monoblade), but it shows how they angled the front of the plenum to clear the hood on his C4. You also don't need to make it as wide as they did, but it gives you the general idea.
The S/R uses the tube runners from the sides, just like a standard TPI. A StealthRam is just a 50's style tunnel-ram (you know...like in dual-quad applications) base without the extensions to bolt the carbs to. They then cast a plenum box that bolts to the base.
They are completely different applications.
You can on the other hand manufacture your own plenum for the StealthRam so that it will fit under the hood. Here is one thread in particular that did their own plenum http://forums.corvetteforum.com/zerothread?id=323870
They went a little overboard, but it's one of those "use what you have" scenarios. Since these guys are in Europe, the Audi throttle bodies are easier to get than some of ours (like the monoblade), but it shows how they angled the front of the plenum to clear the hood on his C4. You also don't need to make it as wide as they did, but it gives you the general idea.
Le Mans Master
Joined: Oct 1999
Posts: 6,366
Likes: 34
Re: Stealthram & Superram box heights? (ld85)
I have my super ram apart right now. but I am stuck at work. I will try to get them tonight.
I just want to make sure that you know the problem is clearnce at the throttle body? The super ram and the stock TPI have about a 10 degree slope down to clear the hood. I measured my hood to throttle body clearence on my super ram a while back and found what I think was a quarter inch of clearence. I used putty to do this.
The stealth ram does not have a slope down. I bet if it did, you might be able to get it too fit by milling the base down. But then I would be 99% sure you would have to mod the fuel rails/fittings to get the throttle body lever to clear the drivers side fuel fitting.
I was thinking about modding a stock TPI plenum to fit. I think this would be a better set up VS the super ram plenum. It would actually be just like the intake used on the sledgehammer.
I want to know if I were to use the stock TPI plenum, could you use the stock large cap HEI, instead of converting over to the smaller camaro dist. Or would the Dist still hit the tunnel rams back runners?
I just want to make sure that you know the problem is clearnce at the throttle body? The super ram and the stock TPI have about a 10 degree slope down to clear the hood. I measured my hood to throttle body clearence on my super ram a while back and found what I think was a quarter inch of clearence. I used putty to do this.
The stealth ram does not have a slope down. I bet if it did, you might be able to get it too fit by milling the base down. But then I would be 99% sure you would have to mod the fuel rails/fittings to get the throttle body lever to clear the drivers side fuel fitting.
I was thinking about modding a stock TPI plenum to fit. I think this would be a better set up VS the super ram plenum. It would actually be just like the intake used on the sledgehammer.
I want to know if I were to use the stock TPI plenum, could you use the stock large cap HEI, instead of converting over to the smaller camaro dist. Or would the Dist still hit the tunnel rams back runners?
Thread Starter
Race Director
Joined: Feb 1999
Posts: 12,772
Likes: 17
From: Indianapolis IN
Re: Stealthram & Superram box heights? (bill mcdonald)
Thanks Bill I will be anxious to hear of the SR dimensions! Yeah I am wondering if I could mill an aluminum box that is less tall by @ 1 inch than the Stealth Plenum. Or if I can take a SR plenum, plug the runner holes and mount it to the top of the Stealth intake. I am sure I could mill a down angle etc on the Stealth intake.
[Modified by ld85, 7:08 PM 10/16/2002]
[Modified by ld85, 7:08 PM 10/16/2002]
Pro
Joined: Oct 2001
Posts: 682
Likes: 23
From: loxahatchee fla
Re: Stealthram & Superram box heights? (ld85)
the steath ram is 10" tall from the china wall to the top of the plenum, the rear 2/5ths fits under the stock hood, the forward 3/5 hits or sits higher than the stock C-4 hood, you would need to angle the forward 3/5ths of the plenum downward so that the forward edge of the throttle body is about 1" lower, yes it can be done. BTW these guys can do the mods, tell them GRUMPYVETTE said to call. http://fuelinjectorclinic.com/
[Modified by grumpyvette, 1:35 AM 10/17/2002]
[Modified by grumpyvette, 1:35 AM 10/17/2002]
Pro
Joined: Oct 2001
Posts: 682
Likes: 23
From: loxahatchee fla
Re: Stealthram & Superram box heights? (ld85)
the china wall is the area on the block on the front of the lifter gallery thats just above the water pump mounting area that the front edge of the intake seals against, its the front of the lifter gallery that forms the wall seperating the two cylinder heads on the front and back of the lifter gallery.
look at the picture it where the front and back intake manifold seals go that everyone throws away, and uses a 3/8" bead of silicone to seal the intake,on top of. those two squigly lines in the picture seperating the left and right bank of cylinders
BTW the stealth ram plenum measures 14.25" long x 6.5" wide x 4.25" tall and the steath ram is 10" tall from front to back, , the forward 3/5 of the plenum hits the stock c-4 hood, angleing that forward 3/5 of the roof of the plenum starting from the back of the plenum and going forward 4" at a downward angle so that the plenum measures 9" tall at the front and mounting the throttle body at the same downward facing angle would clear the stock c-4 hood, a good ,machine shop can do this http://fuelinjectorclinic.com/
tell them grumpyvette told you to call :D
[Modified by grumpyvette, 3:15 PM 10/17/2002]
look at the picture it where the front and back intake manifold seals go that everyone throws away, and uses a 3/8" bead of silicone to seal the intake,on top of. those two squigly lines in the picture seperating the left and right bank of cylinders
BTW the stealth ram plenum measures 14.25" long x 6.5" wide x 4.25" tall and the steath ram is 10" tall from front to back, , the forward 3/5 of the plenum hits the stock c-4 hood, angleing that forward 3/5 of the roof of the plenum starting from the back of the plenum and going forward 4" at a downward angle so that the plenum measures 9" tall at the front and mounting the throttle body at the same downward facing angle would clear the stock c-4 hood, a good ,machine shop can do this http://fuelinjectorclinic.com/
tell them grumpyvette told you to call :D
[Modified by grumpyvette, 3:15 PM 10/17/2002]
Le Mans Master
Joined: Mar 2002
Posts: 5,889
Likes: 2
From: Castro Valley Calif.
St. Jude Donor '03 thru '26
Re: Stealthram & Superram box heights? (ld85)
Not sure about the Stealth, but the SR is 3 1/4" tall. I'll try to include a pic..........
Edit: OK, why did my pic disappear? It was there when I left for work this morning, and when I get home it's gone???? :mad Geeze, I just gotta learn this computer stuff!!!!!
[Modified by Caboboy, 3:44 PM 10/17/2002]
Edit: OK, why did my pic disappear? It was there when I left for work this morning, and when I get home it's gone???? :mad Geeze, I just gotta learn this computer stuff!!!!!
[Modified by Caboboy, 3:44 PM 10/17/2002]
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Le Mans Master
Joined: Oct 1999
Posts: 6,366
Likes: 34
Re: Stealthram & Superram box heights? (Caboboy)
I got ~3 and 1/8th last night. It is hard to tell with those fins on the lid.
Also remember, there are some passages on the bottom of the superram for the EGR crap. this would probably have to be cut out of the plenum and a flat piece welded in.
I still think it would be better to try and use the stock TPI plenum. it also has the downward slope on the front 3-4" of the top of the plenum that grumpy is talking about.
[Modified by bill mcdonald, 12:03 PM 10/17/2002]
Also remember, there are some passages on the bottom of the superram for the EGR crap. this would probably have to be cut out of the plenum and a flat piece welded in.
I still think it would be better to try and use the stock TPI plenum. it also has the downward slope on the front 3-4" of the top of the plenum that grumpy is talking about.
[Modified by bill mcdonald, 12:03 PM 10/17/2002]
Drifting
Joined: Nov 2000
Posts: 1,483
Likes: 0
From: Las Vegas Nevada
Re: Stealthram & Superram box heights? (ld85)
Why not just get a custom sheetmetal plenum made that will fit under the hood and bolt to that manifold?
Seems like the easiest way, and probably not too expensive since its not much of a peice.
Goodluck
Matt
Seems like the easiest way, and probably not too expensive since its not much of a peice.
Goodluck
Matt
Melting Slicks
Joined: Aug 2000
Posts: 2,388
Likes: 42
From: Murrysville PA
Re: Stealthram & Superram box heights? (VetteRacer282)
That's what I might do. Fabricate a sheet metal intake that fits on the base. Anyone know the runner length of the Stealth Ram? Grumpy, Does the Holley distributor you run work with the ESC?
Burning Brakes
Joined: Jan 2001
Posts: 1,169
Likes: 0
From: Manhattan
Re: Stealthram & Superram box heights? (89vette)
I'll assume since the whole piece is 10" tall and the plenum is 4.25" tall the base should be aproximately 5.75" tall :crazy: :D :cheers:
BTW, I was thinking about asking this question too, then bam!! :bb
edit:
by my crude measurements, that buts the top of the stealt base right at the bottom of the stock tpi plenum wich is about 5" wide X 3" deep X 13.5" long
edit2:
which is about 1/2 the volume of the stealth ram plenum
[Modified by Raistlin, 4:49 PM 10/17/2002]
[Modified by Raistlin, 4:54 PM 10/17/2002]
BTW, I was thinking about asking this question too, then bam!! :bb
edit:
by my crude measurements, that buts the top of the stealt base right at the bottom of the stock tpi plenum wich is about 5" wide X 3" deep X 13.5" long
edit2:
which is about 1/2 the volume of the stealth ram plenum
[Modified by Raistlin, 4:49 PM 10/17/2002]
[Modified by Raistlin, 4:54 PM 10/17/2002]
Burning Brakes
Joined: Jan 2001
Posts: 1,169
Likes: 0
From: Manhattan
Re: Stealthram & Superram box heights? (Raistlin)
i've got a question, if you make the plenum wider, like the super ram, will it clear the fuel rails?
it looks tight
[Modified by Raistlin, 5:36 PM 10/17/2002]
it looks tight
[Modified by Raistlin, 5:36 PM 10/17/2002]
Le Mans Master
Joined: Oct 1999
Posts: 6,366
Likes: 34
Re: Stealthram & Superram box heights? (Raistlin)
I think the super ram would introduce all sorts of problems.
But then I am thinking of that SLP intake.... was that on a tunnel ram?
here is why I like the look of the stock plenum.
But then I am thinking of that SLP intake.... was that on a tunnel ram?
here is why I like the look of the stock plenum.
Burning Brakes
Joined: Jan 2001
Posts: 1,169
Likes: 0
From: Manhattan
Re: Stealthram & Superram box heights? (bill mcdonald)
I was just going to post that picture to compare the differece. it looks like the tunnels are shorter on the sledgehammer than the stealth. if you look at the sledgehammer, the plennum is lower than the fuel rails.
the plennum seems the same height at the back, compared to the stealth.
i agree, the sledgehammer is the best looking intake.
the plennum seems the same height at the back, compared to the stealth.
i agree, the sledgehammer is the best looking intake.
Thread Starter
Race Director
Joined: Feb 1999
Posts: 12,772
Likes: 17
From: Indianapolis IN
Re: Stealthram & Superram box heights? (Raistlin)
Well guys at this time I am just gathering info. I will call a Holley distributor to find out how long of a wait there is if any for buying a tunnel ram base and fuel rail.
Once I take my intake and runners off the car I will dimension the stock stack up and set the new TR base next to it for comparison. Then in a month or so I will buy a block of aluminum and machine a pocket into it, then put holes for the Throttle body and Tunnel Ram into it. I will just machine a piece of flat Aluminum for the lid and maybe dress it up with some fins or something. I need to have this done when my work slows down during the week of Christmas and New Years so I can do it in a day or two and get it over with.
I figure at first glance I may need to machine a slight down angle on the TR intake but I wont know till I have the parts setting together side by side.
Mark my words gentlemen; I will be sporting this Tunnel Ram Intake and a custom box by spring no matter how much beer it takes! :cheers:
I will post the info and progress pics as it comes along. Also I will make a print of the info for future dupes!
[Modified by ld85, 10:11 PM 10/17/2002]
Once I take my intake and runners off the car I will dimension the stock stack up and set the new TR base next to it for comparison. Then in a month or so I will buy a block of aluminum and machine a pocket into it, then put holes for the Throttle body and Tunnel Ram into it. I will just machine a piece of flat Aluminum for the lid and maybe dress it up with some fins or something. I need to have this done when my work slows down during the week of Christmas and New Years so I can do it in a day or two and get it over with.
I figure at first glance I may need to machine a slight down angle on the TR intake but I wont know till I have the parts setting together side by side.
Mark my words gentlemen; I will be sporting this Tunnel Ram Intake and a custom box by spring no matter how much beer it takes! :cheers:
I will post the info and progress pics as it comes along. Also I will make a print of the info for future dupes!
[Modified by ld85, 10:11 PM 10/17/2002]
Drifting
Joined: Nov 2000
Posts: 1,483
Likes: 0
From: Las Vegas Nevada
Re: Stealthram & Superram box heights? (ld85)
Any data on what this intake will produce over a stock TPI (or SuperRam)? Assuming gains would be close with a custom plenum... Just wondering if its worth while over a superram system. I could have a custom plenum made up from local shop in a few days if there was a big gain to be had.
Dang you for making us ponder these evil ideas!! :D
Matt
Dang you for making us ponder these evil ideas!! :D
Matt
Heel & Toe
Joined: Aug 2001
Posts: 21
Likes: 0
From: clifton NJ
Re: Stealthram & Superram box heights? (VetteRacer282)
Maybe these guys can help you out
Thread Starter
Race Director
Joined: Feb 1999
Posts: 12,772
Likes: 17
From: Indianapolis IN
Re: Stealthram & Superram box heights? (formulaE)
Well Grumpyvette sold me on the whole Tunnel Ram runner/base idea. He posted some data showing BOTH the torque curve and HP climbing! http://forums.corvetteforum.com/zerothread?id=300678
Personally the base flow being close to 275-300CFM or more is the most interesting thing to me. I am building a new motor and having the D-port heads ported for max flow per the Lingefelter book and adding a new cam. If I can flow the air then the rest should perform really well.
[Modified by ld85, 8:18 PM 10/17/2002]
Personally the base flow being close to 275-300CFM or more is the most interesting thing to me. I am building a new motor and having the D-port heads ported for max flow per the Lingefelter book and adding a new cam. If I can flow the air then the rest should perform really well.
[Modified by ld85, 8:18 PM 10/17/2002]
