Halfshafts Are Angled Funny

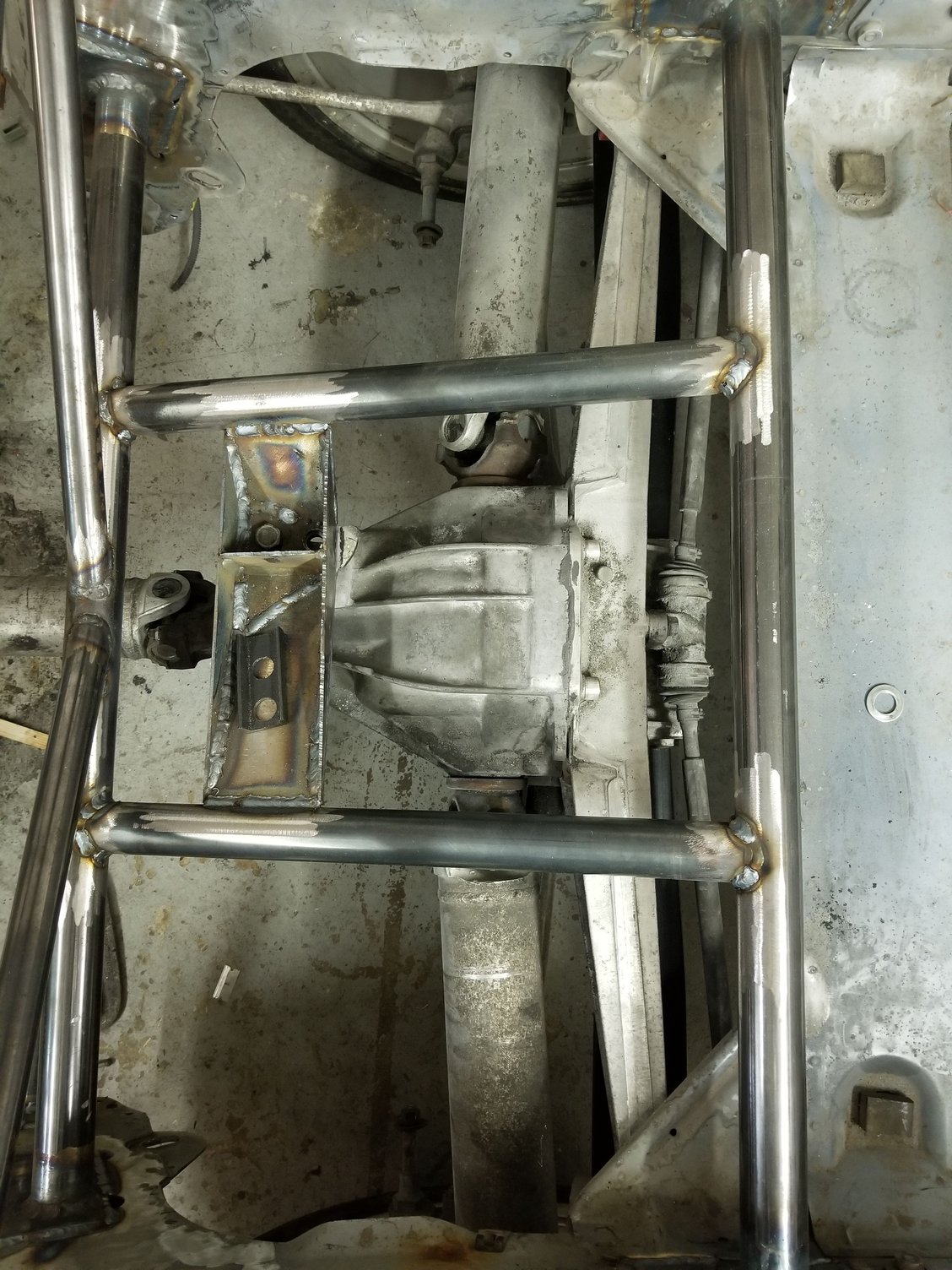

I've had the rear suspension together and apart several times over the past year, and I just noticed that the halfshafts are angled rearward.

Is this normal or did I make a mistake somewhere along the line?

PS: Don't critique too harshly, please. This is my first build and I'm still learning how to weld.

Last edited by Jonathan McGilvrey; Apr 29, 2019 at 08:13 PM. Reason: Oops

Apr 29, 2019 | 10:42 PM

Tom400CFI

Team Owner

Joined: Aug 2004

Posts: 21,543

Likes: 3,216

From: Park City Utah

Yes. They do angle rearward, normal. That is normal.

Apr 29, 2019 | 10:55 PM

MatthewMiller

Le Mans Master

Joined: Aug 2015

Posts: 6,119

Likes: 1,994

From: St. Charles MO

They look correct to me, too. As long as the trailing arm mounts are the same distance away (longitudinally) from the batwing mounts, the angles have to be correct. In this line drawing in plan view of an early C4 rear suspension, you can see that they also angle rearward a bit if you look closely:

Last edited by MatthewMiller; Apr 29, 2019 at 10:56 PM.

Apr 29, 2019 | 11:00 PM

confab

Melting Slicks

Joined: Nov 2013

Posts: 3,451

Likes: 336

From: Greater Cincinnati Area.

I remember a Hot Rod magazine article about pinion angles from years ago which claimed no driveshaft should run string straight.

Apr 29, 2019 | 11:06 PM

Jonathan McGilvrey

Thread Starter

Heel & Toe

Joined: Dec 2017

Posts: 18

Likes: 1

From: Cut and Shoot Tx

When I checked the FSM it really looked like they were parallel, so this is all comforting news.

Enough has gone wrong that I wouldn't be surprised if somehow it was magically off.

Thanks for putting me at ease.
