Dashboard/Interior Wiring Help Needed
Thread Starter
Melting Slicks
Joined: Nov 2002
Posts: 2,884
Likes: 260
From: Jamison Pa
St. Jude Donor '11-'25
Dashboard/Interior Wiring Help Needed

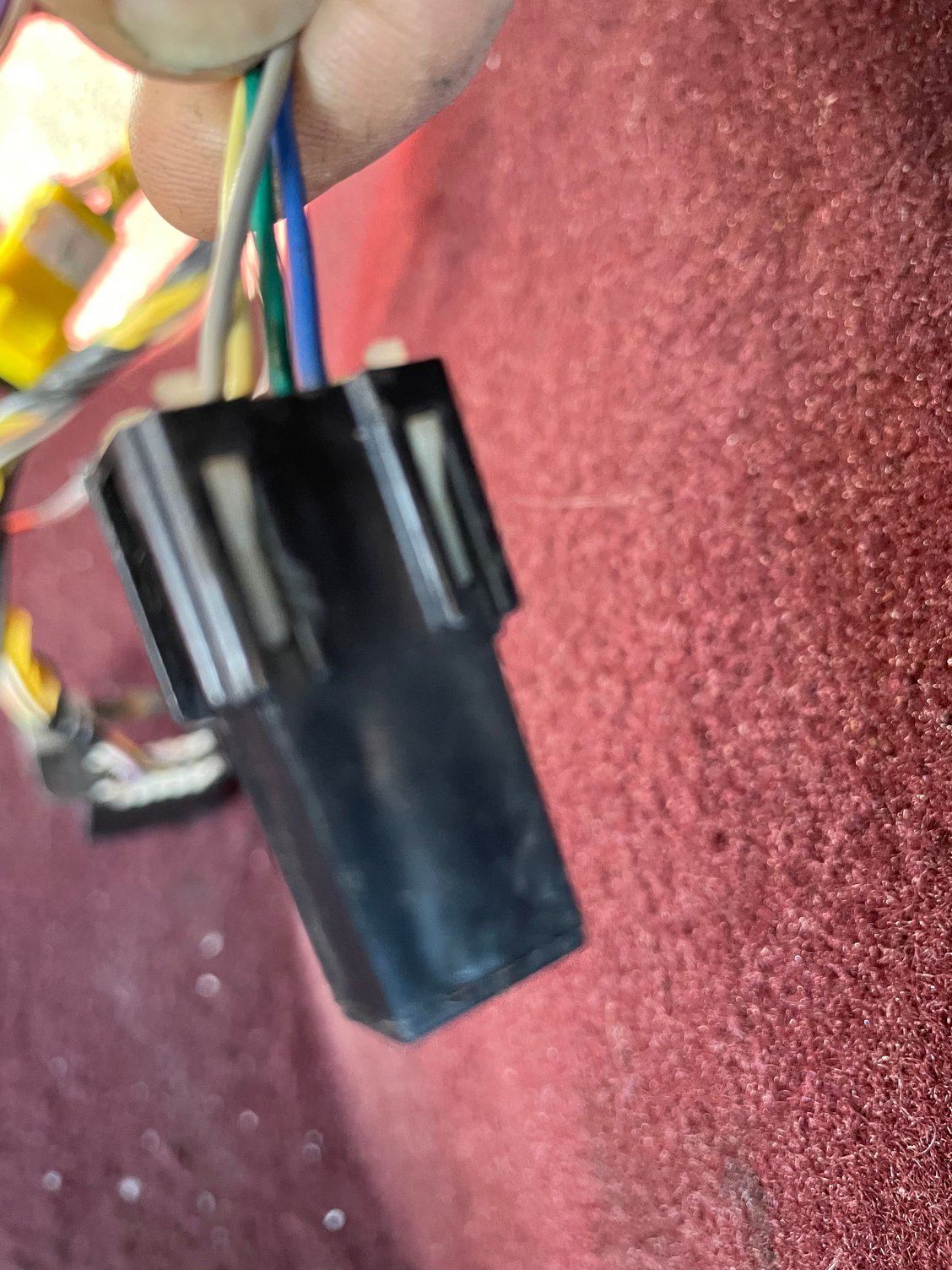

I have a 93 Ruby Red Vert that I am having a small problem with. A few years ago I had a VATS issue. I dropped the steering column and disconnected a few connections. Things got put on hold with a minor bout with Open Heart Surgery, then Cancer. I'm back on my feet now I can't figure out were they go. I have the factory service manuals, but haven't bee able to find what I need. It seems that the AIMS and nice wiring diagrams only go to '82.
I have attached a few pictures in Question. Any help would be greatly appreciated.
I have attached a few pictures in Question. Any help would be greatly appreciated.
Last edited by Bob K; Apr 7, 2021 at 08:54 AM.
Instructor
Joined: Jul 2020
Posts: 227
Likes: 43
From: New Jersey

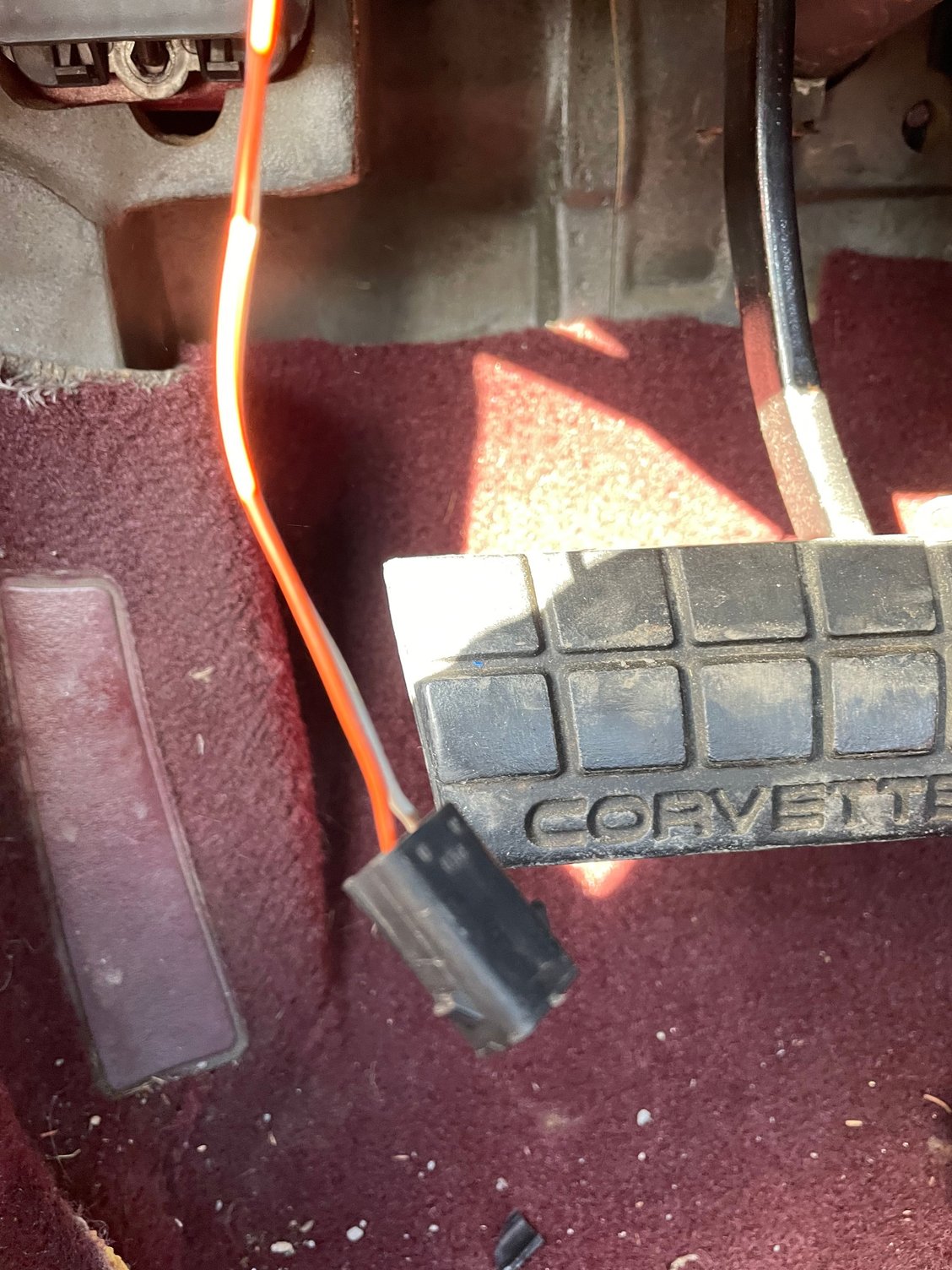

First Pic (black connector, orange & white wires) looks like the driver's side footwell courtesy lamp connector on my son's 1990 coupe. You probably have the knee bolster panel set aside and could take a look at the connector there and verify whether it's the same for the 93. Not sure about the other two.
