engine oil pressure signal error
Pro
Joined: Sep 2019
Posts: 716
Likes: 135
From: Buchanan, Michigan
on the 91 c4 it is a 5 pin sensor that connects to a tee by the distributor. i would inspect wiring before condemning the sensor. based on your question i suggest getting a service manual, or enlisting the help of a knowledgeable friend. it connects to the tee on the pressure port by the distributor just like most 1955-2002 sbc engines. the lt1 is no different in this regard.
in the picture the short sensor with 1 wire connector is tied into the fuel pump, it kills fuel if no oil pressure is present. the other sensor has 4-5 wires and is physically longer. it is the one that sends a signal to the dash on the 90-96 cars. hope this helps. not very common for these sensors to go bad in my experience. i would suggest careful wiring inspection, maybe flushing the engine then changing the oil before condemning it.
in the picture the short sensor with 1 wire connector is tied into the fuel pump, it kills fuel if no oil pressure is present. the other sensor has 4-5 wires and is physically longer. it is the one that sends a signal to the dash on the 90-96 cars. hope this helps. not very common for these sensors to go bad in my experience. i would suggest careful wiring inspection, maybe flushing the engine then changing the oil before condemning it.
Team Owner
Joined: Sep 2003
Posts: 25,388
Likes: 2,741
on the 91 c4 it is a 5 pin sensor that connects to a tee by the distributor. i would inspect wiring before condemning the sensor. based on your question i suggest getting a service manual, or enlisting the help of a knowledgeable friend. it connects to the tee on the pressure port by the distributor just like most 1955-2002 sbc engines. ihe lt1 is no different in this regard.
in the picture the short sensor with 1 wire connector is tied into the fuel pump, it kills fuel if no oil pressure is present. the other sensor has 4-5 wires and is physically longer. it is the one that sends a signal to the dash on the 90-96 cars. hope this helps. not very common for these sensors to go bad in my experience. i would suggest careful wiring inspection, maybe flushing the engine then changing the oil before condemning it.
in the picture the short sensor with 1 wire connector is tied into the fuel pump, it kills fuel if no oil pressure is present. the other sensor has 4-5 wires and is physically longer. it is the one that sends a signal to the dash on the 90-96 cars. hope this helps. not very common for these sensors to go bad in my experience. i would suggest careful wiring inspection, maybe flushing the engine then changing the oil before condemning it.
This is an insert from the '92 FSM for location of the senders.
OP - What happens to the 'CHECK GAUGES' light when car is 'running'.
Last edited by WVZR-1; Dec 8, 2021 at 09:34 AM.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
Melting Slicks
Joined: Jun 2014
Posts: 2,228
Likes: 497
From: NJ

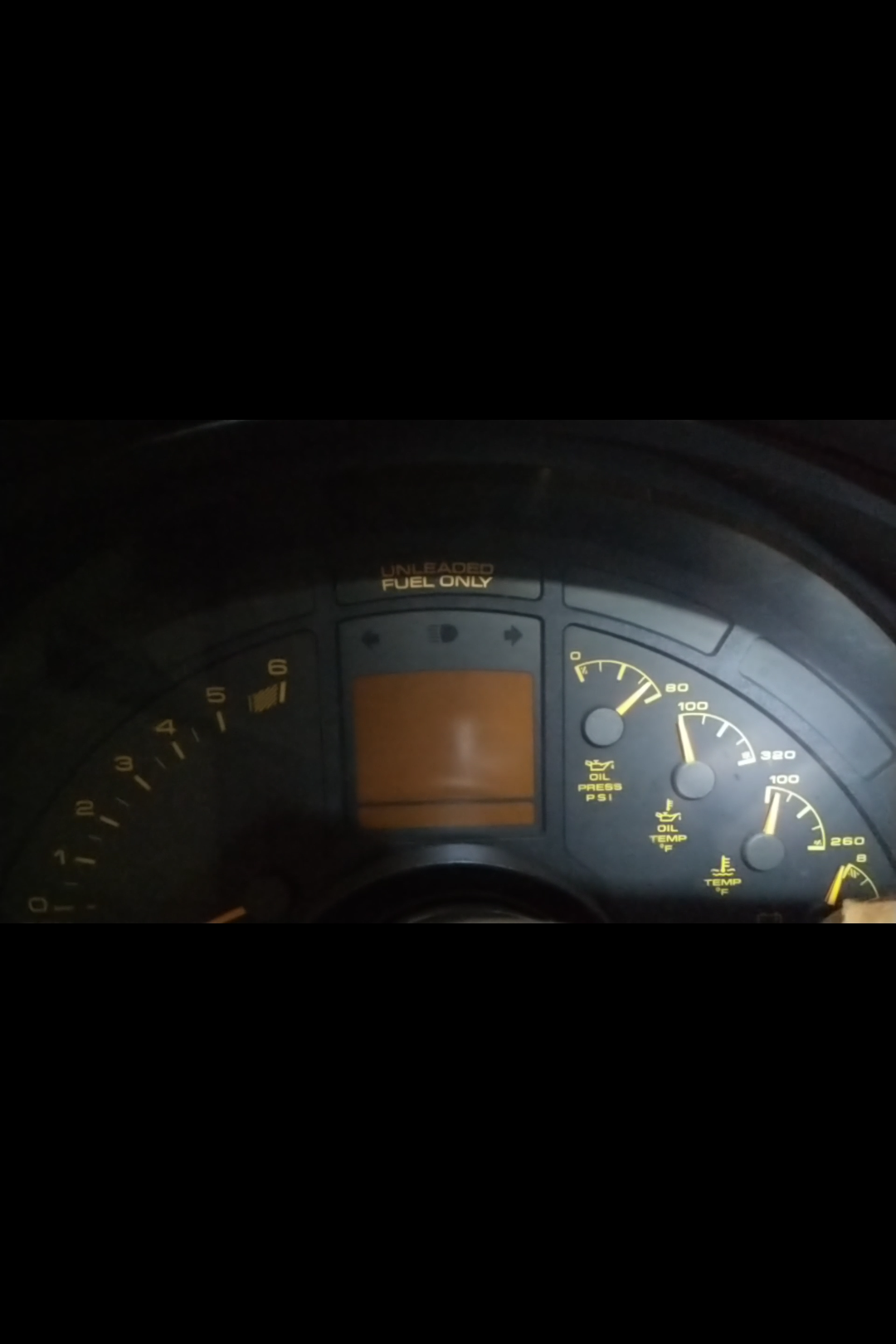

The gauge appears bad also. The gauge should return to zero when not powered. Try disconnecting the battery and see if it returns to zero, if not there could be some wiring issues with the circuit.
