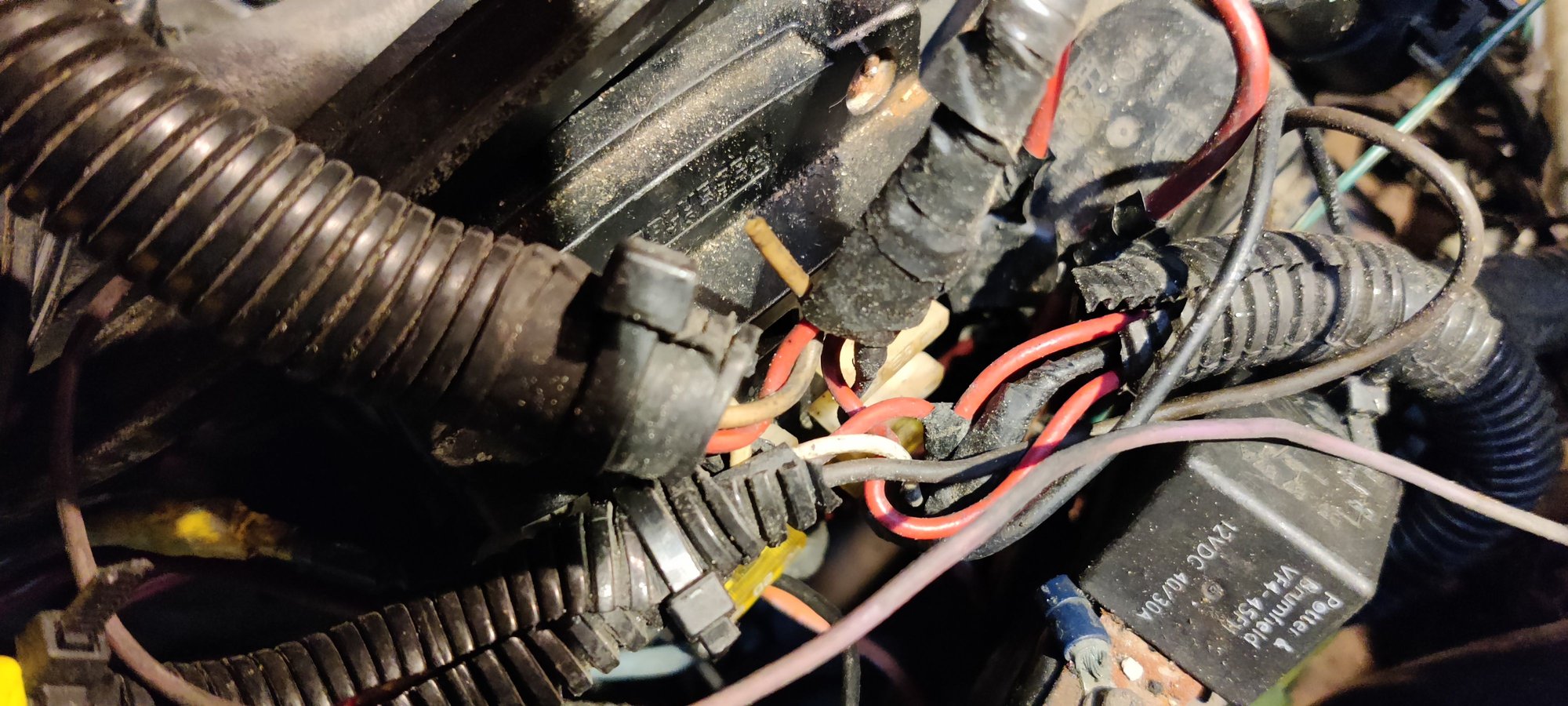

Hello Everyone, As you know I am doing work on my 89. Being I am under the hood anyway. I was wondering if anyone can direct me to where I can find the wiring for the relays pictured in this email. I figured being I am doing a lot of work. What's a little more. Thank you This is a relay Potter Blumfield vf4-45F11 There are two PB relays and this wiring, rats nest, supplies them. Note the orange wire wrapped in black tape.
These are typical bosch style relays. They are mostly all the same. Usually a stamped diagram on the relay showing the terminals and what they do. With an ohm meter you can find the coil which power is, the others are just contact points.
Google it and you will find relay diagrams,
