No centre cluster lights or LCD

1995 , no cluster back lights , no LCD display , got a rebuilt one still no change.5a Fuse has no power to it . I have tried a new BCM still no luck. Grounds seam ok ? Tach and gauges work on cluster. Any help would be greatly appreciated.

Jul 20, 2024 | 03:43 PM

FrankieD

Burning Brakes

Joined: Mar 2005

Posts: 1,082

Likes: 115

From: Richmond Hill Ontario

Check "Cluster Fuse #27" and "LCD Fuse #38"
Also check Instrument Cluster Connector Cavity A7 CKT 150 ( Ground) for an open

Attached Images

INSTRUMENT CLUSTER.pdf (348.2 KB, 134 views)

INSTRUMENT CLUSTER DIGITAL DISPLAY.pdf (300.4 KB, 97 views)

INSTRUMENT CLUSTER INDICATORS.pdf (281.8 KB, 93 views)

INSTRUMENT CLUSTER 2.pdf (329.6 KB, 75 views)

INSTRUMENT CLUSTER Connector.pdf (332.6 KB, 256 views)

INSTRUMENT CLUSTER Connector 2.pdf (174.3 KB, 80 views)

Jul 20, 2024 | 07:48 PM

Mt150

Thread Starter

6th Gear

Joined: Jul 2024

Posts: 6

Likes: 2

Thank you

Thanks for the information, I’ll keep you updated

Jul 24, 2024 | 12:38 PM

Mt150

Thread Starter

6th Gear

Joined: Jul 2024

Posts: 6

Likes: 2

Location of grounds

I’m trying to test all the grounds to see if that’s part of my issue, I have no horn, no interior lights when the doors open, no dash back lights in cluster. Still no LCD display. Third row of fuses have no power to them ??

Jul 24, 2024 | 03:56 PM

FrankieD

Burning Brakes

Joined: Mar 2005

Posts: 1,082

Likes: 115

From: Richmond Hill Ontario

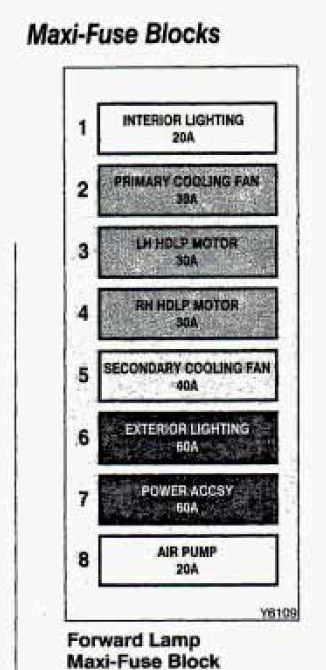

There are Two maxi -fuse blocks that are located under hood near battery. Check Fuse #1 in the "Forward Lamp Fuse Block" for Interior Lighting

Jul 25, 2024 | 04:54 PM

Mt150

Thread Starter

6th Gear

Joined: Jul 2024

Posts: 6

Likes: 2

Those have all been checked and are good. I have interior lights when I turn the dimmer on the head light switch all the way on.

Jul 29, 2024 | 07:48 PM

Mt150

Thread Starter

6th Gear

Joined: Jul 2024

Posts: 6

Likes: 2

Think it’s the CCM?

Could the ccm be my issue? Reading up on this. Just wondering if it can be programmed or checked with a scan tool to determine if this is the issue
1995 C4

Jul 30, 2024 | 09:49 AM

FrankieD

Burning Brakes

Joined: Mar 2005

Posts: 1,082

Likes: 115

From: Richmond Hill Ontario

Everything you need to Diagnose and Test CCM Functionality is listed in this CCM Section. Lots to absorb so take your time and re-read several times if needed. The fun of troubleshooting is only possible through proper information.

Attached Images

CENTRAL CONTROL MODULE .pdf (7.55 MB, 102 views)

Corvette Stories

The Best of Corvette for Corvette Enthusiasts

Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!

Joe Kucinski

150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter

Joe Kucinski

8 Coolest Corvette Pace Cars (and Replicas) of All Time

Verdad Gallardo

Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)

Joe Kucinski

Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!

Verdad Gallardo

Top 10 Corvettes Coming to Mecum Indy 2026!

Brett Foote

Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!

Michael S. Palmer

10 Revolutionary 'Corvette Firsts' Most People Don't Know

Joe Kucinski

5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2

Michael S. Palmer

2027 Corvette vs The World: Every C8 vs Its Closest Competitor

Joe Kucinski

Jul 30, 2024 | 07:59 PM

Mt150

Thread Starter

6th Gear

Joined: Jul 2024

Posts: 6

Likes: 2

Thank yiu

Thank you so very much

Jul 30, 2024 | 08:48 PM

#10

NickPSI

Instructor

Joined: Jul 2015

Posts: 102

Likes: 20

From: Syracuse NY

Quote:

Originally Posted by Mt150

Thank you so very much

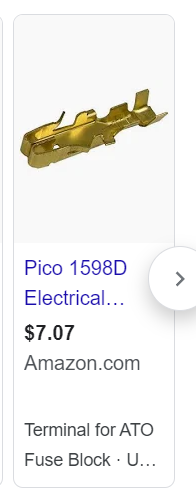

In my 85 I had a ton of these that were opened too much and needed to be replaced in the fuse panel itself. Granted, your car is much newer but its worth a look.
