Small red wire from battery

Looking at the Haynes wiring diagram. The small red wire from battery+ goes to the fan switch.
Question is why does car die if I disconnect it?
I don't think you need a fan to run the engine so it must go somewhere else also.
also.Thanks in advance.

Oct 4, 2024 | 08:04 PM

WVZR-1

Team Owner

Joined: Sep 2003

Posts: 25,385

Likes: 2,737

Quote:

Originally Posted by 7thvet

You need to forget about that Haynes manual and get a correct FSM(Factory/Field Service Manual) for your car. What year C4?

Oct 5, 2024 | 12:01 AM

7thvet

Thread Starter

Melting Slicks

Joined: May 2005

Posts: 3,134

Likes: 11

From: At the St. Louis Playboy club.

Quote:

Originally Posted by WVZR-1

You need to forget about that Haynes manual and get a correct FSM(Factory/Field Service Manual) for your car. What year C4?

Its an 84, the wire in question is the same on all of them.

Oct 5, 2024 | 06:03 AM

84C4Tom

Instructor

Joined: Jul 2024

Posts: 112

Likes: 36

From: USA

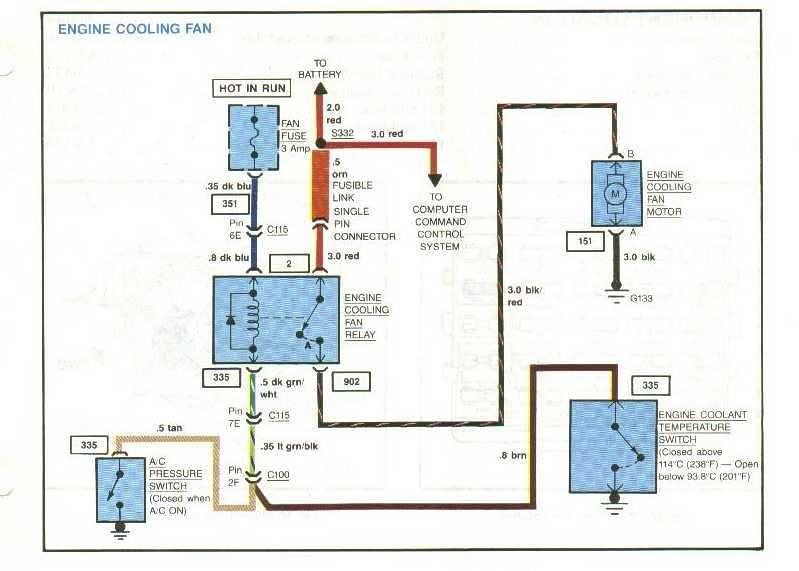

I have an 84 and on my FSM fan relay schematic it shows the small red wire also feeding the ECM.

Oct 5, 2024 | 07:21 AM

WVZR-1

Team Owner

Joined: Sep 2003

Posts: 25,385

Likes: 2,737

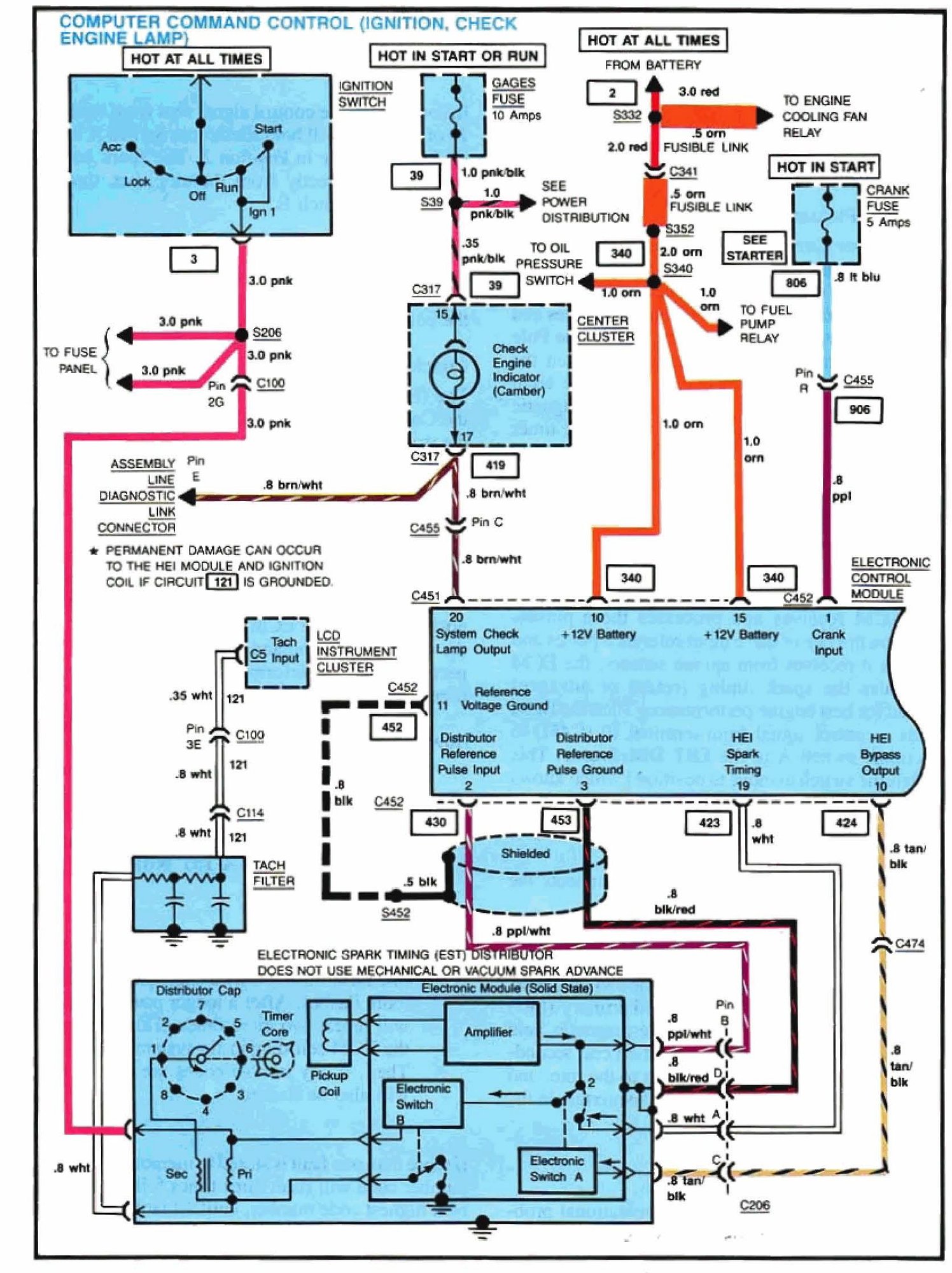

And from that S332 splice it goes also to other components,

Oct 5, 2024 | 10:03 AM

7thvet

Thread Starter

Melting Slicks

Joined: May 2005

Posts: 3,134

Likes: 11

From: At the St. Louis Playboy club.

Thank you Tom & WV, I love those diagrams. So much better than what I was working with.
You have totally answered my question.
Thanks CF again.

Oct 5, 2024 | 10:09 AM

7thvet

Thread Starter

Melting Slicks

Joined: May 2005

Posts: 3,134

Likes: 11

From: At the St. Louis Playboy club.

This book?

Oct 5, 2024 | 10:25 AM

WVZR-1

Team Owner

Joined: Sep 2003

Posts: 25,385

Likes: 2,737

i would say no to that particular buy from Eckler's but I haven't bought from Ecklers for 15+ years.

That manual doesn't include the EDM(Electrical Diagnostics Manual) so there's no diagrams like Tom and I posted. Read the disclaimer from Eckler's. My PM offer to you I believe a much better value!
