Racetronix Wiring - Help
Jack (Racetronix) -
I have the 340 plug-n-play kit for my 1987 vette. most of the wiring is covered by the instructions (pictures) from the web site. definitely looks straight forward.
however, i don't see any wiring instructions / pictures of the actual fuel pump wiring itself. i have the new harness that plugs into the pump. it's got a white lead and a black lead with a pig tail. how is this hooked up to my current wiring? what do i need to do to wire up the fuel pump?
anyone else run into this? if so, i'd really appreciate some pointers - thanks!
sorry for the duplicate thread.
I have the 340 plug-n-play kit for my 1987 vette. most of the wiring is covered by the instructions (pictures) from the web site. definitely looks straight forward.
however, i don't see any wiring instructions / pictures of the actual fuel pump wiring itself. i have the new harness that plugs into the pump. it's got a white lead and a black lead with a pig tail. how is this hooked up to my current wiring? what do i need to do to wire up the fuel pump?
anyone else run into this? if so, i'd really appreciate some pointers - thanks!
sorry for the duplicate thread.
Racer
Joined: Apr 2003
Posts: 426
Likes: 0
From: Detroit MI
Is there a + and - anywhere on the connector or where it mates on the pump. Look down inside the mating area of the pump. I don't recall having any questions on polarity when I put a walbro in mine.

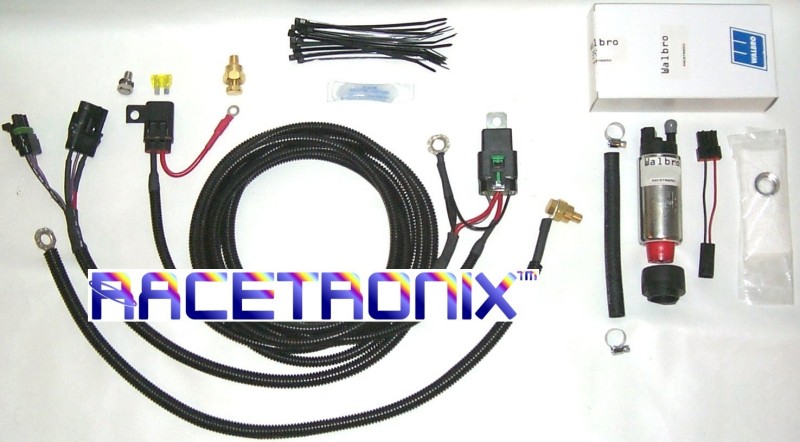

Is this what you purcahsed ? It appears you should only have to plug in an adapter. They do say its a plug and play system.
Is this what you purcahsed ? It appears you should only have to plug in an adapter. They do say its a plug and play system.
Thread Starter
Safety Car
Joined: Sep 2003
Posts: 3,599
Likes: 24
From: Orange County NY
St. Jude Donor '10-'11-'12-'13
my kit did not come with that connector pictured to the right of the fuel pump (with the red and black wires). instead, i have a connector with black and white wires, and the ends opposite the connection to the fuel pump are not readily able to plug into anything. i wonder if i have the correct harness kit??
Racer
Joined: Apr 2003
Posts: 426
Likes: 0
From: Detroit MI
Well you could hard wire that in. The "- " is ground.
Did they supply anything for rewiring inside the fuel tank ? You would need componets that can survive the gasoline enviroment. Here is a pic of a Walbro pump with the outlet broken off but you can see a + and - sign labeled on the pump.
Did they supply anything for rewiring inside the fuel tank ? You would need componets that can survive the gasoline enviroment. Here is a pic of a Walbro pump with the outlet broken off but you can see a + and - sign labeled on the pump.
Thread Starter
Safety Car
Joined: Sep 2003
Posts: 3,599
Likes: 24
From: Orange County NY
St. Jude Donor '10-'11-'12-'13
the one end of my connector plugs into the fuel pump no problem. it's the other end that i'm having difficulty trying to figure out how to wire up. i'm not sure how to post a picture here, but i can send you a pm if you're interested in seeing what i have.
thanks for the help!
thanks for the help!
Racer
Joined: Apr 2003
Posts: 426
Likes: 0
From: Detroit MI
I would guess you have something that looks kinda like this.
To use these parts you would cut your old pigtail off that went to the pump and replace it with the new one. This picture shows two crimp type connectors they need to be gasoline compatible.
To use these parts you would cut your old pigtail off that went to the pump and replace it with the new one. This picture shows two crimp type connectors they need to be gasoline compatible.
Thread Starter
Safety Car
Joined: Sep 2003
Posts: 3,599
Likes: 24
From: Orange County NY
St. Jude Donor '10-'11-'12-'13
not exactly like that, but close. Support@racetronix responded to an e-mail i sent them today. pretty impressive on a Sunday night! hopefully they'll be able to tell me how to proceed with the wiring i have in my kit.
thanks again!
thanks again!
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Supporting Vendor
Joined: Dec 2001
Posts: 1,573
Likes: 31
From: A dealer near you.
Originally Posted by byebyeL98
not exactly like that, but close. Support@racetronix responded to an e-mail i sent them today. pretty impressive on a Sunday night! hopefully they'll be able to tell me how to proceed with the wiring i have in my kit.
thanks again!
thanks again!
Each model year up until 1988 has a slightly different sending unit
1984 25027510
1985 25091444
1986 25092241
1987 25091444
1988 25093414
1989-96 25027510
All our in-tank wiring harnesses are made with Teflon wire which is much better than what is supplied in Walbro's generic installation kits.
Thread Starter
Safety Car
Joined: Sep 2003
Posts: 3,599
Likes: 24
From: Orange County NY
St. Jude Donor '10-'11-'12-'13
Thank you very much! Please also e-mail me the wiring solution at my home e-mail address (blsjds@optonline.net) and let me know if you need any further info or pictures of my set up.
I included my work number (on e-mail sent from blsjds@optonline.net) in case you'd like to talk me through it or need to speak to me.
Thanks again,
Dan
I included my work number (on e-mail sent from blsjds@optonline.net) in case you'd like to talk me through it or need to speak to me.
