C5 Control Arms vs C6 Control Arms offset with c6 craddle. Pics wanted!


Old 01-17-2019, 07:37 AM
  #1
Podium
CF Senior Member
Thread Starter

Member Since: Sep 2016
Posts: 507
Thanked 32 Times in 26 Posts
Default C5 Control Arms vs C6 Control Arms offset with c6 craddle. Pics wanted!

Doing a c6z diff swap this winter and wondering which control arms I want to go with. Does anyone have pictures of the difference in offset between the C5 arms and the C6 arms with the c6 craddle on a c5?
Podium is offline
Old 01-17-2019, 09:51 AM
  #2
JoeyG
CF Senior Member

JoeyG's Avatar

Member Since: Aug 2000
Location: St. Joseph MO
Posts: 4,347
Thanks: 0
Thanked 51 Times in 49 Posts
Cruise-In III Veteran
Cruise-In IV Veteran
Default

Ill try to find mine, C5 arms centered the wheel better. C6 offset like an inch more to rear of wheel well opening. C5 arms and c6 cradle fit a 28x10.5 slick better than all C5 parts too
JoeyG is offline
Old 01-17-2019, 10:29 AM
  #3
always faster
CF Senior Member

always faster's Avatar

Member Since: Dec 2006
Location: Somewhere in Québec, Canada
Posts: 1,155
Thanked 16 Times in 14 Posts
Default

Here is mine with c6 cradle and c6 arm with on my first setup.
Push the rear back roughly 5/8 to 3/4.

Last edited by always faster; 01-17-2019 at 10:30 AM.
always faster is offline
Old 01-17-2019, 10:57 AM
  #4
DRIVER456
CF Senior Member

DRIVER456's Avatar

Member Since: Jun 2005
Location: NY- 2013 Corvette Challenge Champion-2013 Index Combo Champion 2015 CC/MM Champion
Posts: 2,873
Thanks: 0
Thanked 8 Times in 8 Posts
St. Jude Donor '07
Default

I had that setup dragracing running low 10's and the torque ripped the top bolts out from the c6 rear from the tranny,i went back to my c5 rear.if you need the adapter plate and off set mounts let me know i will sell them
DRIVER456 is offline
Old 01-17-2019, 11:01 AM
  #5
Turbo-Geist
CF Senior Member

Turbo-Geist's Avatar

Member Since: Jul 2008
Location: Houston Texas
Posts: 2,891
Thanked 118 Times in 106 Posts
2018 Corvette of Year Finalist
2017 C5 of Year Finalist
Default

Originally Posted by DRIVER456 View Post
I had that setup dragracing running low 10's and the torque ripped the top bolts out from the c6 rear from the tranny,i went back to my c5 rear.if you need the adapter plate and off set mounts let me know i will sell them
Did you have the ECS or DTE brace that reinforces the connection between the trans and diff?
Turbo-Geist is offline
Old 01-17-2019, 11:25 AM
  #6
DRIVER456
CF Senior Member

DRIVER456's Avatar

Member Since: Jun 2005
Location: NY- 2013 Corvette Challenge Champion-2013 Index Combo Champion 2015 CC/MM Champion
Posts: 2,873
Thanks: 0
Thanked 8 Times in 8 Posts
St. Jude Donor '07
Default

Originally Posted by Turbo-Geist View Post
Did you have the ECS or DTE brace that reinforces the connection between the trans and diff?
no i did not
DRIVER456 is offline
Old 01-17-2019, 11:55 AM
  #7
Turbo-Geist
CF Senior Member

Turbo-Geist's Avatar

Member Since: Jul 2008
Location: Houston Texas
Posts: 2,891
Thanked 118 Times in 106 Posts
2018 Corvette of Year Finalist
2017 C5 of Year Finalist
Default

Here was mine with a C6 lower control arm and C6 cradle:

"The 6060 swap with a C6 cradle and control arm moves the tire location back. I now have 3/4" clearance between the tire and rear fender with a 28" tall slick. The car still needs an alignment, but I'm not sure if I'll gain anymore and these slicks will have some growth at 160mph."

I like a centered look so I went back to the C5 lower control arm.


Turbo-Geist is offline
Old 01-17-2019, 12:17 PM
  #8
Turbo-Geist
CF Senior Member

Turbo-Geist's Avatar

Member Since: Jul 2008
Location: Houston Texas
Posts: 2,891
Thanked 118 Times in 106 Posts
2018 Corvette of Year Finalist
2017 C5 of Year Finalist
Default

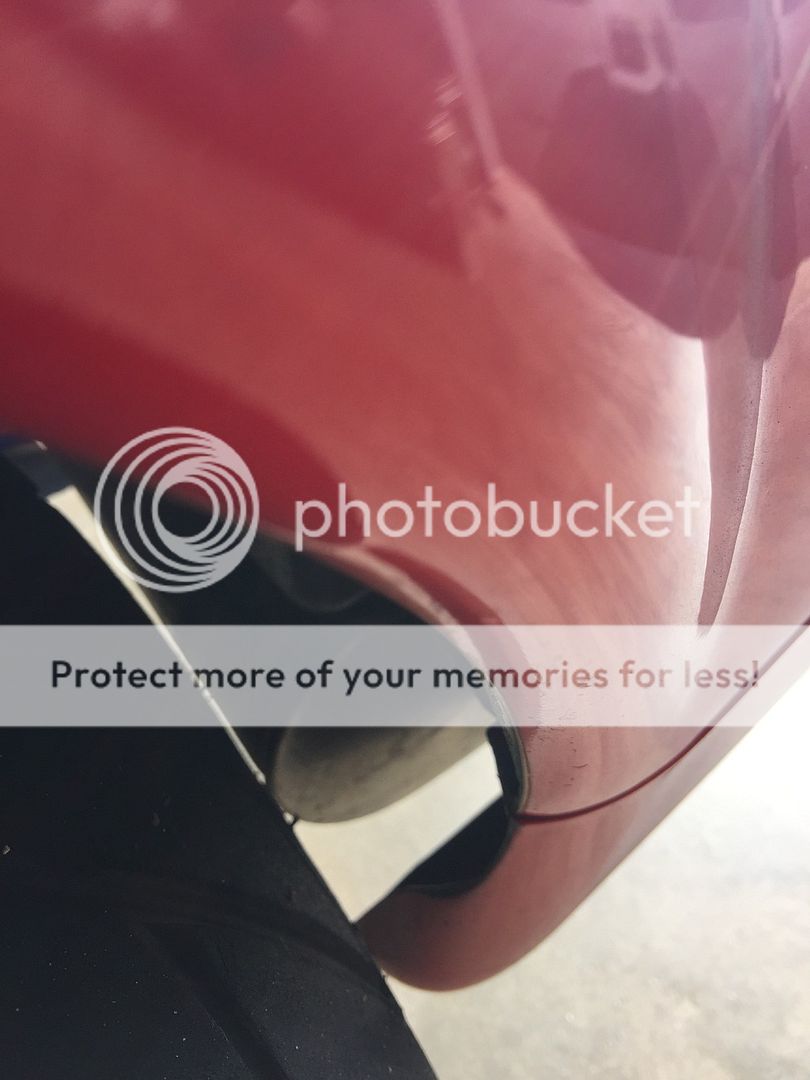

Here's where it will rub on the rear fender as posted by another member in one of my build threads:

Originally Posted by StealthFRC View Post
here you go, like i said they still rub on huge bumps when i have a passenger... its also way i try not to put more then 1/2 tank in the car... but no harm no foul, just a little paint rub. ill eventually trim it all away.

in the pics the car is on a jack, when its down you can't see any of these areas unless your really looking..





Turbo-Geist is offline
Old 01-17-2019, 03:07 PM
  #9
neutron82
Bangin' Gears
Support Corvetteforum!

neutron82's Avatar

Member Since: Dec 2010
Location: Plain-0 TX
Posts: 8,673
Thanked 761 Times in 687 Posts
Default

Bret is in the process of making both lower control arms and conversion brackets to let you keep the c5 cradle with tr6060 swaps in order to keep the tires centered
neutron82 is online now
Old 01-17-2019, 03:22 PM
  #10
69GTO96Z
CF Senior Member

Member Since: Mar 2012
Location: DFW Texas
Posts: 127
Thanked 7 Times in 6 Posts
Default

I have a 6060 in mine with a c5 diff. Jason at Texas Drivetrain machines the tailhousing from a t56 to fit a 6060. Bolted up like stock.
69GTO96Z is offline
Old 01-17-2019, 10:22 PM
  #11
Podium
CF Senior Member
Thread Starter

Member Since: Sep 2016
Posts: 507
Thanked 32 Times in 26 Posts
Default

Originally Posted by neutron82 View Post
Bret is in the process of making both lower control arms and conversion brackets to let you keep the c5 cradle with tr6060 swaps in order to keep the tires centered
Yeah I’ve been speaking with him but I already have the diff, cradle and trans.


Thanks for the pics guys!
Podium is offline
Old 01-17-2019, 10:29 PM
  #12
neutron82
Bangin' Gears
Support Corvetteforum!

neutron82's Avatar

Member Since: Dec 2010
Location: Plain-0 TX
Posts: 8,673
Thanked 761 Times in 687 Posts
Default

I believe he said that the control arms alone can solve the problem, you might ask him... I have c5 arms on mine and it is pushed back a tad but not as bad as the swaps I've seen using c6 arms

Last edited by neutron82; 01-17-2019 at 10:29 PM.
neutron82 is online now
Old 01-18-2019, 08:14 AM
  #13
ysb02
CF Senior Member

Member Since: Aug 2008
Location: Austin TX
Posts: 1,390
Thanked 28 Times in 27 Posts
Default

Originally Posted by neutron82 View Post
I believe he said that the control arms alone can solve the problem, you might ask him... I have c5 arms on mine and it is pushed back a tad but not as bad as the swaps I've seen using c6 arms
I’m itching for Brett to give me the green light so he can do this on my c5.
ysb02 is offline
Old 01-19-2019, 12:20 PM
  #14
always faster
CF Senior Member

always faster's Avatar

Member Since: Dec 2006
Location: Somewhere in Québec, Canada
Posts: 1,155
Thanked 16 Times in 14 Posts
Default

Like others stated if you want a centered setup use c5 arms.
Mine will go back in to get the wheel back in the middle.
always faster is offline
Old 01-21-2019, 03:59 PM
  #15
jimbos'ss
CF Senior Member

jimbos'ss's Avatar

Member Since: Aug 2010
Location: killeen TX
Posts: 743
Thanked 34 Times in 34 Posts
Default

Anyone have pics of the c5 LCA's bolted to the c6 cradle? I thought it wasn't possible, but if it is, I'd like to try it.
jimbos'ss is offline
Old 01-25-2019, 12:13 AM
  #16
C5 LS7
CF Senior Member

C5 LS7's Avatar

Member Since: Apr 2008
Location: Dublin CA
Posts: 435
Thanks: 0
Thanked 2 Times in 2 Posts
Default

Driver456, How far off is the rear end from lining up with the C6 cradle after you install it all in the C5? Or how much offset is the offset mount? Looks like about 2"
C5 LS7 is offline
Old 01-25-2019, 12:59 AM
  #17
Fastbird
Former Sponsor

Fastbird's Avatar

Member Since: Apr 2004
Location: Fort Wayne IN
Posts: 9,846
Thanked 119 Times in 100 Posts
2017 C5 of the Year Finalist
2016 C5 of the Year Finalist
2015 C5 of the Year Finalist
I Believe In The Beer Fairy
Default

Here's mine with a 305/35-19 Nitto NT05R and C6Z TR6060/Rear/Cradle/Arms. Ever so slightly offset to the rear.
Fastbird is online now
Old 01-25-2019, 12:16 PM
  #18
C5 LS7
CF Senior Member

C5 LS7's Avatar

Member Since: Apr 2008
Location: Dublin CA
Posts: 435
Thanks: 0
Thanked 2 Times in 2 Posts
Default

I am making my own offset mounts. Can anyone give me the height and the amount of offset of the mount. It looks like about 2 7/8" high and about 2" offset.

Rick
C5 LS7 is offline
Old 01-28-2019, 07:11 AM
  #19
Rkreigh
CF Senior Member

Member Since: Dec 1999
Location: Alexandria, Virginia, USA VA
Posts: 7,805
Thanked 73 Times in 66 Posts
Default

Originally Posted by Fastbird View Post
Here's mine with a 305/35-19 Nitto NT05R and C6Z TR6060/Rear/Cradle/Arms. Ever so slightly offset to the rear.
that looks great! unless you tell someone they will never know
Rkreigh is offline
Old 01-28-2019, 11:35 AM
  #20
DRIVER456
CF Senior Member

DRIVER456's Avatar

Member Since: Jun 2005
Location: NY- 2013 Corvette Challenge Champion-2013 Index Combo Champion 2015 CC/MM Champion
Posts: 2,873
Thanks: 0
Thanked 8 Times in 8 Posts
St. Jude Donor '07
Default

Originally Posted by C5 LS7 View Post
Driver456, How far off is the rear end from lining up with the C6 cradle after you install it all in the C5? Or how much offset is the offset mount? Looks like about 2"
sorry man,i don't remember, it was awhile back,i went back to the c5 cradle and rear.you also have to modify the exhaust
DRIVER456 is offline
