Do long tube headers reduce ground clearance?
Thread Starter
Melting Slicks
Joined: Sep 1999
Posts: 2,301
Likes: 83
From: DFW, TX
Do long tube headers reduce ground clearance?
It Looks to me like the collectors must hang down much lower than stock, but have not seen enough examples to be able to tell. Are some brands lower than others? Anyone experience any problems from this?
Burning Brakes
Joined: Nov 2002
Posts: 1,188
Likes: 266
From: Huntington Beach CA

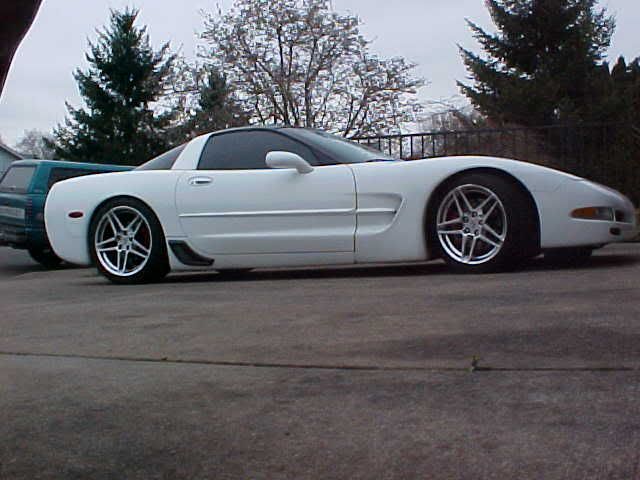

My car is very low for the street, and last time I was under the car I notice my Kooks LT's were scraped up a bit. I think LT's do decrease your ground clearance, as I even heard mine scrape going over a speed bump yesterday.
My A&A rocker rails and frame savers have had quite a work out lately.
My A&A rocker rails and frame savers have had quite a work out lately.
Safety Car
Joined: Jan 2001
Posts: 3,879
Likes: 3
From: Hobart, WI
Some do. Dynatechs and SW seem to be most out of harm's way. I have SWs and they are highter than frame . Have installed Dynatechs and they tuck up fine. From pictures the Kooks and LGs can take a beating. Seems like the longest tube models can't tuck up as well.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Instructor
Joined: Aug 2004
Posts: 212
Likes: 0
From: Indianapolis IN
Got the TPIS installed on mine. Went to the garage to see how low they hang. Noticed not a scratch (I am not a lowered vette). Mine hang about 1/2 inch lower than stock but they are not the lowest point on the car. Hec, the front engine/suspension cradle is lower than my collectors. It would bump/scratch before my collectors would hit anything. The TPIS headers are of the slip over deisign, where they slip over the random cats. I could lower this car with out any fear of the headers scraping on anything.
By the way, love my headers. Great bang for the buck. One of the best performance gainers amungst all the headers out there.
Matt
By the way, love my headers. Great bang for the buck. One of the best performance gainers amungst all the headers out there.
Matt
Last edited by Boeingman; Mar 27, 2006 at 05:28 PM.
Race Director
Joined: May 2005
Posts: 15,960
Likes: 21
From: West Norriton PA
St. Jude Donor '08
I have a set of long tubes on my 2001 vette that I purchased that way.
I was scraping everwhere I was going including my driveway. The vette was lowered by the previous owner, so I raised it back-up and installed A&A rocker rails and wheels on the front.
I'm not sure brand of headers are on my vette, but they definitely hang lower than the stock exhaust by about an 1".
I've seen some headers that don't use the tab flange to connect to the stock exhaust (slip overs) that appear to give you better ground cleareance.
I was scraping everwhere I was going including my driveway. The vette was lowered by the previous owner, so I raised it back-up and installed A&A rocker rails and wheels on the front.
I'm not sure brand of headers are on my vette, but they definitely hang lower than the stock exhaust by about an 1".
I've seen some headers that don't use the tab flange to connect to the stock exhaust (slip overs) that appear to give you better ground cleareance.
