need help
Starter wire Diagram
Burning Brakes
Joined: Jan 2002
Posts: 885
Likes: 0
From: The Woodlands Texas
You should have 4 wires to install.

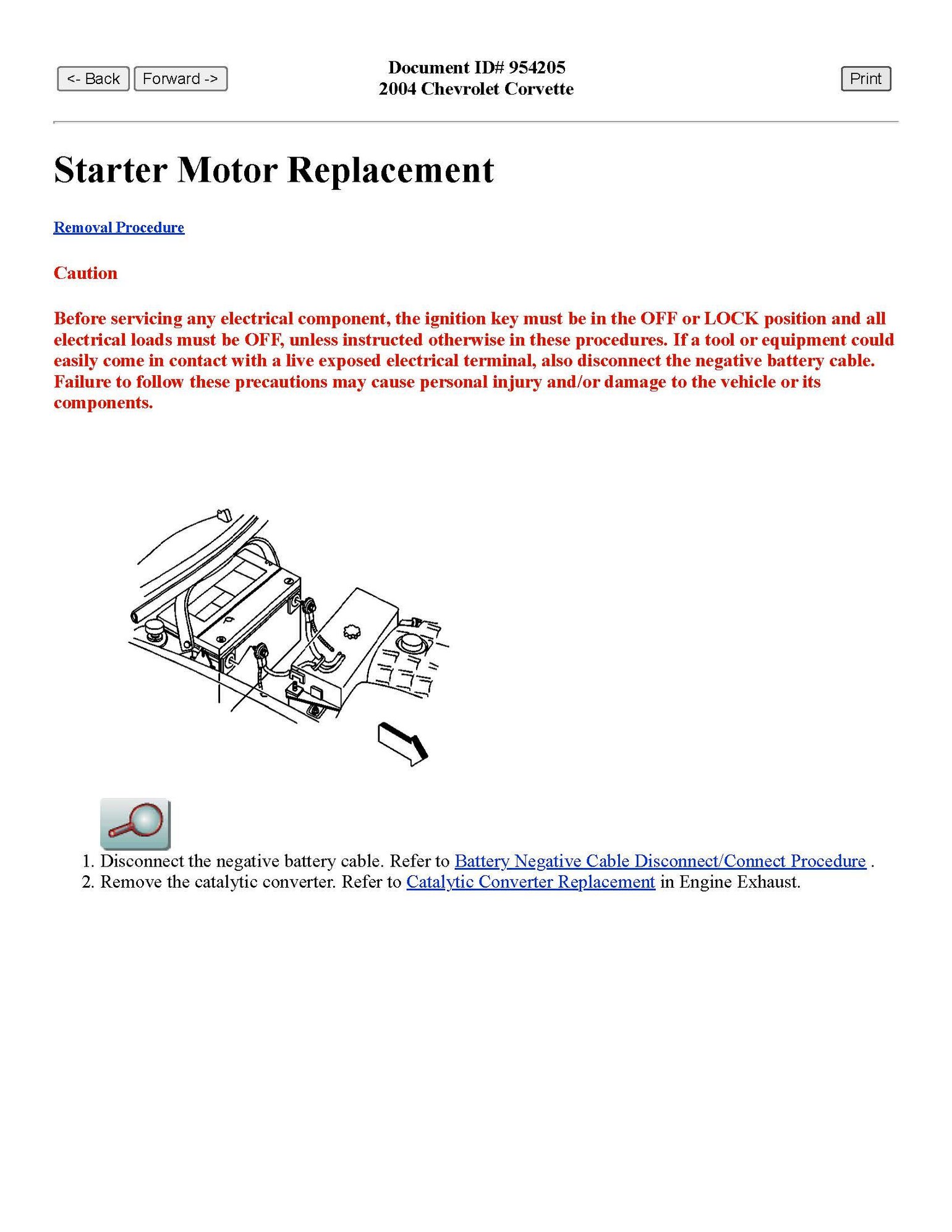

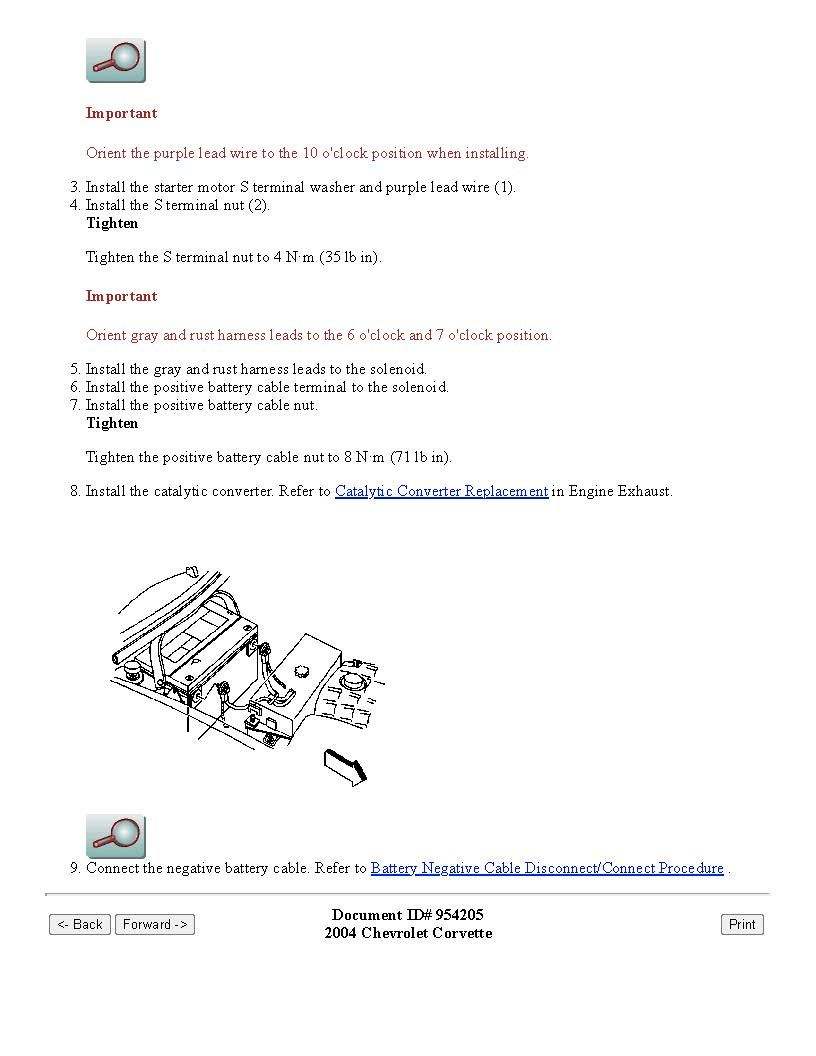

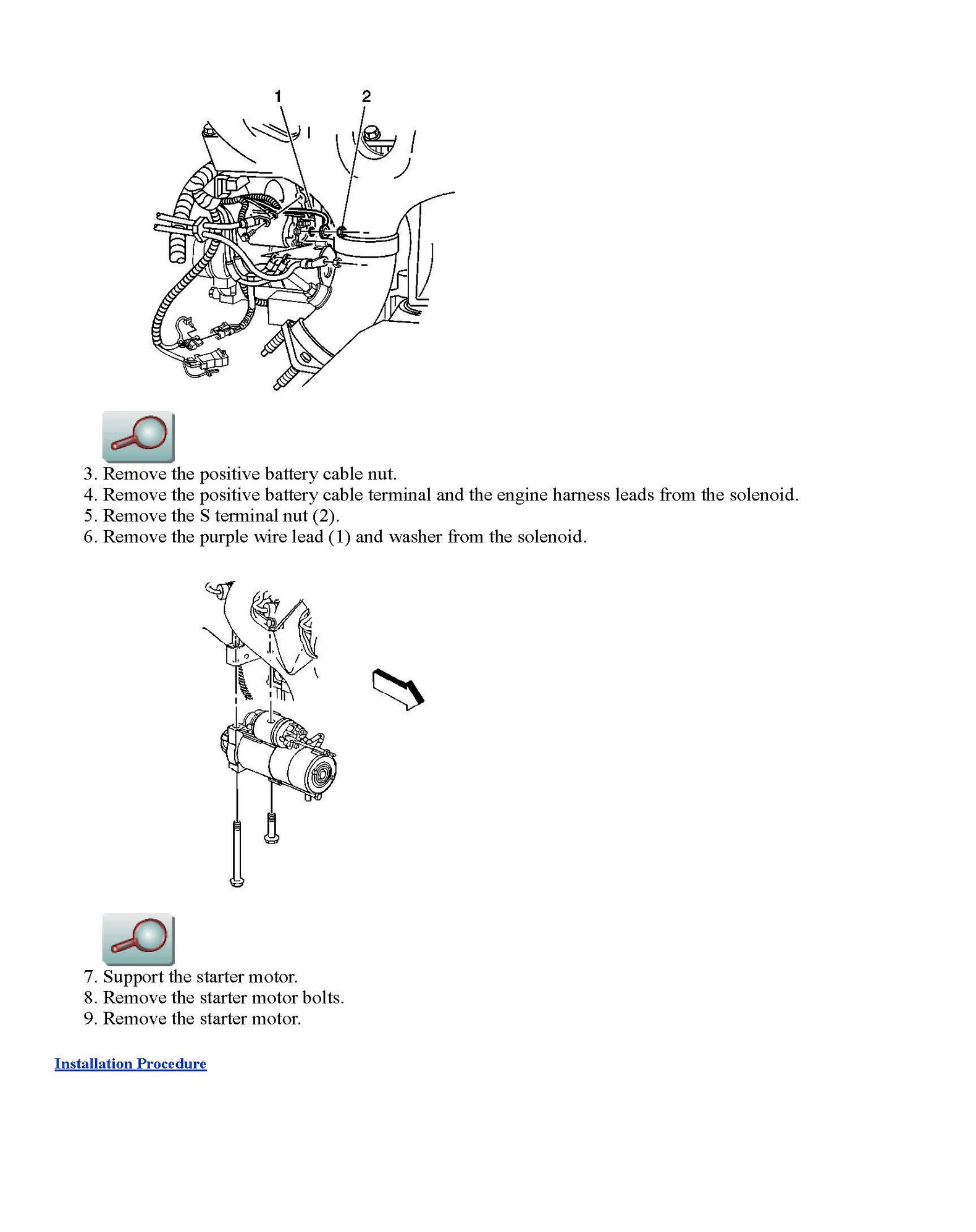

1. The small purple wire that goes on the little post on the solenoid.
2. The gray control wire.
3. The black control wire.
4. The red power lead from the battery.
Wires 2, 3 and 4 all go on the same post on the solenoid - left hand side of the solenoid.
Do not connect any of the wires to the solenoid post - right hand side of the solenoid - that has the lead going to the starter motor.
Its that simple.
1. The small purple wire that goes on the little post on the solenoid.
2. The gray control wire.
3. The black control wire.
4. The red power lead from the battery.
Wires 2, 3 and 4 all go on the same post on the solenoid - left hand side of the solenoid.
Do not connect any of the wires to the solenoid post - right hand side of the solenoid - that has the lead going to the starter motor.
Its that simple.
Thread Starter
Intermediate
Joined: Jan 2005
Posts: 49
Likes: 0
You should have 4 wires to install.
1. The small purple wire that goes on the little post on the solenoid.
2. The gray control wire.
3. The black control wire.
4. The red power lead from the battery.
Wires 2, 3 and 4 all go on the same post on the solenoid - left hand side of the solenoid.
Do not connect any of the wires to the solenoid post - right hand side of the solenoid - that has the lead going to the starter motor.
Its that simple.
1. The small purple wire that goes on the little post on the solenoid.
2. The gray control wire.
3. The black control wire.
4. The red power lead from the battery.
Wires 2, 3 and 4 all go on the same post on the solenoid - left hand side of the solenoid.
Do not connect any of the wires to the solenoid post - right hand side of the solenoid - that has the lead going to the starter motor.
Its that simple.
Thanks 2 the Covette Forum keep up the good work.
