headlight won't pop-up
The following users liked this post:
Keyman57 (04-26-2018)
#3
Pro
Thread Starter
#4
Tech Contributor
Member Since: Dec 2006
Location: Van Buren Arkansas
Posts: 10,962
Likes: 0
Received 26 Likes
on
25 Posts
Wounded Warrior Escort '11
I had this happen the other day to my '99 on the passenger side. I rotated the **** so it went up a little. Then turned on/off the headlamp switch so it went back down on its own. Then turned it on again and it was working normally. Since its already got a brass gear and was making no noise, I'm thinking a dead spot on the motor winding.
#5
Race Director
Member Since: Nov 2000
Location: Beverly Hills (Pine Ridge) Florida
Posts: 10,152
Received 525 Likes
on
374 Posts
I sometimes have to turn the headlight switch on 3-5 times to get my right light to pop up. No noise, or other issues. Seems to only happen when I have not used them for extended periods.
And of course, it always works when I have time to look at it........
Plasticman
And of course, it always works when I have time to look at it........
Plasticman
#7
Tech Contributor
#8
Pro
Thread Starter
#9
Instructor
My driver side gear just started breaking up recently. I could tell because when I switched off the headlight with the hood open I could see the manual **** continue to spin a second or two after the light was all the way down. When I took the gear cover off the rubber damper was all broken up in pieces allowing the motor to spin without the gear turning. The gear itself was fine.
Someone corrct me if I'm wrong but, I believe the headlight module sends power to the headlight motor until a current threshold is exceeded. Once that limit is met, the module cuts off voltage.
Since Power = (Voltage X Current), current spikes when unusual resistance (like binding) is encountered during travel up or down. My headlight would only go up halfway under motor power. When I tried to raise it manually I could feel the linkage bind about halfway up. Going down the headlight would bind also but not as bad because of the assistance of gravity.
Check your gears if you don't have brass yet. Check for binding either way by raising and lowering the headlight manually.
Someone corrct me if I'm wrong but, I believe the headlight module sends power to the headlight motor until a current threshold is exceeded. Once that limit is met, the module cuts off voltage.
Since Power = (Voltage X Current), current spikes when unusual resistance (like binding) is encountered during travel up or down. My headlight would only go up halfway under motor power. When I tried to raise it manually I could feel the linkage bind about halfway up. Going down the headlight would bind also but not as bad because of the assistance of gravity.
Check your gears if you don't have brass yet. Check for binding either way by raising and lowering the headlight manually.
Last edited by Cratecruncher; 12-07-2010 at 10:44 AM.
#10
Race Director
Member Since: Nov 2000
Location: Beverly Hills (Pine Ridge) Florida
Posts: 10,152
Received 525 Likes
on
374 Posts
No binding, no roughness, no noise, and manual **** spins nicely (comparing the one side that does not always come up to the other that always does). Over 2 years of ownership, and this has only occurred twice.
Frankly, just think (in my case) that there might be an initial binding of the manual **** or shaft over a long stretch of "not being used". And perhaps a current shutoff circuit that is a tad too sensitive.
Plasticman
Frankly, just think (in my case) that there might be an initial binding of the manual **** or shaft over a long stretch of "not being used". And perhaps a current shutoff circuit that is a tad too sensitive.
Plasticman
#12
Instructor
Had one headlight occasionally not pop-up on my 02 and wanted to update this older thread with my fix:
Symptoms: One headlight will occasionally not pop-up
1) Headlights are bright, and motor and gears are good
2) Turing motor **** on sticking light one or two turns allows light to function again for a few days then it starts sticking again
3) Takes more effort to turn motor **** first quarter to full turn, then effort decreases
Initially I checked the white hard plastic bumper stops as mentioned in some other posts, and found three. Two mounted horizontal to stop the lights when opening, and one mounted vertical inside the light mechanism which stops the lights when closing. (heard there were 4, just could not see the fourth) They all looked in good condition. I lubed all of the joints in the headlight but that did not fix it.
Taking a flashlight to the one mounted vertically, I could see an indentation on its top vertical edge where the light mechanism contacts it. It is a small surface area. I took the bumper stop off and flipped it 180 degrees so the "fresh" bottom side was now on top. That fixed it.
Apparently, as the light settles down into the indentation of the bumper stop, its takes more torque from the motor to un-stick it than the motor can supply.
One can also swap a vertical mounted bumper stop with a horizontal mounted bumper stop, as the light contacts the horizontal bumper stop on its long side.
My other side was developing the same indentation, so I flipped it also. Takes 2 minutes when you know the issue.
Symptoms: One headlight will occasionally not pop-up
1) Headlights are bright, and motor and gears are good
2) Turing motor **** on sticking light one or two turns allows light to function again for a few days then it starts sticking again
3) Takes more effort to turn motor **** first quarter to full turn, then effort decreases
Initially I checked the white hard plastic bumper stops as mentioned in some other posts, and found three. Two mounted horizontal to stop the lights when opening, and one mounted vertical inside the light mechanism which stops the lights when closing. (heard there were 4, just could not see the fourth) They all looked in good condition. I lubed all of the joints in the headlight but that did not fix it.
Taking a flashlight to the one mounted vertically, I could see an indentation on its top vertical edge where the light mechanism contacts it. It is a small surface area. I took the bumper stop off and flipped it 180 degrees so the "fresh" bottom side was now on top. That fixed it.
Apparently, as the light settles down into the indentation of the bumper stop, its takes more torque from the motor to un-stick it than the motor can supply.
One can also swap a vertical mounted bumper stop with a horizontal mounted bumper stop, as the light contacts the horizontal bumper stop on its long side.
My other side was developing the same indentation, so I flipped it also. Takes 2 minutes when you know the issue.
Last edited by fmvette9; 08-12-2016 at 04:16 PM.
#13
Le Mans Master
I'm going to continue this thread. Initially my left headlight wouldn't open. I installed the brass gear from Rodney Dickman and that solved the problem for a long time until....... the light started sticking closed again. I would manually loosen the screw on the back of the h/l motor and it would work okay again. I found that the plastic stop blocks would indent and turning them over would fix it. However eventually they would indent again, rendering them useless. I'd have to manually loosen them again but eventually that didn't work anymore. I put Rodney Dickman's improved plastic stops which I thought finally fixed it. It has now started doing it again. I called him but he had no more ideas. He suggested possibly changing the h/l module. I am hoping for a more permanent repair. BTW, all problems have only been on the left headlight. The right side has never given me a problem, not even once, so I doubt the module is really bad. And the left side works fine once you loosen the screw on the back.
#14
Instructor
After a few weeks since I rotated the bumper stops, it started sticking again. Comparing my sticking passenger side to the driver side, more force was still needed to start turning the motor. I then re-read the thread, "headlight-gear-fix-highly-pictorialized", which is a great thread on the subject.
I decided to go with the rotate the plastic gear 180 degree concept. After I rotated it, there is now no additional torque required to turn the motor. It is as easy to turn from the start, as after a couple of turns. So I am hopefully good to go until that side of the plastic gear wears. My theory is that even thought the plastic gear was not worn enough to cause the rat a tat, , the wear was causing a misalignment with the worm gear.
Note: I removed the bezel, painted top cover, then removed the 3 10mm hex nuts and three 13mm bolts to remove the whole mechanism from the car and into my air conditioned house (heat wave) to work on it. Factory manual procedure with pics at corvettecentral web site. Took 10 minutes to remove, and 15 to put back.
I decided to go with the rotate the plastic gear 180 degree concept. After I rotated it, there is now no additional torque required to turn the motor. It is as easy to turn from the start, as after a couple of turns. So I am hopefully good to go until that side of the plastic gear wears. My theory is that even thought the plastic gear was not worn enough to cause the rat a tat, , the wear was causing a misalignment with the worm gear.
Note: I removed the bezel, painted top cover, then removed the 3 10mm hex nuts and three 13mm bolts to remove the whole mechanism from the car and into my air conditioned house (heat wave) to work on it. Factory manual procedure with pics at corvettecentral web site. Took 10 minutes to remove, and 15 to put back.
Last edited by fmvette9; 08-19-2016 at 01:51 PM.
#15
I just got my 99 out the shop today with the same problem. They check it out & told me I needed a LH Headlight Motor. Fixed it right up. I took it to Vette Nuts. They specialize in nothing but Corvettes, C5 & C6 (maybe more) Here's the site vettenuts.net Thanks guys.
#16
Melting Slicks
...Initially my left headlight wouldn't open. I installed the brass gear from Rodney Dickman and that solved the problem for a long time until....... the light started sticking closed again...
...I put Rodney Dickman's improved plastic stops which I thought finally fixed it. It has now started doing it again....BTW, all problems have only been on the left headlight. The right side has never given me a problem, not even once, so I doubt the module is really bad. And the left side works fine once you loosen the screw on the back.
...I put Rodney Dickman's improved plastic stops which I thought finally fixed it. It has now started doing it again....BTW, all problems have only been on the left headlight. The right side has never given me a problem, not even once, so I doubt the module is really bad. And the left side works fine once you loosen the screw on the back.
The following users liked this post:
Keyman57 (04-26-2018)
#17
Melting Slicks
...Initially I checked the white hard plastic bumper stops as mentioned in some other posts, and found three. Two mounted horizontal to stop the lights when opening, and one mounted vertical inside the light mechanism which stops the lights when closing. (heard there were 4, just could not see the fourth)...
The following users liked this post:
Keyman57 (04-26-2018)
#18
Thanks Guys, you saved me for now
Why “for now” ? BeCause the **** to rotate the motor on my drivers side is MISSING! And I had to rotate it with a long nose pliers (which i didn’t want to do), the Rubber Boot is MISSING Too. Wonder if I can order one? Thanks so much, glad to contribute. I’m just starting to work on my C5 2004 Silver bullet myself, still a junior though. Drivers pop up headlight motor with missing **** and cover boot. C5 2004
Last edited by Keyman57; 04-26-2018 at 06:53 PM. Reason: Clarification and added photo
#19
Why “for now” ? BeCause the **** to rotate the motor on my drivers side is MISSING! And I had to rotate it with a long nose pliers (which i didn’t want to do), the Rubber Boot is MISSING Too. Wonder if I can order one? Thanks so much, glad to contribute. I’m just starting to work on my C5 2004 Silver bullet myself, still a junior though.

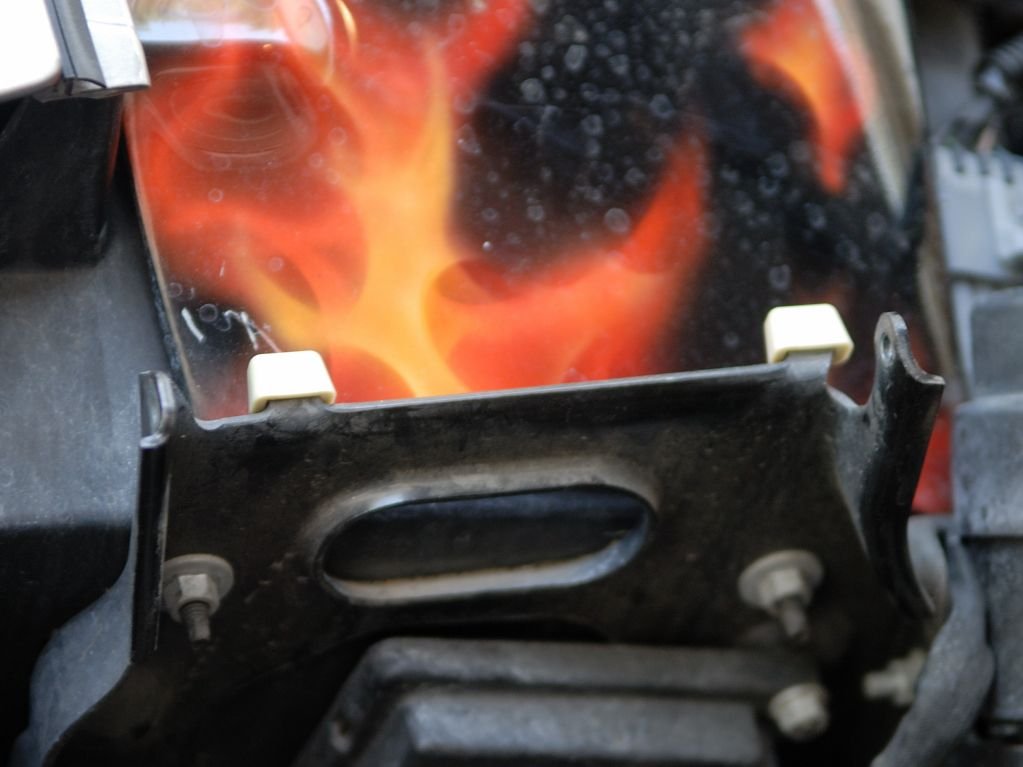

Drivers pop up headlight motor with missing **** and cover boot. C5 2004
Drivers pop up headlight motor with missing **** and cover boot. C5 2004
