i have a 01 with dual climate and a damn mouse chewed up a bunch of wires in my car most everything figures out except passenger side vacuum actuator that has 6 wires going into it... anyone have a clear pic or wire sequence that goes into that clip and plugs into the passenger side vacuum thing????? i'm hoping that is my issue as i am not getting any info in my hvac head unit about the passenger side....
i have a 01 with dual climate and a damn mouse chewed up a bunch of wires in my car most everything figures out except passenger side vacuum actuator that has 6 wires going into it... anyone have a clear pic or wire sequence that goes into that clip and plugs into the passenger side vacuum thing????? i'm hoping that is my issue as i am not getting any info in my hvac head unit about the passenger side....
What info are you expecting to get? The head unit will not display anything relating to the passenger side.
just need the 6 wire orientation on the clip that plugs into the passenger side actuator
i thought that on the head unit would display temp setting as it has temp dials for either side?
my volvo had pass display and so did my Mitsubishi 3000gt??

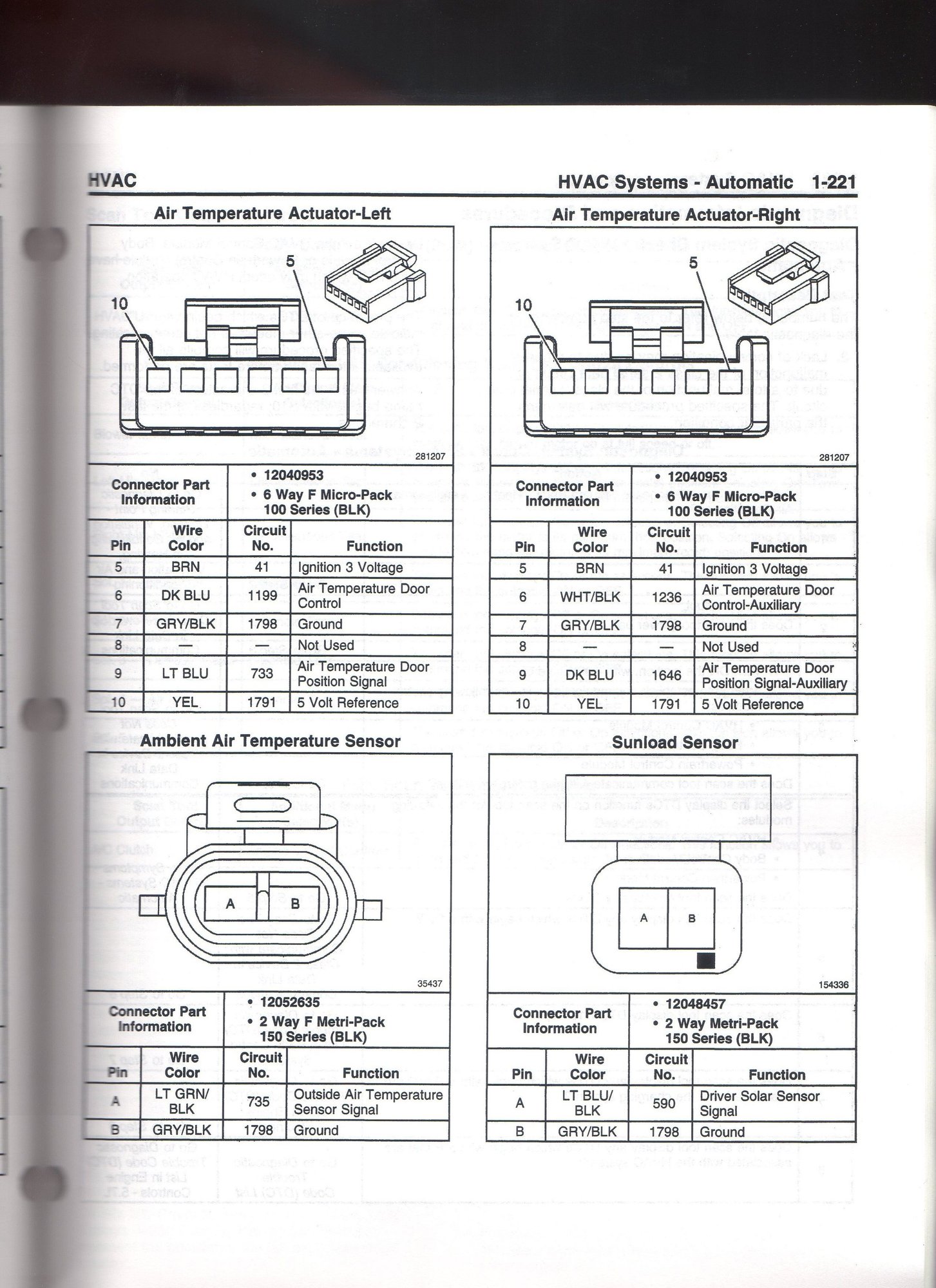

I can get the connector pin out for you which also has the wire colors. Not at home now but can do it in the morning.
The HVAC unit only allows the passenger to adjust the temperature up or down some with regard to what the driver has selected (and displayed). Fooled me too at first when I got my car.
Curious why the connector pins don't have some wire color showing? If you need to remove the pins in the connector to do your work I can tell you how to release them. It is very easy. You can also buy new pins. I have the Delphi part number also.
Also, if you need to remove the dash pad to allow better access I have that info too. It is not hard and many novice DIY folks have done it.
no i already have the interior all ripped apart do to damn mice that decided the wiring was good to chew on and already figured out how to use a eyeglass screwdriver to release the pins.. would have been nice last month to know where to buy the pins as i just went to the junkyard and pulled the clip and wires out of a chevy silverado
do you happen to know a part number or place to purchase the inside air temp sensor?? i tried autozone and all they had was the temp sensor for the outside of the car.
Inside air temp sensor is AC Delco 15-72496 or GM 16267411
Your local dealer or GMPartsHouse are good sources. Note, it plugs into a connector with wiring harness. It is just the sensor. If you need the harness also I suggest VetteNuts who is a Forum vendor.
sorry maybe i miss qouted the part i was talking about??? i need the 6 wire code and orientation for where 5 of the vacuum hoses plug into i guess i got the name wrong? but it is a rectangle shaped black box and there are hoses going into it???
sorry maybe i miss qouted the part i was talking about??? i need the 6 wire code and orientation for where 5 of the vacuum hoses plug into i guess i got the name wrong? but it is a rectangle shaped black box and there are hoses going into it???
sorry maybe i miss qouted the part i was talking about??? i need the 6 wire code and orientation for where 5 of the vacuum hoses plug into i guess i got the name wrong? but it is a rectangle shaped black box and there are hoses going into it???
That's OK, I can look to post that info in the morning.
Just in case you missed it earlier, the passenger side temp does NOT display anywhere. The only difference when you turn the passenger **** is a slight change in temp between the driver and passenger vents. NO indication on the display.
all fixed i bought a 98 vert and was able to compare what wires went where but thanks for everyones help i really appreciate it this forum is one of the best i have ever been on where it seems there are alot of traffic and it seems like everyone is willing to help everyone else out even if it is a stupid question or if the question has been answered 15 times before .... only thing i guess would be better would be the search engine then people wouldn't ask the same question over and over again but yall have ALOT of patience it seems!!!!!
