A DRL LED Wiring Challenge!

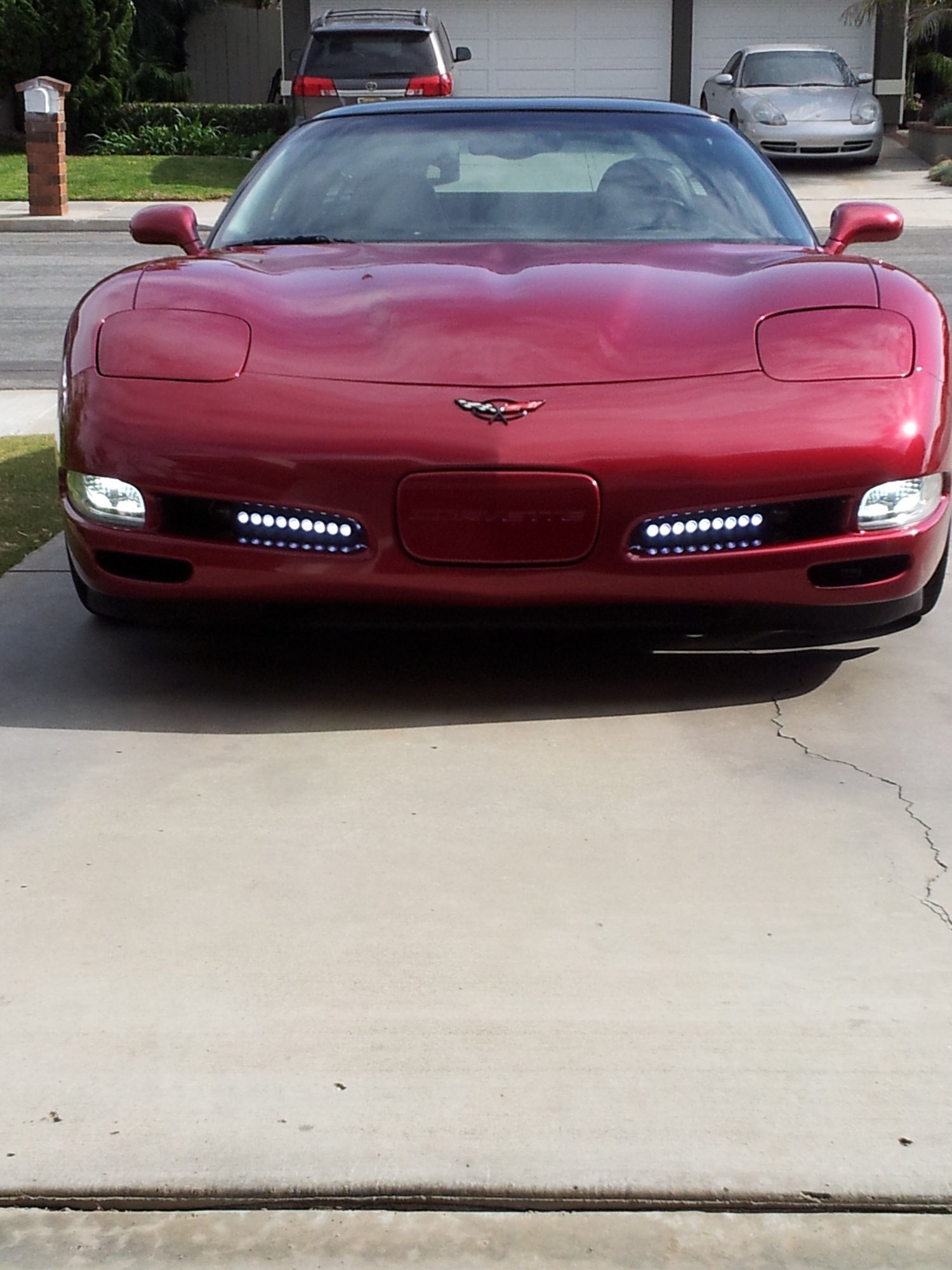

I have a US purchased 1999 Coupe. In Canada we are required to use DRLs. There is NO requirement for amber turn signals. I would like to add LED DRL light strips. They would not replace any existing lights, rather provide additional lighting.
In a perfect world I would like the LEDs to function as DRLs along with the existing ones BUT when I turn on the signal they would flash along with the signal. In other words they would be steady on unless I activate the signal at which point they would flash clear. Once the turn is completed they would revert to steady on.
Can you assist me with how I can achieve this in terms of wiring and relays?
Thanks in advance!
In a perfect world I would like the LEDs to function as DRLs along with the existing ones BUT when I turn on the signal they would flash along with the signal. In other words they would be steady on unless I activate the signal at which point they would flash clear. Once the turn is completed they would revert to steady on.
Can you assist me with how I can achieve this in terms of wiring and relays?
Thanks in advance!
Thread Starter
Pro
Joined: Aug 2013
Posts: 612
Likes: 74
From: Ontario
Thanks!
Thread Starter
Pro
Joined: Aug 2013
Posts: 612
Likes: 74
From: Ontario
Le Mans Master
Joined: Mar 2011
Posts: 6,835
Likes: 302
From: Columbia SC
Not sure if that will give you hyperflash, may or may not.
You would be adding an additional load on that circuit. I doubt just a few pure LEDs will be a problem but if for any reason you blow a fuse DO NOT put in a larger fuse.
Mr. Sam
Thread Starter
Pro
Joined: Aug 2013
Posts: 612
Likes: 74
From: Ontario
I am confused!
I am totally confused. The LEDs are two wire...ground and power.
I am 99.99% positive that the DRLs do not flash with the signal presently. So how would I do the wiring to get them to be steady on only interrupted by flashing with the appropriate turn signal?
Hyperflash is not an issue as I have already installed LEDs at the rear.
I am 99.99% positive that the DRLs do not flash with the signal presently. So how would I do the wiring to get them to be steady on only interrupted by flashing with the appropriate turn signal?
Hyperflash is not an issue as I have already installed LEDs at the rear.
