Wiring harness help

Thread Tools

Search this Thread

Old Aug 13, 2017 | 09:53 PM
Share
  #1
CharlieC5Z06's Avatar
CharlieC5Z06
Thread Starter
Racer

Joined: Nov 2015
Posts: 408
Likes: 5
From: New York
Default Wiring harness help

does anyone have a diagram like this for the c5? Just installed my rebuilt engine and trying to get all the wiring figured out. At first I thought this was for c5 but realized it was for an older vette.
Reply
0
Old Aug 15, 2017 | 10:22 AM
Share
  #2
huesmann's Avatar
huesmann
Burning Brakes
10 Year Member
Photogenic
Liked
Loved

Joined: Jul 2013
Posts: 1,008
Likes: 57
From: Kensington MD
Default
Um, based on the label it's for a 1995 Z28 auto trans Camaro, not a Vette.
Reply
0
Old Aug 15, 2017 | 10:24 AM
Share
  #3
CharlieC5Z06's Avatar
CharlieC5Z06
Thread Starter
Racer

Joined: Nov 2015
Posts: 408
Likes: 5
From: New York
Default
Yeah i noticed that label. That's when I realized it was for wrong car. Wrote the post the next day. Just knew it was for a diff car. The pic came up when I googled c5 wiring harness. Should have checked the label. I'm almost done hooking everything up. Have like three more plugs that I have to figure out where they go.
Originally Posted by huesmann
Um, based on the label it's for a 1995 Z28 auto trans Camaro, not a Vette.
Reply
0
Old Aug 15, 2017 | 10:34 AM
Share
  #4
huesmann's Avatar
huesmann
Burning Brakes
10 Year Member
Photogenic
Liked
Loved

Joined: Jul 2013
Posts: 1,008
Likes: 57
From: Kensington MD
Default
Maybe if you post up pics of the plugs?
Reply
0
Old Aug 15, 2017 | 11:22 AM
Share
  #5
CharlieC5Z06's Avatar
CharlieC5Z06
Thread Starter
Racer

Joined: Nov 2015
Posts: 408
Likes: 5
From: New York
Default

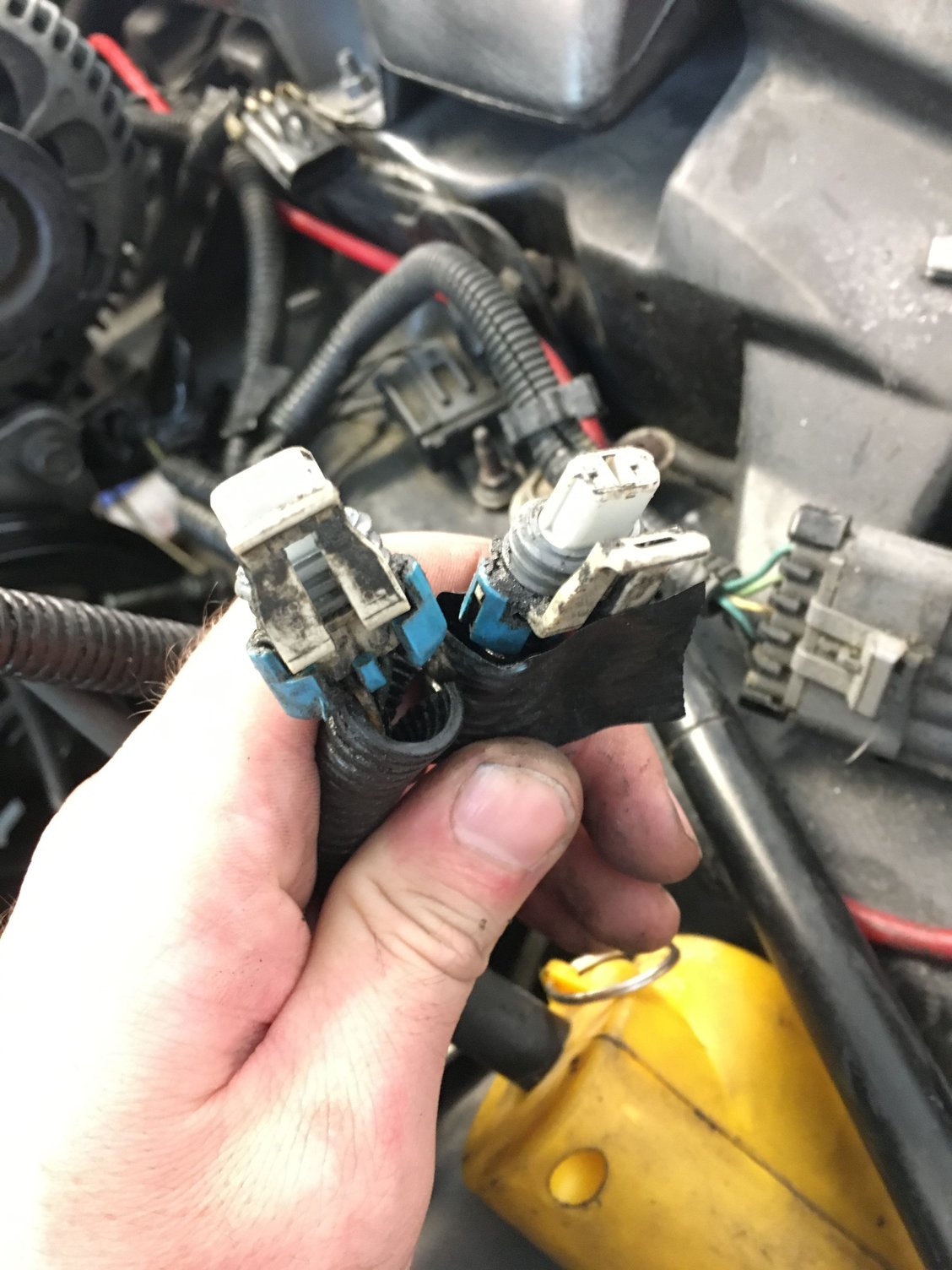

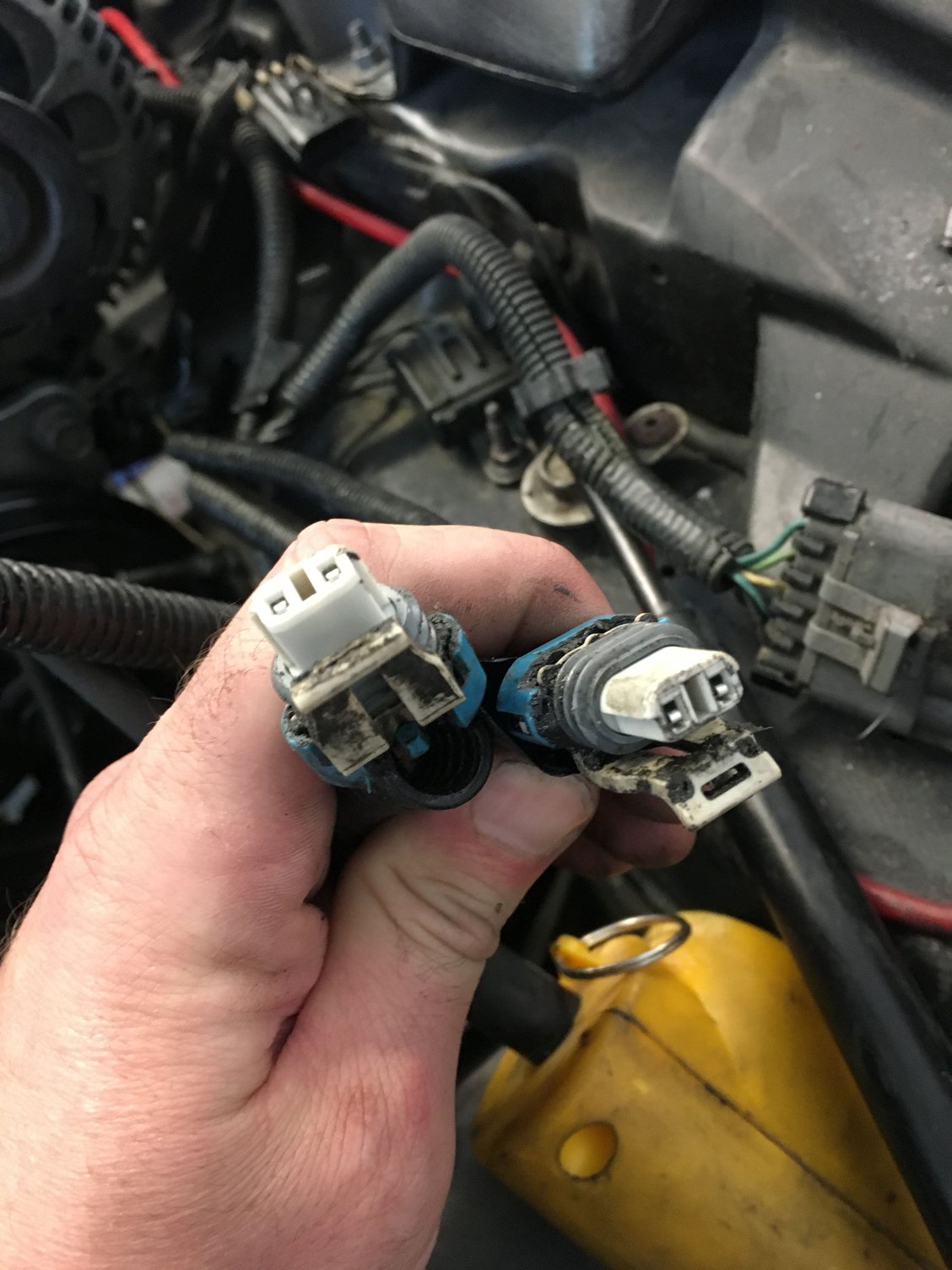

These two are on pretty long wires and look like they go towards the front of the engine bay. Thinking lights of some sort?



Originally Posted by huesmann
Maybe if you post up pics of the plugs?
Reply
0
Old Aug 16, 2017 | 08:40 AM
Share
  #6
CharlieC5Z06's Avatar
CharlieC5Z06
Thread Starter
Racer

Joined: Nov 2015
Posts: 408
Likes: 5
From: New York
Default
All done. Those were the front wheel speed sensor wires. Tonight I have to put the exhaust back on then fill her with fluids and pray.
Reply
0
