lets make some Crossbeam adapters
Thread Starter
Race Director
Joined: Sep 2004
Posts: 11,874
Likes: 263
From: Arlington Va Current ride 04 vert, previous vettes: 69 vert, 77 resto mod
lets make some Crossbeam adapters
well I have the need for some and the HF ones that i eyeballed i would need to modify and two would cost me $70 or $80 , I can buy the steel for about $27. so i have been looking at all of yours and measuring under the car and asking a couple guys questions about theres and this is what i came up with...
so here we go, I bought 2x3x1/4 rectangular tubing , and i had 1/4 plate laying around, the pads are 3 5/8 x 6 3/4 and the end caps hang down 1/2", these weigh about 20# and i have not put a jack shaft on, i am going to try just resting on my jack saddle
took about 45 minutes to cut everything with a cutoff wheel and about an hour to tack it up
i am going to do a full mock up with more then tack welds but less then full seams and will test it. i think i will add gussets to the pads sides just because i can....
capped ends so the jacks dont slip out
and they also fit the smaller jack stands
and yes these will get up pretty high
so here we go, I bought 2x3x1/4 rectangular tubing , and i had 1/4 plate laying around, the pads are 3 5/8 x 6 3/4 and the end caps hang down 1/2", these weigh about 20# and i have not put a jack shaft on, i am going to try just resting on my jack saddle
took about 45 minutes to cut everything with a cutoff wheel and about an hour to tack it up
i am going to do a full mock up with more then tack welds but less then full seams and will test it. i think i will add gussets to the pads sides just because i can....
capped ends so the jacks dont slip out
and they also fit the smaller jack stands
and yes these will get up pretty high
Last edited by bobs77vet; Sep 21, 2017 at 09:01 PM.
Thread Starter
Race Director
Joined: Sep 2004
Posts: 11,874
Likes: 263
From: Arlington Va Current ride 04 vert, previous vettes: 69 vert, 77 resto mod
well if I bought them and had to modify them i would still have time in it....i could buy them pre made and they would be perfect right out of the gate.
i enjoy doing these as fun projects so the time really isn't an issue for me. now the mrs thinks its time misspent but not me....
i enjoy doing these as fun projects so the time really isn't an issue for me. now the mrs thinks its time misspent but not me....
Tech Contributor
Joined: Oct 1999
Posts: 41,037
Likes: 9,801
From: Charlotte, NC (formerly Endicott, NY)
Why do you need them? There is no requirement to use them when jacking the car or putting it on jack stands. All you need to have is a jack stand with a head on it that can bridge between the fore and aft parts of the front or rear cross members so you have two edges supporting the weight Vs one.
Bill
Bill
Safety Car
Joined: Dec 2011
Posts: 4,704
Likes: 239
From: Redondo Beach CA
Looks good to me.
Stuff like that seems so useful it must be fun to build, and gives me a desire to weld.
Then I remember I don't have any welding stuff and do have a lot of other stuff .
Still, if you make up some light weight stuff, for free, of course, I could use a set. Until then, I"m useing oak doorsills , cheaper than oak boards, my car is lowered, or I would use thicker and cheaper wood. This is marginal for the lifted weight.
Stuff like that seems so useful it must be fun to build, and gives me a desire to weld.
Then I remember I don't have any welding stuff and do have a lot of other stuff .
Still, if you make up some light weight stuff, for free, of course, I could use a set. Until then, I"m useing oak doorsills , cheaper than oak boards, my car is lowered, or I would use thicker and cheaper wood. This is marginal for the lifted weight.
Administrator
Joined: Mar 2001
Posts: 368,065
Likes: 24,731
From: In a parallel universe. Currently own 2014 Stingray Coupe.
C7 of the Year - Modified Finalist 2021
MO Events Coordinator
St. Jude Co-Organizer
St. Jude Donor '03 thru '25
NCM Sinkhole Donor
CI 5, 8 & 11 Veteran
Looks like they will do the job. Well done.
Thread Starter
Race Director
Joined: Sep 2004
Posts: 11,874
Likes: 263
From: Arlington Va Current ride 04 vert, previous vettes: 69 vert, 77 resto mod
Why do you need them? There is no requirement to use them when jacking the car or putting it on jack stands. All you need to have is a jack stand with a head on it that can bridge between the fore and aft parts of the front or rear cross members so you have two edges supporting the weight Vs one.
Bill
Bill
add a couple gussets and this thing will never deflect.
for you other guys if you are inclined i would recommend buying a MIG welder they are a blast, they have all different price points and even the 120v ones are pretty good these days. I like welding for fun and have have all the welders TIG, ARC, MIG, 0/A and spotwelder. i think they are blast to toy around with . so was this an excuse to weld.... sure it was....i love to weld and make stuff, but it also fit the need in a pretty durable fashion.
Last edited by bobs77vet; Sep 23, 2017 at 10:50 AM.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
Thread Starter
Race Director
Joined: Sep 2004
Posts: 11,874
Likes: 263
From: Arlington Va Current ride 04 vert, previous vettes: 69 vert, 77 resto mod
well they passed the tests...changed the oil and radiator fluid and they worked just fine so time to flap disk sand the cuts and then paint them up
Burning Brakes
Joined: Nov 2011
Posts: 1,037
Likes: 120
Thread Starter
Race Director
Joined: Sep 2004
Posts: 11,874
Likes: 263
From: Arlington Va Current ride 04 vert, previous vettes: 69 vert, 77 resto mod
i like the distractions and they are fun and your practice skills
only ting left is to glue down the rubber pads

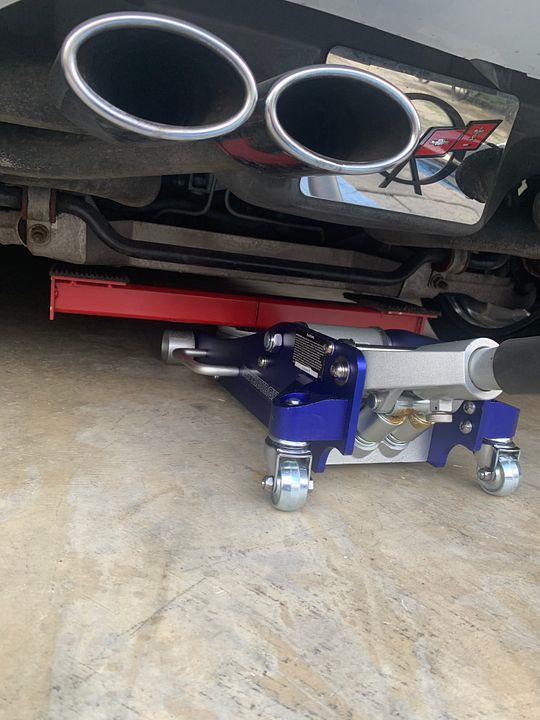

and a peek
only ting left is to glue down the rubber pads
and a peek
Thread Starter
Race Director
Joined: Sep 2004
Posts: 11,874
Likes: 263
From: Arlington Va Current ride 04 vert, previous vettes: 69 vert, 77 resto mod

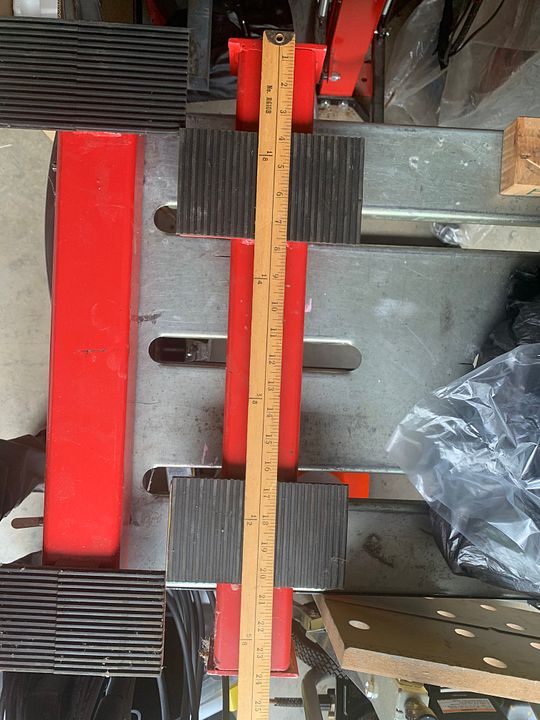

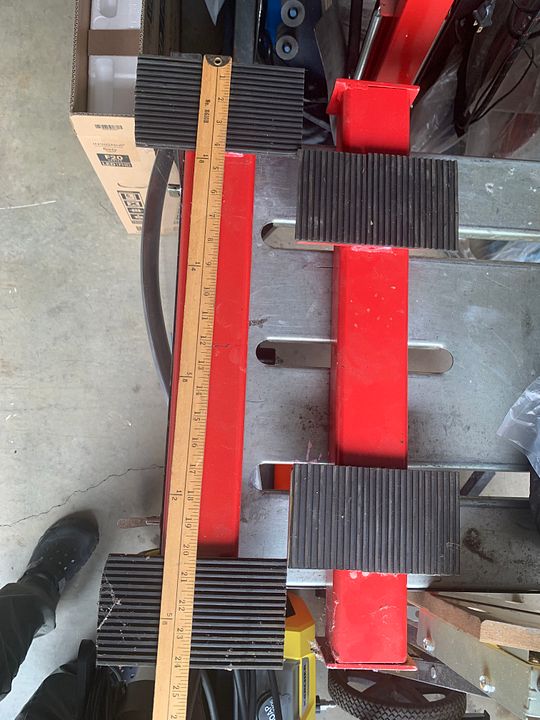

i have had several PMs about the dimensions of the cross beam adapters so here is some more reference shots, the tape is 3 1/2"

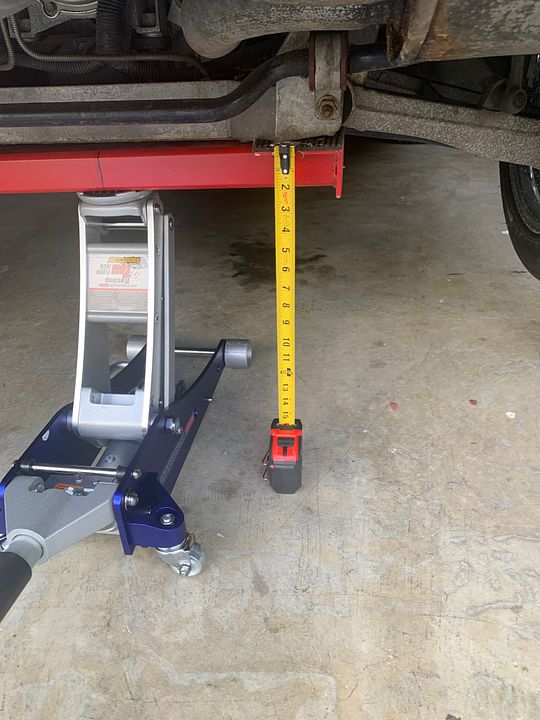

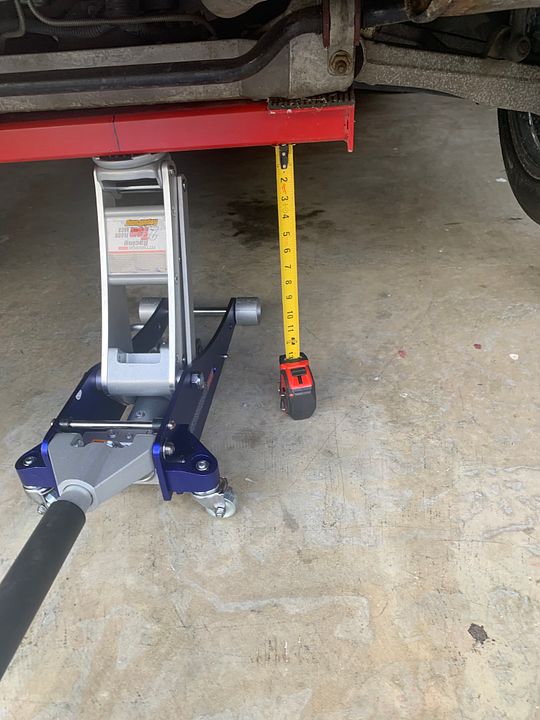

so overall height to bottom of rear cradle is 19", and its 16 5/8 to the bottom of the cross bean adapter
so overall height to bottom of rear cradle is 19", and its 16 5/8 to the bottom of the cross bean adapter
