Keyless Ignition Wiring
Slide 1
I've completed the install and updated the instructions.

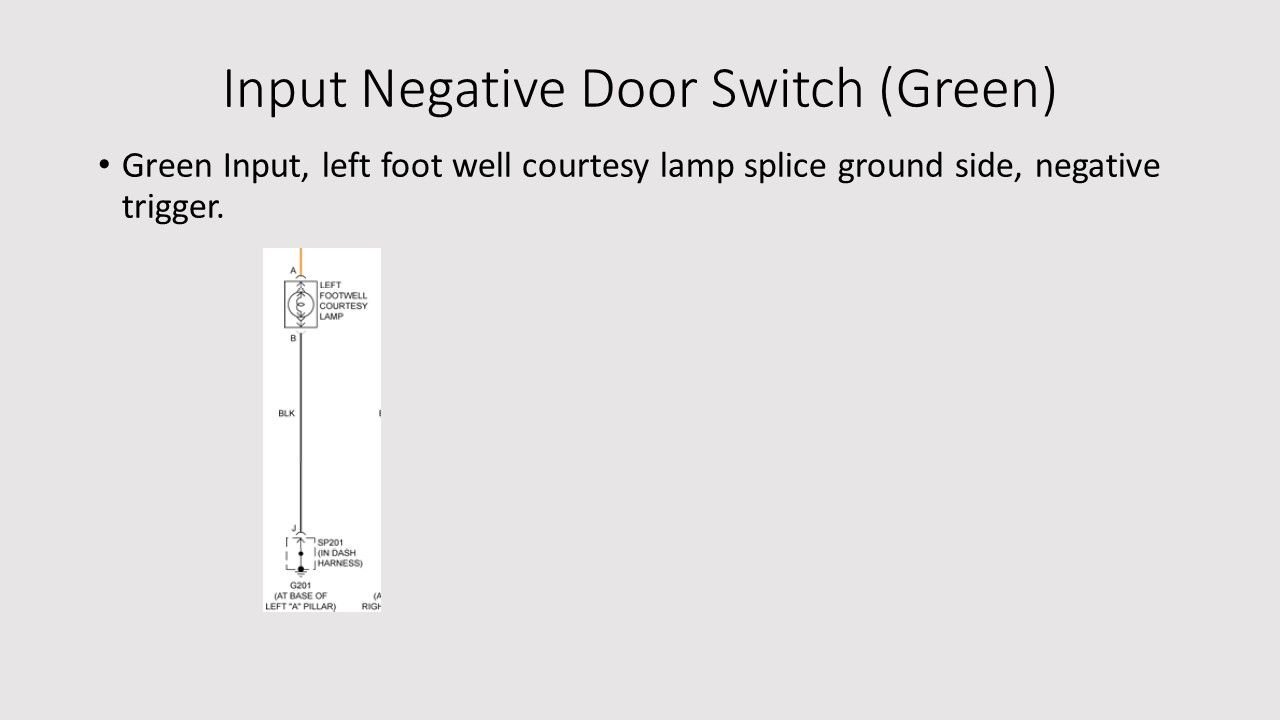

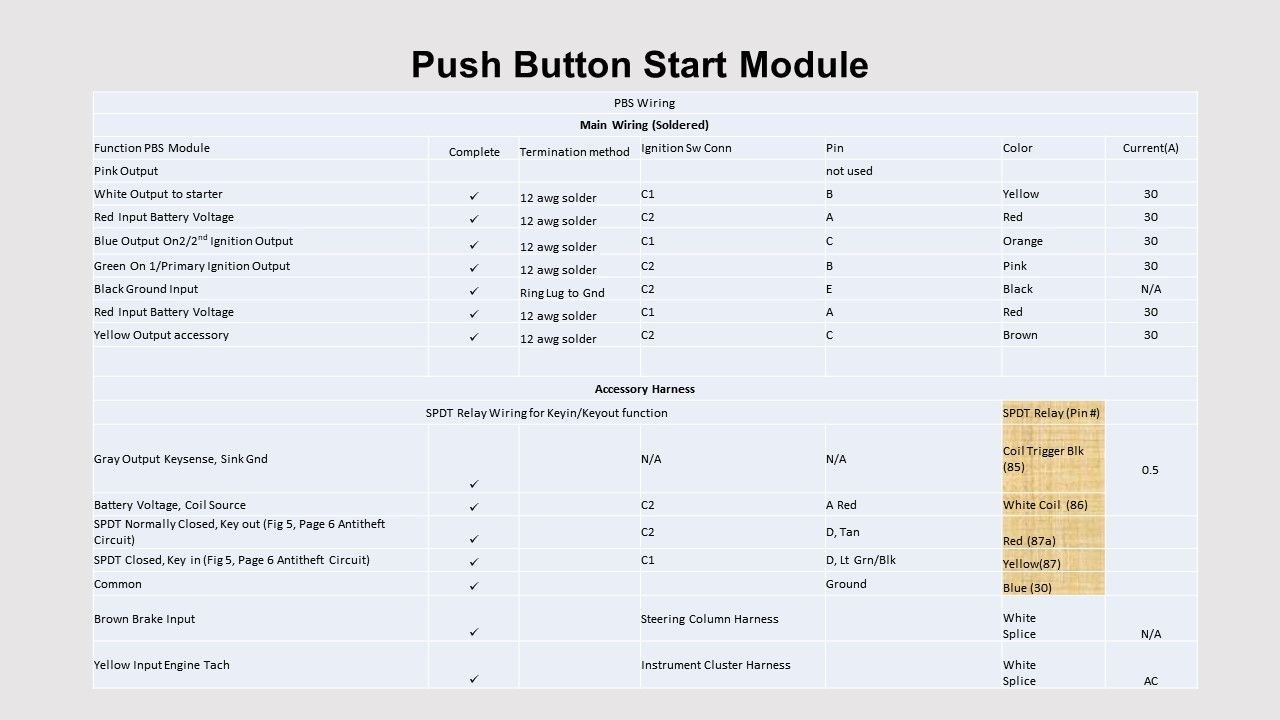

if you have any questions let me know, the installation is straight forward.PBS is the easier of the two modules just a lot of soldering since you are dealing with 12 Awg wires, but they are all in the same area. The passive key goes slower since you are running wiring into the door panel and over to the BCM.

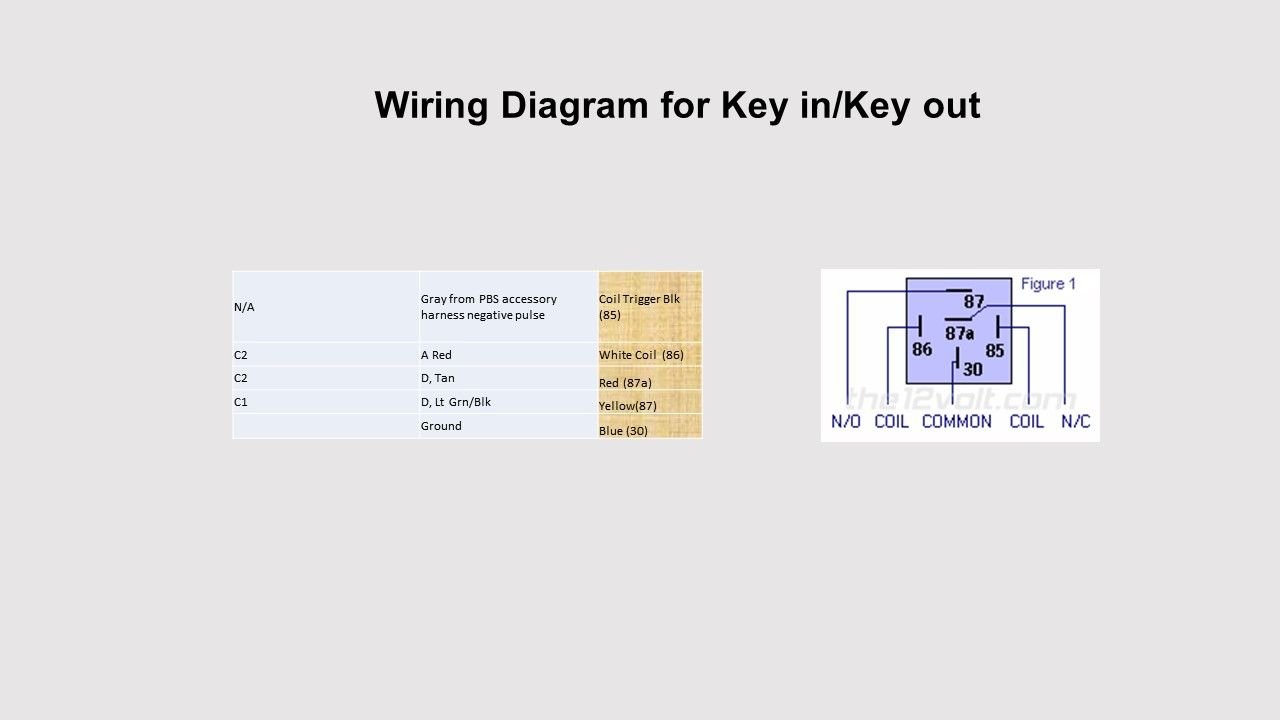

I had a little bad luck in that the column lock relay went bad during the install, I though I had fried the BCM somehow. But, after a little troubleshooting the lock/unlock relay was fried, will replace at a later date.
Update after 10 months, keyless works flawlessly, best comfort mod I've done to date
May switch to a C6 steering wheel, still on the fence, but this winter will decide.
Last edited by tentuna; Oct 29, 2019 at 03:18 PM. Reason: Edited Images & Updated install Instructions
Race Director
Joined: Apr 2017
Posts: 10,247
Likes: 888
From: Hickory NC
2025 C5 of the Year Finalist - Modified
2022 C5 of the Year Finalist - Modified
2020 C5 of the Year Finalist - Modified
St. Jude Donor '17 thru '26
Interested in seeing how this goes.
Are you using the C6 push button start?
Are you using the C6 push button start?
Thread Starter
Drifting
Joined: Nov 2003
Posts: 1,645
Likes: 65
[URL="https://advancedkeys.com/"]https://advancedkeys.com/
I have no commercial interest with manufacturer. The reasons I choose them are; specifications (current capabilities of the PBS module) seem to match the GM ignitions system well, they have been around for better than 10 years, requested information from their support line and received answers in a timely fashion.
Race Director
Joined: Apr 2017
Posts: 10,247
Likes: 888
From: Hickory NC
2025 C5 of the Year Finalist - Modified
2022 C5 of the Year Finalist - Modified
2020 C5 of the Year Finalist - Modified
St. Jude Donor '17 thru '26
No, it's a AdvancedKeys setup, see the link below
[URL="https://advancedkeys.com/"]https://advancedkeys.com/
I have no commercial interest with manufacturer. The reasons I choose them are; specifications (current capabilities of the PBS module) seem to match the GM ignitions system well, they have been around for better than 10 years, requested information from their support line and received answers in a timely fashion.
[URL="https://advancedkeys.com/"]https://advancedkeys.com/
I have no commercial interest with manufacturer. The reasons I choose them are; specifications (current capabilities of the PBS module) seem to match the GM ignitions system well, they have been around for better than 10 years, requested information from their support line and received answers in a timely fashion.
Thanks for the link.
Subscribed.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Thread Starter
Drifting
Joined: Nov 2003
Posts: 1,645
Likes: 65

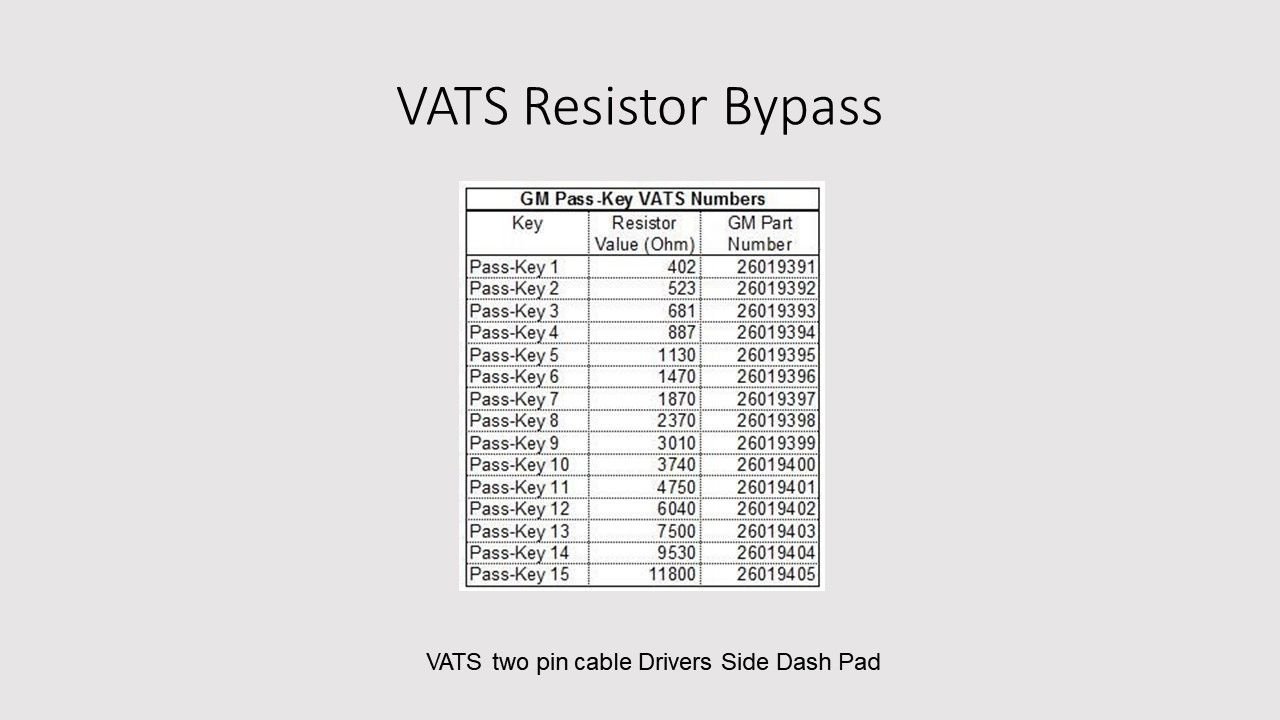

Not yet this will be a winter project, all I've done is purchased the relay needed and VAT's resistor module. The only reason I did fabricated the resistor bypass it was just as inexpensive to buy the potted making the assembly assembly.
