GPS Tracker removal
Burning Brakes
Joined: Aug 2011
Posts: 827
Likes: 286
If you are not versed in electronics then your best bet is to reinstall as it was and just cut off the antenna for the tracker. Otherwise look for a schematic showing what all the wires do and hook it up like stock.
Thread Starter
Heel & Toe
Joined: Nov 2020
Posts: 21
Likes: 2
From: California
Racer
Joined: Aug 2000
Posts: 460
Likes: 12
From: Gulf Shores AL
You can figure it out. I would find a make/model off the tracker and search webs for installation guide, reverse engineer the cut up job on your harness. There appears to be a hot wire cut in two to energize the gps, plus a ground and 3 or 4 wire connector. Would be helpful to get a photo of wire colors off the recieving end of that gps terminal connector.
Racer
Joined: Nov 2019
Posts: 402
Likes: 54
From: Texas
You can figure it out. I would find a make/model off the tracker and search webs for installation guide, reverse engineer the cut up job on your harness. There appears to be a hot wire cut in two to energize the gps, plus a ground and 3 or 4 wire connector. Would be helpful to get a photo of wire colors off the recieving end of that gps terminal connector.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
10 Most Common Corvette Problems of the Last 20 Years!
Joe Kucinski
Racer
Joined: Aug 2015
Posts: 323
Likes: 68
From: Sacramento California

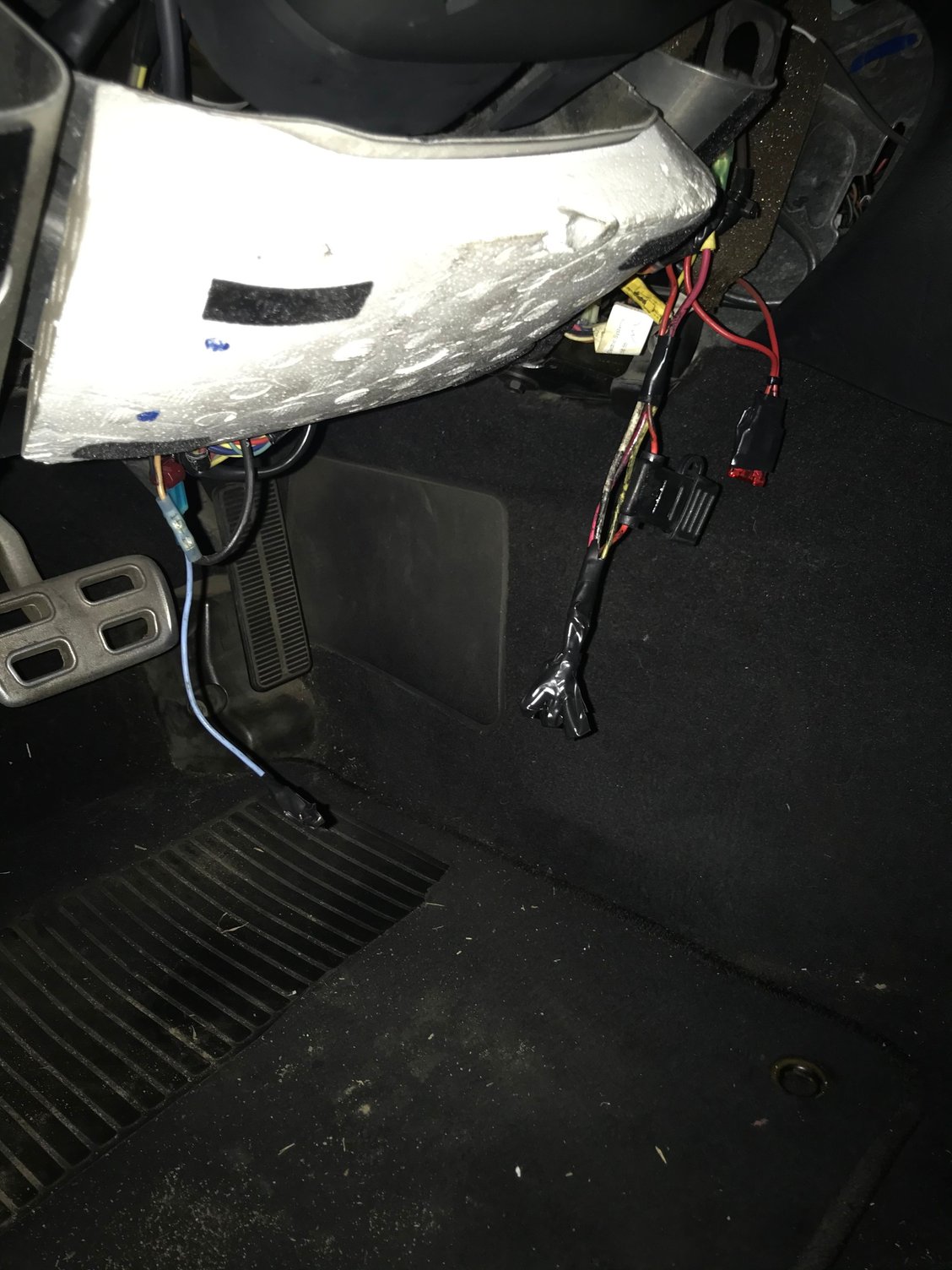

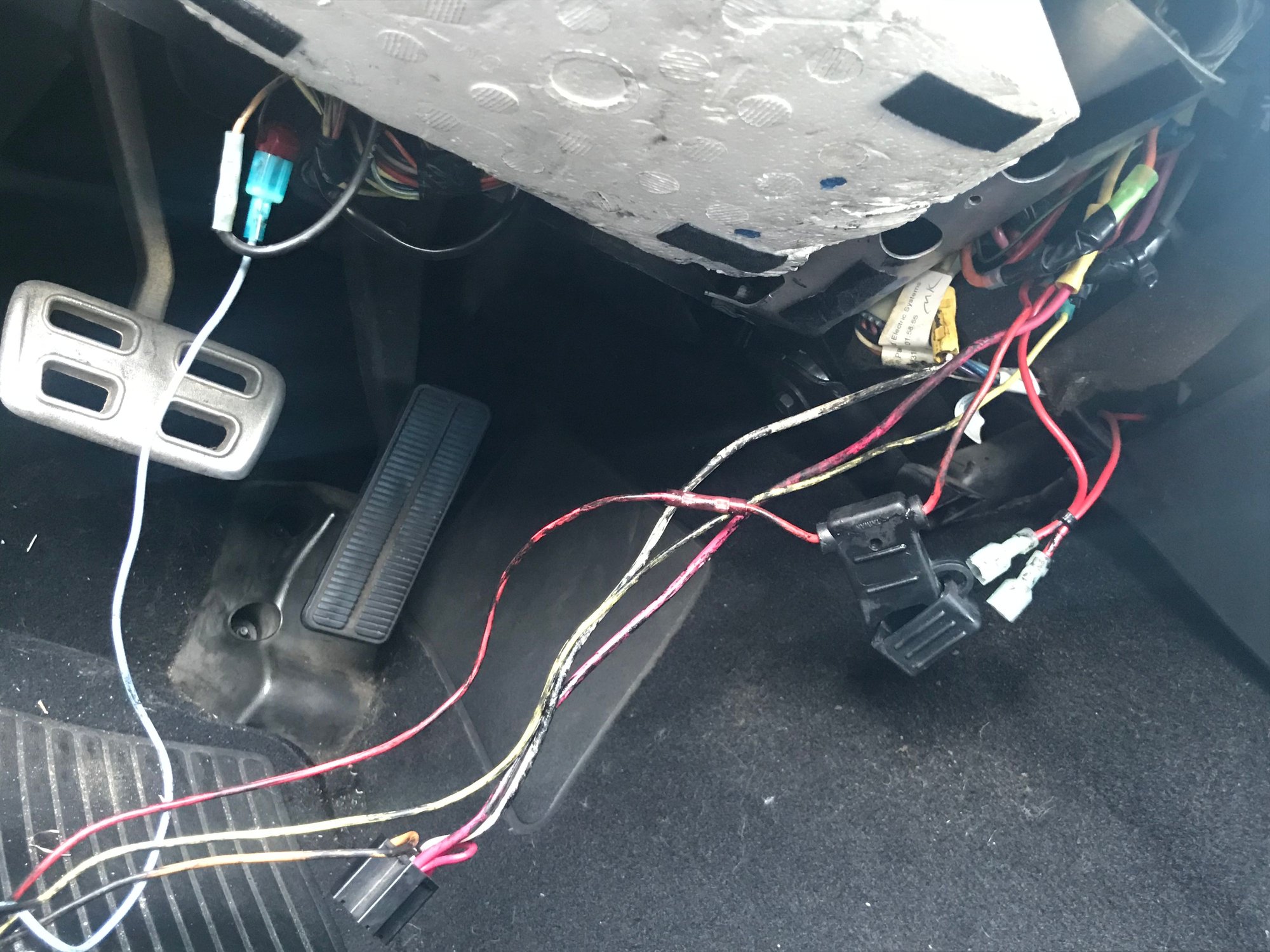

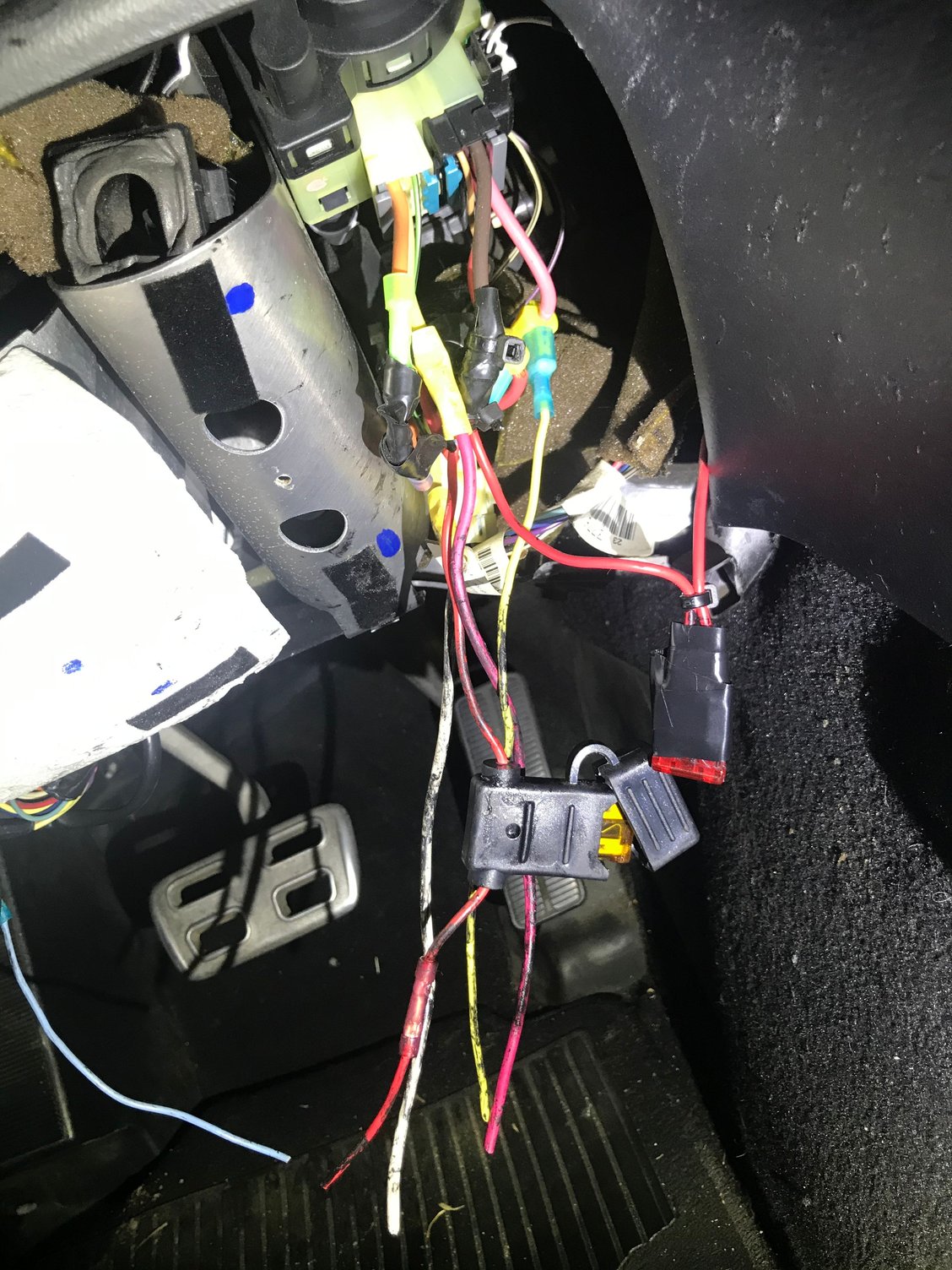

Looks like the yellow starter wire (among other things) was severed and ran into the relay and back out to the other side. I would guess this is the how the car was being prevented from starting. Start there if you haven't already. Basically reconnect the starter wire together (and the rest of the ignition wiring if any other have been severed in a similar way.
Race Director
Joined: Apr 2007
Posts: 11,150
Likes: 890
From: South Western Ontario
Remove all the non-stock wires completely and re-connect any cut stock wires back together. Get rid of those crappy crimp connectors and solder and heat shrink the stock wires back together. Put short extensions into the wires if you have to to keep them the required lengths. Use dual wall heat shrink.
Race Director
Joined: Oct 2004
Posts: 12,859
Likes: 4,658
Remove all the non-stock wires completely and re-connect any cut stock wires back together. Get rid of those crappy crimp connectors and solder and heat shrink the stock wires back together. Put short extensions into the wires if you have to to keep them the required lengths. Use dual wall heat shrink.
Thread Starter
Heel & Toe
Joined: Nov 2020
Posts: 21
Likes: 2
From: California
Looks like the yellow starter wire (among other things) was severed and ran into the relay and back out to the other side. I would guess this is the how the car was being prevented from starting. Start there if you haven't already. Basically reconnect the starter wire together (and the rest of the ignition wiring if any other have been severed in a similar way.

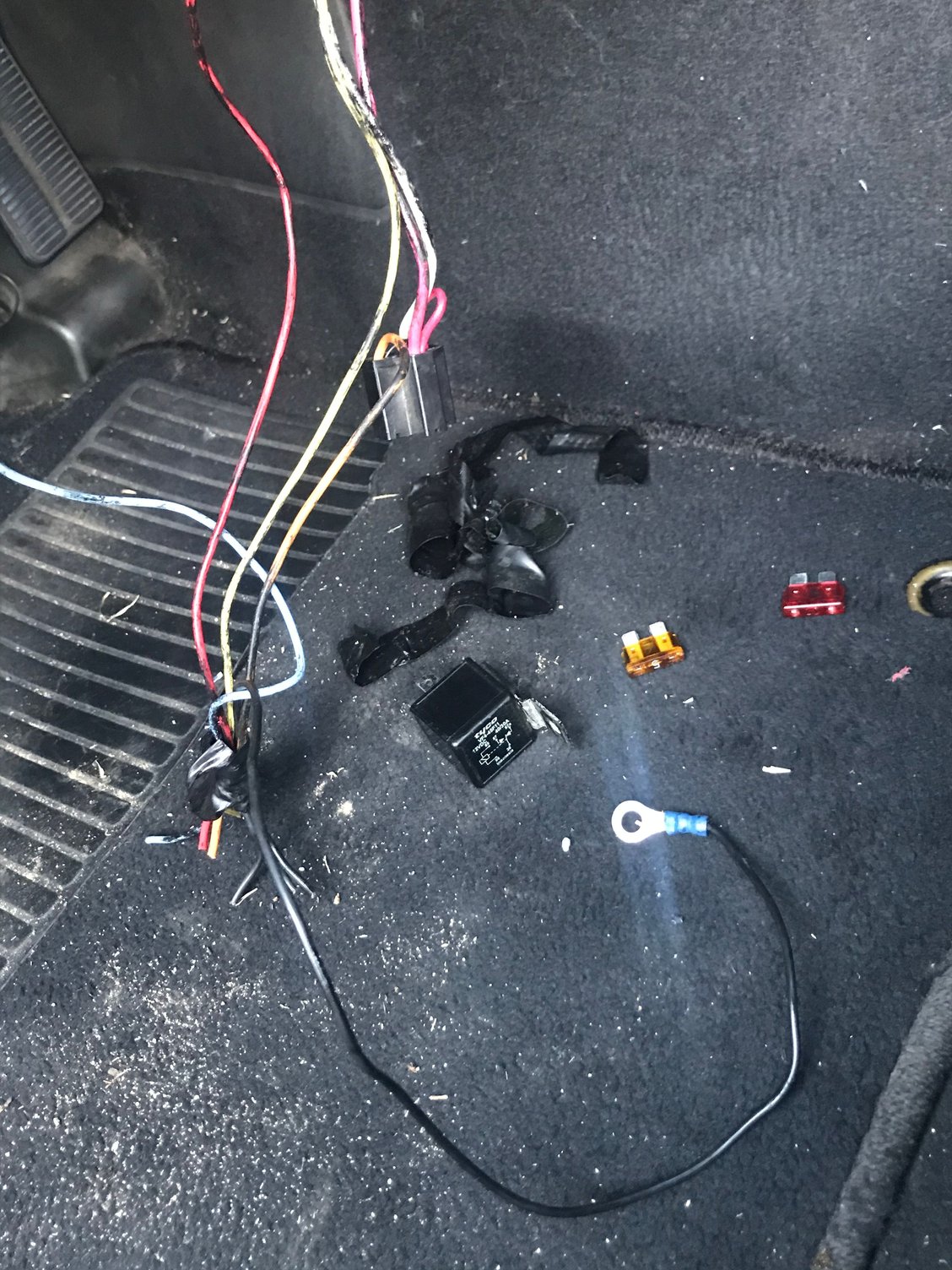

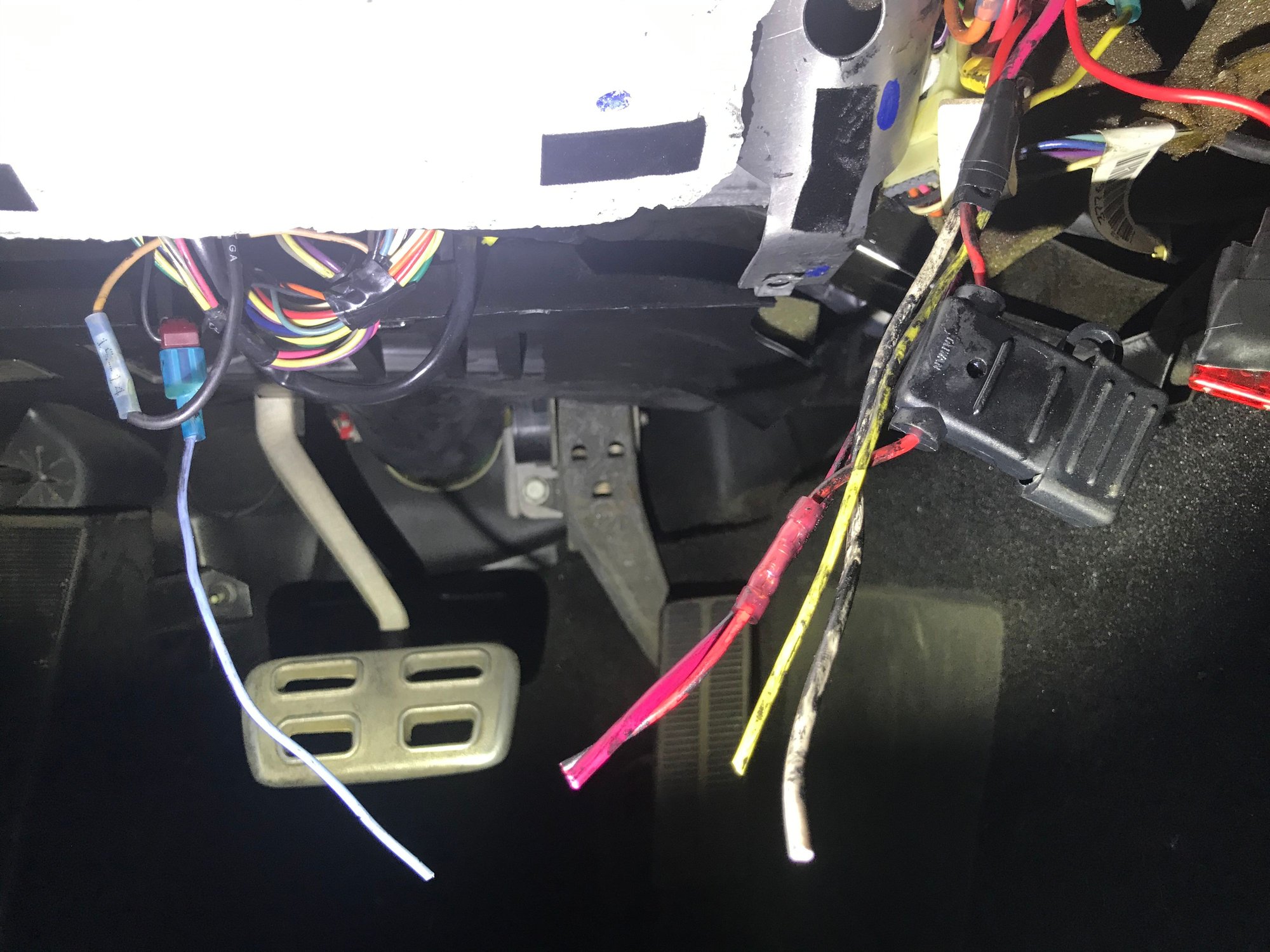

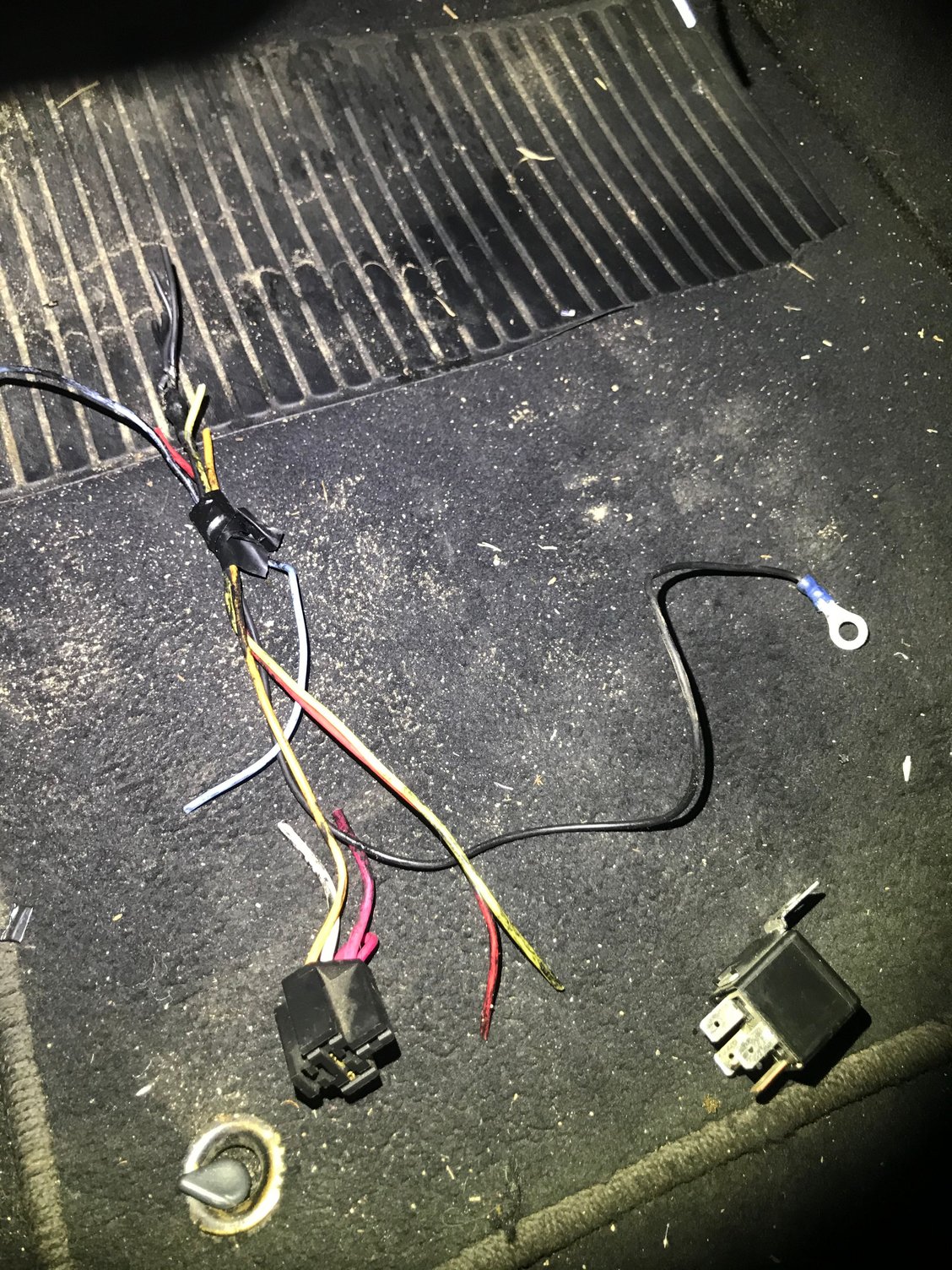

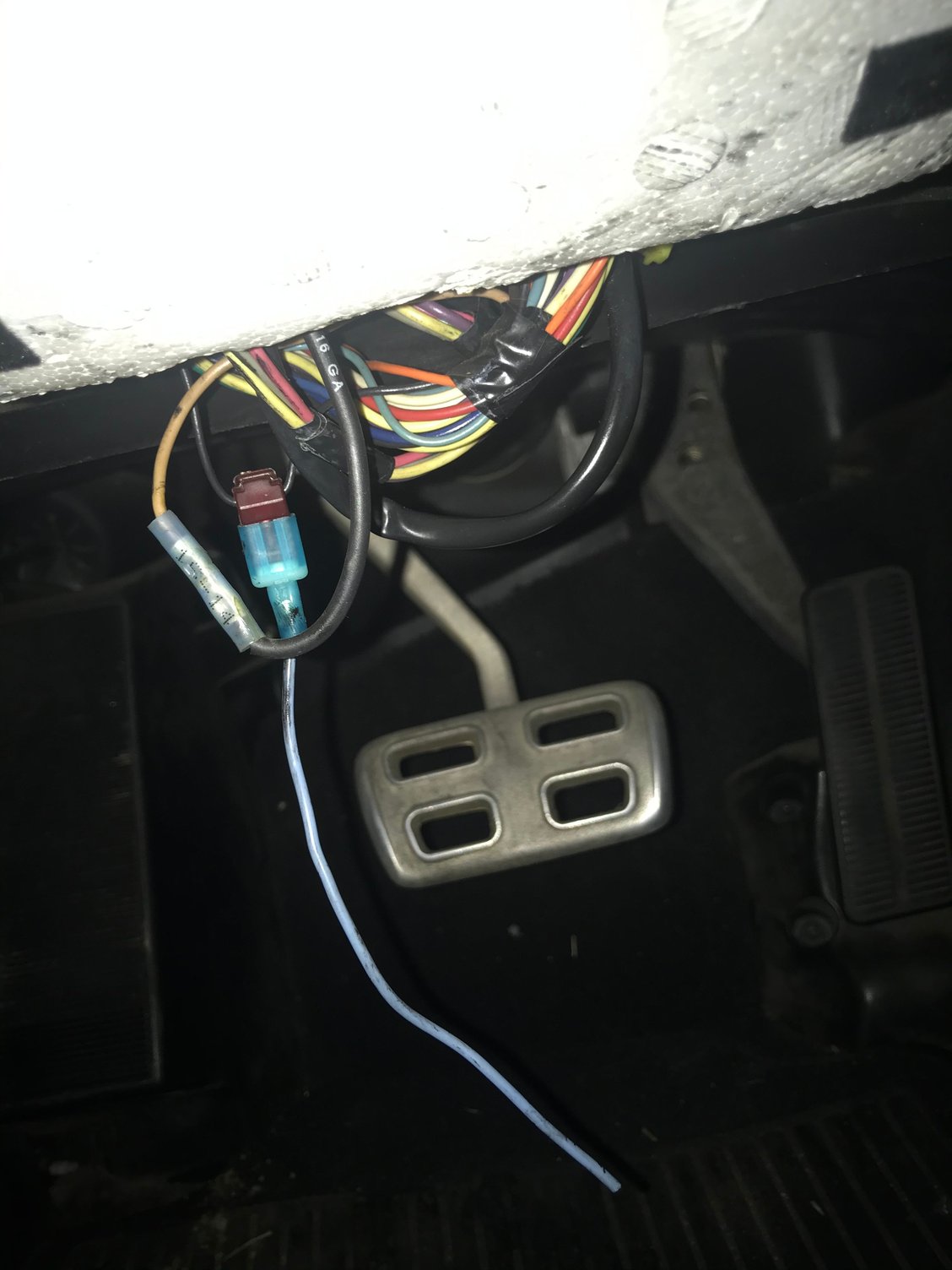

This is where I’m at right now, to make it clearer.
Last edited by 951vette; Jan 27, 2021 at 11:04 PM.
Racer
Joined: Aug 2015
Posts: 323
Likes: 68
From: Sacramento California

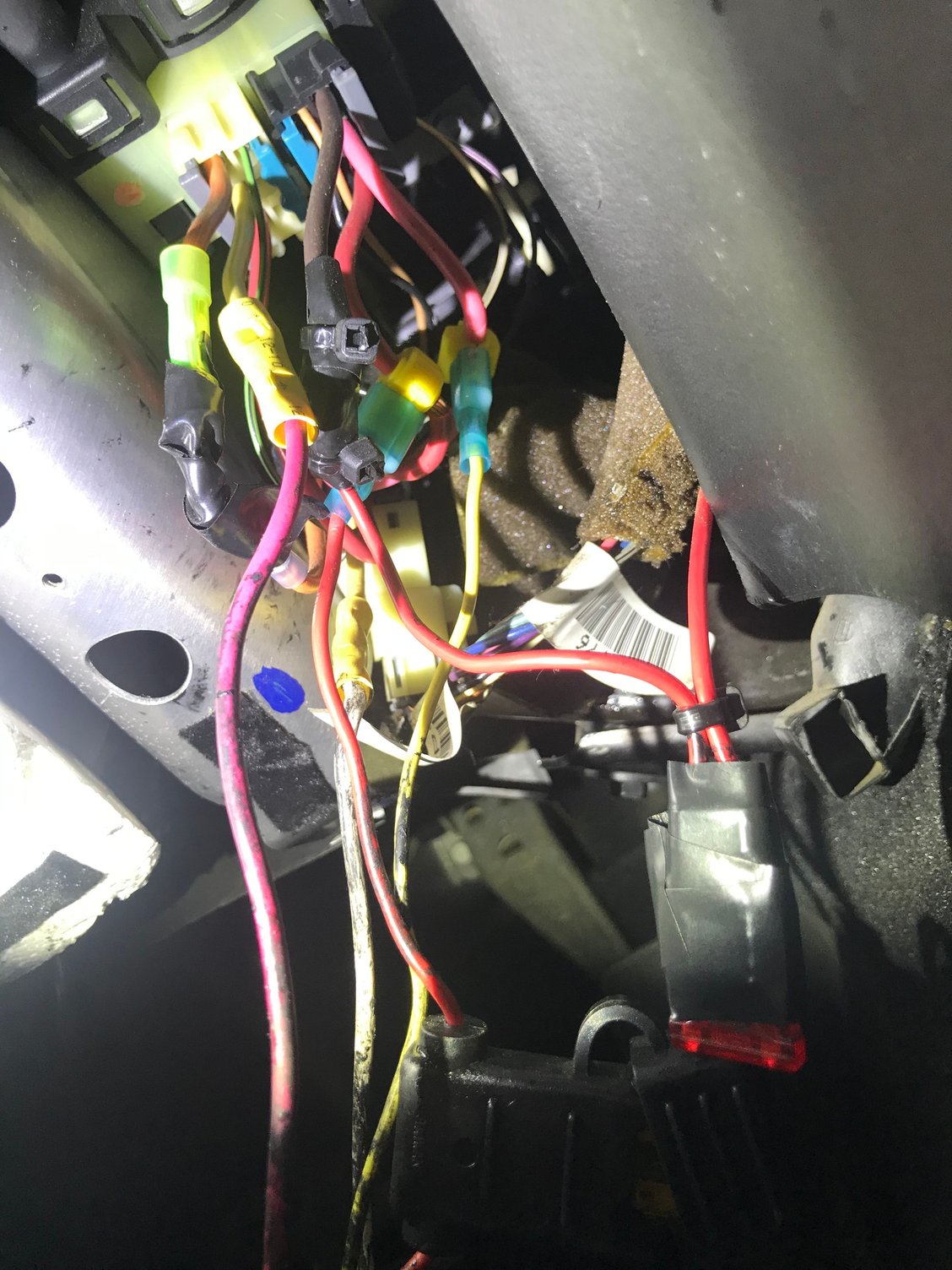

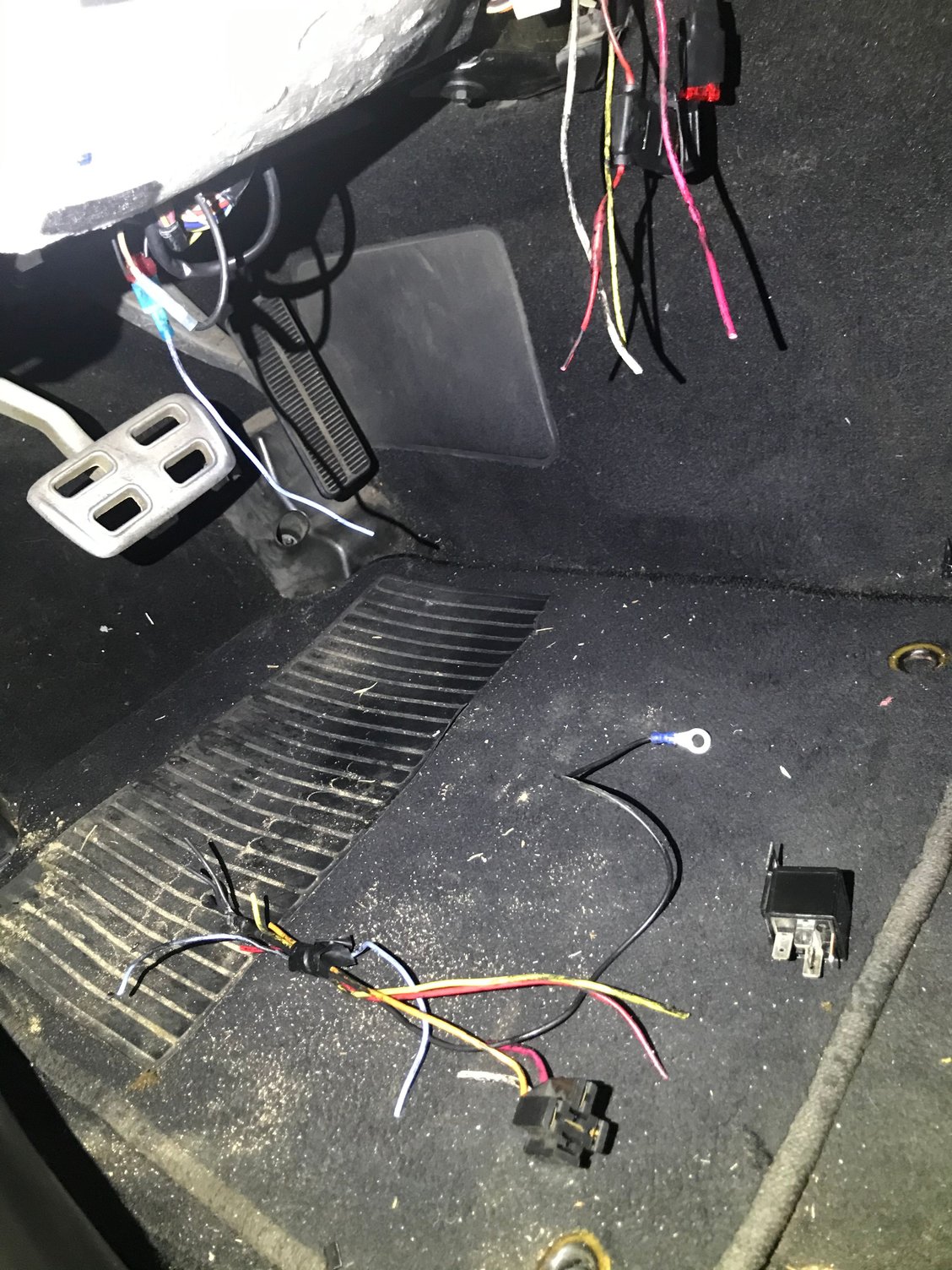

Like the above posts have said remove all the non stock wiring and repair all the stock wiring. That being said lets look at what you have so far.

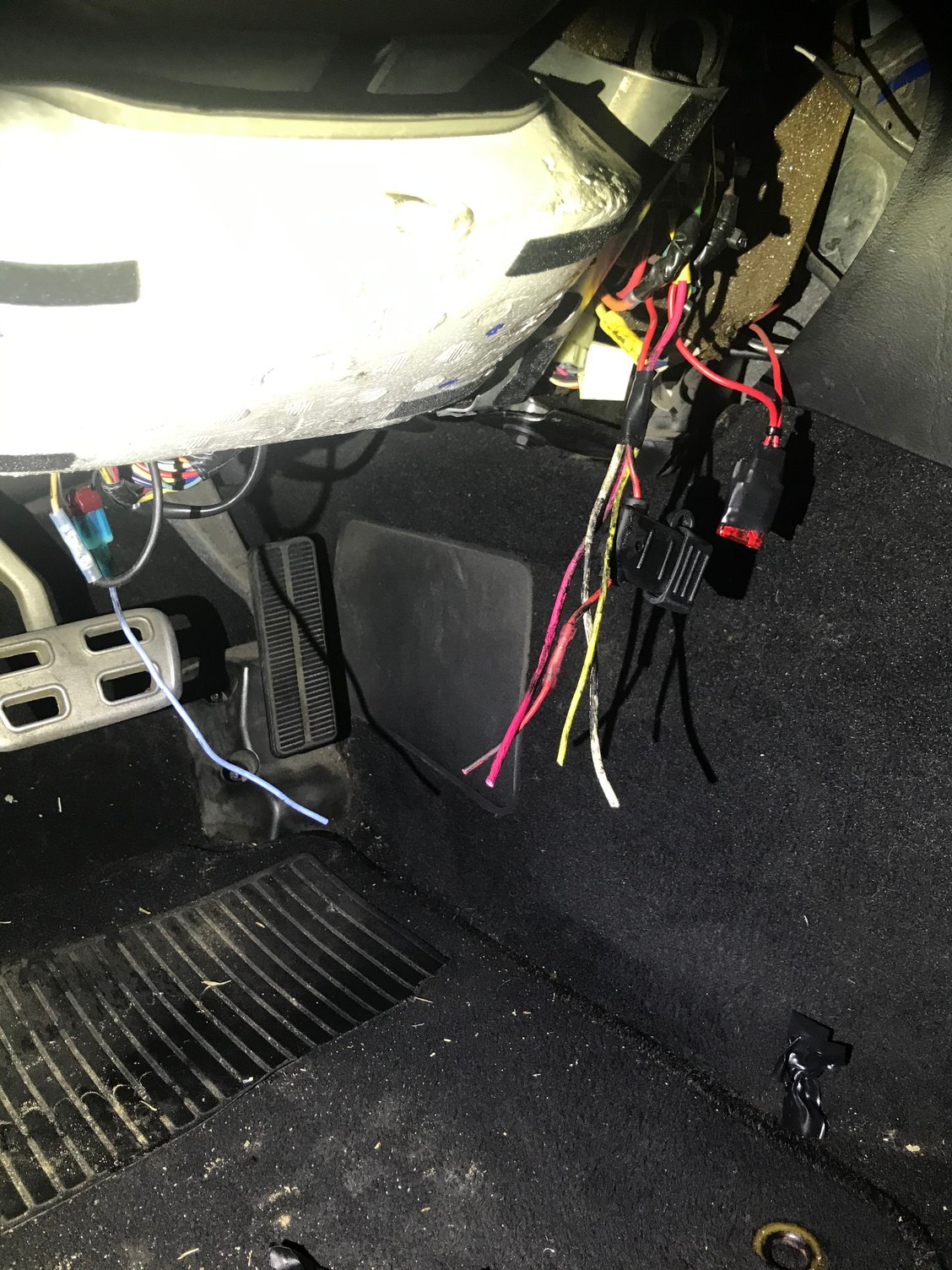

First off the starter wire needs to be reconnected. Its the yellow wire. Its the middle wire on the clear plug. Your's is connected to a to a red wire at the plug end. Its connected to a white wire at the other end.
That tap with the red wire going into the fuse that is tapped into the red wire on the black plug can come off. That was being used to power the gps tracker/alarm. Repair/insulate the 12 volt red wire after removing the tap of course.
The tap with the yellow wire is tapped into the pink ignition wire. That can come off. Repair/insulate the pink ignition wire.
There is a red wire that is tapped into the brown accessory wire and taped up with black electrical tape. That one goes to a fuse. The wire on the other side runs behind the plastic cover. Not sure what this is used for. You can leave it as it is until you find out what it runs to.
The 2 wires under the knee bolster I'm also not sure what they are used for. You can remove the tap from the black wire as you've already cut it and its not going anywhere. The black to orange crimped wires can stay together as is until you find out what they are.
From the looks of things as you have it right now. I'd guess if you turn your key to acc you should have accessory power. Turn the key to on and the gauges and lights would come on. Then when you go to start it doesn't crank. Because the yellow starter wire is not connected. If that's the case if you just connected the starter wire and did nothing else I think you'd be able to start up.
Sorry for the long post. I wanted to walk it through the steps. Also good luck. You'll get it going.
First off the starter wire needs to be reconnected. Its the yellow wire. Its the middle wire on the clear plug. Your's is connected to a to a red wire at the plug end. Its connected to a white wire at the other end.
That tap with the red wire going into the fuse that is tapped into the red wire on the black plug can come off. That was being used to power the gps tracker/alarm. Repair/insulate the 12 volt red wire after removing the tap of course.
The tap with the yellow wire is tapped into the pink ignition wire. That can come off. Repair/insulate the pink ignition wire.
There is a red wire that is tapped into the brown accessory wire and taped up with black electrical tape. That one goes to a fuse. The wire on the other side runs behind the plastic cover. Not sure what this is used for. You can leave it as it is until you find out what it runs to.
The 2 wires under the knee bolster I'm also not sure what they are used for. You can remove the tap from the black wire as you've already cut it and its not going anywhere. The black to orange crimped wires can stay together as is until you find out what they are.
From the looks of things as you have it right now. I'd guess if you turn your key to acc you should have accessory power. Turn the key to on and the gauges and lights would come on. Then when you go to start it doesn't crank. Because the yellow starter wire is not connected. If that's the case if you just connected the starter wire and did nothing else I think you'd be able to start up.
Sorry for the long post. I wanted to walk it through the steps. Also good luck. You'll get it going.
Heel & Toe
Joined: Jan 2021
Posts: 20
Likes: 0
From: Wilmington, Delaware
Like the above posts have said remove all the non stock wiring and repair all the stock wiring. That being said lets look at what you have so far.
First off the starter wire needs to be reconnected. Its the yellow wire. Its the middle wire on the clear plug. Your's is connected to a to a red wire at the plug end. Its connected to a white wire at the other end.
That tap with the red wire going into the fuse that is tapped into the red wire on the black plug can come off. That was being used to power the gps tracker/alarm. Repair/insulate the 12 volt red wire after removing the tap of course.
The tap with the yellow wire is tapped into the pink ignition wire. That can come off. Repair/insulate the pink ignition wire.
There is a red wire that is tapped into the brown accessory wire and taped up with black electrical tape. That one goes to a fuse. The wire on the other side runs behind the plastic cover. Not sure what this is used for. You can leave it as it is until you find out what it runs to.
The 2 wires under the knee bolster I'm also not sure what they are used for. You can remove the tap from the black wire as you've already cut it and its not going anywhere. The black to orange crimped wires can stay together as is until you find out what they are.
From the looks of things as you have it right now. I'd guess if you turn your key to acc you should have accessory power. Turn the key to on and the gauges and lights would come on. Then when you go to start it doesn't crank. Because the yellow starter wire is not connected. If that's the case if you just connected the starter wire and did nothing else I think you'd be able to start up.
Sorry for the long post. I wanted to walk it through the steps. Also good luck. You'll get it going.
First off the starter wire needs to be reconnected. Its the yellow wire. Its the middle wire on the clear plug. Your's is connected to a to a red wire at the plug end. Its connected to a white wire at the other end.
That tap with the red wire going into the fuse that is tapped into the red wire on the black plug can come off. That was being used to power the gps tracker/alarm. Repair/insulate the 12 volt red wire after removing the tap of course.
The tap with the yellow wire is tapped into the pink ignition wire. That can come off. Repair/insulate the pink ignition wire.
There is a red wire that is tapped into the brown accessory wire and taped up with black electrical tape. That one goes to a fuse. The wire on the other side runs behind the plastic cover. Not sure what this is used for. You can leave it as it is until you find out what it runs to.
The 2 wires under the knee bolster I'm also not sure what they are used for. You can remove the tap from the black wire as you've already cut it and its not going anywhere. The black to orange crimped wires can stay together as is until you find out what they are.
From the looks of things as you have it right now. I'd guess if you turn your key to acc you should have accessory power. Turn the key to on and the gauges and lights would come on. Then when you go to start it doesn't crank. Because the yellow starter wire is not connected. If that's the case if you just connected the starter wire and did nothing else I think you'd be able to start up.
Sorry for the long post. I wanted to walk it through the steps. Also good luck. You'll get it going.
Thread Starter
Heel & Toe
Joined: Nov 2020
Posts: 21
Likes: 2
From: California
Like the above posts have said remove all the non stock wiring and repair all the stock wiring. That being said lets look at what you have so far.
First off the starter wire needs to be reconnected. Its the yellow wire. Its the middle wire on the clear plug. Your's is connected to a to a red wire at the plug end. Its connected to a white wire at the other end.
That tap with the red wire going into the fuse that is tapped into the red wire on the black plug can come off. That was being used to power the gps tracker/alarm. Repair/insulate the 12 volt red wire after removing the tap of course.
The tap with the yellow wire is tapped into the pink ignition wire. That can come off. Repair/insulate the pink ignition wire.
There is a red wire that is tapped into the brown accessory wire and taped up with black electrical tape. That one goes to a fuse. The wire on the other side runs behind the plastic cover. Not sure what this is used for. You can leave it as it is until you find out what it runs to.
The 2 wires under the knee bolster I'm also not sure what they are used for. You can remove the tap from the black wire as you've already cut it and its not going anywhere. The black to orange crimped wires can stay together as is until you find out what they are.
From the looks of things as you have it right now. I'd guess if you turn your key to acc you should have accessory power. Turn the key to on and the gauges and lights would come on. Then when you go to start it doesn't crank. Because the yellow starter wire is not connected. If that's the case if you just connected the starter wire and did nothing else I think you'd be able to start up.
Sorry for the long post. I wanted to walk it through the steps. Also good luck. You'll get it going.
First off the starter wire needs to be reconnected. Its the yellow wire. Its the middle wire on the clear plug. Your's is connected to a to a red wire at the plug end. Its connected to a white wire at the other end.
That tap with the red wire going into the fuse that is tapped into the red wire on the black plug can come off. That was being used to power the gps tracker/alarm. Repair/insulate the 12 volt red wire after removing the tap of course.
The tap with the yellow wire is tapped into the pink ignition wire. That can come off. Repair/insulate the pink ignition wire.
There is a red wire that is tapped into the brown accessory wire and taped up with black electrical tape. That one goes to a fuse. The wire on the other side runs behind the plastic cover. Not sure what this is used for. You can leave it as it is until you find out what it runs to.
The 2 wires under the knee bolster I'm also not sure what they are used for. You can remove the tap from the black wire as you've already cut it and its not going anywhere. The black to orange crimped wires can stay together as is until you find out what they are.
From the looks of things as you have it right now. I'd guess if you turn your key to acc you should have accessory power. Turn the key to on and the gauges and lights would come on. Then when you go to start it doesn't crank. Because the yellow starter wire is not connected. If that's the case if you just connected the starter wire and did nothing else I think you'd be able to start up.
Sorry for the long post. I wanted to walk it through the steps. Also good luck. You'll get it going.
Tech Contributor
Joined: Oct 1999
Posts: 41,032
Likes: 9,790
From: Charlotte, NC (formerly Endicott, NY)

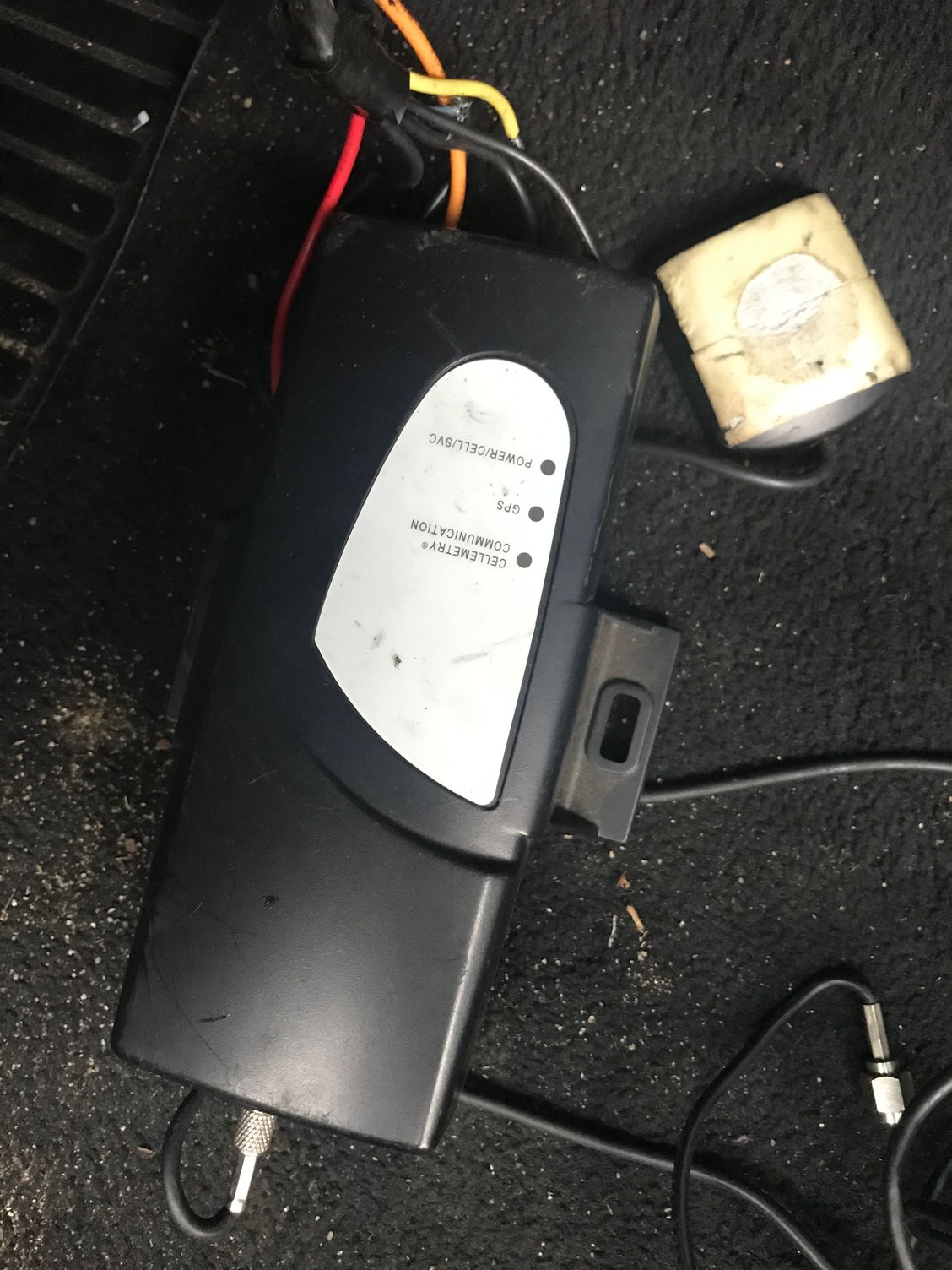

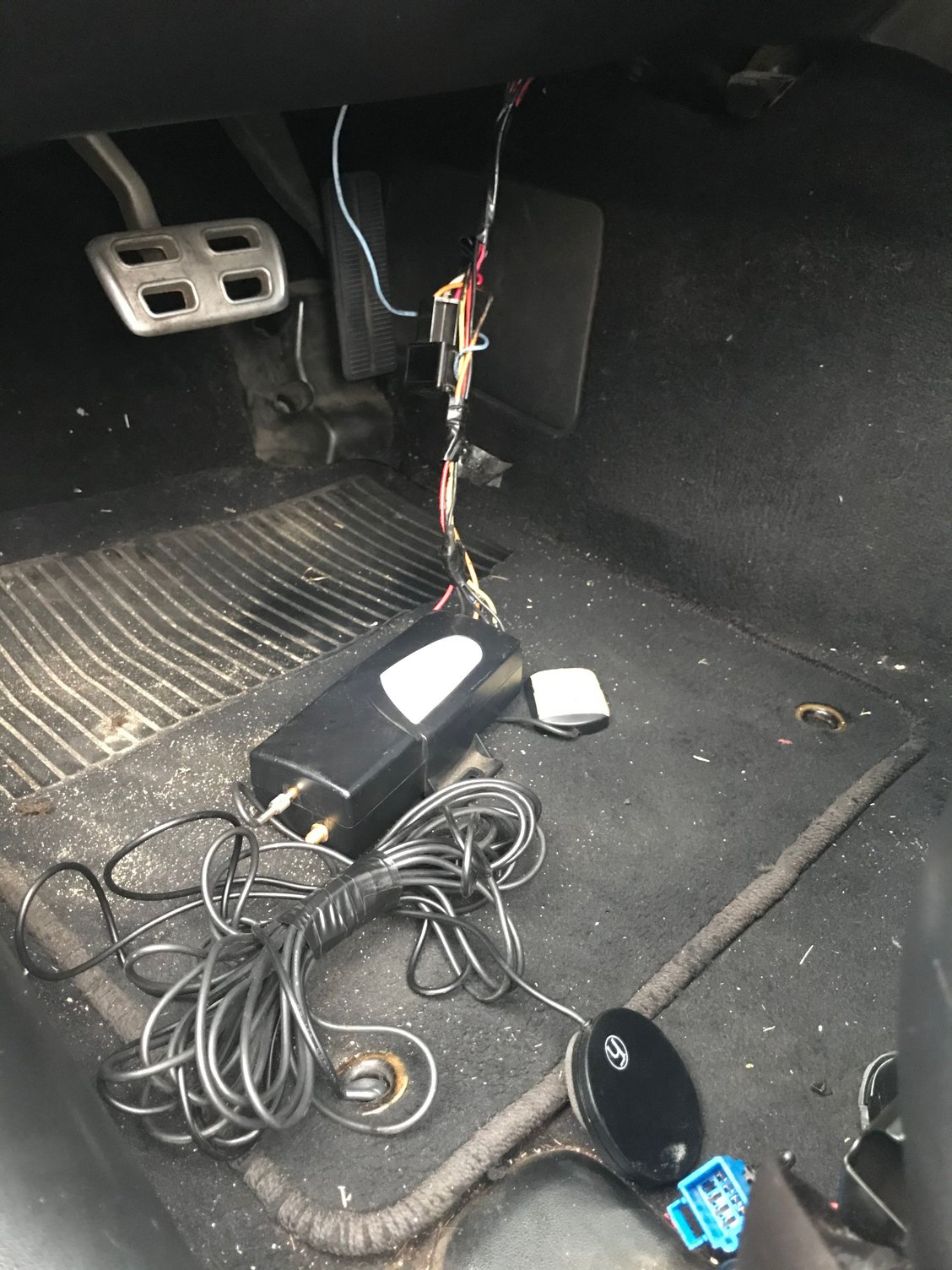

Not necessarily a tracker. It is a defunct cellular communication device and could be used to send command control messages. Probably not useable since 2006 when cell networks went digital and dumped all of their analog systems.
