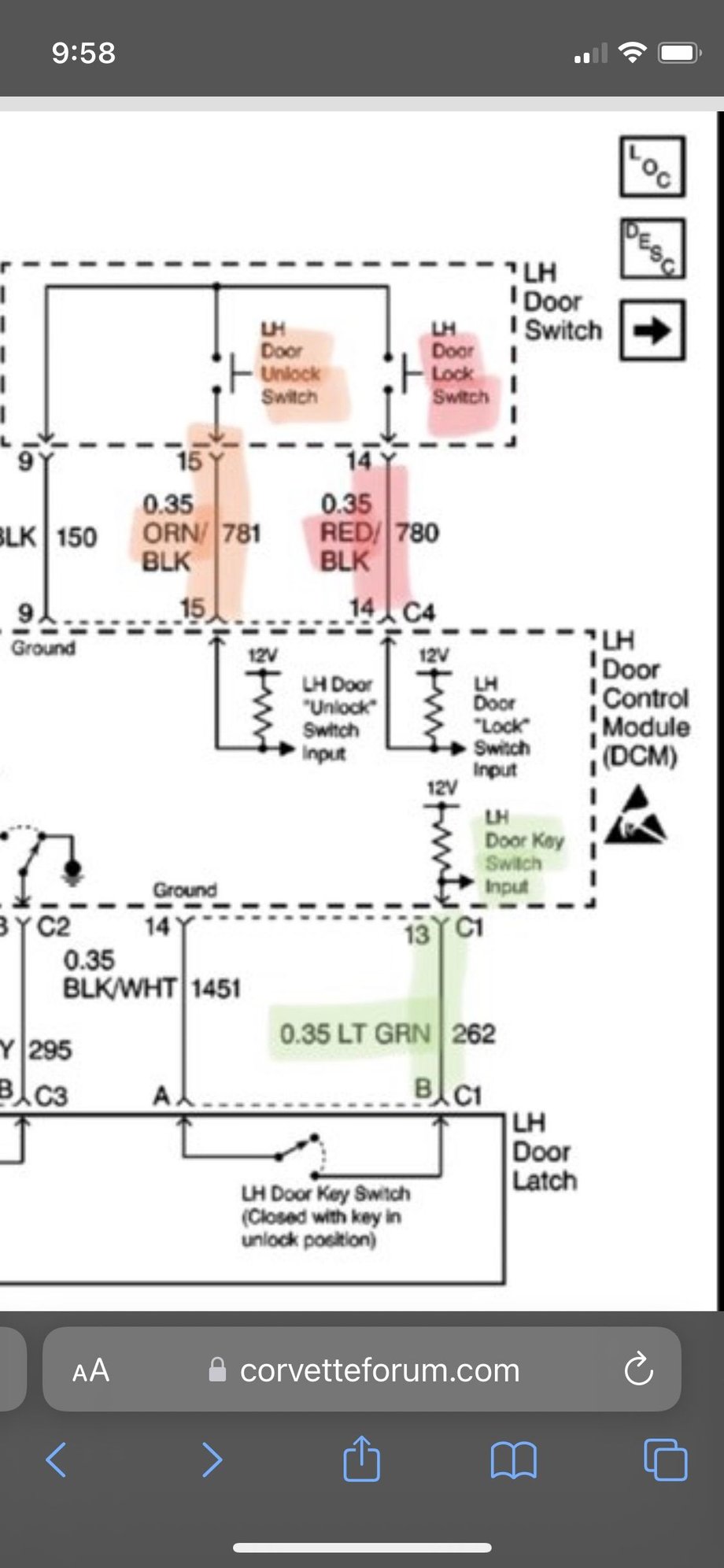

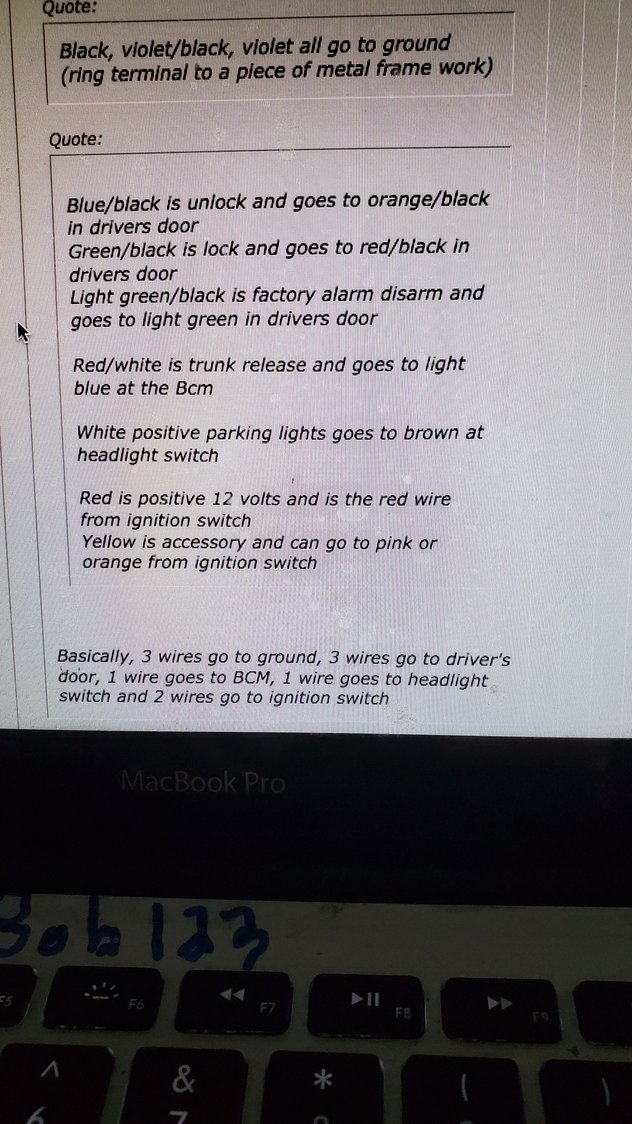

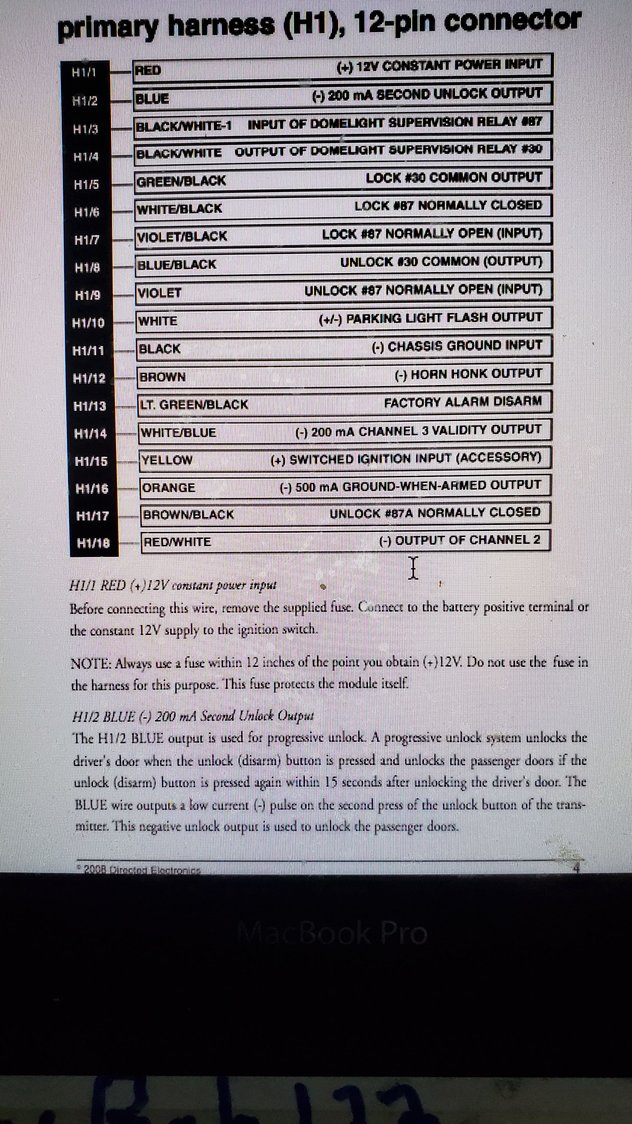

As per the schematic, we're looking for the orange/black, red/black wires for lock & unlock @ the master door switch and the green wire @ the door latch:

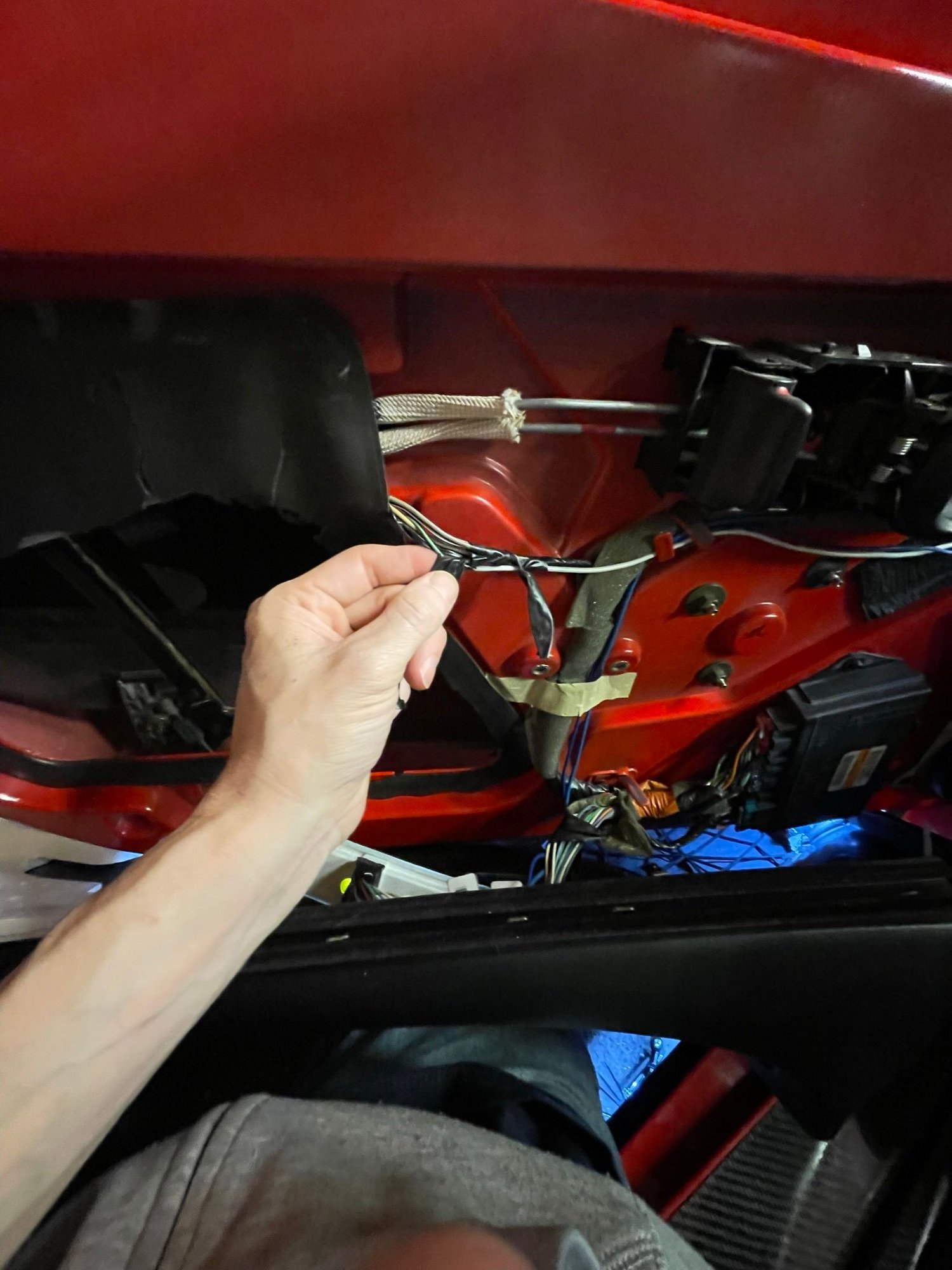

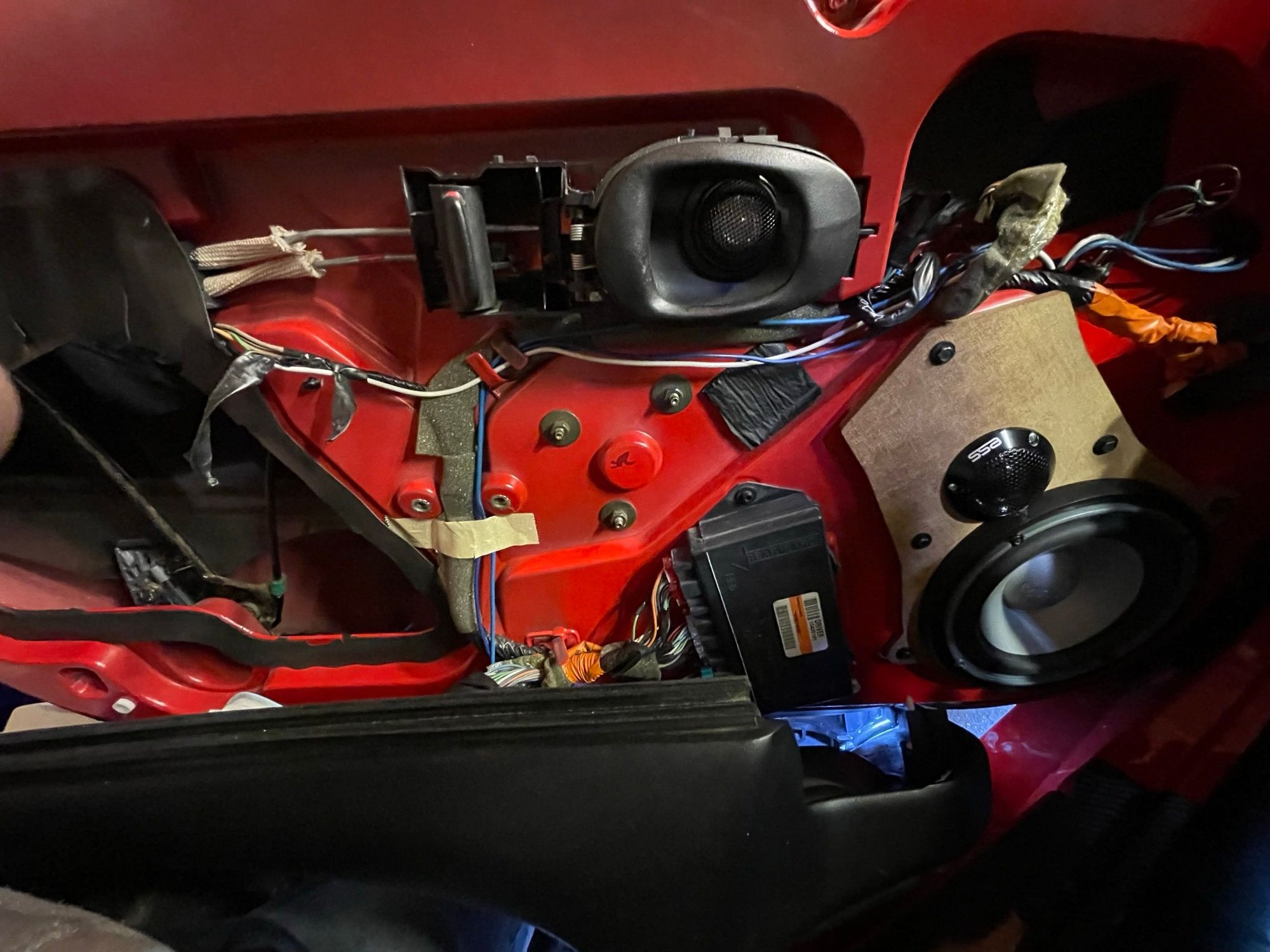

Here's generally what you'll find when you pull the panel off:

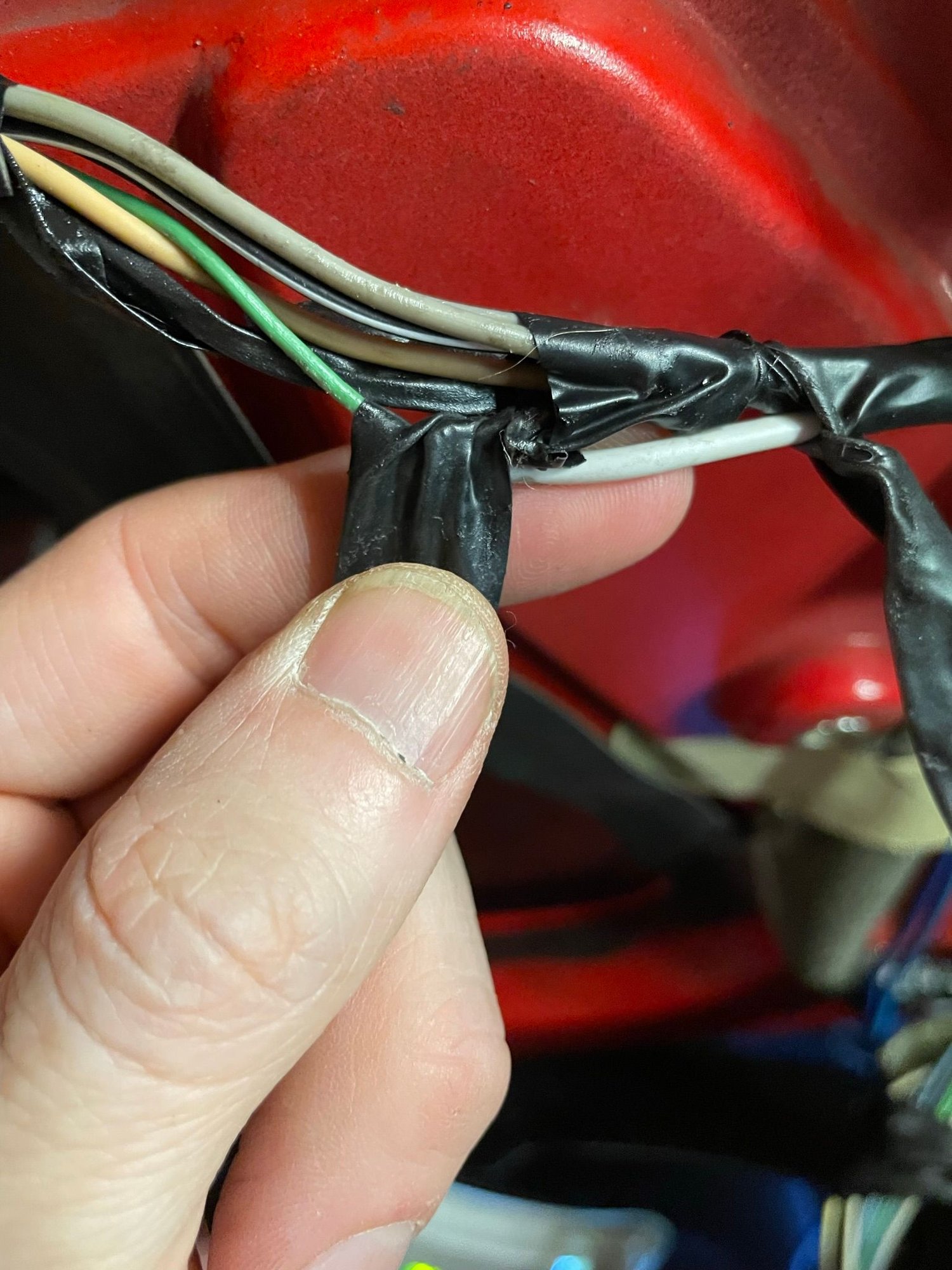

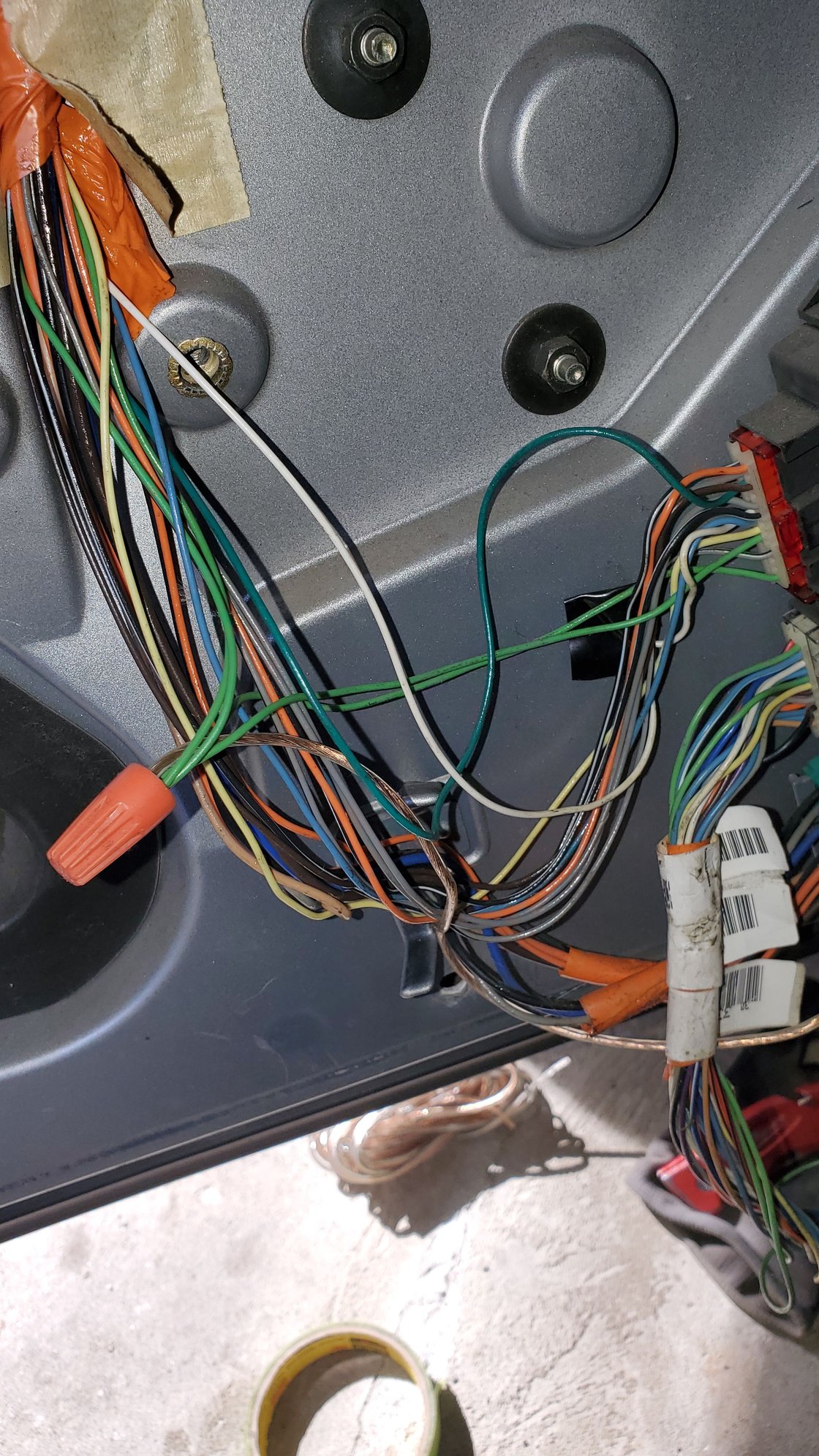

There's a wrapped wire bundle going to the actuator with a green wire in it:
Tap into this green wire:
***Note*** My white and blue wires that are being tapped from are my own extensions and won't match the Avital's coloring

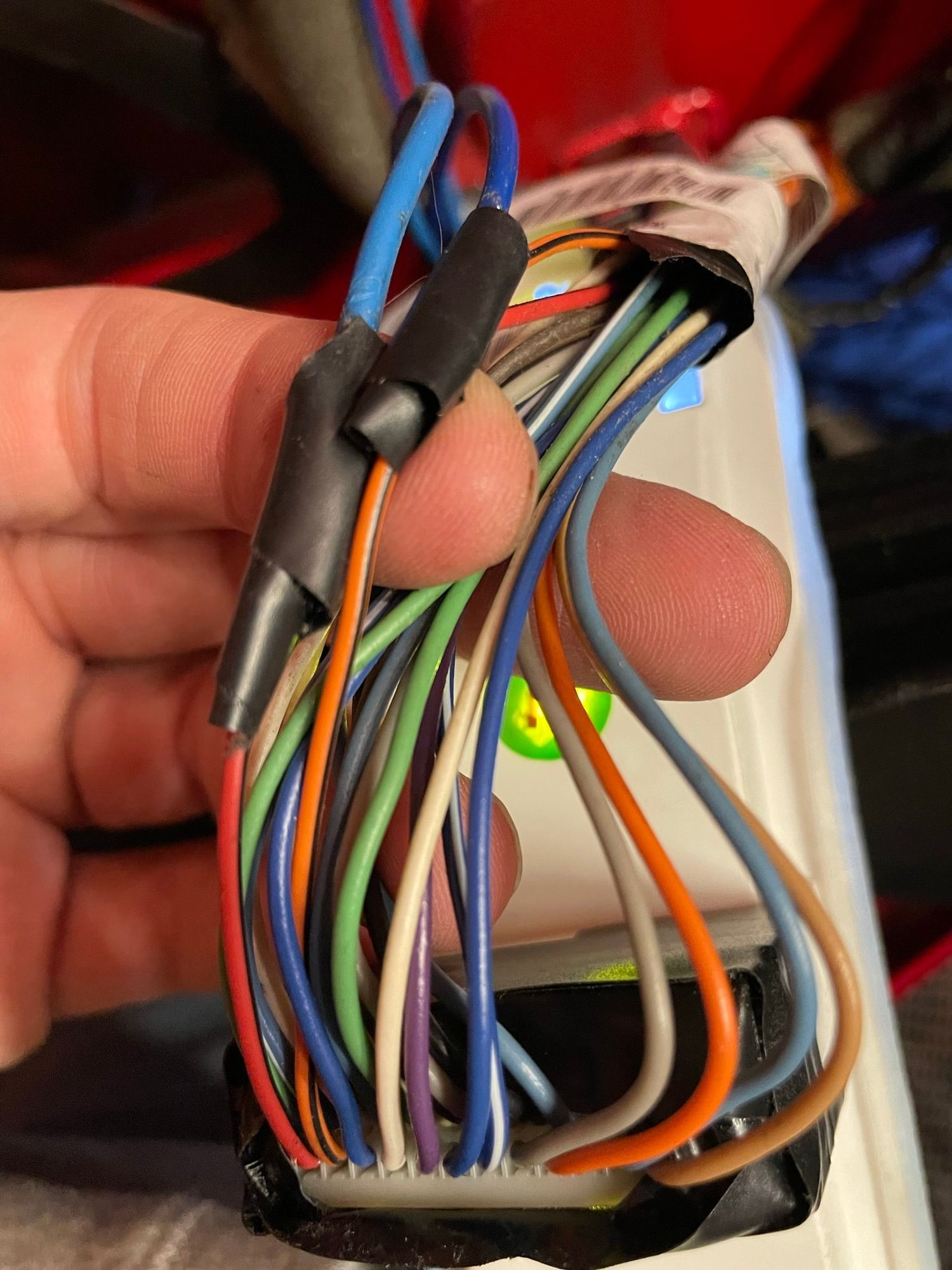

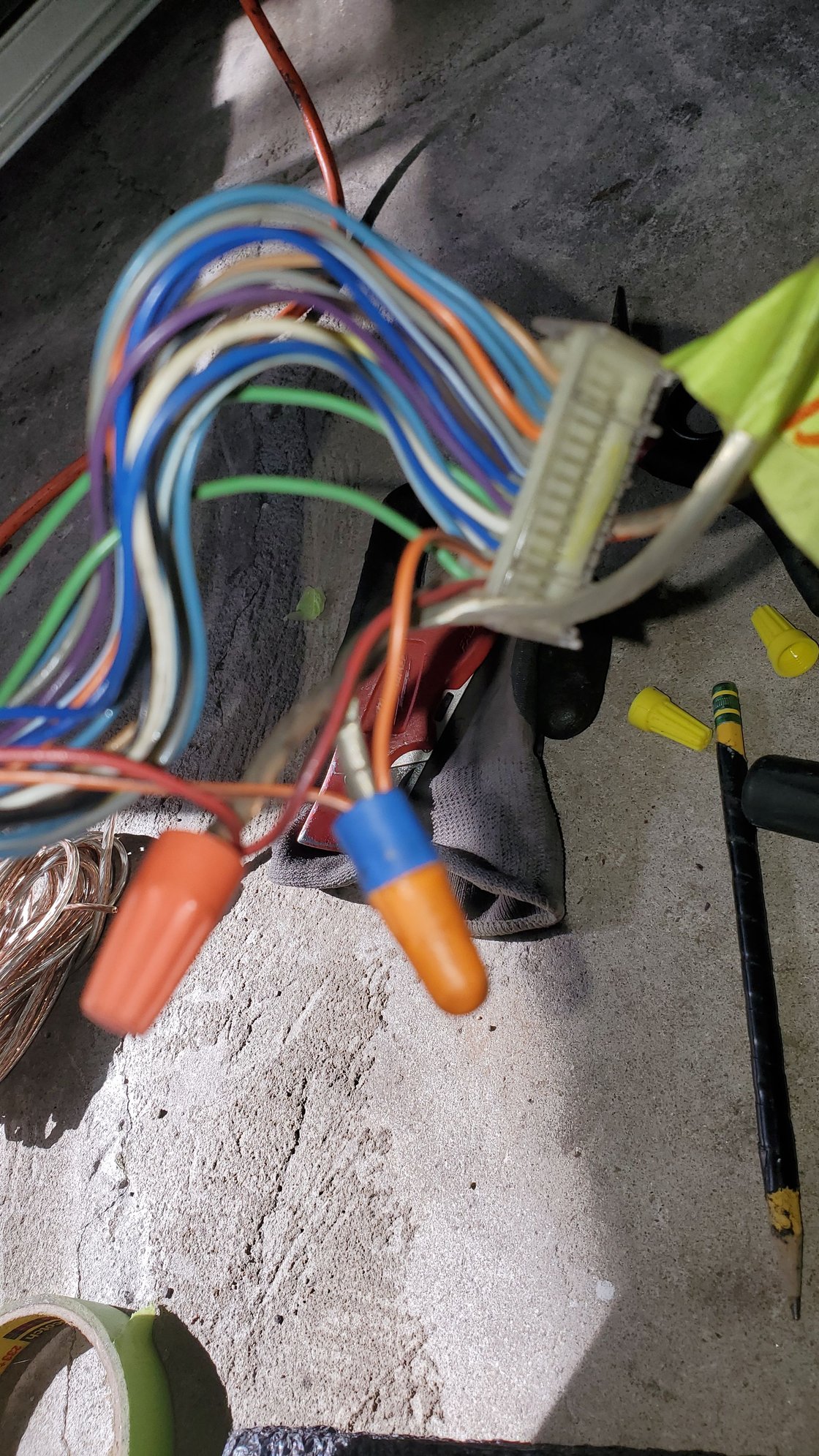

The other two wires you need to tap into are at the master door switch:

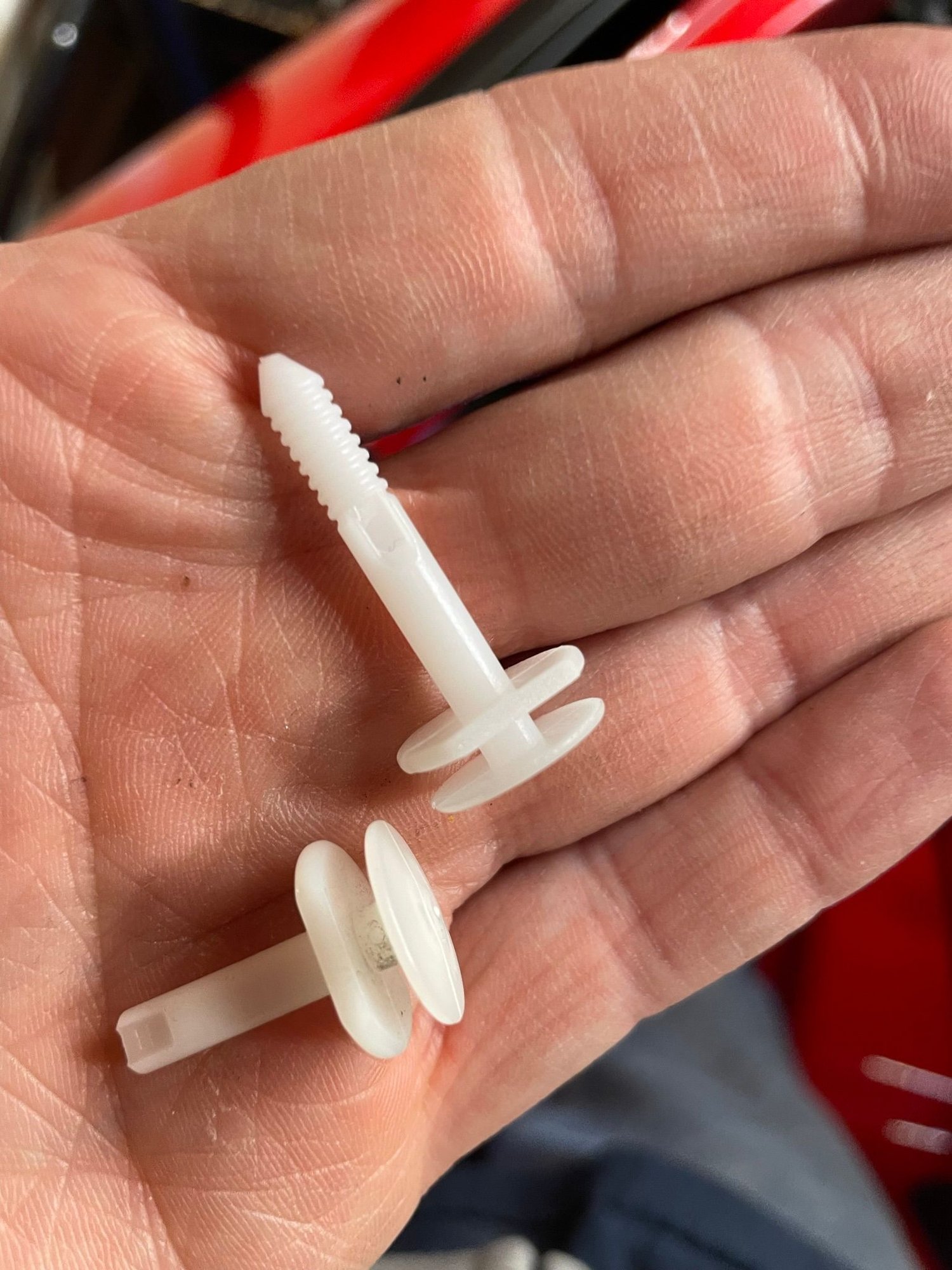

I escaped this door panel R&R with only minor casualties:
I've got a whole bag of replacements so it's all good
Let me know if you need help with any of the other wiring!
As per the schematic, we're looking for the orange/black, red/black wires for lock & unlock @ the master door switch and the green wire @ the door latch:
Here's generally what you'll find when you pull the panel off:
There's a wrapped wire bundle going to the actuator with a green wire in it:
Tap into this green wire:
***Note*** My white and blue wires that are being tapped from are my own extensions and won't match the Avital's coloring
The other two wires you need to tap into are at the master door switch:
I escaped this door panel R&R with only minor casualties:
I've got a whole bag of replacements so it's all good
Let me know if you need help with any of the other wiring!
And to tell u the truth i kinda felt confident that i was right, but thx god i double checked. Thank u, i'll get back to u. As of right now with collateral damage im not to worried about it, just want to get this working. Thx again for taking the time. Really appreciate it.
