Under hood lamp

Thread Tools

Search this Thread

Old May 16, 2022 | 12:34 PM
Share
  #1
Vette-kid's Avatar
Vette-kid
Thread Starter
Melting Slicks
15 Year Member
Liked
Loved
Community Favorite

Joined: Oct 2006
Posts: 2,193
Likes: 156
From: Navarre FL
Default Under hood lamp
Trying to troubleshoot an inop light and can't seem to find the issue. Did anyone know where the light harness terminates? I've found the plug in the front of the car, no voltage there or at the light socket. Map lights work and vanity lights work, fuse is good. What else can check?
Reply
0
Old May 16, 2022 | 02:08 PM
Share
  #2
LWSZ06's Avatar
LWSZ06
Racer
Veteran: Army
15 Year Member
Liked
Community Favorite

Joined: Sep 2009
Posts: 469
Likes: 162
From: Port Birmingham AL
Default
Here is the schematic:





Larry
Reply
1
Old May 16, 2022 | 04:24 PM
Share
  #3
rrwirsi's Avatar
rrwirsi
Melting Slicks
Veteran: Army
10 Year Member
Liked
Community Favorite

Joined: Nov 2014
Posts: 3,399
Likes: 1,339
From: Havre de Grace Maryland
Default
Just asking, maybe the bulb?
Reply
0
Old May 16, 2022 | 04:59 PM
Share
  #4
Vette-kid's Avatar
Vette-kid
Thread Starter
Melting Slicks
15 Year Member
Liked
Loved
Community Favorite

Joined: Oct 2006
Posts: 2,193
Likes: 156
From: Navarre FL
Default
Originally Posted by rrwirsi
Just asking, maybe the bulb?
Valid question, but I did check it. Bulb is good
Reply
0
Old May 16, 2022 | 06:06 PM
Share
  #5
Vette-kid's Avatar
Vette-kid
Thread Starter
Melting Slicks
15 Year Member
Liked
Loved
Community Favorite

Joined: Oct 2006
Posts: 2,193
Likes: 156
From: Navarre FL
Default
Originally Posted by LWSZ06
Here is the schematic:





Larry
thank you!
Reply
0
Old May 18, 2022 | 01:17 AM
Share
  #6
Bill Dearborn's Avatar
Bill Dearborn
Tech Contributor
25 Year Member
Liked
Top Answer: 1
Top Answer: 3

Joined: Oct 1999
Posts: 41,058
Likes: 9,820
From: Charlotte, NC (formerly Endicott, NY)
Default
I stopped worrying about mine. The damned bulb kept breaking so I took it out and never replaced it again.

Bill
Reply
1
Old May 18, 2022 | 01:41 PM
Share
  #7
UM Rebel's Avatar
UM Rebel
Drifting
15 Year Member

Joined: Apr 2007
Posts: 1,517
Likes: 159
From: Lafayette Louisiana
Default
Originally Posted by Bill Dearborn
I stopped worrying about mine. The damned bulb kept breaking so I took it out and never replaced it again.

Bill

same here.
Reply
0
Old May 18, 2022 | 05:15 PM
Share
  #8
Vette-kid's Avatar
Vette-kid
Thread Starter
Melting Slicks
15 Year Member
Liked
Loved
Community Favorite

Joined: Oct 2006
Posts: 2,193
Likes: 156
From: Navarre FL
Default

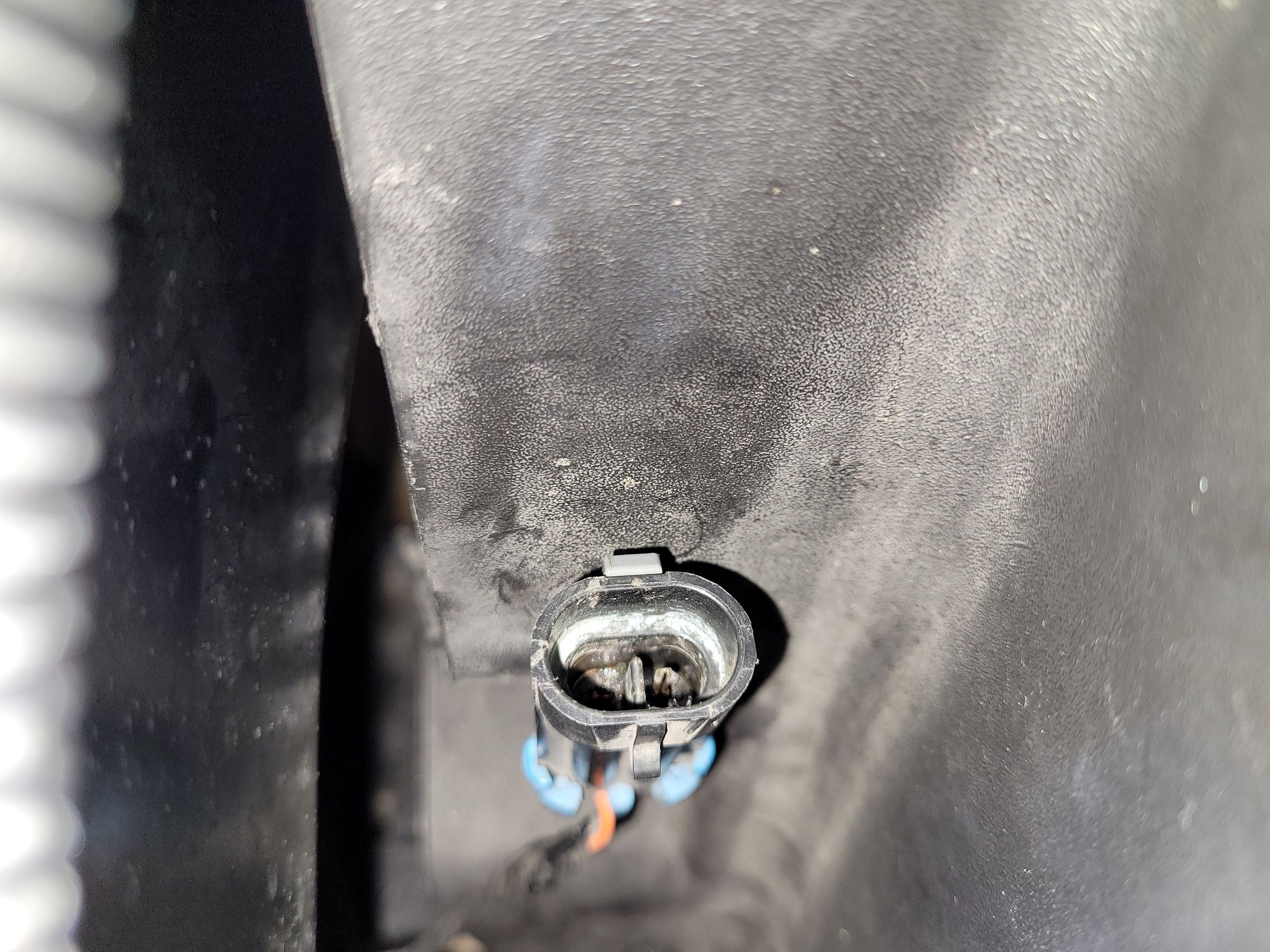

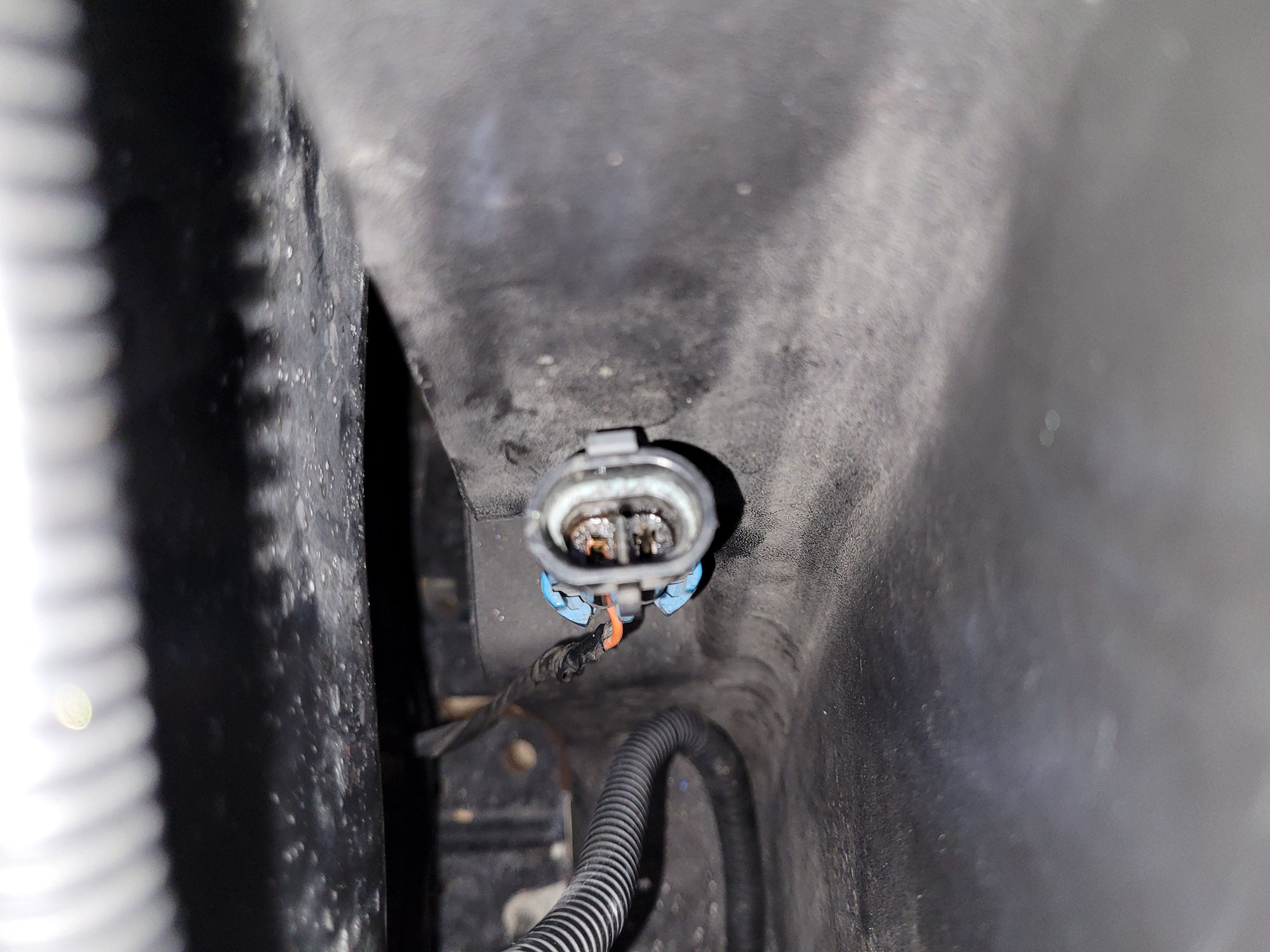

It appears the pin has somehow disappeared from within the plug on the front of the frame. Odd, because the others don't look bad. Hard to see in the pictures, but the left one is not there.

Reply
0
Corvette Stories

The Best of Corvette for Corvette Enthusiasts

story-0

10 Ugly Corvettes That We Still Kinda Love

 Joe Kucinski
story-1

Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer

 Brett Foote
story-2

10 Things Every Corvette Owner Needs (2026 Edition)

 Michael S. Palmer
story-3

8 Most "Only Corvette Owners Understand" Quirks and Problems

 Pouria Savadkouei
story-4

10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years

 Joe Kucinski
story-5

How Much Horsepower Every Corvette Engine "LOST" in 1972

 Joe Kucinski
story-6

Top 10 DOs and DON'Ts for Protecting Your Convertible Top!

 Michael S. Palmer
story-7

Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!

 Joe Kucinski
story-8

150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter

 Joe Kucinski
story-9

8 Coolest Corvette Pace Cars (and Replicas) of All Time

 Verdad Gallardo
Old May 21, 2022 | 09:45 PM
Share
  #9
bahamallama's Avatar
bahamallama
Instructor
All Eyes On Me
Liked

Joined: Mar 2019
Posts: 158
Likes: 38
From: Upstate NY
Default
Could have corroded. My temp sensor did even though only 16k mikes on the car, garage kept and never driven in rain. I got a new harness from Napa and spliced it in all good for less than $30 including butt connectors and electrical tape.

d
Reply
0
Old May 22, 2022 | 07:17 AM
Share
  #10
Vette-kid's Avatar
Vette-kid
Thread Starter
Melting Slicks
15 Year Member
Liked
Loved
Community Favorite

Joined: Oct 2006
Posts: 2,193
Likes: 156
From: Navarre FL
Default
I could replace it with a weatherpak but I'd rather repair this one. Anyone know what these are called and where to get the pins ?
Reply
0
Old May 22, 2022 | 10:12 AM
Share
  #11
C5 Diag's Avatar
C5 Diag
Moderator, Tech Contributor
Supporting Lifetime Gold
10 Year Member
Veteran: Air Force
Liked
Community Favorite

Joined: Sep 2013
Posts: 15,621
Likes: 4,066
From: Cape Coral, Florida
Default
Originally Posted by Vette-kid
I could replace it with a weatherpak but I'd rather repair this one. Anyone know what these are called and where to get the pins ?
For me it’s just easier to buy a pigtail and solder the 2 wires and cover them with shrink tubing !!..try Amazon !!


Reply
0
Old May 22, 2022 | 04:58 PM
Share
  #12
Vette-kid's Avatar
Vette-kid
Thread Starter
Melting Slicks
15 Year Member
Liked
Loved
Community Favorite

Joined: Oct 2006
Posts: 2,193
Likes: 156
From: Navarre FL
Default
Originally Posted by C5 Diag
For me it’s just easier to buy a pigtail and solder the 2 wires and cover them with shrink tubing !!..try Amazon !!

they aren't weather packs. Just learned they are metri-pak. I could spice, but that kinda defeats the factory look. Just something that would bug me.
Reply
0
