Grounds to the Block / Heads / Starter
Thread Starter
Running Guns & Moonshine
Joined: Aug 2001
Posts: 12,669
Likes: 7,303
From: CT
Grounds to the Block / Heads / Starter
Everything was undone long ago.
I want to be sure I get all the grounds correct and avoid headaches. These are not the chassis grounds. Specifically, these are the grounds from the engine harness to the engine in various locations.
Running a search didn't provide complete information.
If you have pictures to illustrate what goes where that would be the best for me.
Thanks!
I want to be sure I get all the grounds correct and avoid headaches. These are not the chassis grounds. Specifically, these are the grounds from the engine harness to the engine in various locations.
Running a search didn't provide complete information.
If you have pictures to illustrate what goes where that would be the best for me.
Thanks!
Administrator
Joined: Mar 2001
Posts: 368,389
Likes: 24,796
From: In a parallel universe. Currently own 2014 Stingray Coupe.
C7 of the Year - Modified Finalist 2021
MO Events Coordinator
St. Jude Co-Organizer
St. Jude Donor '03 thru '26
NCM Sinkhole Donor
CI 5, 8 & 11 Veteran
Moved to C5 Tech.
Racer
Joined: Apr 2018
Posts: 296
Likes: 113
From: Norway, Hallingby
Pro
Joined: Feb 2020
Posts: 621
Likes: 596
From: Ohio

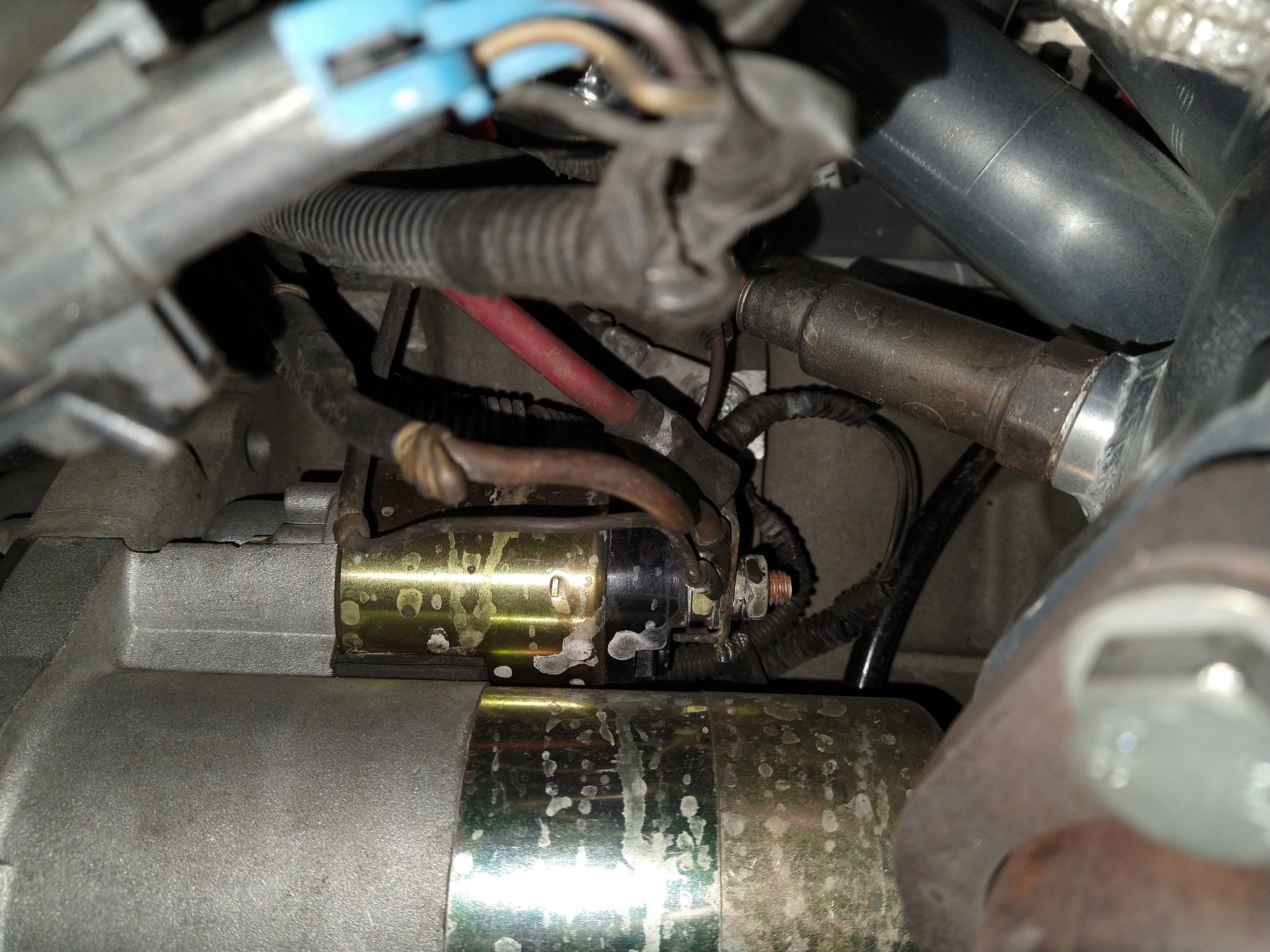

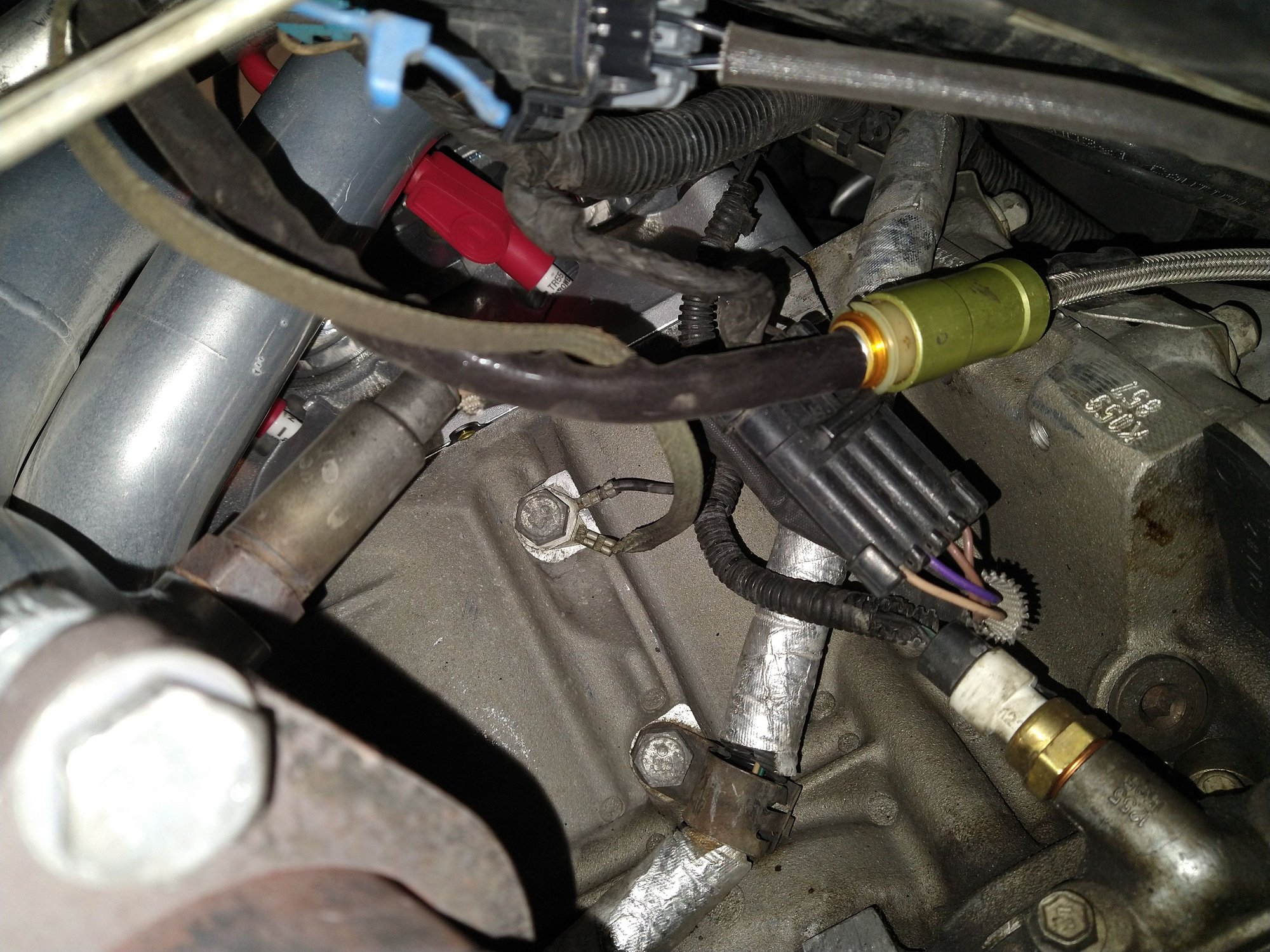

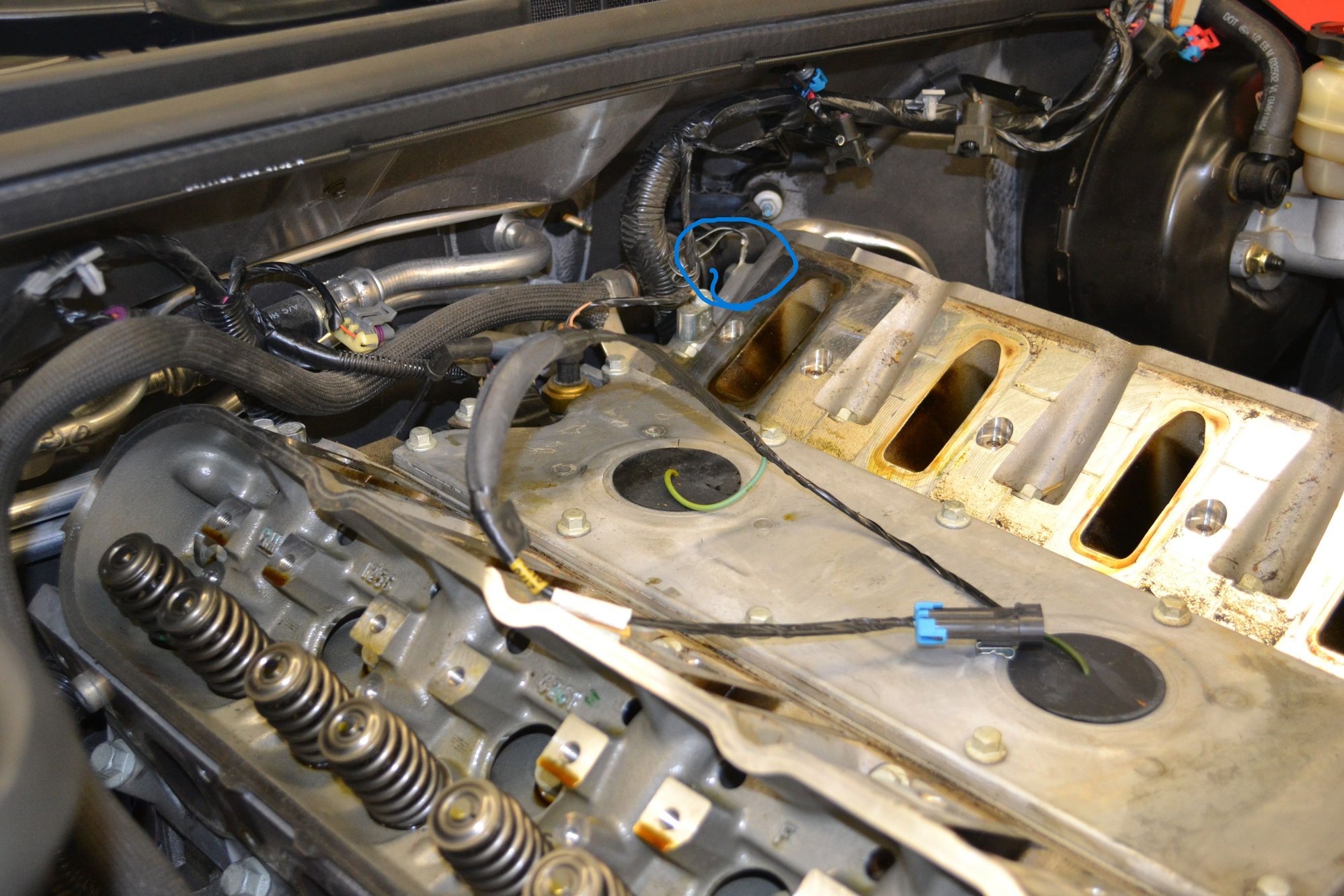

Back of the drivers head as photo'd, its built into the harness. One from the ground stud under the brake booster to the middle of the block behind the header. one ground from the battery to the side of the block and I beleive there is another group of grounds from the harness that attaches here.
When i re did my battery cables, I ran an extra 8ga ground from the battery to the ground stud on the passenger side of the frame. 4ga wire from the ground stud on the drivers front to the alternator case, and then another set of 8ga wires to join the two grounding studs on each side of the frame rail.
When i re did my battery cables, I ran an extra 8ga ground from the battery to the ground stud on the passenger side of the frame. 4ga wire from the ground stud on the drivers front to the alternator case, and then another set of 8ga wires to join the two grounding studs on each side of the frame rail.
Moderator, Tech Contributor
Joined: Sep 2013
Posts: 15,626
Likes: 4,070
From: Cape Coral, Florida
Everything was undone long ago.
I want to be sure I get all the grounds correct and avoid headaches. These are not the chassis grounds. Specifically, these are the grounds from the engine harness to the engine in various locations.
Running a search didn't provide complete information.
If you have pictures to illustrate what goes where that would be the best for me.
Thanks!
I want to be sure I get all the grounds correct and avoid headaches. These are not the chassis grounds. Specifically, these are the grounds from the engine harness to the engine in various locations.
Running a search didn't provide complete information.
If you have pictures to illustrate what goes where that would be the best for me.
Thanks!
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Melting Slicks
Joined: Sep 2003
Posts: 2,062
Likes: 117
Everything was undone long ago.
I want to be sure I get all the grounds correct and avoid headaches. These are not the chassis grounds. Specifically, these are the grounds from the engine harness to the engine in various locations.
Running a search didn't provide complete information.
If you have pictures to illustrate what goes where that would be the best for me.
Thanks!
I want to be sure I get all the grounds correct and avoid headaches. These are not the chassis grounds. Specifically, these are the grounds from the engine harness to the engine in various locations.
Running a search didn't provide complete information.
If you have pictures to illustrate what goes where that would be the best for me.
Thanks!

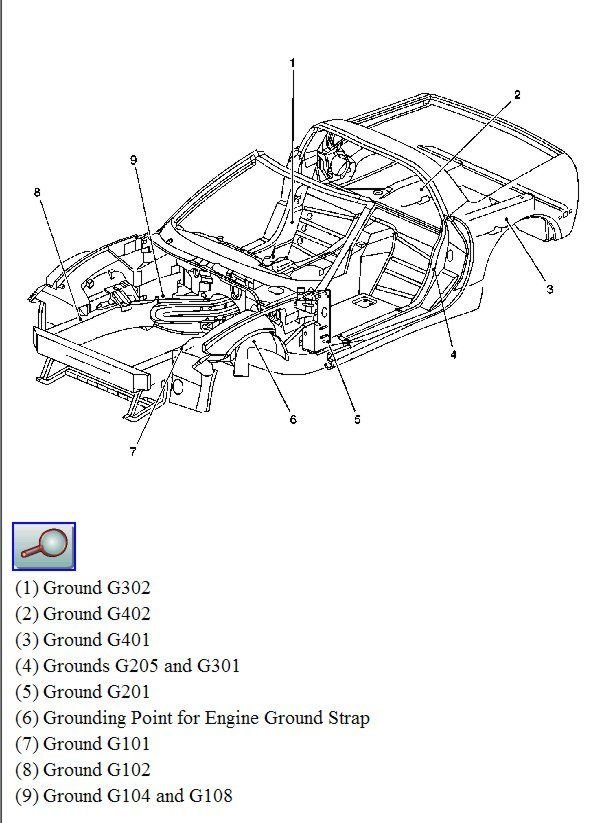

below are the chassis grounds:
