C5 seat question
Thread Starter
3rd Gear
Joined: May 2023
Posts: 3
Likes: 0
From: Canada
C5 seat question
I have had my 2004 for about a year and the telescopic steering has never worked. I found so info about the plugs under the driver seat but when i pulled the seat i found a blue plug with no where to plug into the seat! if i put 12 volts to the A&B pins the steering moves in and out! what am I missing! Thanks for any help!
Pro
Joined: Dec 2014
Posts: 682
Likes: 276
From: Cincinnati Ohio
Do you have the memory option? Are your seats the original seats? My ‘99 has the memory option and the drivers seat has two connectors. I also have a set of Sport non-memory seats which only have one connector. When I use the non-memory drivers seat, I lose the telescoping wheel function.
Melting Slicks
Joined: Jul 2004
Posts: 3,294
Likes: 480
From: Brea CA
Looks like your driver seat was swapped out at some point that did not have the telescopic column connector (blue plug).
Attached is a doc I created for making the telescopic column work with non-C5 seats. This doc covers installing C6 or C7 seats into a C5, it starts off with a discussion on the telescopic controls.
This is not the only way to do this, you can acquire a C5 drivers seat with the blue connector in it.
Gary
Attached is a doc I created for making the telescopic column work with non-C5 seats. This doc covers installing C6 or C7 seats into a C5, it starts off with a discussion on the telescopic controls.
This is not the only way to do this, you can acquire a C5 drivers seat with the blue connector in it.
Gary
Navigator
Joined: Dec 2024
Posts: 9
Likes: 1
From: KY
Looks like your driver seat was swapped out at some point that did not have the telescopic column connector (blue plug).
Attached is a doc I created for making the telescopic column work with non-C5 seats. This doc covers installing C6 or C7 seats into a C5, it starts off with a discussion on the telescopic controls.
This is not the only way to do this, you can acquire a C5 drivers seat with the blue connector in it.
Gary
Attached is a doc I created for making the telescopic column work with non-C5 seats. This doc covers installing C6 or C7 seats into a C5, it starts off with a discussion on the telescopic controls.
This is not the only way to do this, you can acquire a C5 drivers seat with the blue connector in it.
Gary
Tech Contributor
Joined: Jan 2007
Posts: 19,388
Likes: 1,134
From: Dyer, IN
I did the seat track fix the other day and noticed that there was no blue plug on my seat. My telescopic steering wheel has never worked. I found this thread and did the fix with the 2 relays. I spliced into the large orange wire on the seat's plug for power and grounded it to a seat bolt. It worked perfectly. The telescopic steering wheel moves in and out with the switch but now my seat doesn't move. It still has power and all of the connections on either side of the plug have continuity like they are supposed to. I'm at a loss. The seat worked fine right before adding the relays. Removing the relays didn't fix the issue (I wouldn't think it would). Any suggestions on how to troubleshoot this?
What type of seats do you have? Did you check fuse 4 and breaker 35 ? Is the SCM communicating on the serial buss?
Navigator
Joined: Dec 2024
Posts: 9
Likes: 1
From: KY
I'm curious what is so cringe worthy about that fix? It was fairly simple and it works.
Also why is the seat bolt not an acceptable ground? It has a reference to ground and it's not like I'm grounding an amp. There isn't much current draw on that telescoping motor.
Tech Contributor
Joined: Jan 2007
Posts: 19,388
Likes: 1,134
From: Dyer, IN
I got it working. A wire had broken in the seat's harness. It took a while to find it.
I'm curious what is so cringe worthy about that fix? It was fairly simple and it works.
Also why is the seat bolt not an acceptable ground? It has a reference to ground and it's not like I'm grounding an amp. There isn't much current draw on that telescoping motor.
I'm curious what is so cringe worthy about that fix? It was fairly simple and it works.
Also why is the seat bolt not an acceptable ground? It has a reference to ground and it's not like I'm grounding an amp. There isn't much current draw on that telescoping motor.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
Tech Contributor
Joined: Jan 2007
Posts: 19,388
Likes: 1,134
From: Dyer, IN

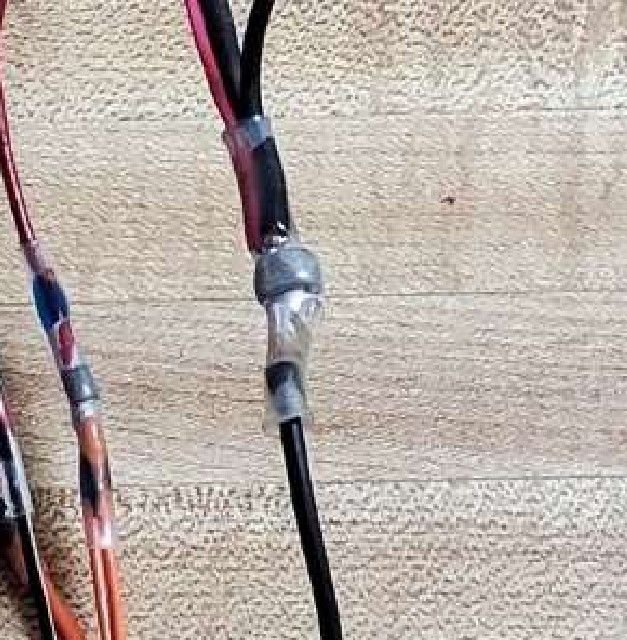

As far as the procedure, solder ferrules are bush-league, but they do appeal to the masses. In any case, the solder ferrule depicted in the "procedure" does not even show the solder melted, it's still a solder barrel. In order to create a mechanical connection, the solder must get hot enough to go liquidous and wet out. Stuff like this "works" ....until it doesn't. Then the installer is crowd-sourcing 6 different C5 forums for advice on how to troubleshoot.
Navigator
Joined: Dec 2024
Posts: 9
Likes: 1
From: KY

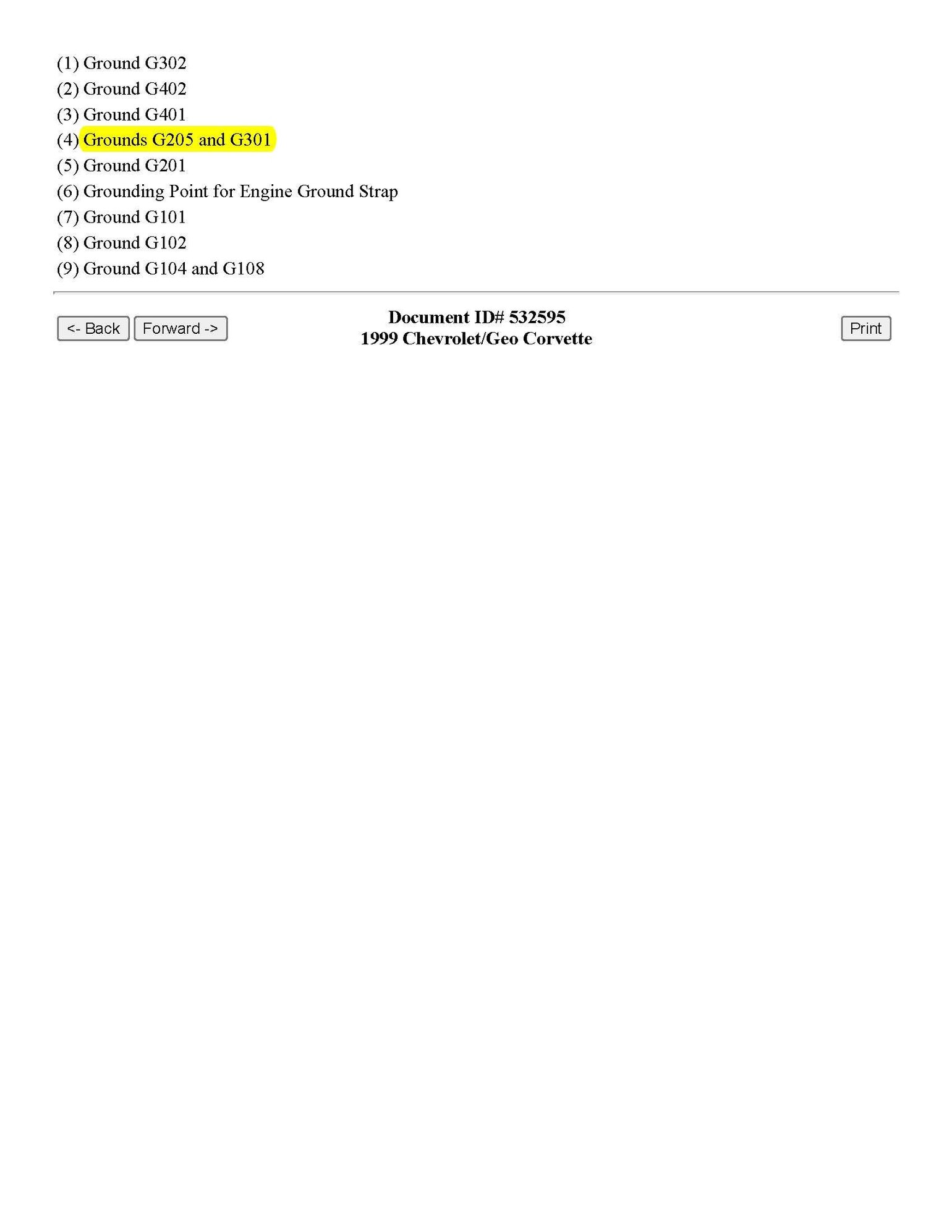

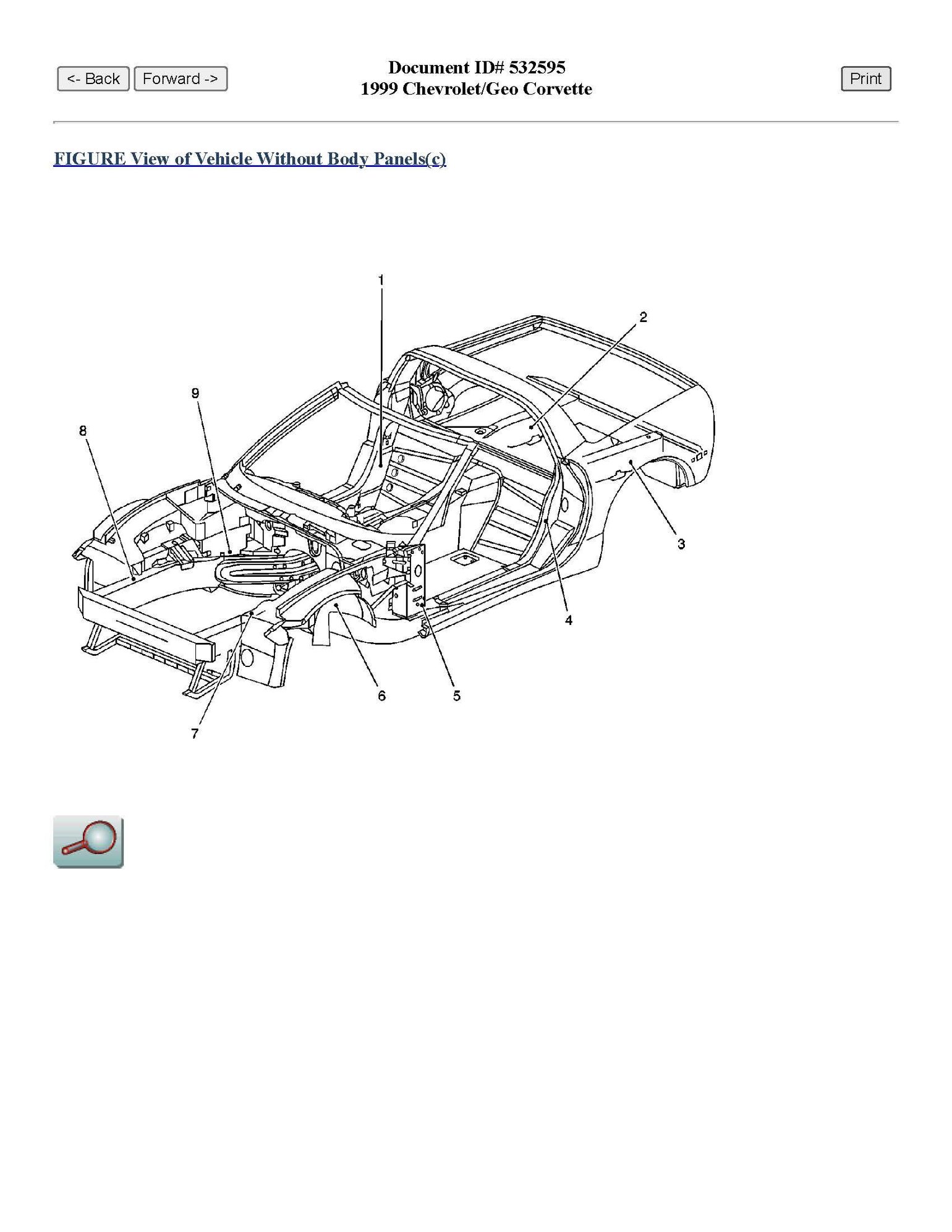

[QUOTE=lucky131969;1608534171]What is the ground path at the seat bolt? Through the floor somehow? Tangential through the seat rail? Why guess? ....especially when you had a big fat black ground wire(grounded at G205) to tap into? I mean, you already tapped into the orange 12v feed, what's one more connection for a no-brainer ground point?
