Can someone point me to the thread that gives me the step-by-step for checking the TPS plug on a C5 Corvette. Can't seem to locate it

Feb 25, 2025 | 03:04 PM

C5 Diag

Moderator, Tech Contributor

Joined: Sep 2013

Posts: 15,308

Likes: 3,924

From: Cape Coral, Florida

You are wanting to check the TPS sensor ??..I think I showed you how to check the APP sensor not to long ago…same test…it’s a potentiometer.

Feb 25, 2025 | 06:20 PM

Johnnyv49

Thread Starter

Advanced

Joined: Jan 2025

Posts: 68

Likes: 2

You are correct I keep forgetting that by testing that plug you are testing the signal coming from the pedal. My mistake I guess I kept thinking that the APP is tested only at the pedal.

Thank you I'll refer back to that previous post

Feb 25, 2025 | 06:27 PM

C5 Diag

Moderator, Tech Contributor

Joined: Sep 2013

Posts: 15,308

Likes: 3,924

From: Cape Coral, Florida

The APP and TPS are 2 different sensors.

Feb 25, 2025 | 08:11 PM

the_merv

Drifting

Joined: Feb 2025

Posts: 1,760

Likes: 1,773

From: THE BEACH..

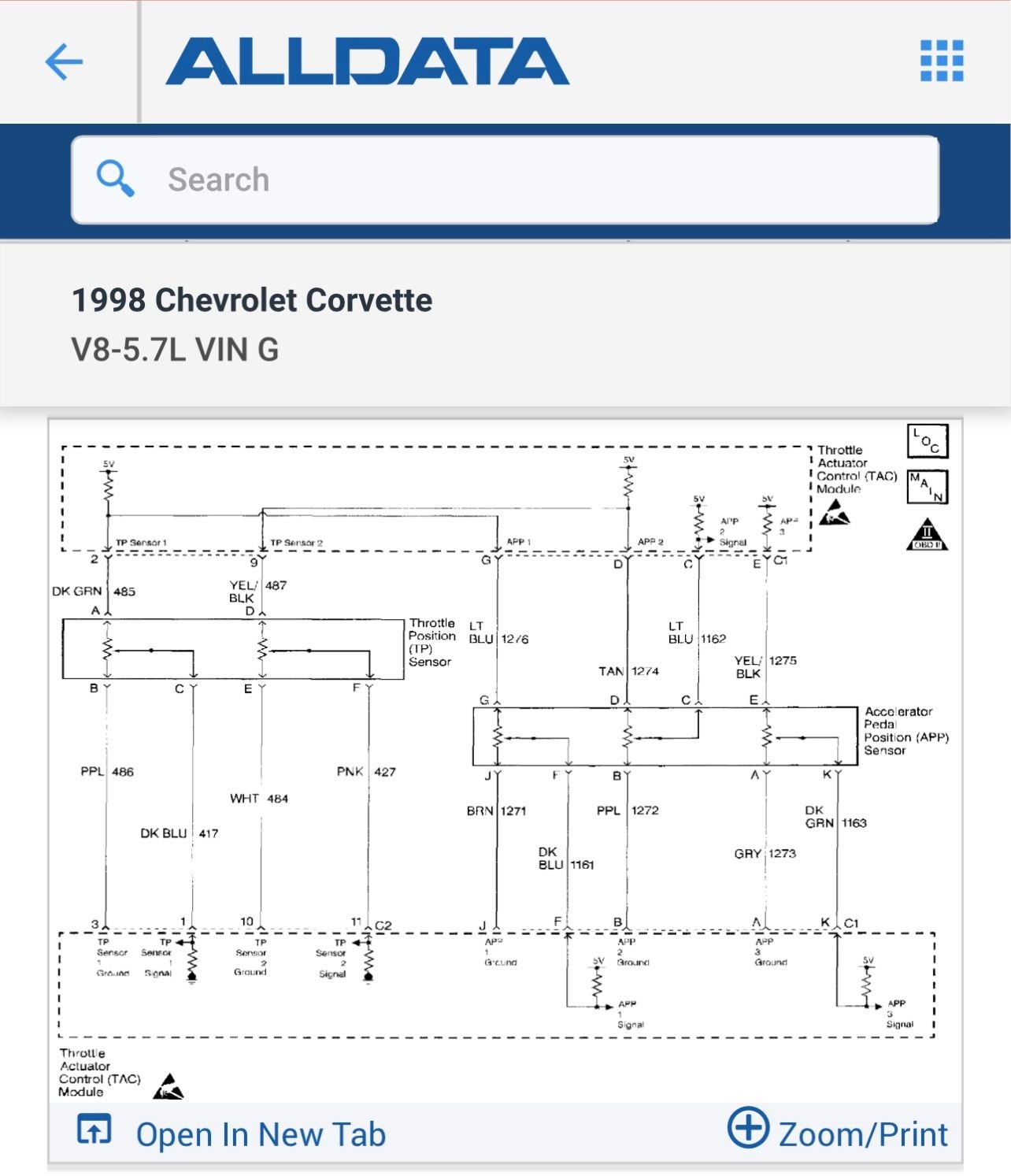

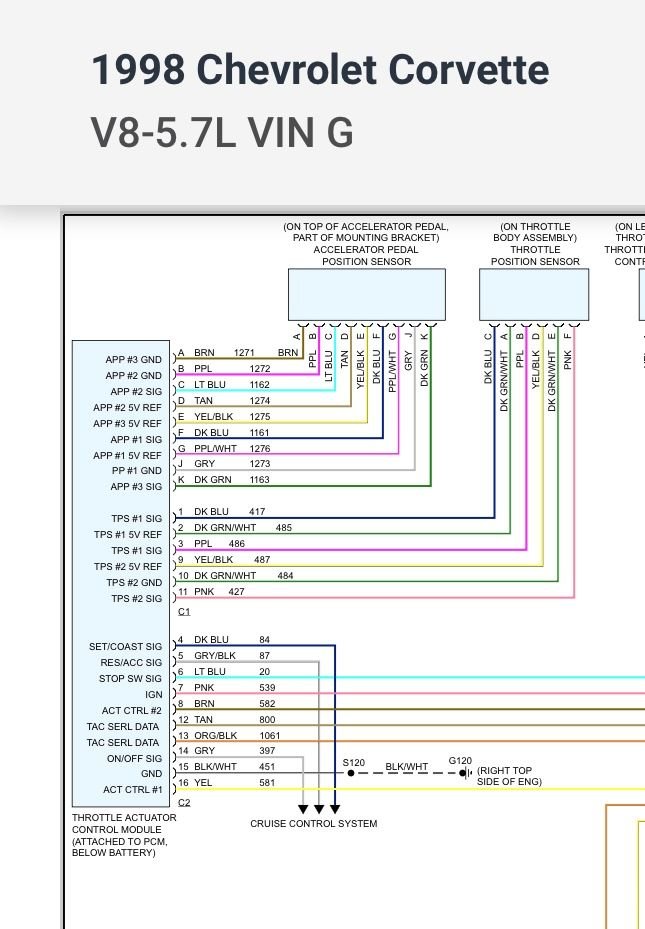

As mentioned it's a POT. 5v on one wire, Signal back to the PCM, Ground. Two separate ones in there, 6 wires.

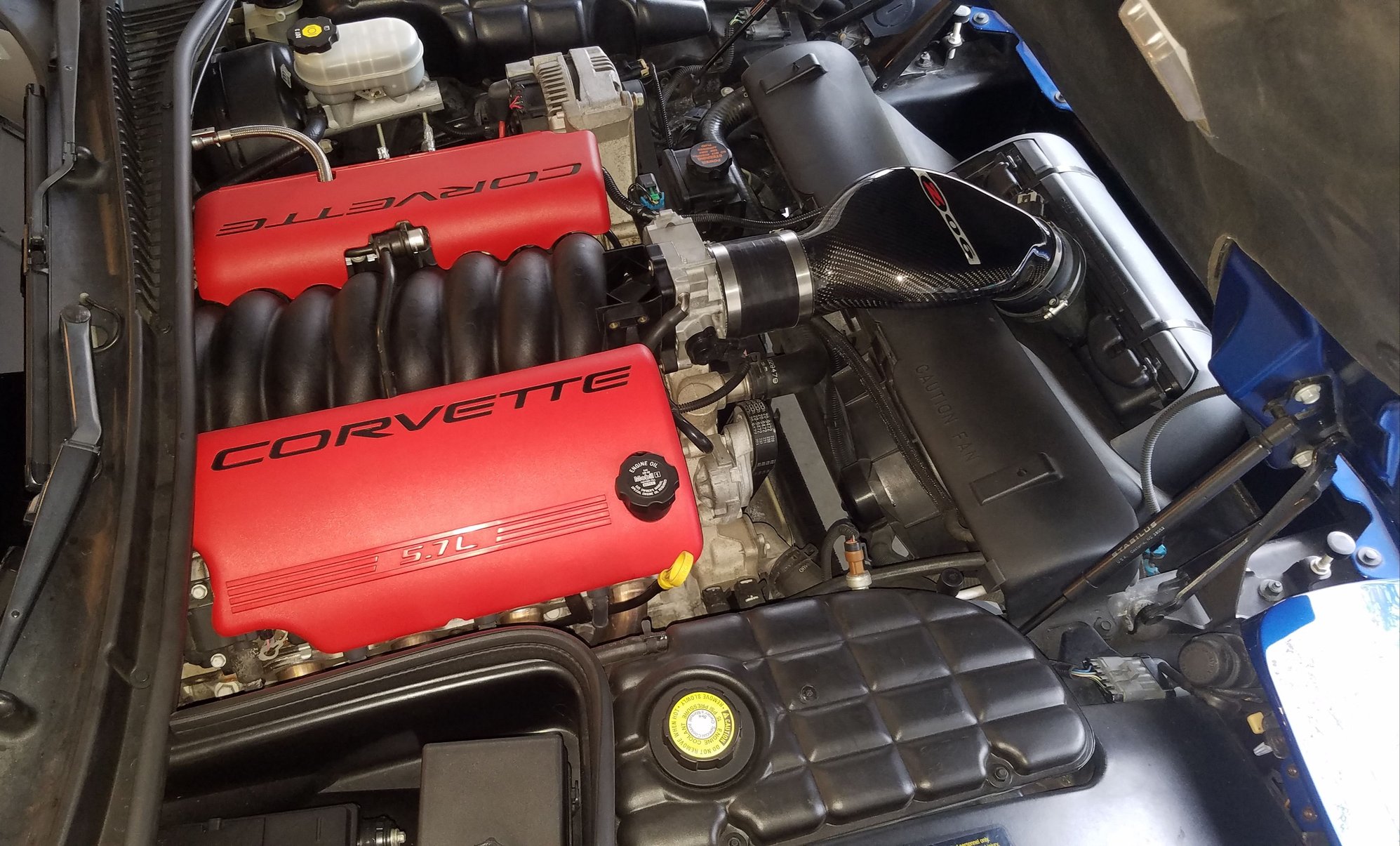

Pic for reference of the location.
