Circuit breaker "fuse" replacement help.
Thread Starter
Drifting
Joined: Feb 2005
Posts: 1,298
Likes: 115
From: City of Pompton Fl
Circuit breaker "fuse" replacement help.
Digging through and replacing things that look like they could be problematic. (crank, no start issue after an LS2 swap in my 2002 Z)
The under the footwell fuse panel has 3 fuses I'm not confidently finding replacements.

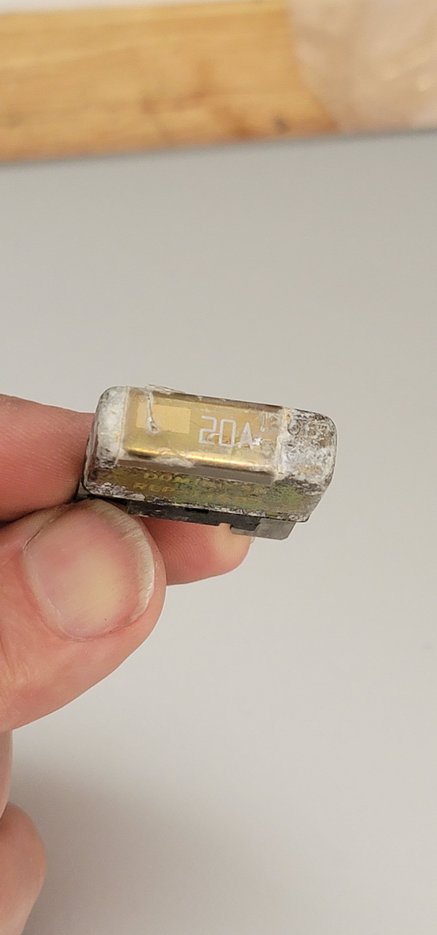

Two are the same silver 20a bladed circuit breakers and they're not that much larger than a standard bladed fuse (they're bigger, but size-approximate)

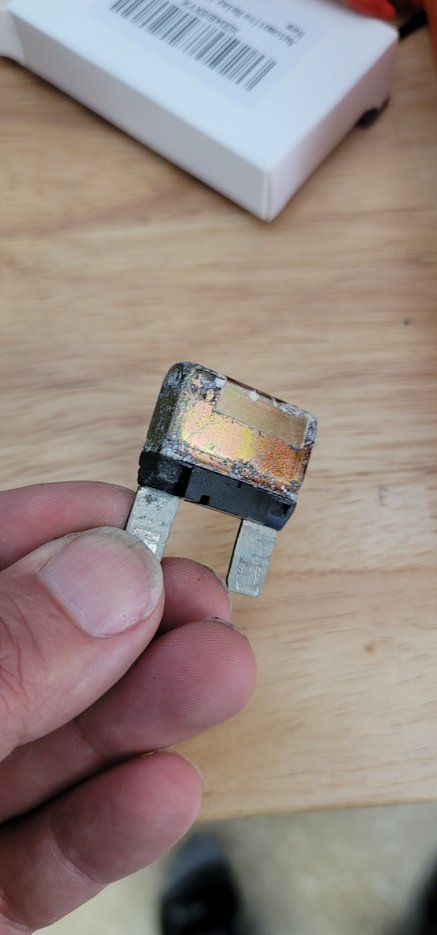

The other is what I think is a maxi-circuit breaker bladed fuse that's MUCH bigger than a standard fuse.
For the smaller two, Amazon shows p/n 12088575, but cross referencing at gm parts direct dot com says it won't work with an 02, even though it looks identical. (which is never a guarantee, obvs)
https://a.co/d/6bXStQx
The other is https://a.co/d/5LN6T1B and I don't see a lot of options.
If anyone can point me towards the right parts, I'd like to get them ordered to keep trying to move this stupid thing across the finish line.
Thanks guys!
The under the footwell fuse panel has 3 fuses I'm not confidently finding replacements.
Two are the same silver 20a bladed circuit breakers and they're not that much larger than a standard bladed fuse (they're bigger, but size-approximate)
The other is what I think is a maxi-circuit breaker bladed fuse that's MUCH bigger than a standard fuse.
For the smaller two, Amazon shows p/n 12088575, but cross referencing at gm parts direct dot com says it won't work with an 02, even though it looks identical. (which is never a guarantee, obvs)
https://a.co/d/6bXStQx
The other is https://a.co/d/5LN6T1B and I don't see a lot of options.
If anyone can point me towards the right parts, I'd like to get them ordered to keep trying to move this stupid thing across the finish line.
Thanks guys!
Moderator, Tech Contributor
Joined: Sep 2013
Posts: 15,621
Likes: 4,069
From: Cape Coral, Florida
So you have a “crank no start” and you are seeing if there are fuses that can be causing this after you swapped in an LS2 ??…what fuses ??..if it is a crank no start I think you need to be digging a little deeper than replacing fuses.
Last edited by C5 Diag; Mar 12, 2025 at 03:32 PM.
Racer
Joined: Nov 2020
Posts: 343
Likes: 167
From: Warren County, NJ
Yeah I'm confused as to why you are under the footwell, isn't that one for like cabin lights and dash and CD changers and crap?... I know the fuel relay is in the engine fuse box cause I just had to hotwire it.
You have crank (and I presume compression), so that leaves fuel and spark... Did you run codes? ... Was it running when you pulled the LS6 out? So many variables!
You have crank (and I presume compression), so that leaves fuel and spark... Did you run codes? ... Was it running when you pulled the LS6 out? So many variables!
Thread Starter
Drifting
Joined: Feb 2005
Posts: 1,298
Likes: 115
From: City of Pompton Fl
I had a nasty draw that would kill the battery in an evening and it turned out to be a relay stuck open, so if one was bad from sitting for 5 years, it doesn't hurt me to replace thrbrwst, just in case, since I'm already in there.
So, before I chase anything else, including my tail, I want to make sure I'm starting from a place where I know all the relays are new.
So that brings me back around to my original question: can anyone confirm the part number (or share a link) for the solver bladed circuit breakers in the footwell so I can make sure I'm getting the right ones?
Administrator
Joined: Mar 2001
Posts: 368,390
Likes: 24,791
From: In a parallel universe. Currently own 2014 Stingray Coupe.
C7 of the Year - Modified Finalist 2021
MO Events Coordinator
St. Jude Co-Organizer
St. Jude Donor '03 thru '26
NCM Sinkhole Donor
CI 5, 8 & 11 Veteran
Moved to C5 Tech for more discussion.
Racer
Joined: Nov 2020
Posts: 343
Likes: 167
From: Warren County, NJ

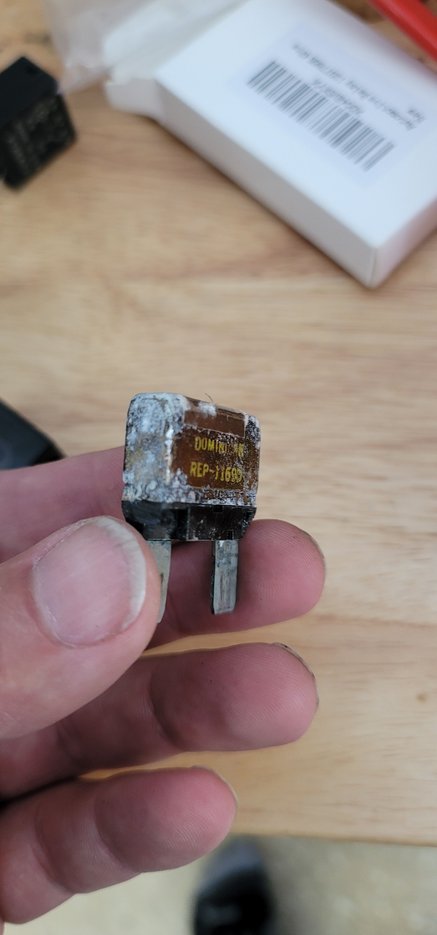

GPT seems to think it's a Dominator REP-1169 auto-reset breaker:
That DOMINATOR REP-1169 looks like a circuit breaker rather than a standard fuse.
- C5 Corvettes use a few of these metal "auto-reset" breakers for high-load circuits.
- Likely from something like power seats, windows, or HVAC blower motor.
These maybe?
Also GPT could be tripping, I see a lot of breakers made in the "Dominican Rep."
Last edited by LSgoBRRR; Mar 14, 2025 at 02:07 AM.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Thread Starter
Drifting
Joined: Feb 2005
Posts: 1,298
Likes: 115
From: City of Pompton Fl
I can't be 100% sure, but I don't think the car was in a flood or anything like that. (no water line marks, it doesn't smell like it was completely submerged, etc...)
One of the door window seals definitely leaks and I think that moisture intrusion is what caused these issue inside.
What's especially strange is how the door remote stopped working.
When I brought it home, I could use the key fob to open the trunk and doors, but they stopped working at some point during the motor swap and I have no idea how or why.
One of the door window seals definitely leaks and I think that moisture intrusion is what caused these issue inside.
What's especially strange is how the door remote stopped working.
When I brought it home, I could use the key fob to open the trunk and doors, but they stopped working at some point during the motor swap and I have no idea how or why.
Melting Slicks
Joined: Sep 2008
Posts: 3,138
Likes: 802
From: Espanola New Mexico
My 97 coupe fob works, and then mysteriously stops working, I do the relearn and it works for awhile. It doesn't really bother me, I think it's just something that happens when you own a older car.
Racer
Joined: Nov 2020
Posts: 343
Likes: 167
From: Warren County, NJ
When I bought mine the passenger door lock didn't work, a week later the drivers went too... They go bad from sitting I think. There is a guy on here who replaces the solenoids and ships them back.
Thread Starter
Drifting
Joined: Feb 2005
Posts: 1,298
Likes: 115
From: City of Pompton Fl
It'll show me the initial program option for a new fob, but won't advance to the secondary menu of "hold lock/unlock buttons" to actually program it.
Thread Starter
Drifting
Joined: Feb 2005
Posts: 1,298
Likes: 115
From: City of Pompton Fl
Update: the crabk/no start issue seems to have been related to the Lingenfelter reluctor conversion box.
The draw looks like it's somewhere inside the interior light circuit.
Hoping to know more today.
The draw looks like it's somewhere inside the interior light circuit.
Hoping to know more today.
