O2 sensor connector wiring diagram
Thread Starter
Instructor
Joined: Mar 2023
Posts: 127
Likes: 17
O2 sensor connector wiring diagram
So I ordered an ac delco connector for my upstream o2s and it came it and it’s all grey so I’m playing the guessing game atp got my car running fine for 4 days then it started throwing bank 2 lean codes. Found a burnt wire on passenger side o2 harness did the same thing I did to drivers side orderered a connector sautered if on started the car and it’s pissing black smoke idling at 300rpms as soon as I press the gas stalls and won’t start up again. Need the wiring diagram for the connector idk what pin goes to what from o2 side to o2 sensor connector since it’s all grey any help would be appreciated.

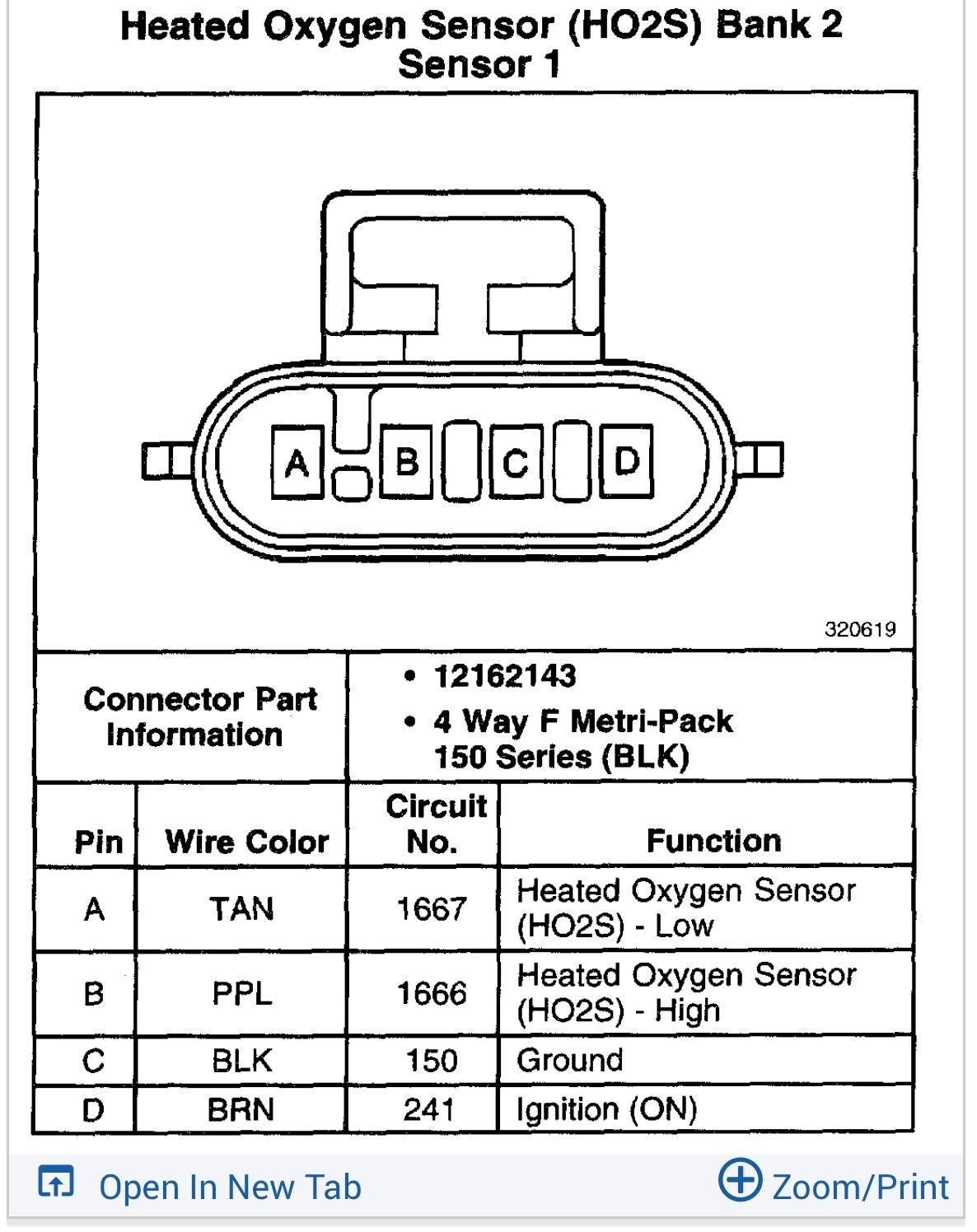

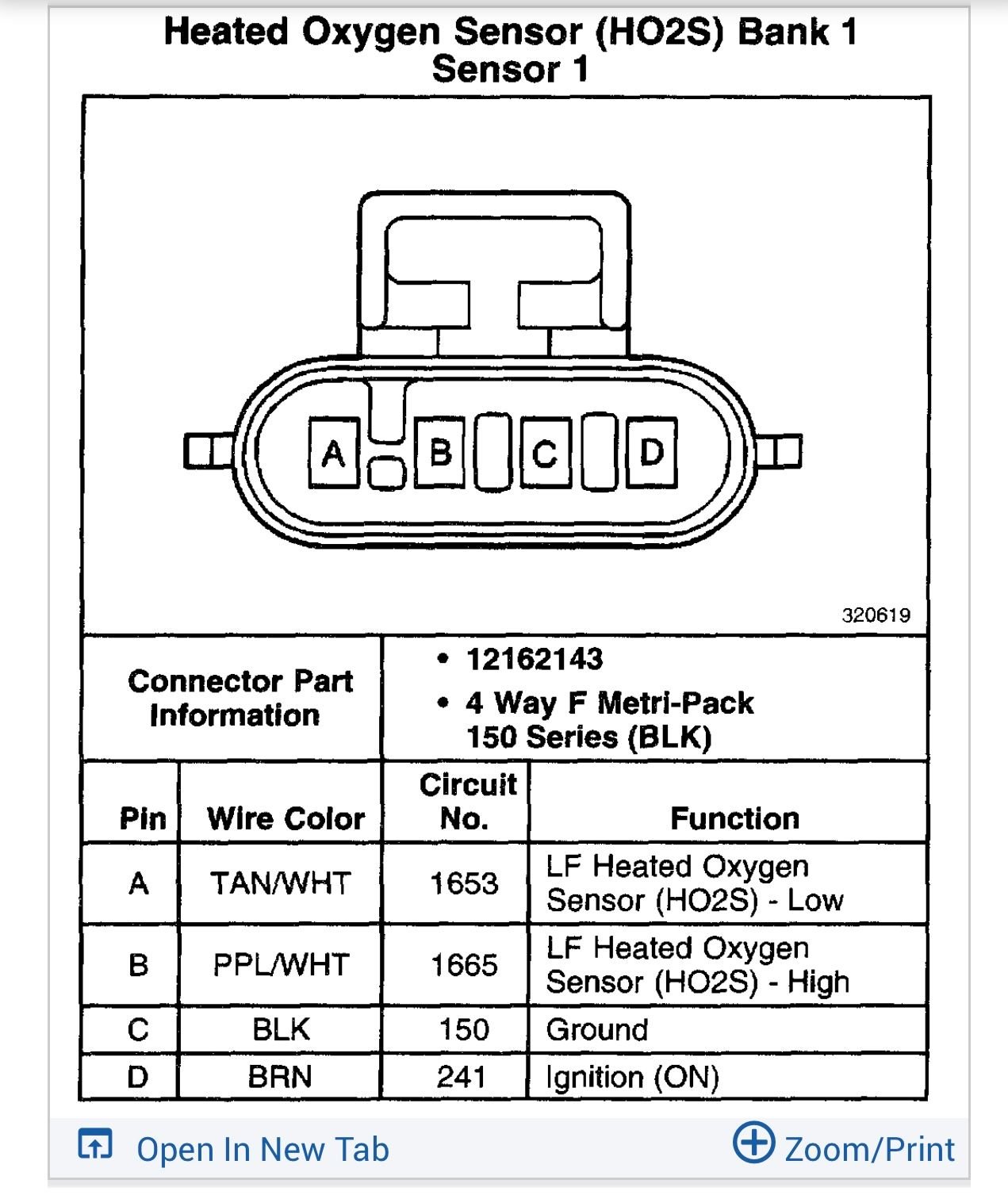

Administrator
Joined: Mar 2001
Posts: 368,389
Likes: 24,795
From: In a parallel universe. Currently own 2014 Stingray Coupe.
C7 of the Year - Modified Finalist 2021
MO Events Coordinator
St. Jude Co-Organizer
St. Jude Donor '03 thru '26
NCM Sinkhole Donor
CI 5, 8 & 11 Veteran
Moved to C5 Tech.
