no back up lights
I have a 2003 C5Z and the back up lamps stopped working (bummer since it's my back up camera circuit also). manual says it's controlled by a relay in fuse box under hood, how do you remove that? Now before I go any further let me say the the lights don't work when I unlock the car ether. Any ideas where to start?
Tech Contributor
Joined: Jan 2007
Posts: 19,401
Likes: 1,143
From: Dyer, IN
I have a 2003 C5Z and the back up lamps stopped working (bummer since it's my back up camera circuit also). manual says it's controlled by a relay in fuse box under hood, how do you remove that? Now before I go any further let me say the the lights don't work when I unlock the car ether. Any ideas where to start?

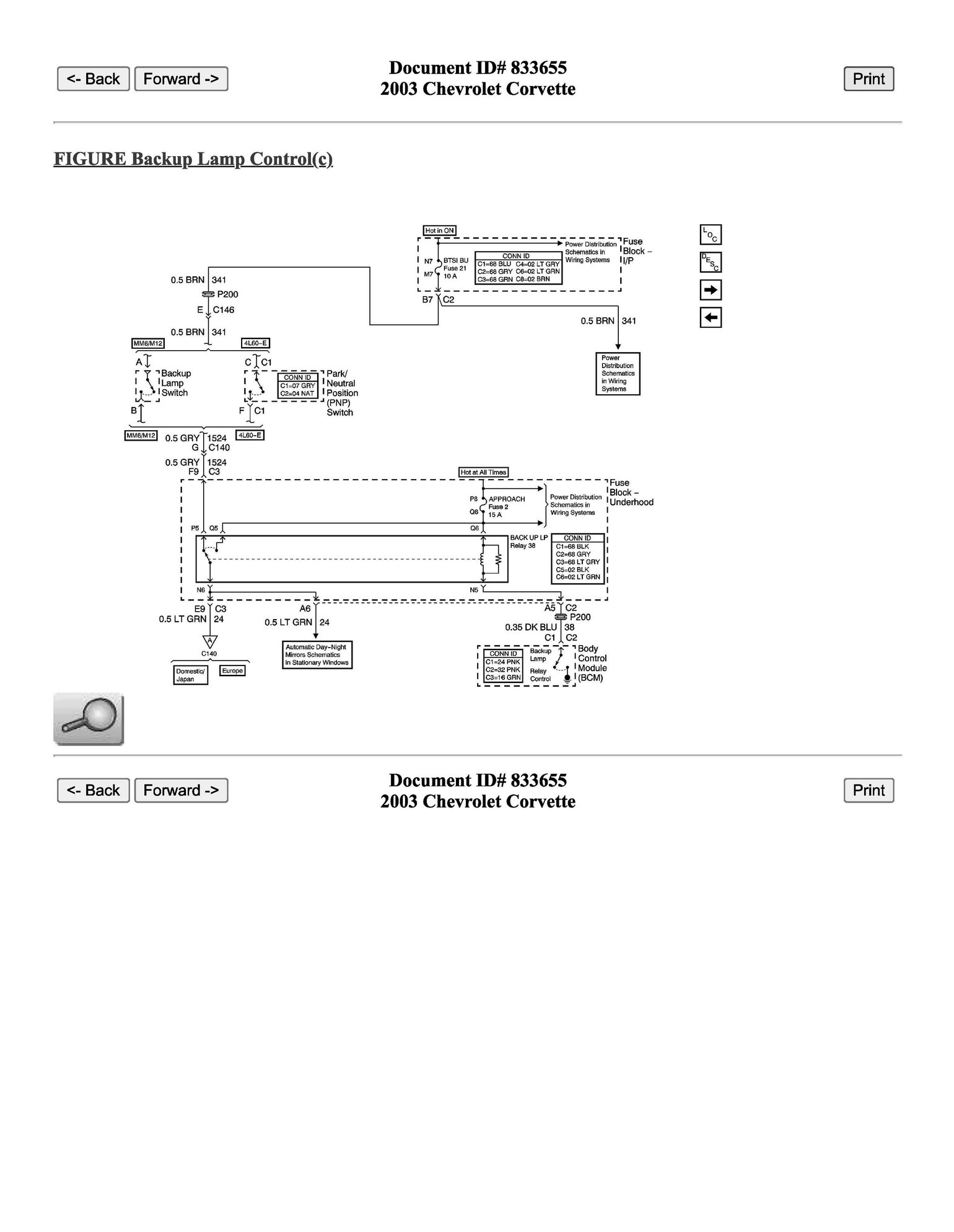

1)Through the backup lamp /PNP switch - via the relay(not energized) fuse 21 in the passenger footwell fusebox
2) Through the backup lamp relay (energized from the BCM) - fuse 2 in the underhood fusebox
If pulling a relay or checking a fuse is foreign to you, you may be better served by taking it too a shop.
Tech Contributor
Joined: Jan 2007
Posts: 19,401
Likes: 1,143
From: Dyer, IN
.....you stated the backup lights do not work when you unlock the car, so that means neither the BCM energizing the relay nor the backup switch are turning on the backup lights. That suggests the problem is between the underhood fuse box and the backup light bulbs........
