Hey everybody. It’s been a while since I’ve posted! I’m happy to feel confident coming here with an issue.
I’ll start with the short story, then get to the issue: Right before I deployed, I knew I wouldn’t see my 2002 c5 z06 for a while, so I sent my car off for a load of changes, to include an engine swap, driveshaft upgrade, Holley Terminator X Max, etc. etc. I was wanting the Holley to be piggy-backed off of the stock PCM (primarily to retain the factory gauge cluster) but when I got the car back I realized the PCM had been completely removed. Not the biggest deal.. I’ll just get a Holley dash at some point.

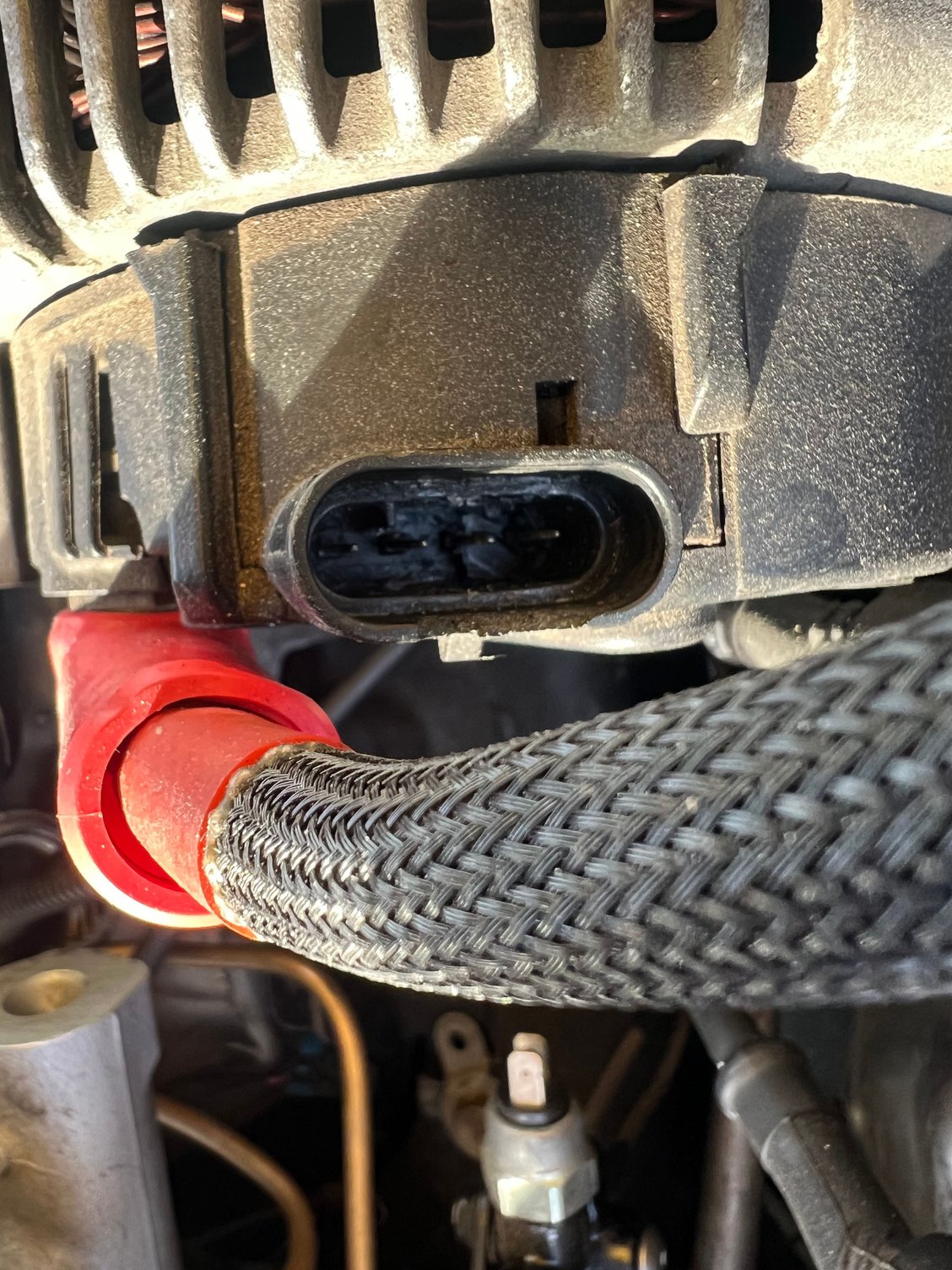

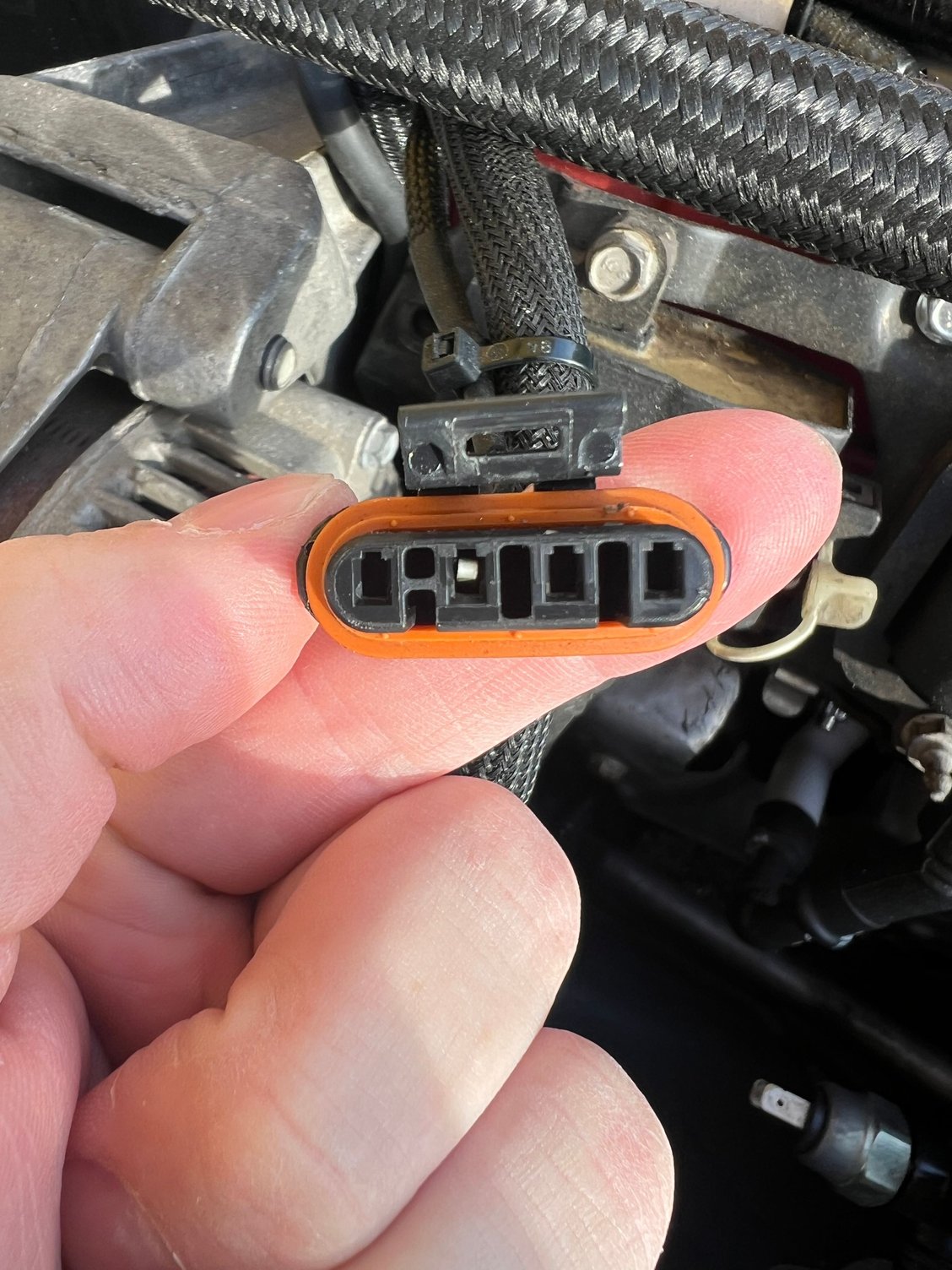

The issue: Just the other day I noticed my alternator pigtail only has one wire going to pin B. I’m not sure if this is okay. My battery keeps dying. The car also shut off, then turned back
on during a hard pull. Not sure if either the battery issue or the car shutting off has anything to do with this. But it feels like a good place to start.
Last edited by Cory51191; Dec 31, 2025 at 10:03 AM.
I would seriously consider sending the car back to the shop that performed the work.
I got the car back about 1 1/2 years ago. I’ve been so busy with work and life that I haven’t really had time with the car. I’ve put maybe 150 miles on it since then.

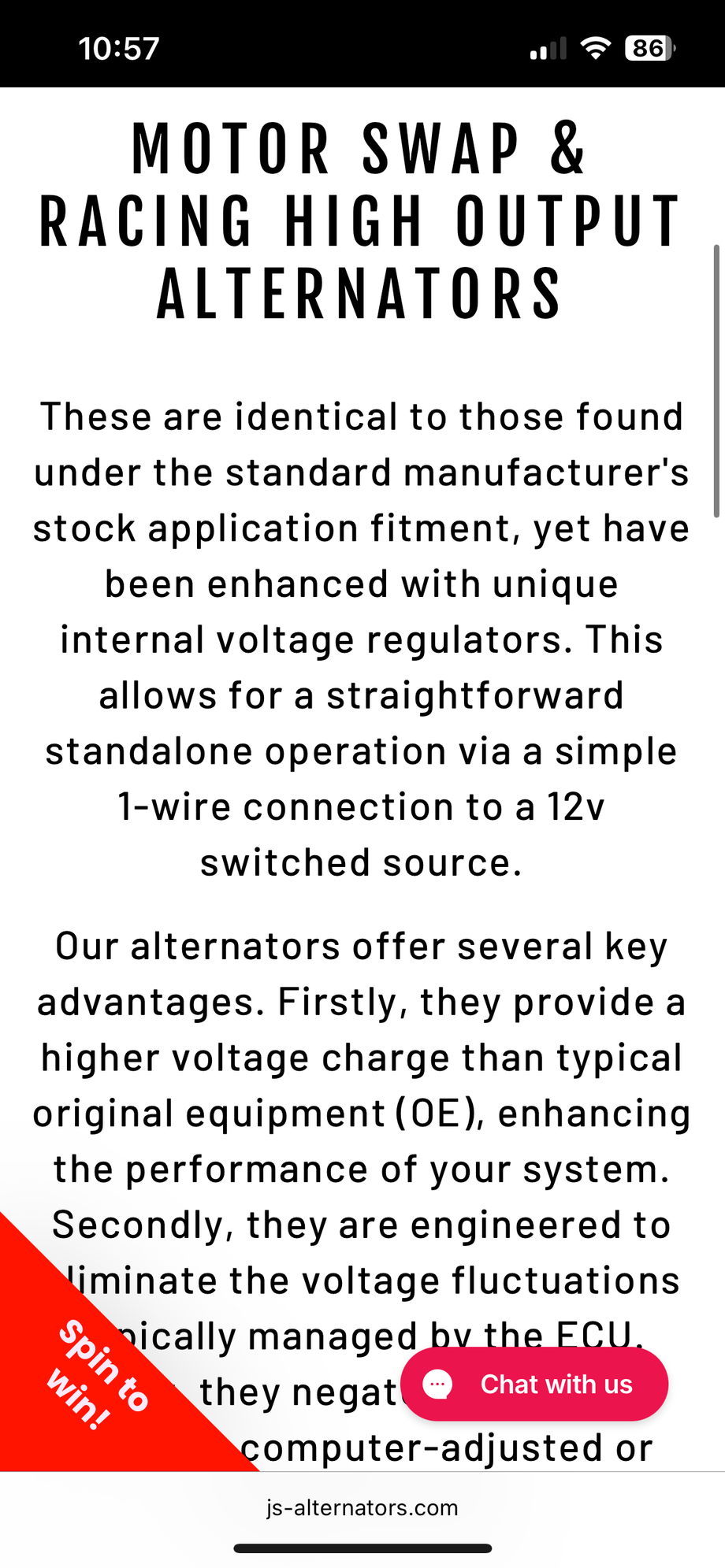

I wonder if something like this may be my best option… a racing alternator that allows for 1-wire, 12v switched source operation. Any input is welcome!
Last edited by Cory51191; Dec 31, 2025 at 11:54 AM.
Alright just got off the phone with my buddy who is extremely knowledgeable with this stuff.

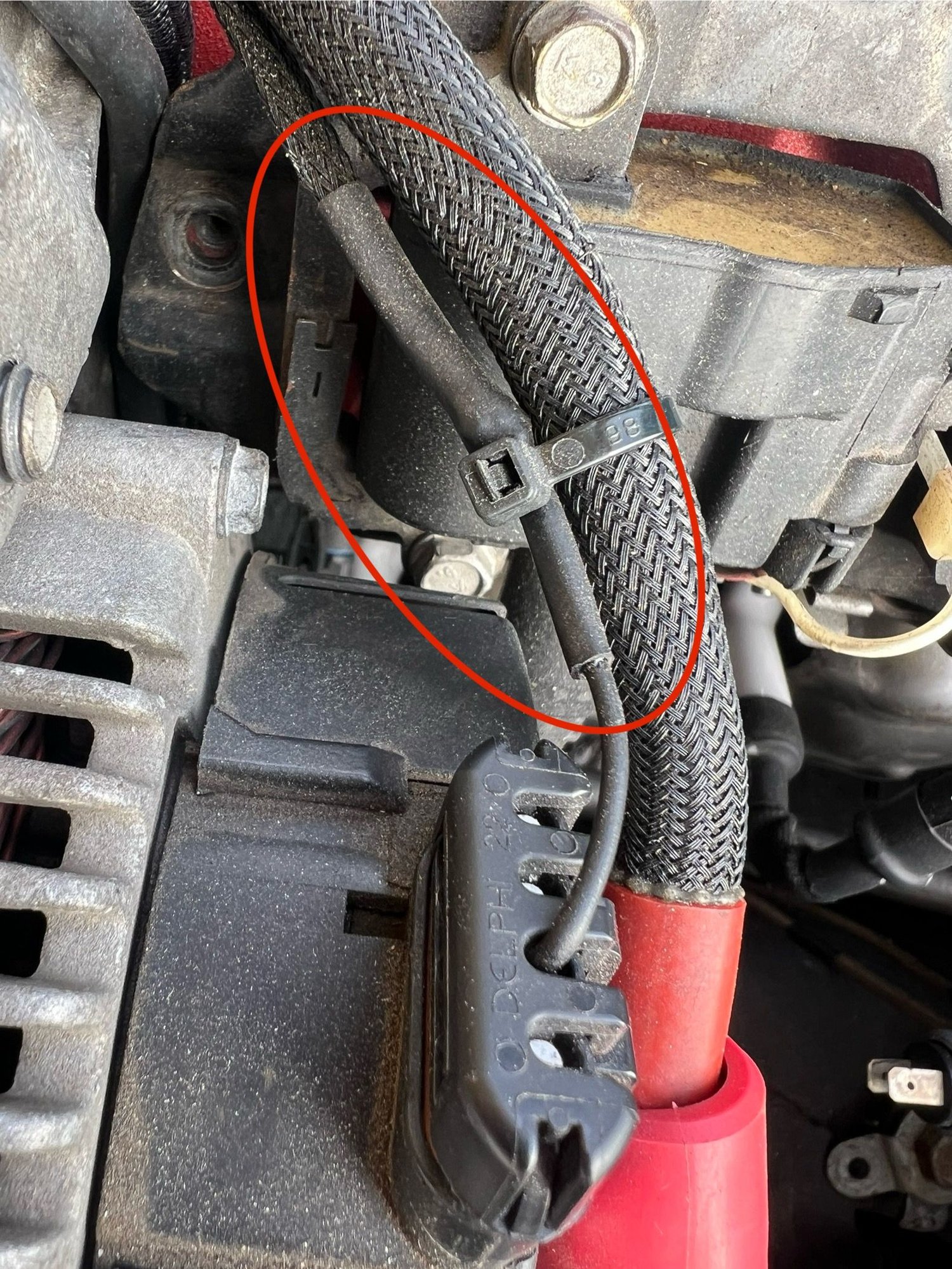

Turns out the 1-wire setup is completely normal for a standalone ECU. That one wire has a resistor built into it to control the alternator (pic attached).

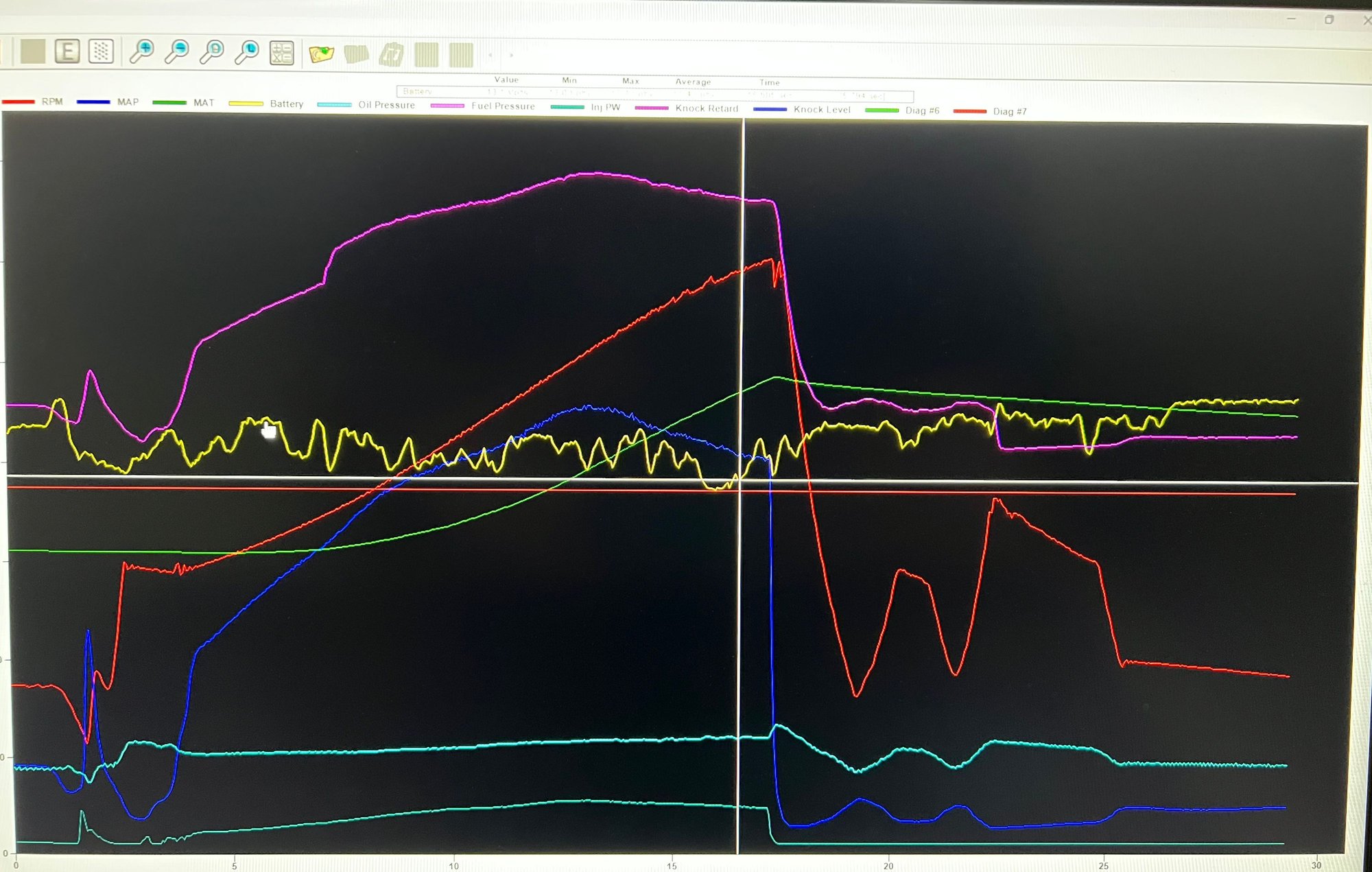

He also said I likely hit boost cut on the pull when my car shut off (we were still dialing the car in for tuning). I just checked that data log and the voltage did hold between 13.0 - 13.5v throughout the pull (attached - yellow line on graph).
Looks like I need to search for a current draw somewhere while the car is off to find the battery draining issue.
Turns out the 1-wire setup is completely normal for a standalone ECU. That one wire has a resistor built into it to control the alternator (pic attached)..
This is why it's important to have documentation for work that has been performed. Documentation is your starting point. You check that and find out what is normal. Where does my issue deviate from normal?
This is why it's important to have documentation for work that has been performed. Documentation is your starting point. You check that and find out what is normal. Where does my issue deviate from normal?
I’ve done that research. The Holley install documentation does not once mention the alternator
Cory, if I were you I'd proceed with a LOT of caution. The C5 can be mighty sensitive to electronics changes. Even alternators that are supposed to be direct replacement, plug and play units can still trip charging codes. I don't know enough to help you here. @lucky131969
Alright just got off the phone with my buddy who is extremely knowledgeable with this stuff.
Turns out the 1-wire setup is completely normal for a standalone ECU. That one wire has a resistor built into it to control the alternator (pic attached).
So they have a resistor installed to knock the voltage down from 12v to 5v for the alternator turn on signal. I'm not sure how the regulator is suppose to function properly without the B+ feedback to pin D?
Apparently there is no compensation for heavy electrical loading with the Terminator X ECU....but I guess if you have a dedicated race car and not a street car....who cares.
Many years ago, I had a 1 wire alternator on a 1985 IROC. Bought it that way. I'd never own a 1 wire again on the street. In order to charge the system, you had to rev the engine enough, around 2,500 rpm, to "excite" the alternator enough to trigger the regulator. I also think that once the regulator started charging, it kept charging continuously, at least according to the voltmeter. Until yhe engine was next shut off. One very late night, I didn't rev it high enough. The streets I was driving on were so bright that I couldn't see the headlights getting dimmer. I stopped for gas, in a not so great part of town, and the battery was so low it wouldn't crank the engine.....
Last edited by grinder11; Jan 1, 2026 at 01:39 PM.
Many years ago, I had a 1 wire alternator on a 1985 IROC. Bought it that way. I'd never own a 1 wire again on the street. In order to charge the system, you had to rev the engine enough, around 2,500 rpm, to "excite" the alternator enough to trigger the regulator. I also think that once the regulator started charging, it kept charging continuously, at least according to the voltmeter. Until yhe engine was next shut off. One very late night, I didn't rev it high enough. The streets I was driving on were so bright that I couldn't see the headlights getting dimmer. I stopped for gas, in a not so great part of town, and the battery was so low it wouldn't crank the engine.....
I’m assuming the only wire you had was the thick positive cable on the alternator terminal?
I’m assuming the only wire you had was the thick positive cable on the alternator terminal?
I don't remember, tbh. But I would think it would've had more than just the + cable. As I said, I bought it that way, but I do remember someone else saying it was a single wire alternator.....
Many years ago, I had a 1 wire alternator on a 1985 IROC. Bought it that way. I'd never own a 1 wire again on the street. In order to charge the system, you had to rev the engine enough, around 2,500 rpm, to "excite" the alternator enough to trigger the regulator. I also think that once the regulator started charging, it kept charging continuously, at least according to the voltmeter. Until yhe engine was next shut off. One very late night, I didn't rev it high enough. The streets I was driving on were so bright that I couldn't see the headlights getting dimmer. I stopped for gas, in a not so great part of town, and the battery was so low it wouldn't crank the engine.....
Ok, but that is not normal operation and your car had an issue with the charging system. If your IROC was stock, it should have had 3 wires to the alternator .....one routed to battery, and two wires in a connector for the regulator.
Ok, but that is not normal operation and your car had an issue with the charging system. If your IROC was stock, it should have had 3 wires to the alternator .....one routed to battery, and two wires in a connector for the regulator.
I’ve been non-stop researching this topic since before I posted. I wouldn’t call myself an expert by any means yet, but I’ve learned quite a bit.
The 1-wire alternators are self-regulated and do only use the one thick positive cable. Apparently a lot of them require higher RPM to start charging (1,200+ rpm). That said, those alternators rely on the “leftover” magnetic field to excite themselves, so if the car sits for several months, and that magnetic field has faded, the alternator may not work at all unless you manually excite it by jumping one of the capped/covered terminals to the positive lug.
All of that aside, my alternator is not a 1-wire alternator.
I’ve been non-stop researching this topic since before I posted. I wouldn’t call myself an expert by any means yet, but I’ve learned quite a bit.
The 1-wire alternators are self-regulated and do only use the one thick positive cable. Apparently a lot of them require higher RPM to start charging (1,200+ rpm). That said, those alternators rely on the “leftover” magnetic field to excite themselves, so if the car sits for several months, and that magnetic field has faded, the alternator may not work at all unless you manually excite it by jumping one of the capped/covered terminals to the positive lug.
All of that aside, my alternator is not a 1-wire alternator.
Apparently my exact symptoms (Holley reset & poor charging) are not uncommon with standalone Holley setups.
I need to add a wire from my alternator’s S-terminal to the power distribution block or to the alternator’s positive lug. Either will work, but it’s recommended to use the distribution block since that’s where the voltage drop will occur during higher load demands. The S-terminal gives the alternator’s internal regulator a reference as to how much voltage the vehicle has. Without that signal, the regulator guesses.
An additional recommendation is to add a wire from the alternator’s I-terminal to a switched 12v source. This tells the regulator what a stable 12v source is supposed to look like, in real time. The alternator’s regulator becomes more proactive if it has the I-terminal reference, rather than the regulator waiting for voltage at the S-terminal to drop.
I hope that makes sense. And I hope it works.
_______________________________________

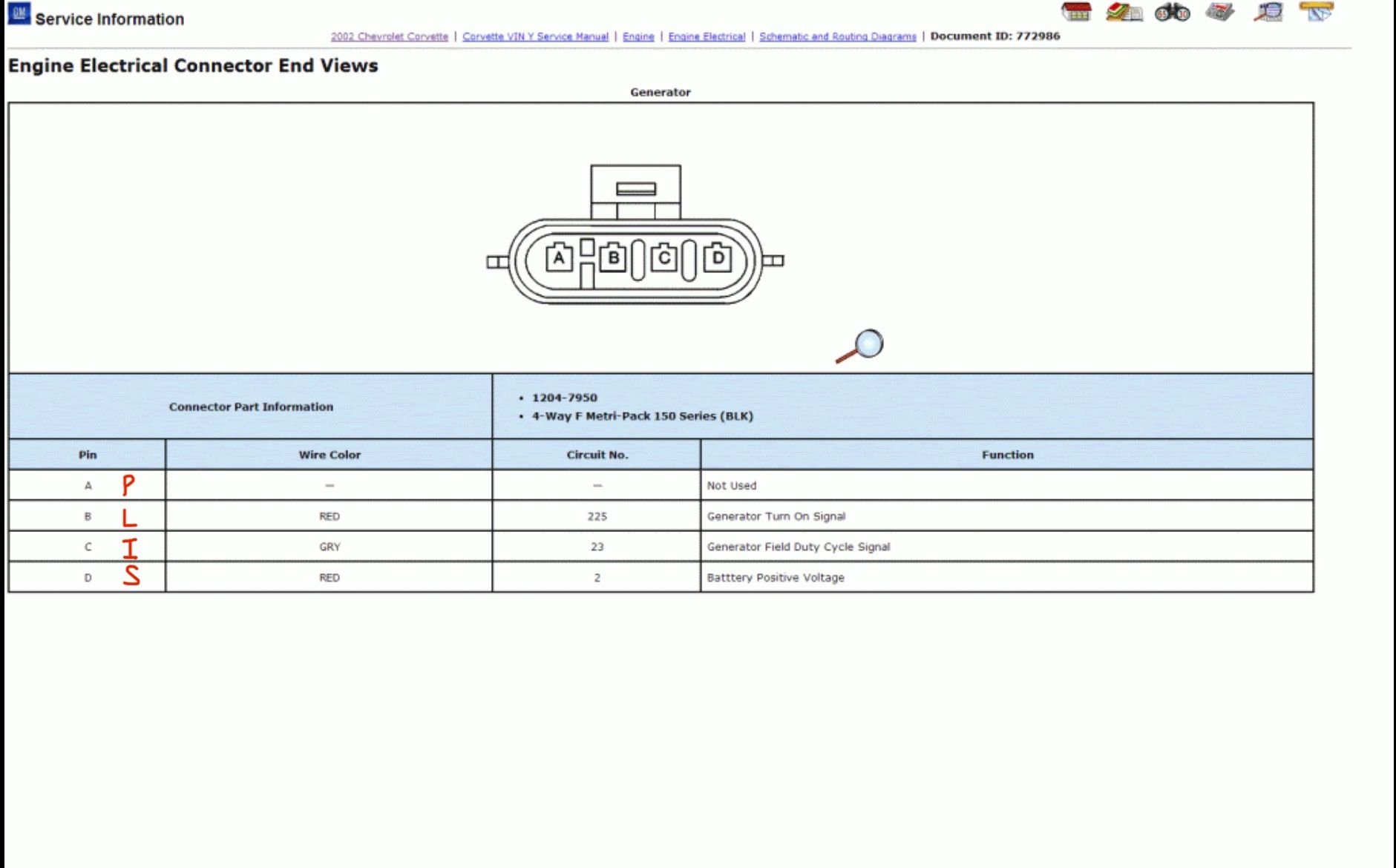

In summary…
P-terminal: not used
L-terminal (required): to switched 12v source with a 470-560 ohm resistor in that wire.
I also read that the 12v source for the L-terminal should NOT be from the Holley ECU as the alternator can back-feed voltage and cause a Holley shutdown. Supposedly this is exactly why their harness doesn’t come with an alternator connection on it already - they don’t want their ECU to get cooked. I called Holley to verify this is true.
I-terminal (recommended): to switched 12v source (this needs to be a separate wire from L but can terminate at a shared 12v source)
S-terminal (required): to battery positive, battery distribution lug, or alternator positive output lug.
Last edited by Cory51191; Jan 2, 2026 at 09:25 AM.
Apparently my exact symptoms (Holley reset & poor charging) are not uncommon with standalone Holley setups.
I need to add a wire from my alternator’s S-terminal to the power distribution block or to the alternator’s positive lug. Either will work, but it’s recommended to use the distribution block since that’s where the voltage drop will occur during higher load demands. The S-terminal gives the alternator’s internal regulator a reference as to how much voltage the vehicle has. Without that signal, the regulator guesses.
An additional recommendation is to add a wire from the alternator’s I-terminal to a switched 12v source. This tells the regulator what a stable 12v source is supposed to look like, in real time. The alternator’s regulator becomes more proactive if it has the I-terminal reference, rather than the regulator waiting for voltage at the S-terminal to drop.
I hope that makes sense. And I hope it works.
_______________________________________
In summary…
P-terminal: not used
L-terminal (required): to switched 12v source with a 470-560 ohm resistor in that wire.
I also read that the 12v source for the L-terminal should NOT be from the Holley ECU as the alternator can back-feed voltage and cause a Holley shutdown. Supposedly this is exactly why their harness doesn’t come with an alternator connection on it already - they don’t want their ECU to get cooked. I’ll need to call Holley to verify this and will update this post after I talk to them.
I-terminal (recommended): to switched 12v source (this needs to be a separate wire from L but can terminate at a shared 12v source)
S-terminal (required): to battery positive, battery distribution lug, or alternator positive output lug.
Ummm...not quite.....also provided feedback in post# 9.
The "L" terminal on most alternators is for the charging light to warning you of a problem. The circuit is an output to the warning light.....NOT.....and input from a switched ignition source. The similar circuit on a C5 is an output from "C" on the alternator connector to the PCM...which is sounds like your PCM was completely removed, so monitoring the field is no longer possible.
There is no "I" terminal for a C5 alternator.....althought a 12v ignition source is used for the alternator that Grinder described on his IROC.
The "S" terminal as you described is a B+ input from the battery to the alternator. This would connect at "D" of the C5 alternator connector. This connection is missing on your car based on the pics you posted.

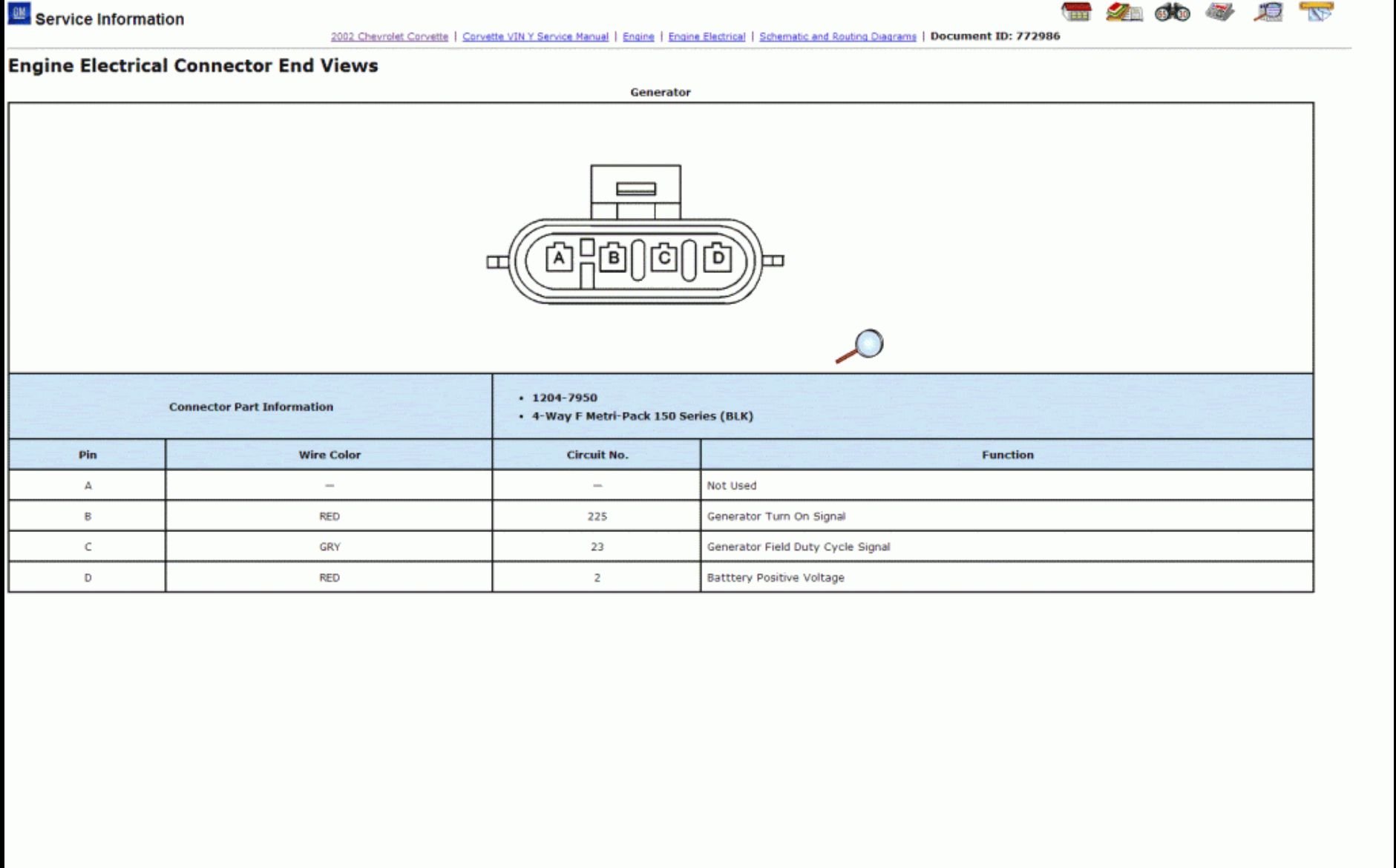

The generator turn on signal (5v for a C5) should be connected at the alternator connector "B". From what I can see in the post pics, they have this connected correctly.....assuming that you are getting 5v ....and we assume there is a resistor installed under the heat shrink.
So at the alternator, you should have 2 separate red wires (for those of us that care about convention ) from the starter battery terminal (fusible links). ......I would inspect this closely at the starter.....based on what they did, I wonder if they put the fusible links back in.
So at your alternator you should have.......
Alternator Terminal post - Large red wire
Alternator connector "D" - Small red wire B+
Alternator connector "B" - Small red wire 5v (looks like this is a black wire now)
Alternator connector "C" - Nothing because the PCM has been removed and the terminator X does not monitor duty cycle
Ummm...not quite.....also provided feedback in post# 9.
The "L" terminal on most alternators is for the charging light to warning you of a problem. The circuit is an output to the warning light.....NOT.....and input from a switched ignition source. The similar circuit on a C5 is an output from "C" on the alternator connector to the PCM...which is sounds like your PCM was completely removed, so monitoring the field is no longer possible.
There is no "I" terminal for a C5 alternator.....althought a 12v ignition source is used for the alternator that Grinder described on his IROC.
The "S" terminal as you described is a B+ input from the battery to the alternator. This would connect at "D" of the C5 alternator connector. This connection is missing on your car based on the pics you posted.
The generator turn on signal (5v for a C5) should be connected at the alternator connector "B". From what I can see in the post pics, they have this connected correctly.....assuming that you are getting 5v ....and we assume there is a resistor installed under the heat shrink.
So at the alternator, you should have 2 separate red wires (for those of us that care about convention ) from the starter battery terminal (fusible links). ......I would inspect this closely at the starter.....based on what they did, I wonder if they put the fusible links back in.
So at your alternator you should have.......
Alternator Terminal post - Large red wire
Alternator connector "D" - Small red wire B+
Alternator connector "B" - Small red wire 5v (looks like this is a black wire now)
Alternator connector "C" - Nothing because the PCM has been removed and the terminator X does not monitor duty cycle
Fair enough. No I-terminal. There’s too much conflicting info with standalone LS swaps because they’re all Frankenstein’d with who knows what alternator. That’s exactly why I’m here though - hopefully a clear picture can be painted because I have found so much contradicting information.
Technically the L-terminal is receiving a voltage signal, which tells the alternator to wake up. There’s usually the voltage fault/lamp indicator in-line. Since I no longer have that, L is just a signal to the alternator in my case.
So is what I thought of as I-terminal technically called F-terminal? Something else?
Last edited by Cory51191; Jan 2, 2026 at 09:09 AM.
The generator provides voltage to operate the vehicle's electrical system and to charge its battery. A magnetic field is created when current flows through the rotor. This field rotates as the rotor is driven by the engine, creating an AC voltage in the stator windings. The AC voltage is converted to DC by the rectifier bridge and is supplied to the electrical system at the battery terminal.
When the engine is running, the generator turn-on signal is sent to the generator from the PCM, turning on the regulator. The generator's voltage regulator controls current to the rotor, thereby controlling the output voltage. The rotor current is proportional to the electrical pulse width supplied by the regulator. When the engine is started, the regulator senses generator rotation by detecting AC voltage at the stator through an internal wire. Once the engine is running, the regulator varies the field current by controlling the pulse width. This regulates the generator output voltage for proper battery charging and electrical system operation. The generator F terminal is connected internally to the voltage regulator and externally to the PCM. When the voltage regulator detects a charging system problem, it grounds this circuit to signal the PCM that a problem exists. The PCM monitors the generator field duty cycle signal circuit. The system voltage sense circuit receives B+ voltage that is Hot At All Times through a fuse link that is connedted to the starter.. This voltage is used by the regulator as the reference for system voltage control.
The generator provides voltage to operate the vehicle's electrical system and to charge its battery. A magnetic field is created when current flows through the rotor. This field rotates as the rotor is driven by the engine, creating an AC voltage in the stator windings. The AC voltage is converted to DC by the rectifier bridge and is supplied to the electrical system at the battery terminal.
When the engine is running, the generator turn-on signal is sent to the generator from the PCM, turning on the regulator. The generator's voltage regulator controls current to the rotor, thereby controlling the output voltage. The rotor current is proportional to the electrical pulse width supplied by the regulator. When the engine is started, the regulator senses generator rotation by detecting AC voltage at the stator through an internal wire. Once the engine is running, the regulator varies the field current by controlling the pulse width. This regulates the generator output voltage for proper battery charging and electrical system operation. The generator F terminal is connected internally to the voltage regulator and externally to the PCM. When the voltage regulator detects a charging system problem, it grounds this circuit to signal the PCM that a problem exists. The PCM monitors the generator field duty cycle signal circuit. The system voltage sense circuit receives B+ voltage that is Hot At All Times through a fuse link that is connedted to the starter.. This voltage is used by the regulator as the reference for system voltage control.
It’s literally called “F terminal” in the circuit description you provided.
Generator/Alternator wiring issue?
) from the starter battery terminal (fusible links). ......I would inspect this closely at the starter.....based on what they did, I wonder if they put the fusible links back in.
