Manual wiring harness part number
Thread Starter
Intermediate
Joined: Apr 2024
Posts: 40
Likes: 1
Manual wiring harness part number
Hi all, was wondering if anyone here happens to know what the part number is for a 1997-1998 manual rear ABS non f45 transmission harness is? Wasn't able to find definitive answers online, thanks
Thread Starter
Intermediate
Joined: Apr 2024
Posts: 40
Likes: 1
i have, but im getting a bit of conflicting information here is the info i got from the PDF manual:
REAR ABS:
97 EXC F45 12163196
97 F45 12163706
98 (EXC F45, JAG, VD1) 12163196
98 F45, (EXC JAG, VD1) 12163706
98 F45, VD1 (EXC JAG) (EXPORT) 12189908
98 VD1 (EXC F45, JAG) (EXPORT) 12189909
but i am also seeing 12189908 and 12189909 as front mounted ABS harnesses (i need rear). also whats the difference in the harness between a export and non export (CODE VD1)
REAR ABS:
97 EXC F45 12163196
97 F45 12163706
98 (EXC F45, JAG, VD1) 12163196
98 F45, (EXC JAG, VD1) 12163706
98 F45, VD1 (EXC JAG) (EXPORT) 12189908
98 VD1 (EXC F45, JAG) (EXPORT) 12189909
but i am also seeing 12189908 and 12189909 as front mounted ABS harnesses (i need rear). also whats the difference in the harness between a export and non export (CODE VD1)
Safety Car
Joined: Mar 2017
Posts: 3,749
Likes: 932
From: Orlando Florida

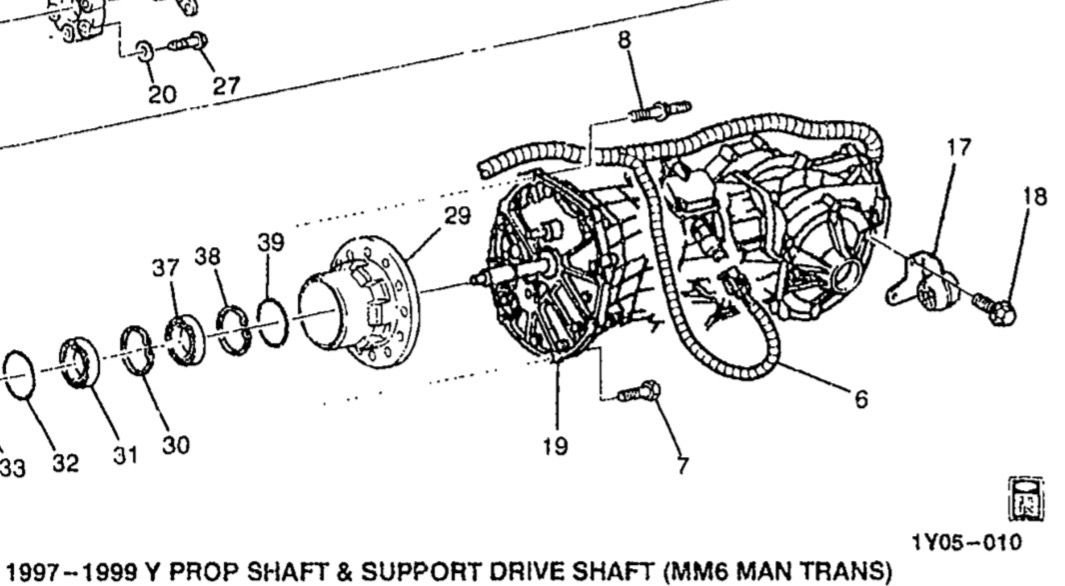

Hopefully others will chime in with more knowledge, but the way I read it, if it’s a ‘97 then it’s 12163916, since all ‘97s have rear mount EBCM, and no export models. If it’s an early ‘98 non-export it’s 12163791, and an export early ‘98 would be 12189913 (export harnesses listed at the end of the item 6 column).
Thread Starter
Intermediate
Joined: Apr 2024
Posts: 40
Likes: 1
Hopefully others will chime in with more knowledge, but the way I read it, if it’s a ‘97 then it’s 12163916, since all ‘97s have rear mount EBCM, and no export models. If it’s an early ‘98 non-export it’s 12163791, and an export early ‘98 would be 12189913 (export harnesses listed at the end of the item 6 column).
Running Guns & Moonshine
Joined: Aug 2001
Posts: 12,313
Likes: 7,033
From: CT
They run the same as far as the car is concerned. Without an F45 computer in the trunk it is not going to load the settings into the ebcm and the harness works as normal. Feel free to cut and cap the unused F45 wires.
Safety Car
Joined: Mar 2017
Posts: 3,749
Likes: 932
From: Orlando Florida
But the 12189909 is an (EXC F45, JAG) (EXPORT), which indicates it doesn’t have provisions for the rear mount ABS.
Running Guns & Moonshine
Joined: Aug 2001
Posts: 12,313
Likes: 7,033
From: CT
I missed the requirement of rear abs.
Another option here would be to get any other harness as stated if that is the need, and then wire or make a separate harness line for the Abs unit.
Another option here would be to get any other harness as stated if that is the need, and then wire or make a separate harness line for the Abs unit.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
10 Most Common Corvette Problems of the Last 20 Years!
Joe Kucinski
5 MOST and 5 LEAST Popular Corvette Model Years in History!
Joe Kucinski
2027 Corvette Buyer's Guide: Everything You Need to Know!
Joe Kucinski
10 Things C8 Corvette Owners Hate (But Won't Tell You)
Joe Kucinski
10 Best Corvettes Coming to Barrett-Jackson Palm Beach 2026!
Brett Foote
Every Corvette Grand Sport Explained! (C2, C4, C6, C7, & C8)
Joe Kucinski
Grand Sport & Grand Sport X Launch Alongside All-New 535hp LS6 V8!
Michael S. Palmer
5 Reasons Bad Drivers Crash & 5 Ways to Avoid a Costly Mistake!
Joe Kucinski
7 Bolt-On Upgrades From Extreme Online Store to Level Up Your C6 Corvette
Pouria Savadkouei
Thread Starter
Intermediate
Joined: Apr 2024
Posts: 40
Likes: 1
Tech Contributor
Joined: Jan 2007
Posts: 19,239
Likes: 1,091
From: Dyer, IN
Thread Starter
Intermediate
Joined: Apr 2024
Posts: 40
Likes: 1

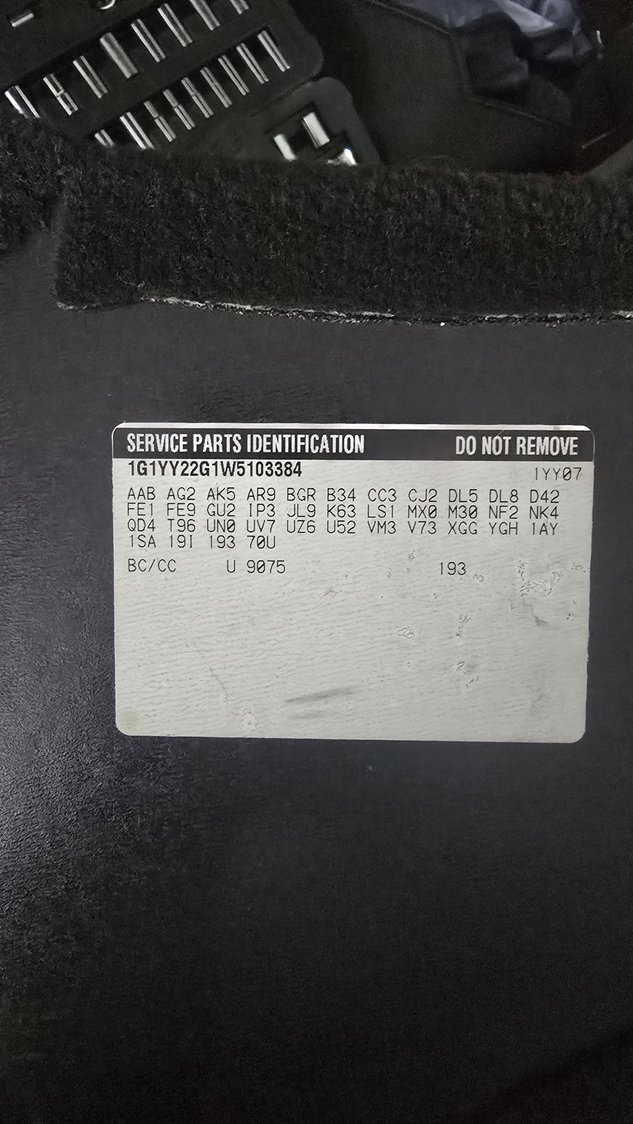

JAG isn't listed, it looks to be JAG just refers to the ABS module being mounted in the front, EXC JAG just seems to mean its mounted in the rear. 97 all were mounted in the rear and the RPO codes in the manual dont specify that its a EXC JAG then though it technically is. Still trying to figure out if p/n 12189909 will be a suitable replacement for 12163196 (manual transmission harness) both seem to be identical besides 12189909 is for European export (VD1) i cant see why their would be a difference but in saying that why have 2 different part numbers, any idea?
